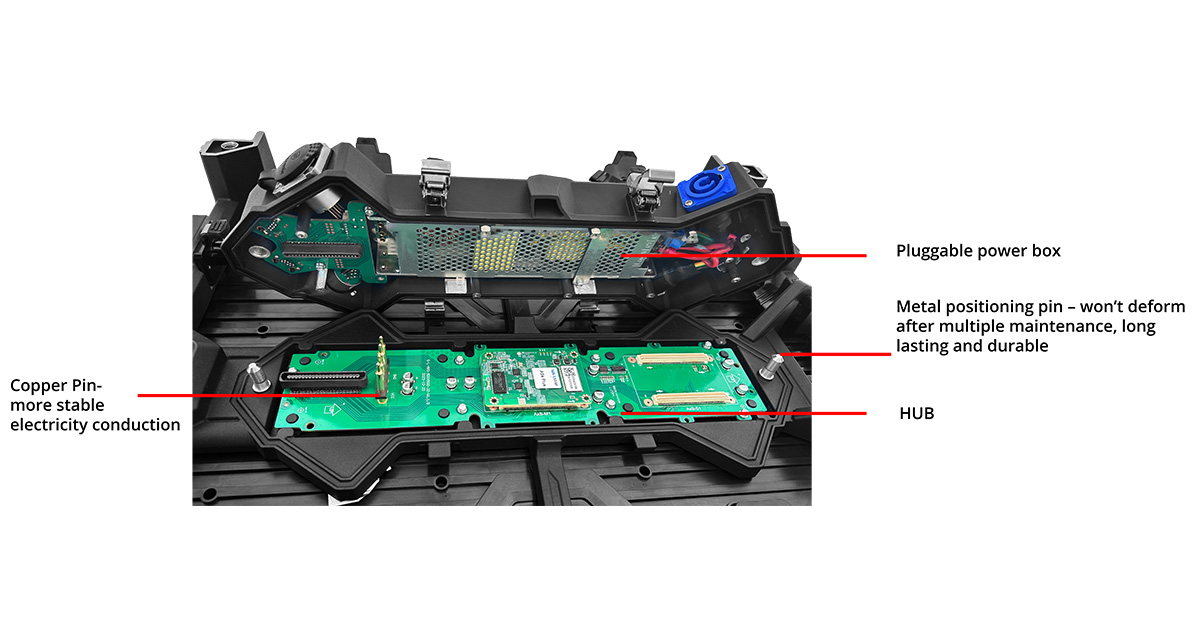

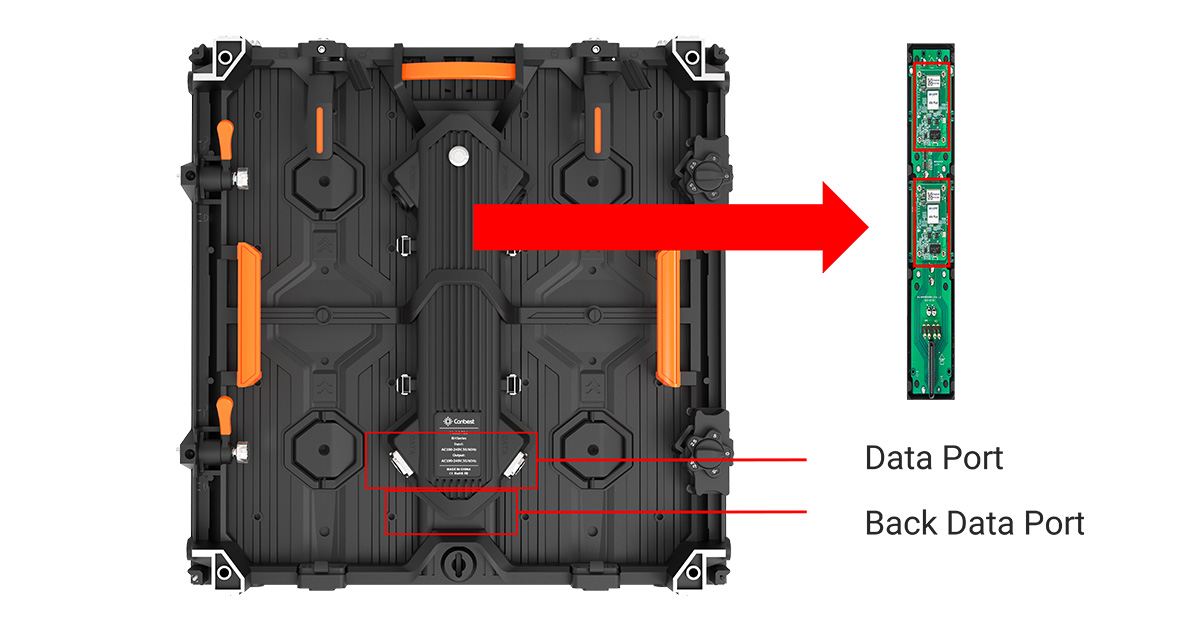

integrating connector to provide power and data to the cabinets through the spine of the screen from the header or footer bar, quick operation and fast replacement.
customers can get continuous operation and reduce screen failures, providing users with comfort.

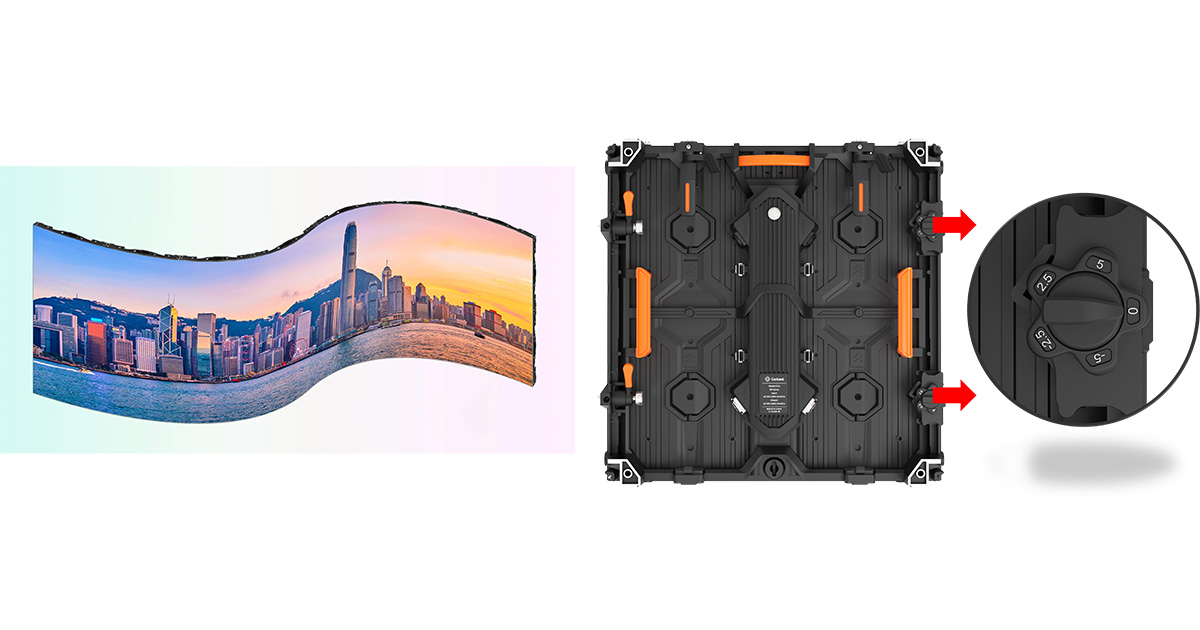

K series panels offer efficient curving capabilities in convex as well as concave set-ups, varying from -10° to 15° degree angles, giving you creative freedom.

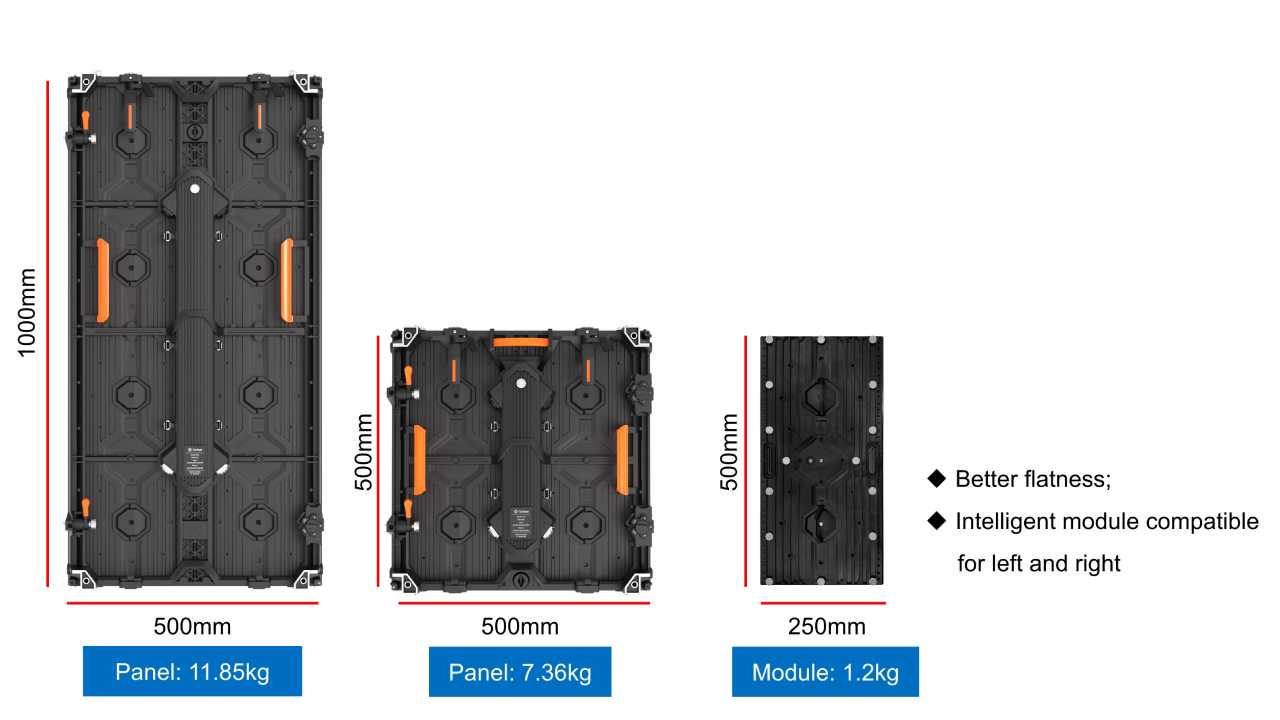

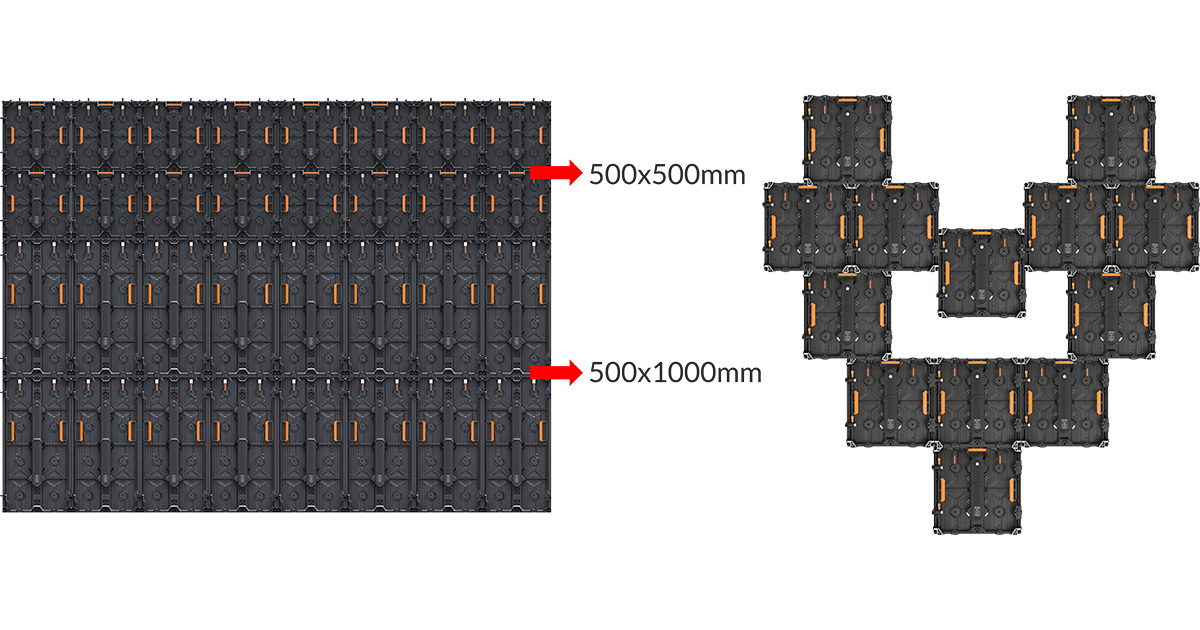

500x500mm and 500x1000mm cabinets can be easily spliced up and down, greatly satisfy different location usage
| Model | K191 | K261 | K291 | K391 |
| Pixel pitch (mm) | 1.953mm | 2.604mm | 2.9mm | 3.91mm |
| Configurations | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Module size(mm) | 500*250 | 500*250 | 500*250 | 500*250 |
| Cabinet size(mm) | 500x500x80 | 500x500 | 100x500x80 | ||
| Cabinet material | Die casting aluminum | |||
| Scanning | 1/32 | 1/32 | 1/28 | 1/32 |
| Greyscale | 14bit | 14bit | 14bit | 14bit |
| Refresh rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Brightness | 700~800nits | 700~800nits | 700~800nits | 800~1000nits |
| Viewing angle | ≥140°/≥120° | ≥140°/≥120° | ≥140°/≥120° | ≥140°/≥120° |
| Max. Power consumption (W/㎡) | 650 | 650 | 650 | 650 |
| Ave. Power consumption (W/㎡) | 200 | 200 | 200 | 200 |
| Installation/maintenance type | front & rear | front & rear | front & rear | front & rear |
