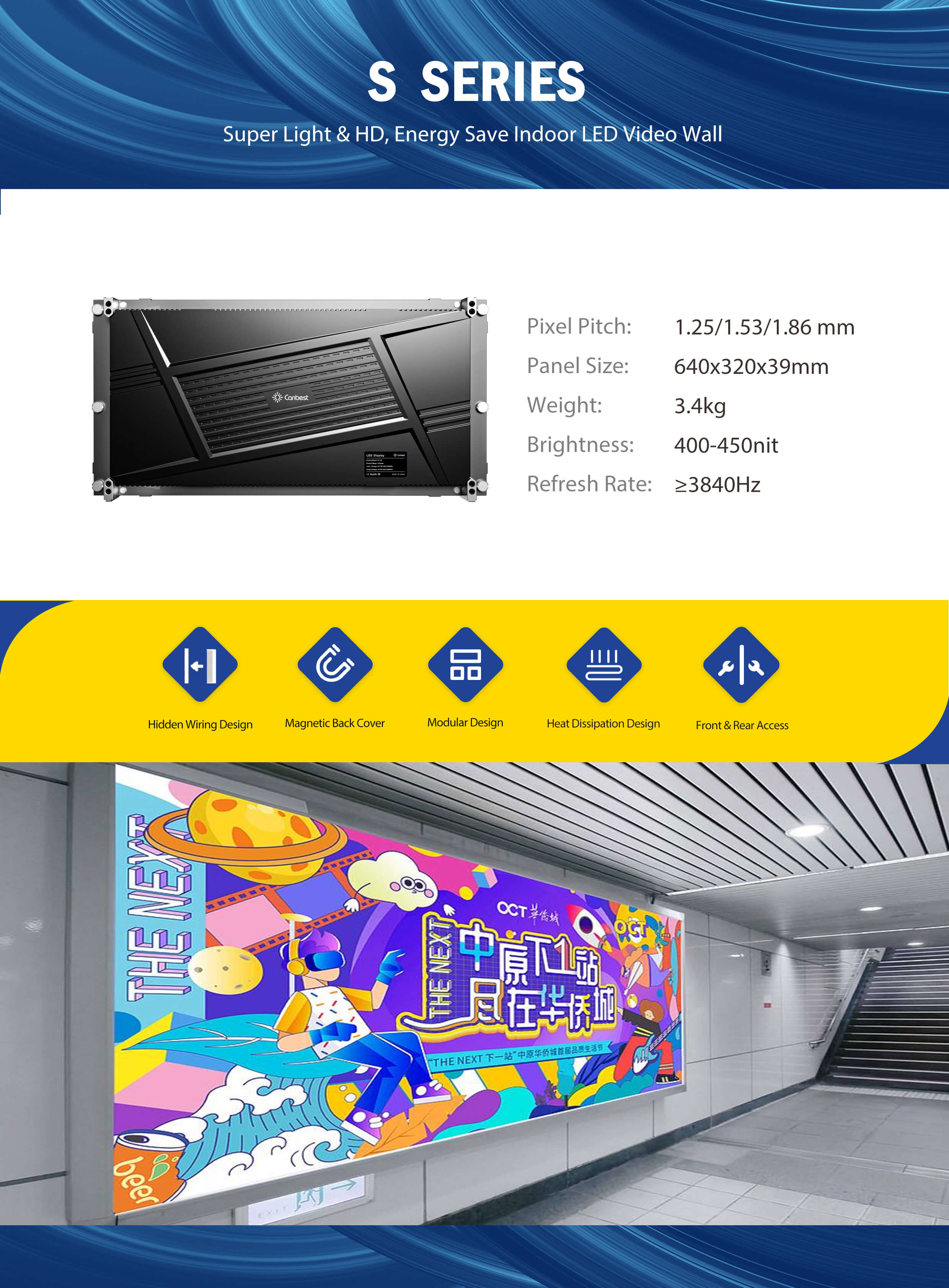

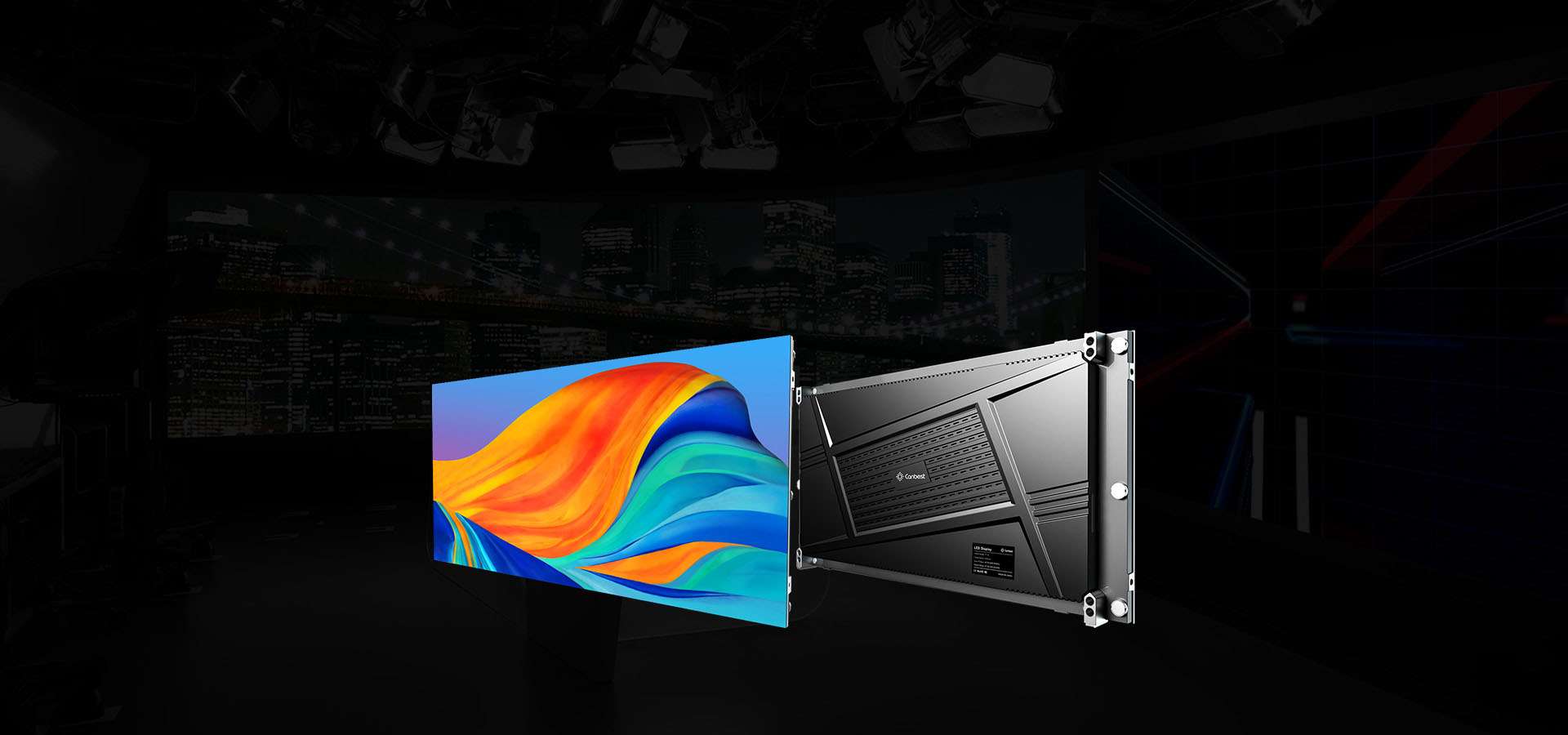

Super Light & HD, Energy Save Indoor LED Video Wall


VIDEO

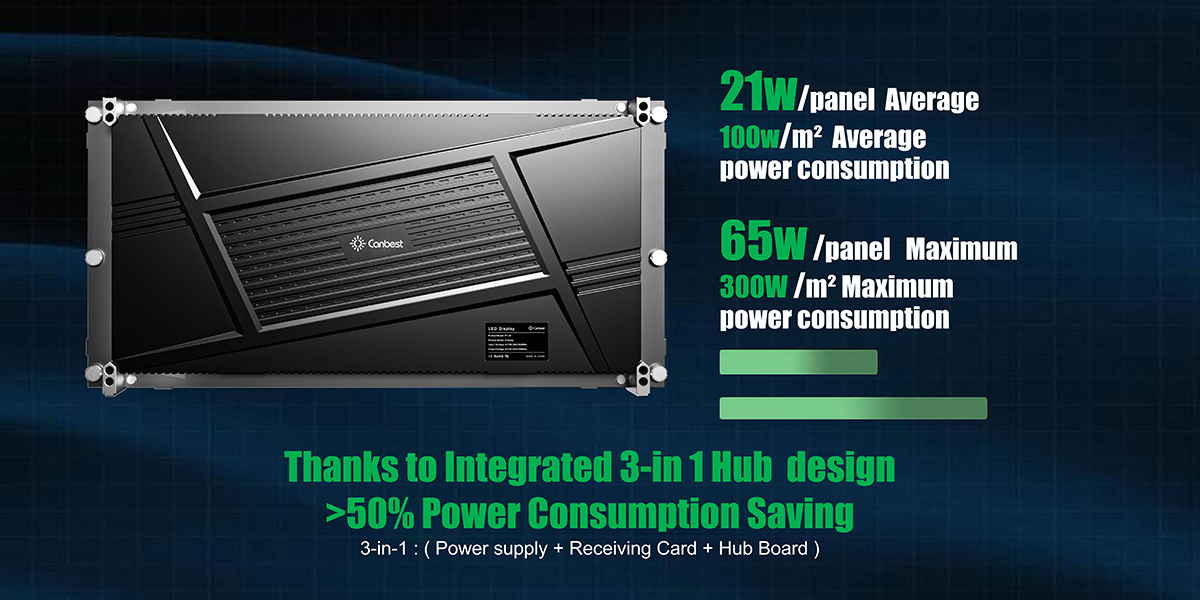

Over 50% Power Consumption Saving

S Series
Three-in-one Integrated HUB Front & Rear Access



S Series

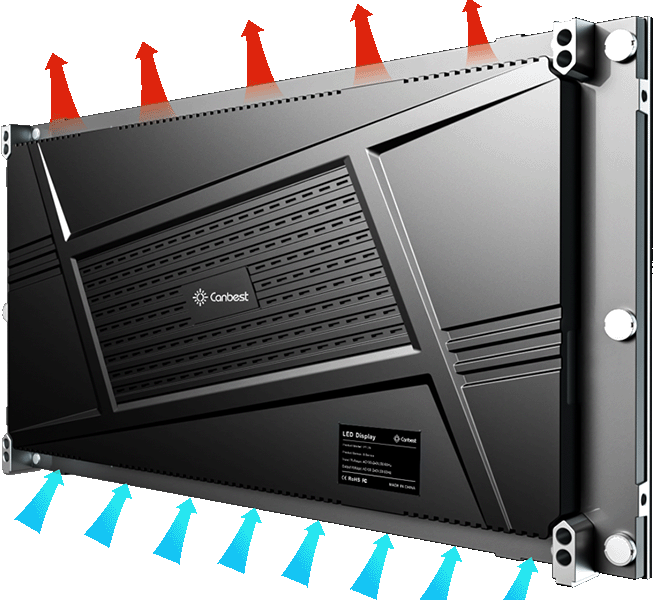

Magnetic Back Cover & Heat Dissipation Design

Fixed Strong Magnetic & Ventilation Hole Design for Faster and More Uniform Heat Dissipation



S Series

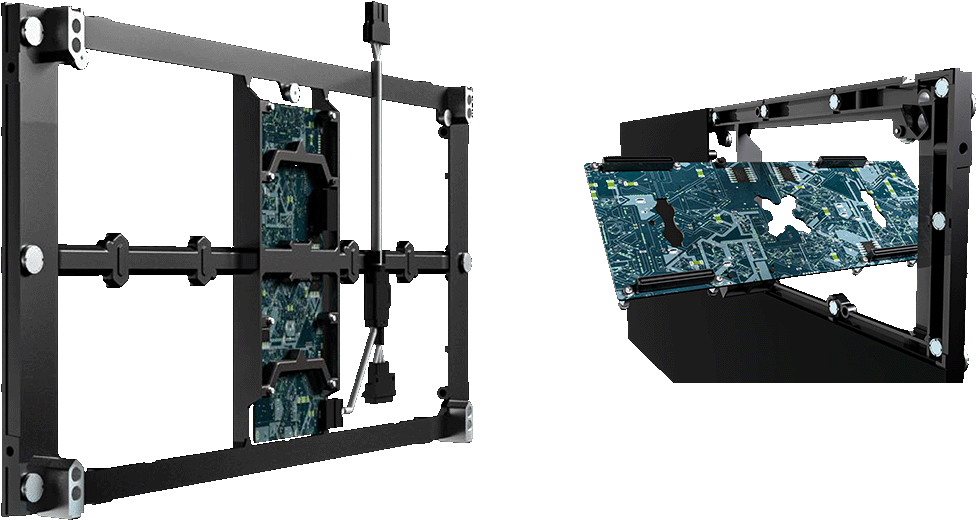

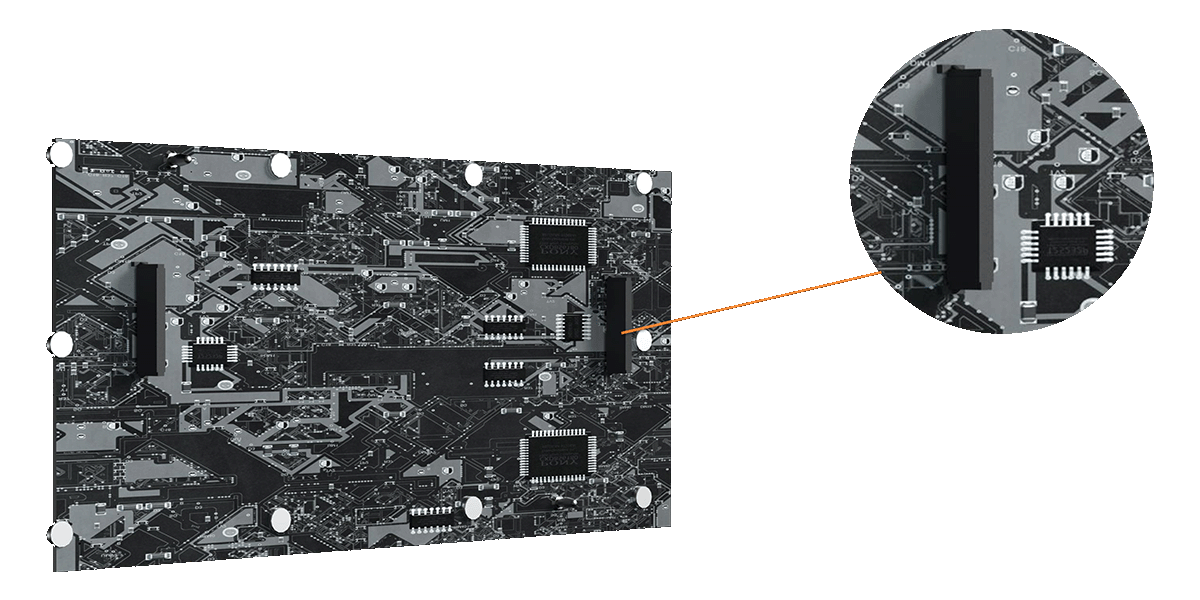

Hard -pin Connected Modules

Interchangeable Left and Right & Enable Quick Module Install and Replacement

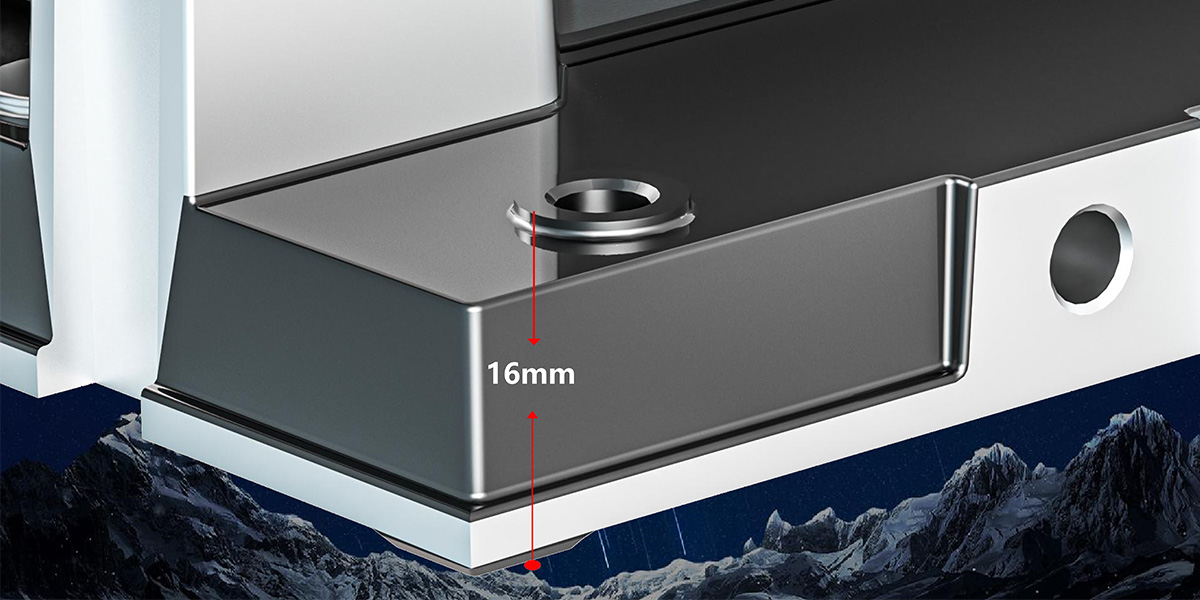

16mm Thinnest Part of The Cabinet
Canbest One-stop LED Screen Solution Provider

ISO9001 Quality Management System Certificate& ISO14001 Certificate, Products All with CCC, CE, FCC, Rohs, etc. Certificate for Global Market.



SPECIFICATIONS
Model S121 S151 S181
Pixel Pitch (mm) 1.25mm 1.53mm 1.86mm
Configurations SMD1010 SMD1212 SMD1515
Pixel Density( /m²) 640000 423345 290063
Module Size(mm) 320*160mm
Refresh Rate(hz) ≥3840Hz
Cabinet Size(mm) 640x320mm
Greyscale 12-14bit
Input Power 100-240 VAC
Cabinet Material Die Casting Aluminum
Brightness (nits) 400nit 450nit 450nit
Viewing Angle 160°/140°
Max. Power Consumption (W/㎡) 300 W/㎡
Ave. Power Consumption (W/㎡) 100 W/㎡
Maintenance Type Stack ,Wall Mount / Totally Front & Rear Access
Note: For more product materials, please contact us directly.

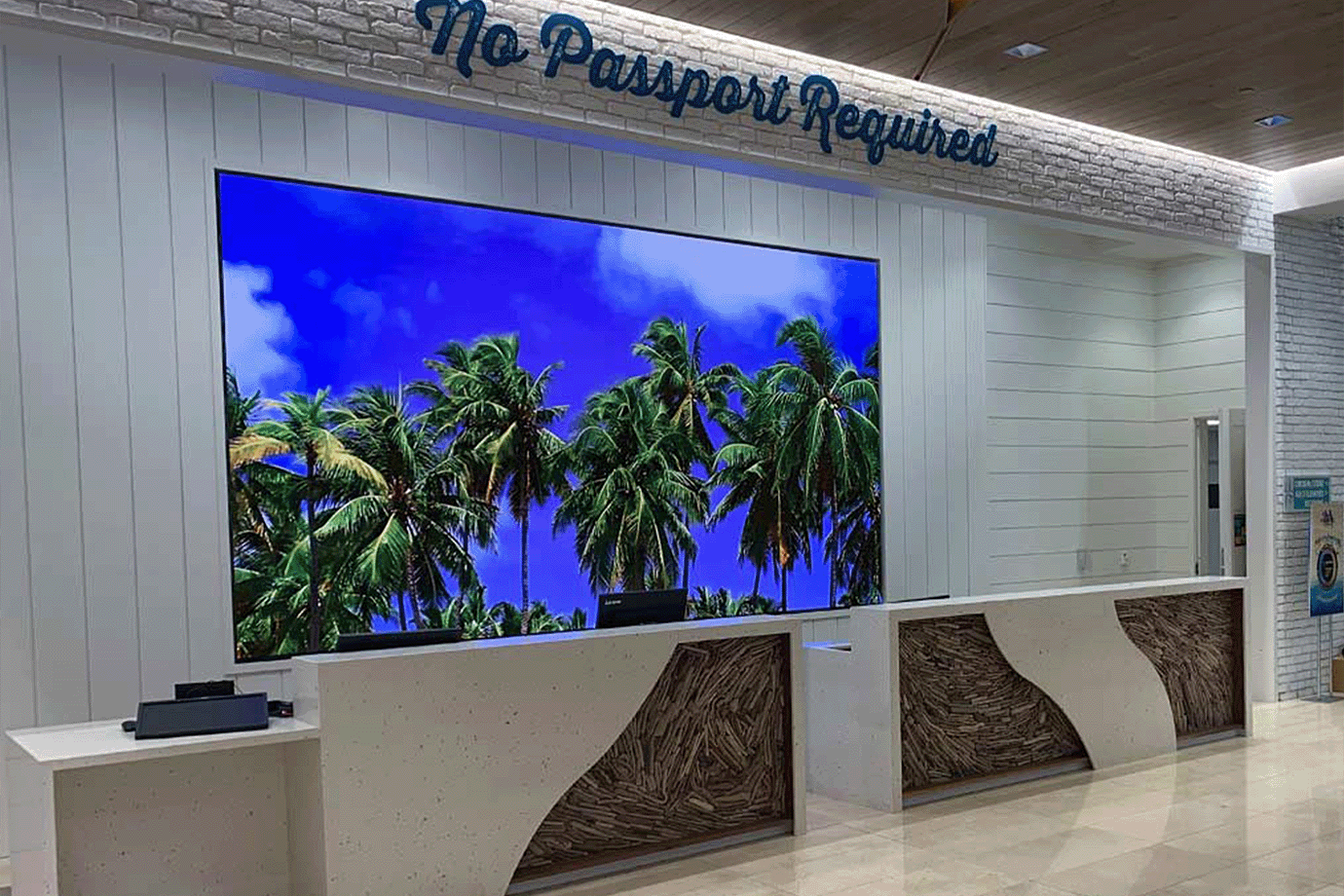

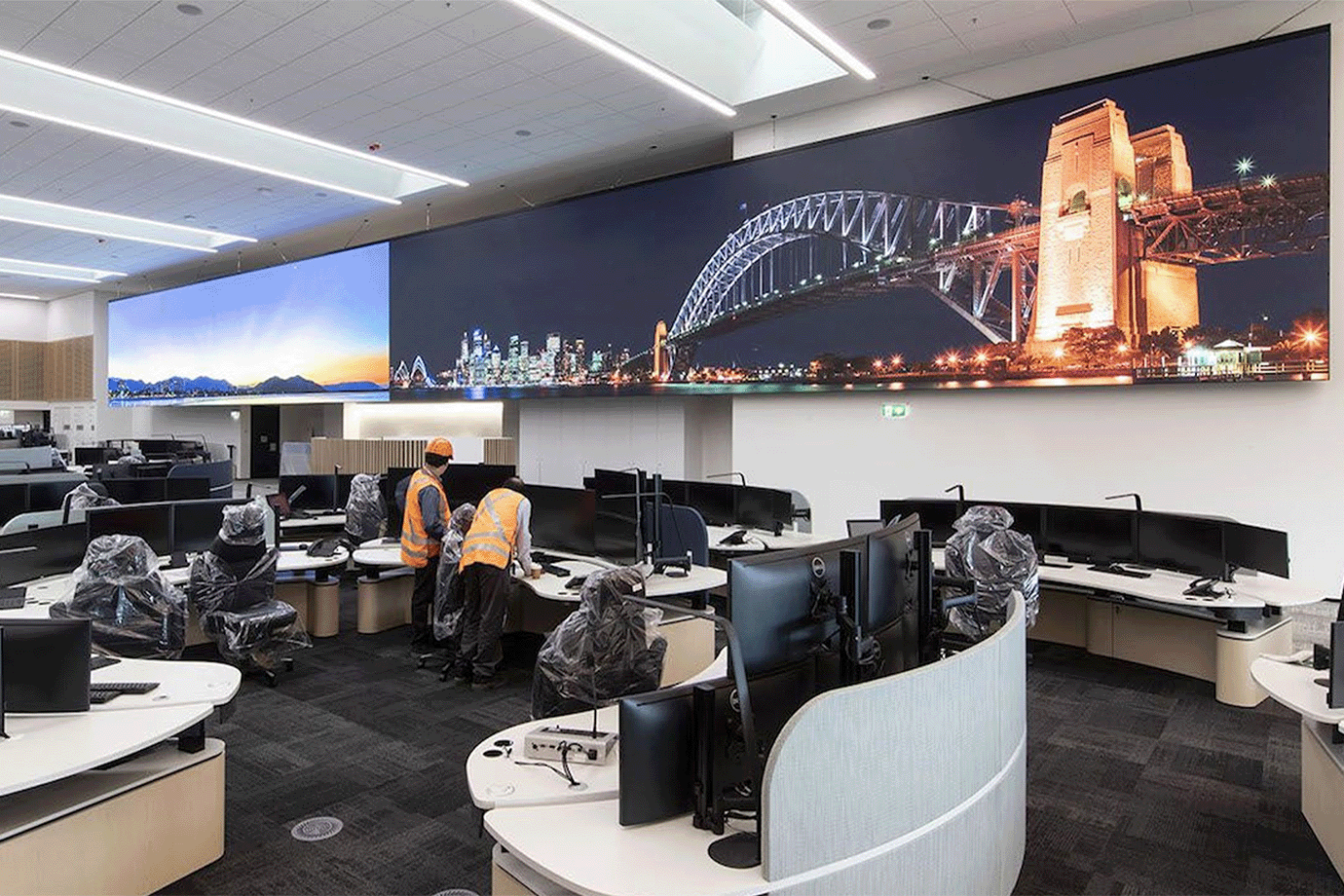

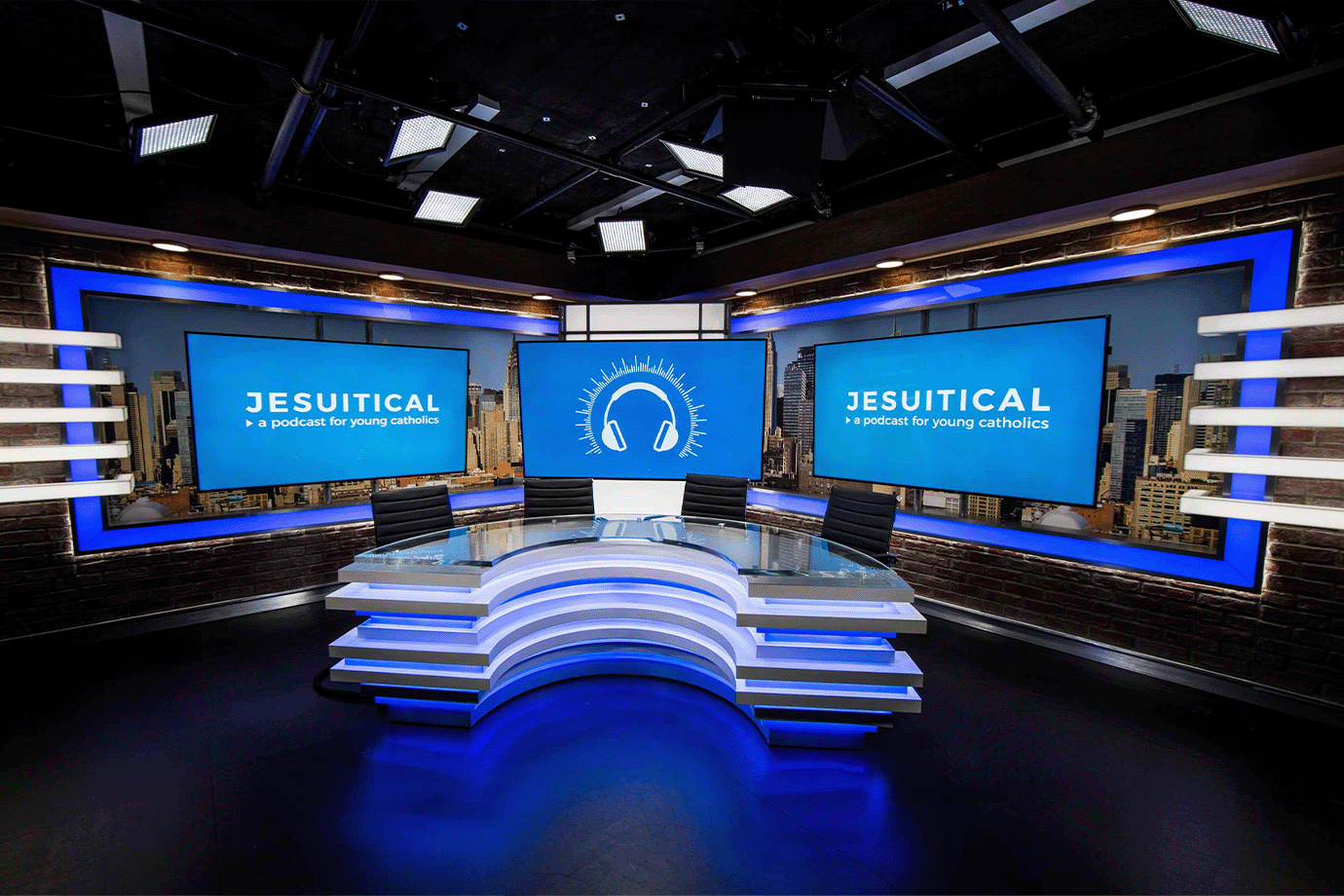

PRODUCT CASE
