LDF Series

LDF Series

Outdoor Iron Cabinet Interactive LED Dance Floor


VIDEO

Real-time Interactive with Multi-point Touch

Built-in interactive system and unlimited by interaction points ; Super sensitive and responsive, only 0.02s delay in interactive effect, delivering strong visual impact, providing audience a truly amazing and unforgettable experience and greatly improving their engagement

LDF Series
Super Load-bearing Performance

Featured with the reinforcement for whole back to distribute the force on the surface, working with galvanized floor support, its loading capacity is over 3T/sqm,   can support walking and jumping crowds which makes it an ideal solution for stage shows, museums, venues, etc.

LDF Series
High Brightness

With high brightness LEDs, the brightness can reach 3500nits-4500nits, also high-transmittance plate on the surface of the module, make sure the contents can be seen clearly

LDF Series
Excellent Heat Dissipation & Super Sound-off

Special heat dissipation device design, low noise, fast heat dissipation, guaranteeing the tiles work stable

Recommended Installation Type
Flexible Interactive Contents

30 sets FREE interactive contents included , another 120 sets optional; we can do customized contents based on your request, even accept your own contents. .

SPECIFICATIONS
Model LDF390 LDF620
Pixel Pitch (mm) 3.91mm 6.25mm
Brightness(nits) 3500-4000nits 4000-4500nits
Refresh Rate(hz) ≥3840 ≥3840
Cabinet Size(mm) 500*500*68
500*1000*80
500*500*68
500*1000*80
Cabinet Material Iron Iron
Power Consumption(Max/Aver.)w/㎡ 600/1200 600/1200
Cabinet Resolution Pixels 128*128
128*256
80*80
80*160
Pixel Density Pixels(㎡) 65410 25600
Maintenance Type Front  Front

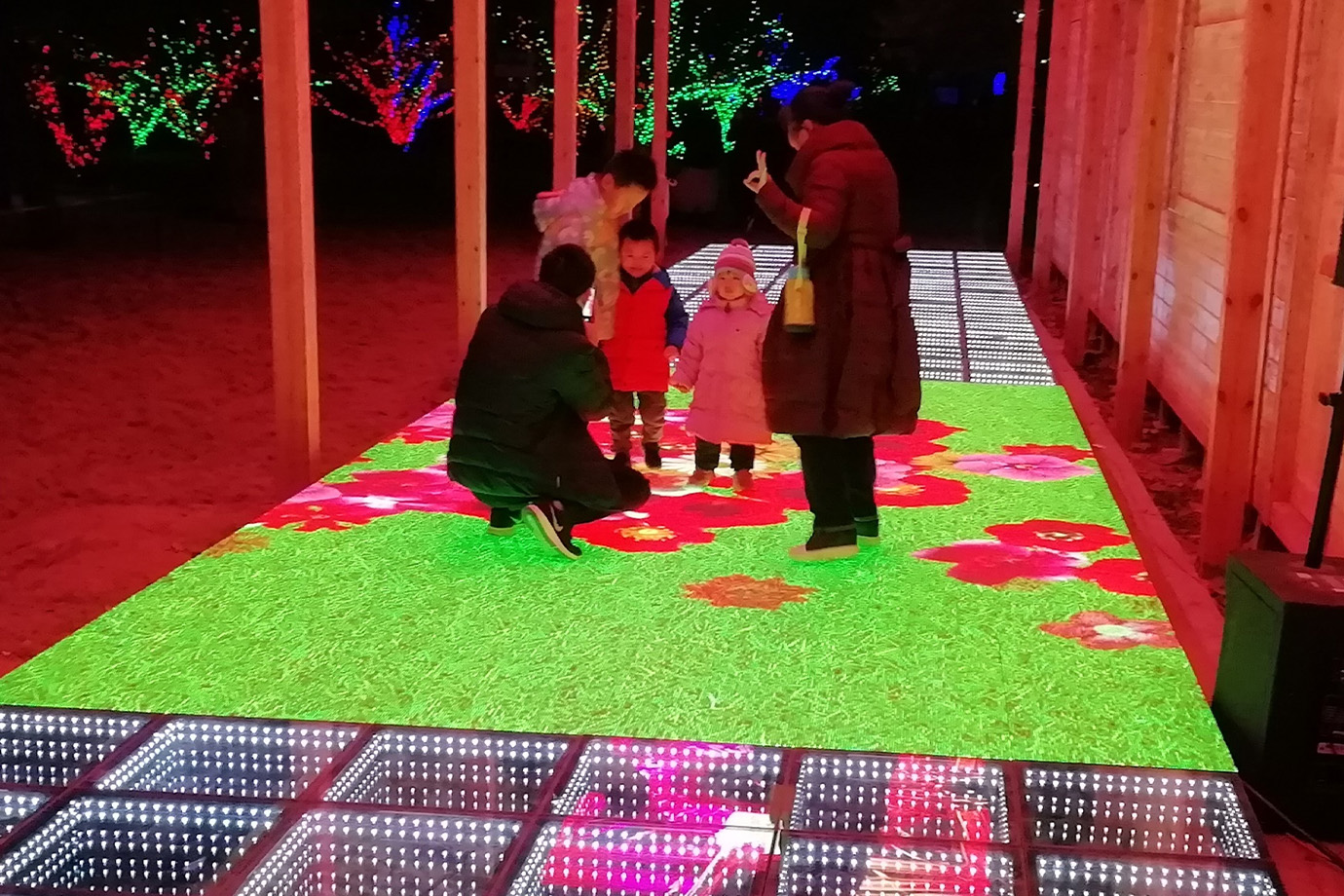

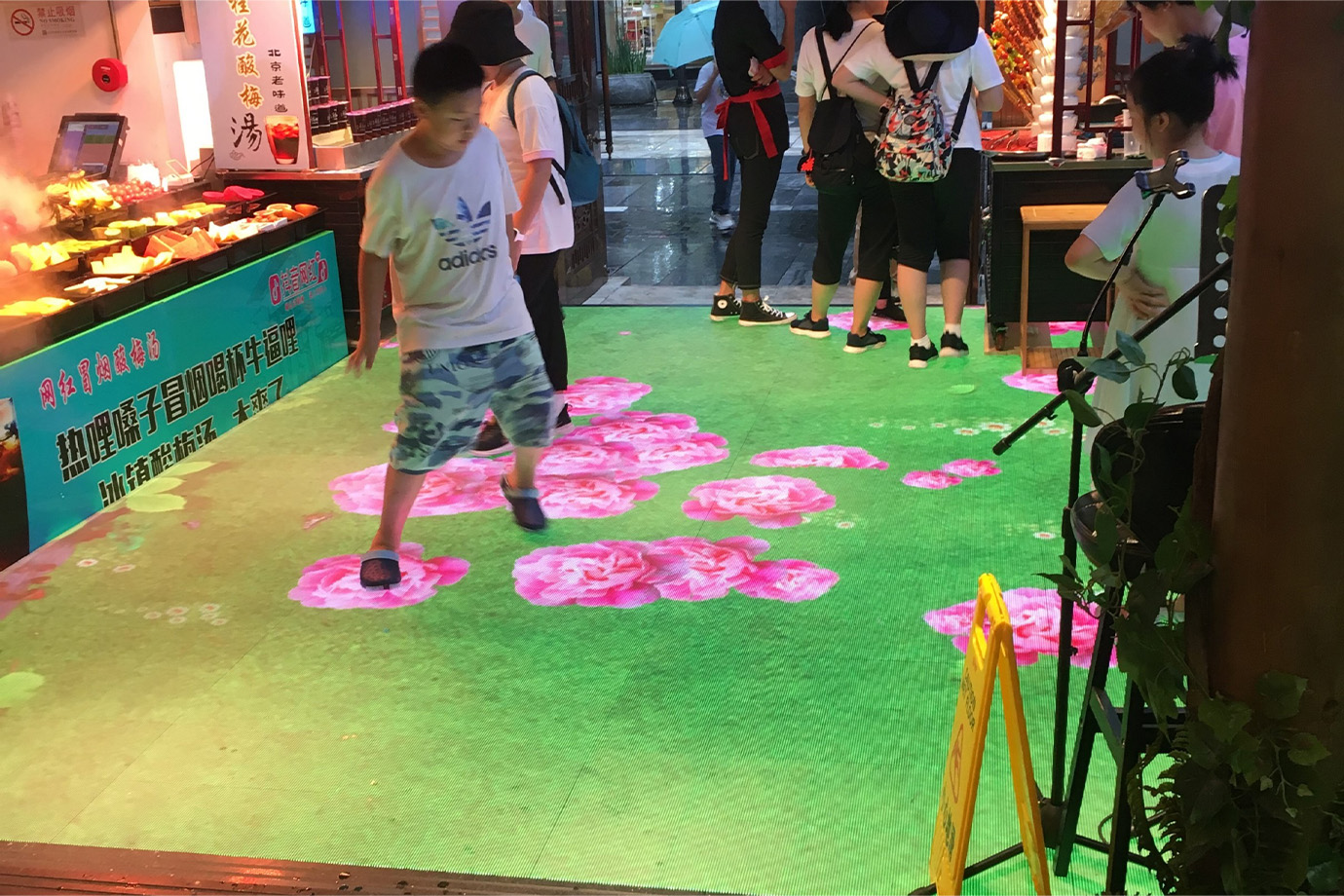

PRODUCT CASE
