LDF-A Series

LDF-A Series

Indoor Die Casting Aluminum Interactive LED Dance Floor Tiles


VIDEO

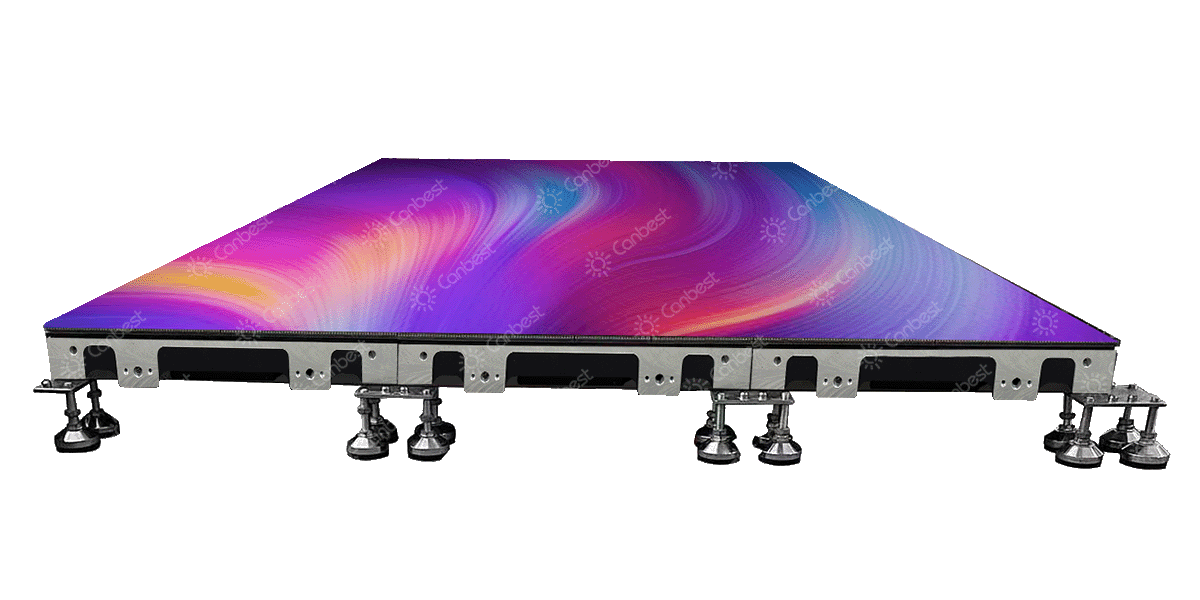

Seamless Splicing with Die Casting Aluminum

Thanks to the high precision processing, the led dance floor will be super seamless connection with die casting aluminum, better visual effects and user experience

LDF-A Series

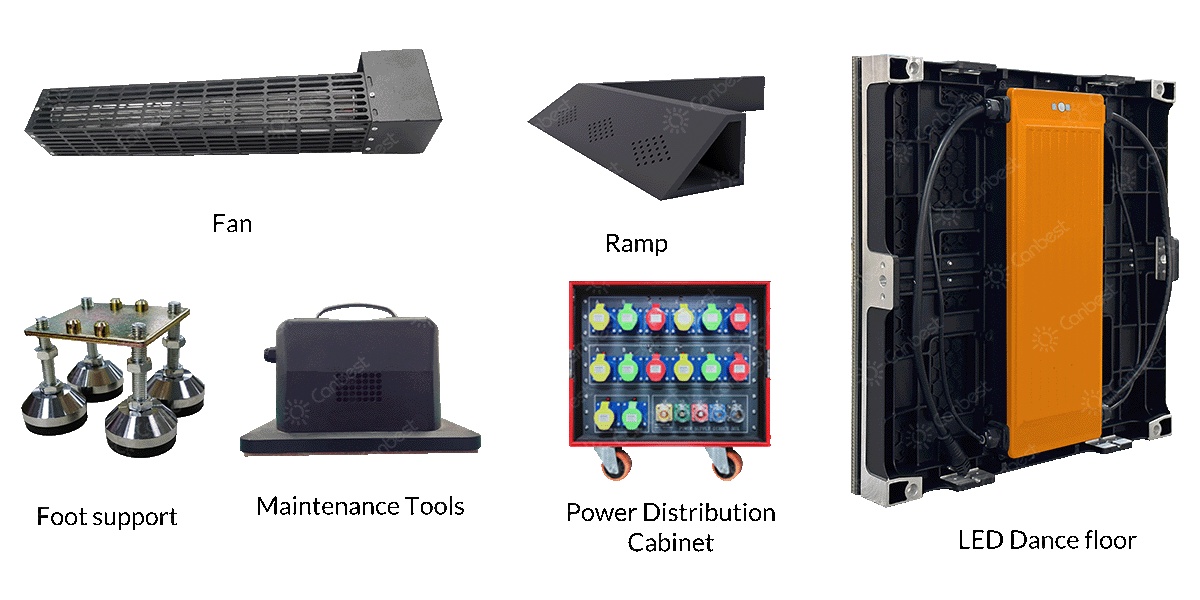

Complete Set Available

We provide complete set for led dance floor , improving your procurement efficiency and experience.

LDF-A Series

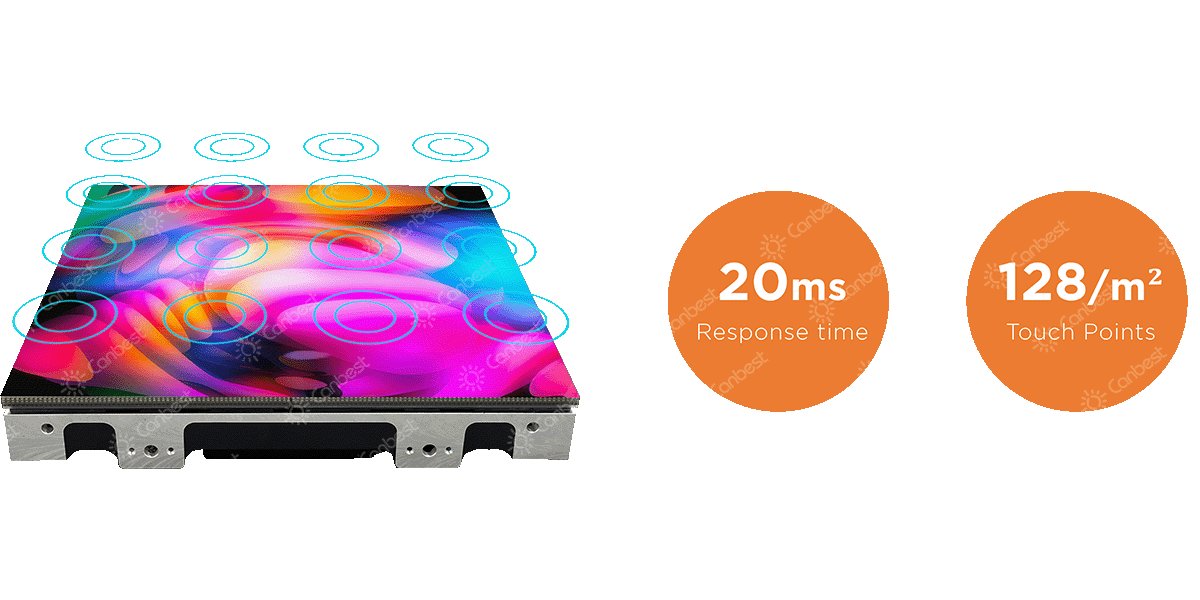

Real-time Interactive with Multi-point Touch

Built-in interactive system and unlimited by interaction points ; Super sensitive and responsive, only 0.02s delay in interactive effect, delivering strong visual impact, providing audience a truly amazing and unforgettable experience and greatly improving their engagement .

LDF-A Series

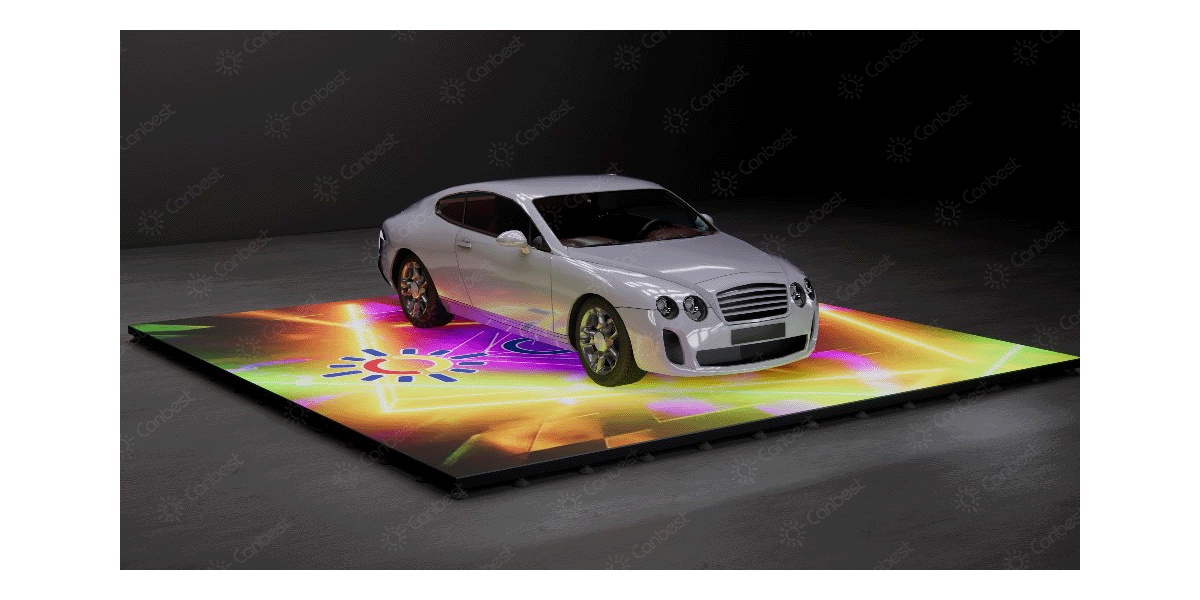

Super Load-bearing Performance

Featured with the reinforcement for whole back to distribute the force on the surface, working with galvanized floor support, its loading capacity is over 3T/sqm, can support walking and jumping crowds which makes it an ideal solution for stage shows, museums, venues, etc. .

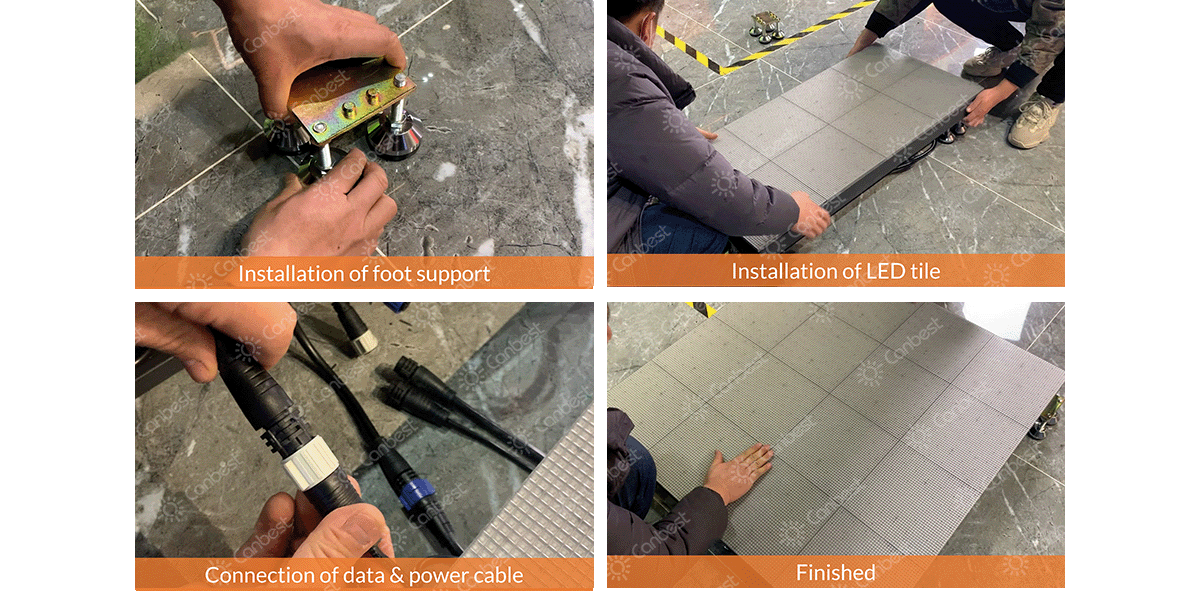

Quick Installation

Independent cabinet foot design offers a fast horizontal positioning and quick assembly. .

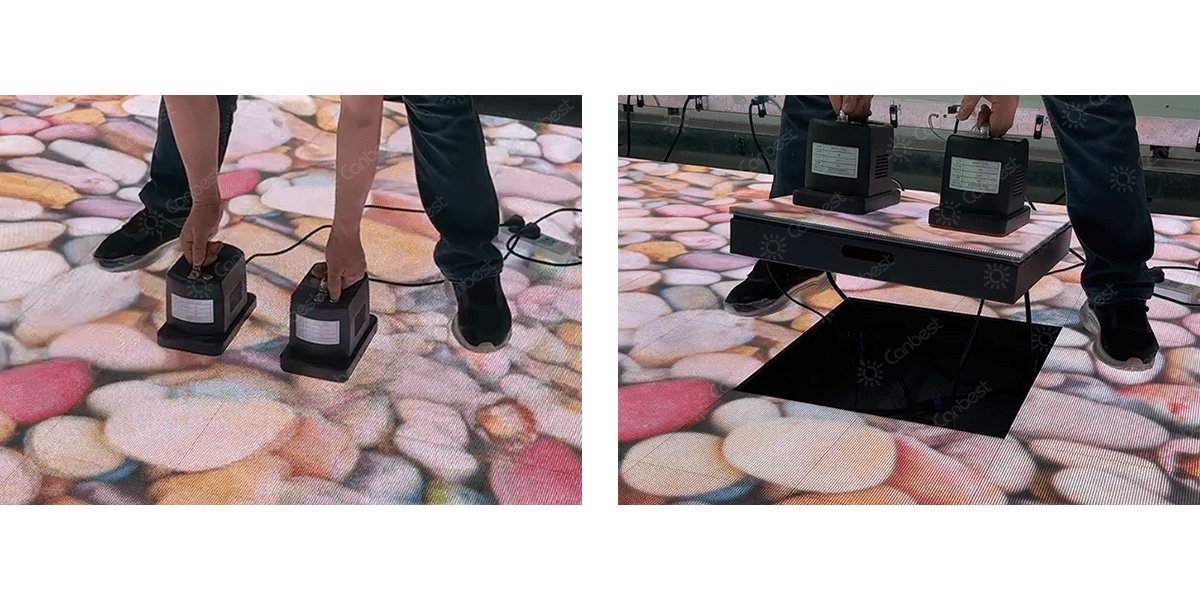

Front Maintenance

Easy maintenance and replacement with front service, No need professional technician and device, simple and user-friendly for customers.

SPECIFICATIONS
Model LDF191-A LDF251-A LDF261-A LDF291-A LDF391-A
Pixel Pitch (mm) 1.9mm 2.5mm 2.604mm 2.976mm 3.91mm
Brightness(nits) 800nits 1500nits 1500nits 1500nits 1500nits
Refresh Rate(hz) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Cabinet Size(mm) 500x500x78 500x500x78 500x500x78 500x500x78 500x500x78
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡ 400/800 400/800 400/800 400/800 400/800
Cabinet Resolution Pixels 256*256 200*400 192*192 168*168 128*128
Pixel Density Pixels(㎡) 262984 160000 147474 112910 65410
Maintenance Type Front  Front  Front  Front  Front

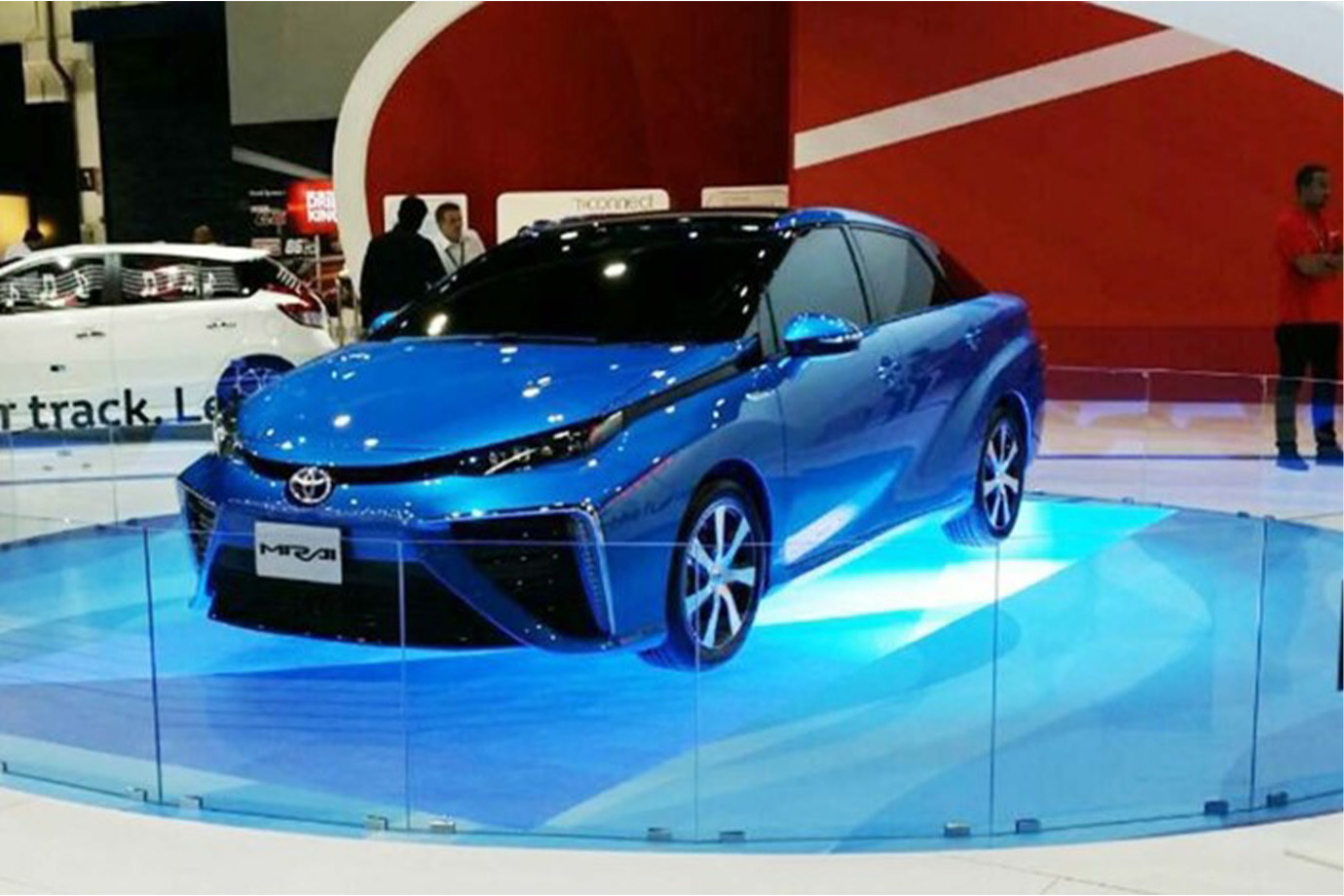

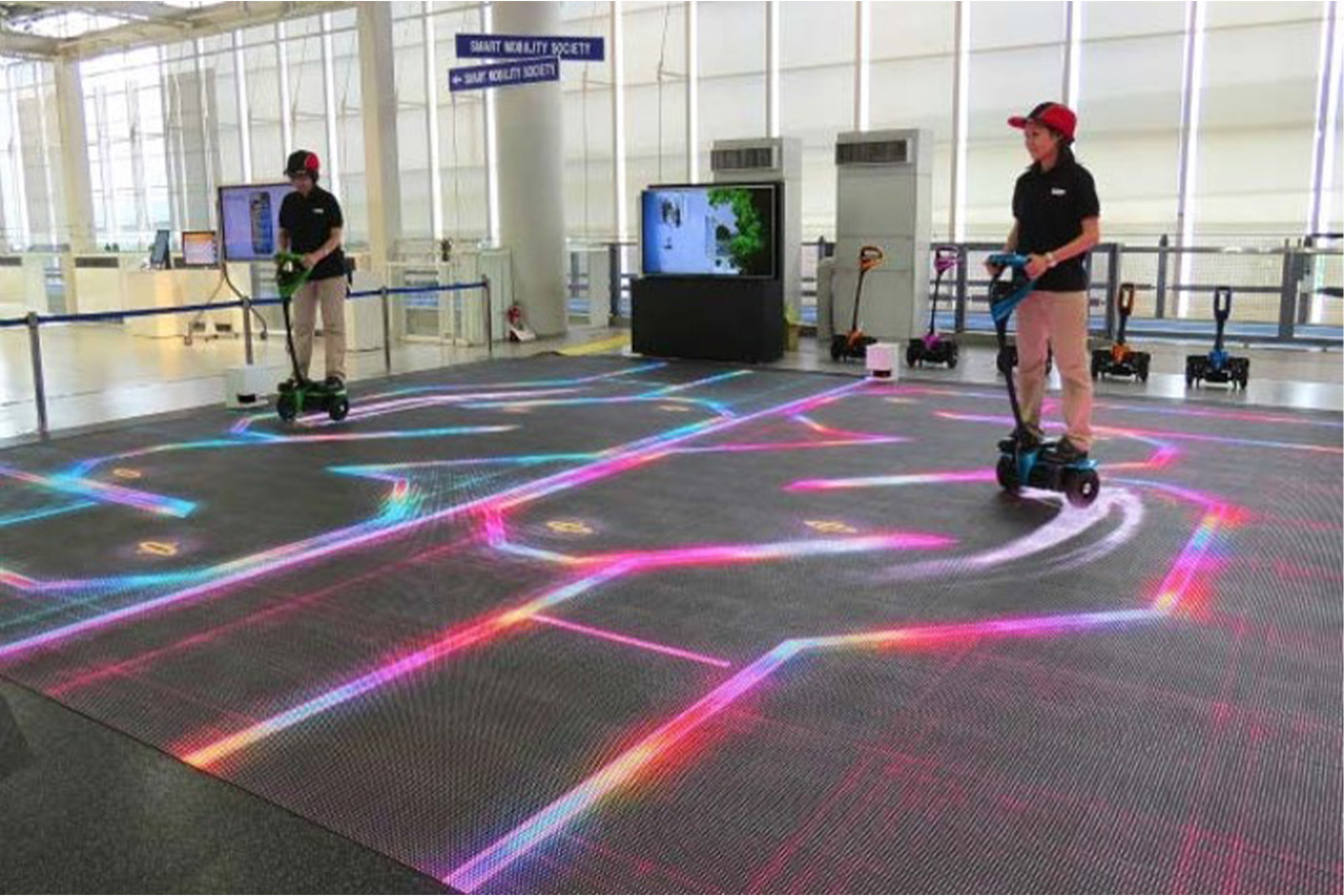

PRODUCT CASE
