RV Series

RV Series

Indoor & Outdoor Affordable Events LED Screen


VIDEO

Fast and Easy Set-up

The dual fast locks ensure an efficient installation and disassembly by one person, largely save your time and labor.
Handle design makes it easy for one-man to complete the installation



RV Series

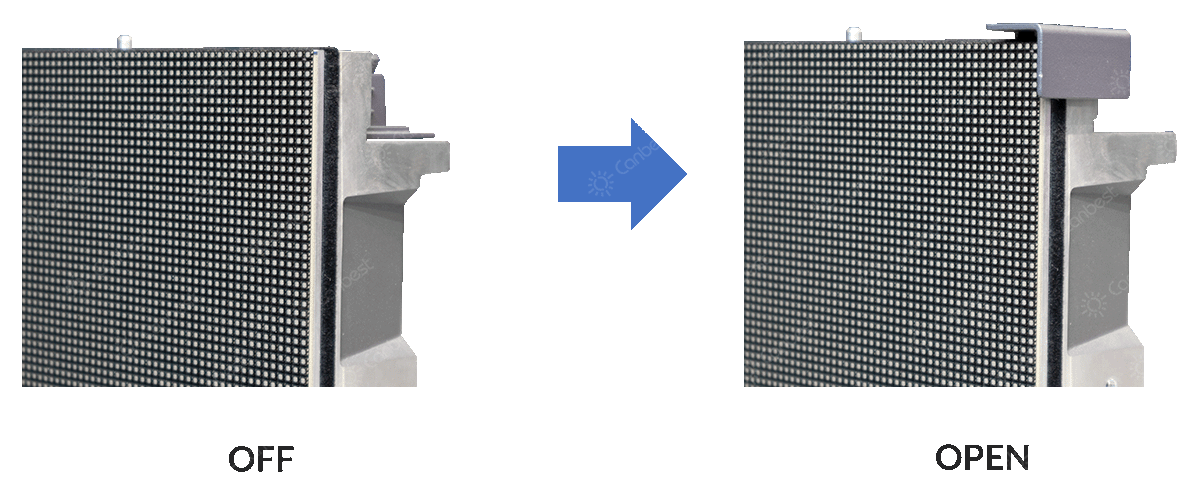

Edge Protection

Unique design has effective protection against damage for the edge area when moving and installation.

RV Series

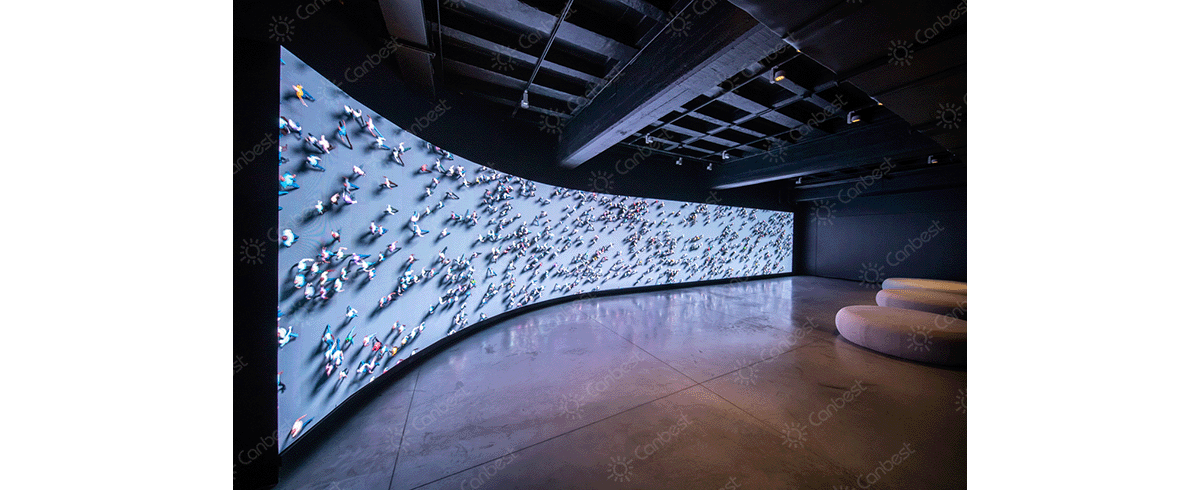

Curving Capabilities Available

The arc lock design enables concave and convex installation , creating more possibility for stage installation, meeting various demands of creative design. Also it is simple and easy-no tools from flat to curves.


RV Series

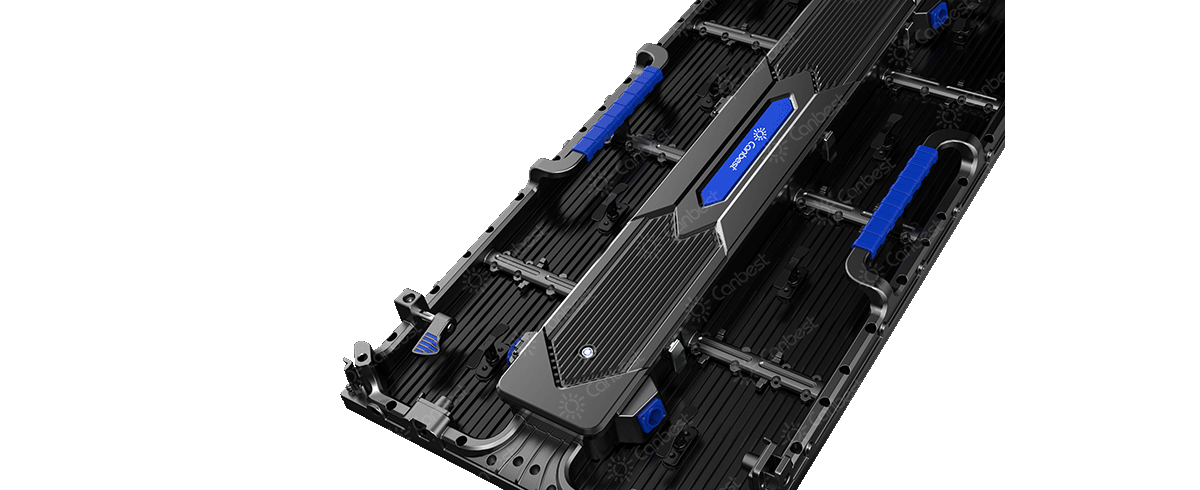

Automatically Cooling System

louver heat sink structure & hole, increasing its heat dissipation area, more effective.

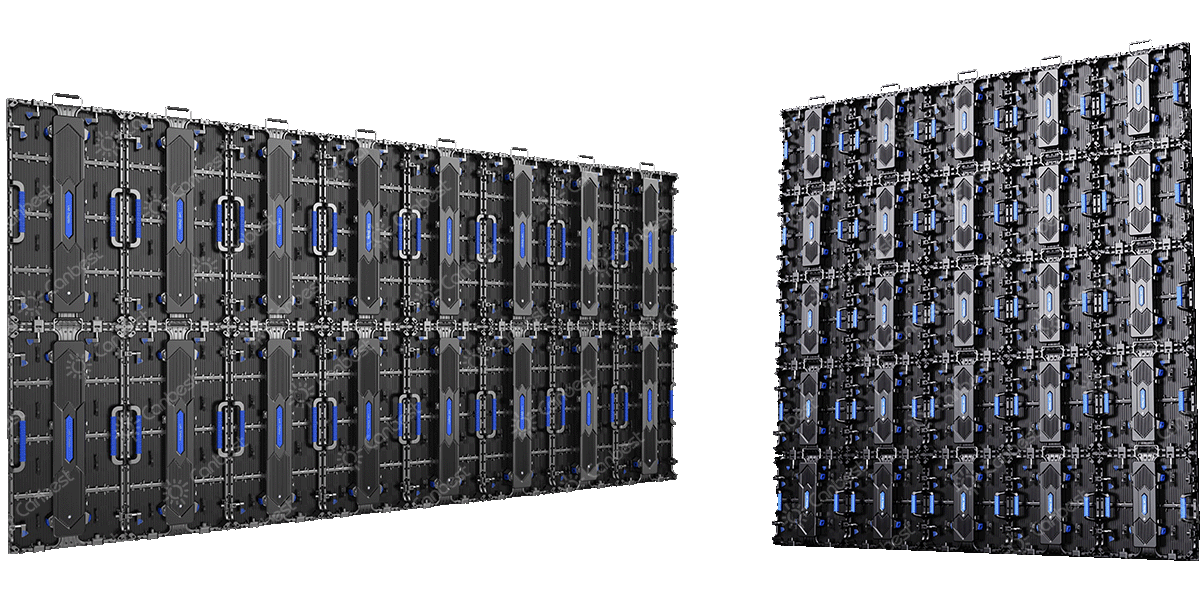

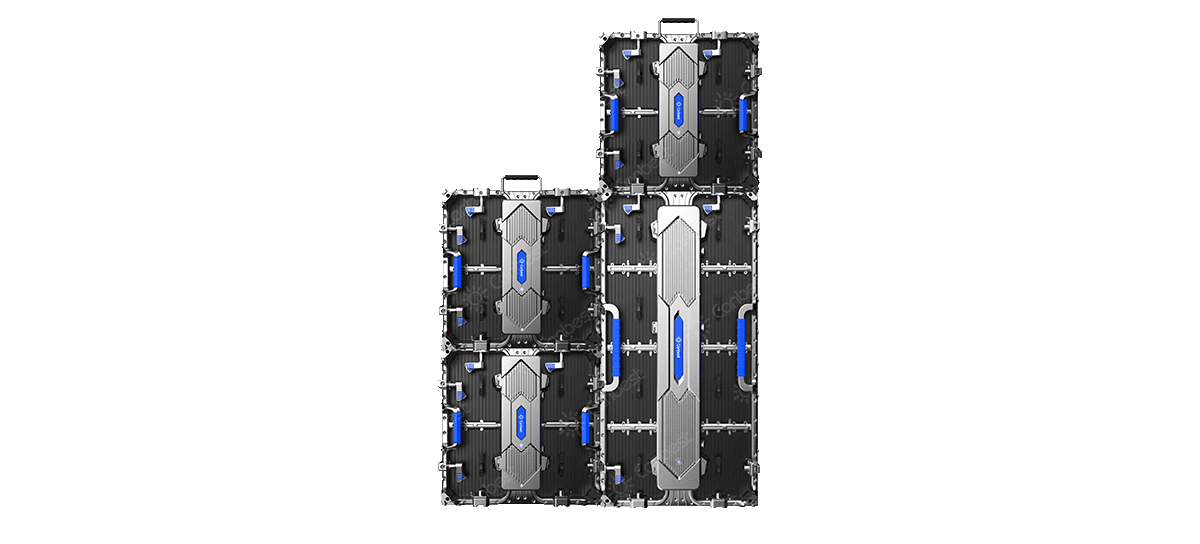

Mixed & Match

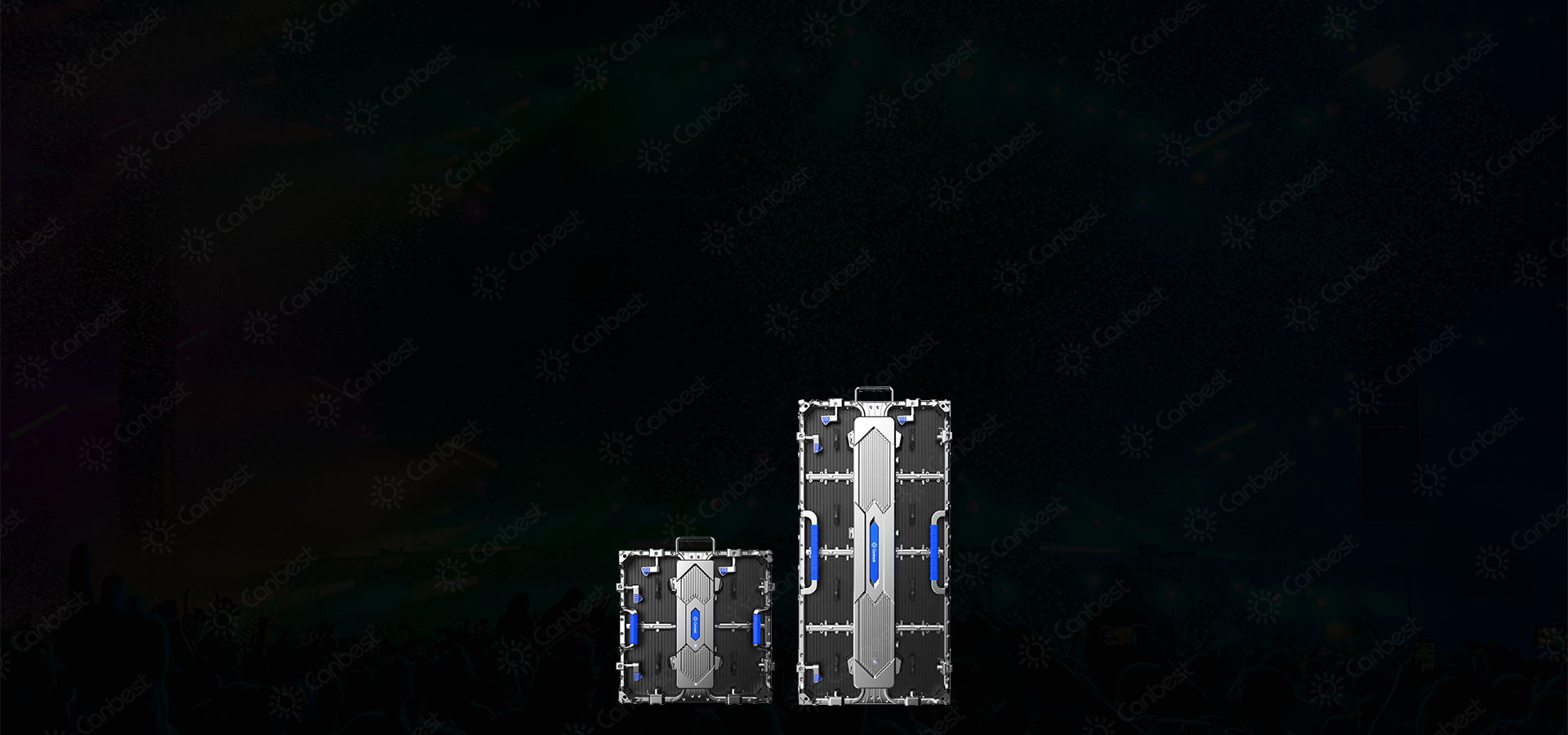

500 x 500 mm and 500 x 1000 mm cabinets can be easily connected horizontally and vertically for different configurations.

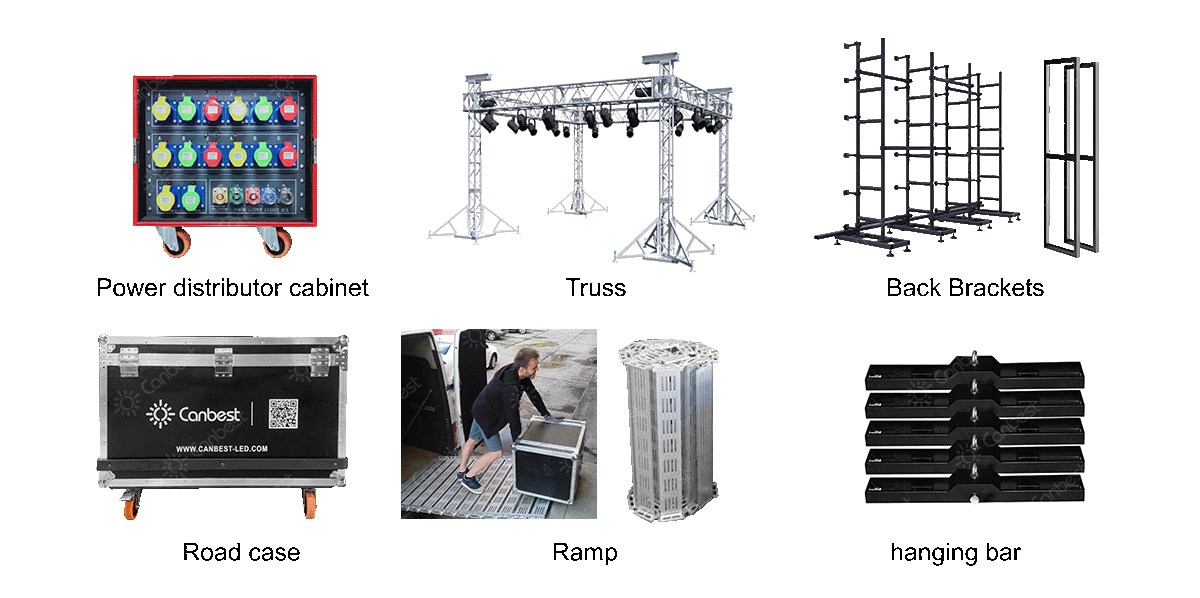

One-stop Solution For Your Events
SPECIFICATIONS
Model RV260  (Outdoor P2.6 ) RV290 ( Outdoor P2.9) RV390 ( Outdoor P3.91)  RV261( Indoor P2.6 ) RV291( Indoor P2.9) RV391( Indoor P3.9 )
Pixel Pitch (mm) 2.604mm 2.97mm 3.91mm 2.604mm 2.97mm 3.91mm
Brightness（nits） 4000cd/㎡ 4000cd/㎡ 4000cd/㎡ 1000cd/㎡ 1000cd/㎡ 1000cd/㎡
Refresh Rate（hz）  ≥3840  ≥3840  ≥3840  ≥3840  ≥3840  ≥3840
Cabinet Size(mm) 500*500 | 500*1000 500*500 | 500*1000 500*500 | 500*1000
Cabinet Material Die casting aluminumIron
Power Consumption(Max/Aver.)w/㎡ 260/800 260/800 260/800 220/650 220/650 220/650
Cabinet Resolution Pixels 1920*192 |192*384 168*168 | 168*336 128*128| 128*256 1920*192 |192*384 168*168 | 168*336 128*128 |  128*256
Pixel Density Pixels(㎡) 147474 113367 65410 147474 113367 65410
Maintenance Type  Rear Rear Rear Front & Rear Front & Rear Front & Rear

1920*192 |192*384
