RH-COB Series

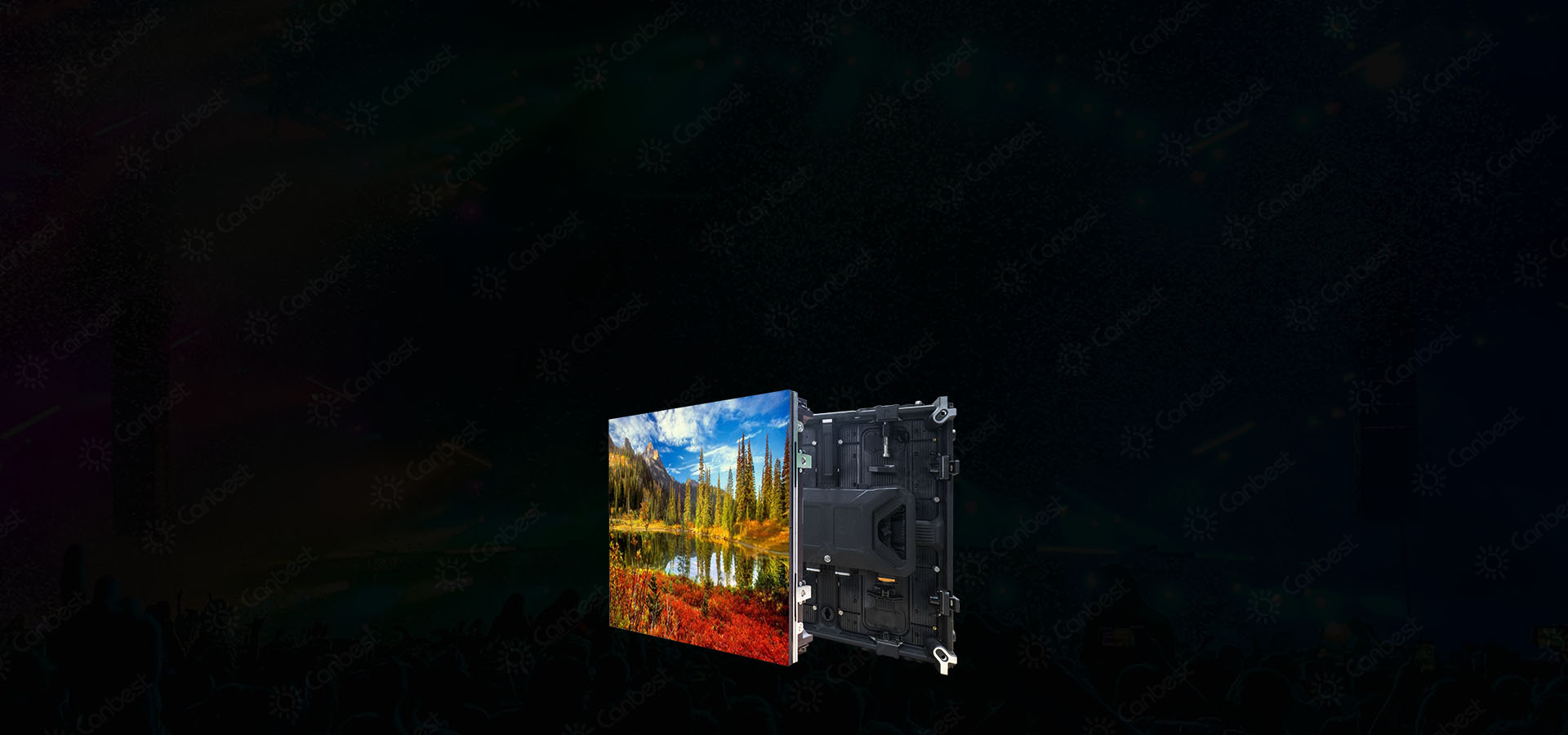

RH-COB Series

Outdoor Stage Rental Fine Pixel Pitch COB Events LED Screen


VIDEO

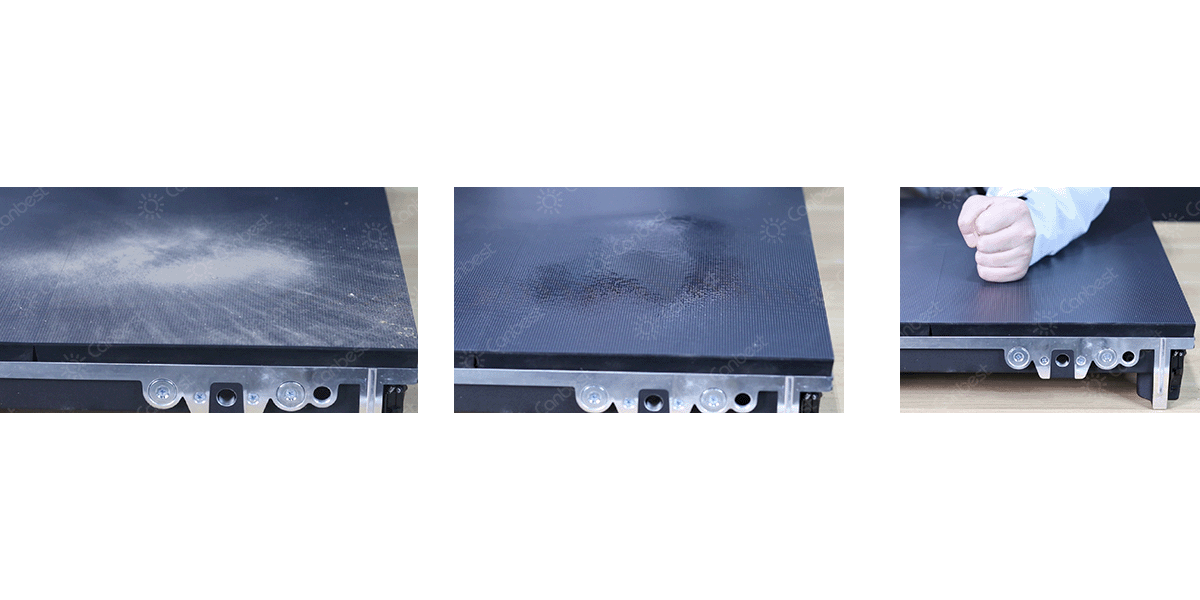

Superb Reliability

Completely sealed with epoxy resin to cure the light-emitting chip, COB LED will be anti-shock, anti-collision, moisture-proof, dust-proof, waterproof, and so there will be no problem caused by transportation and installation

RH-COB Series
Enhanced Viewing Experience

With ultra-high contrast ratio and ultra-high refresh rate , the whole screen is more vivid, also effectively suppress Moiré and reducing light refraction and making colors more concentrated.

RH-COB Series

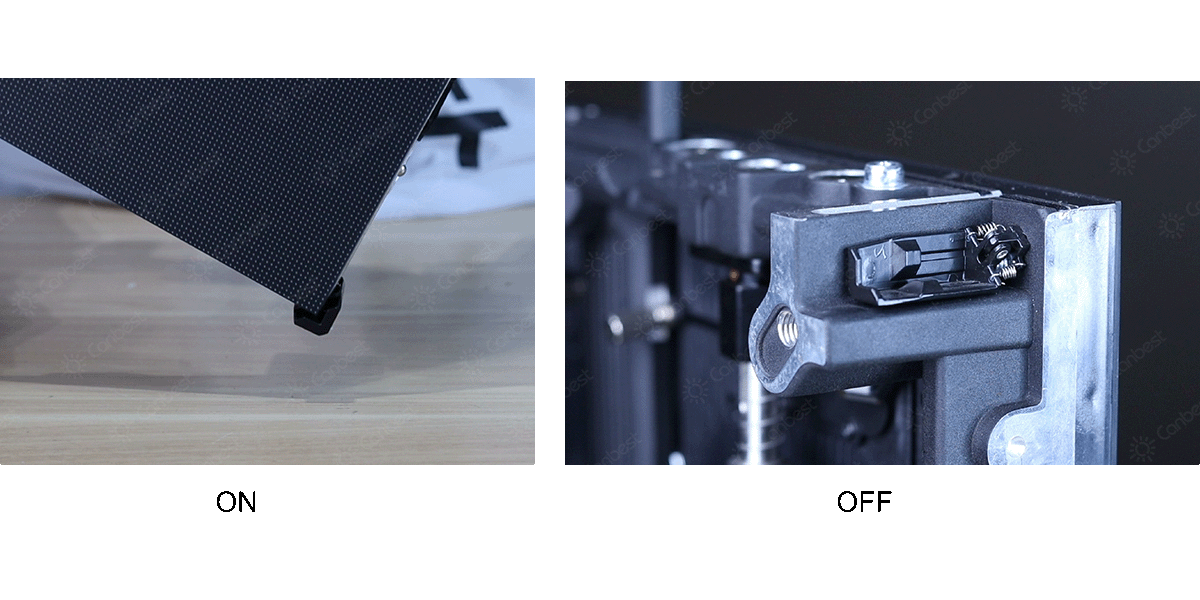

Corner Protector Design

Protecting all the pixels damaged from falling-down during transportation & installation

RH-COB Series

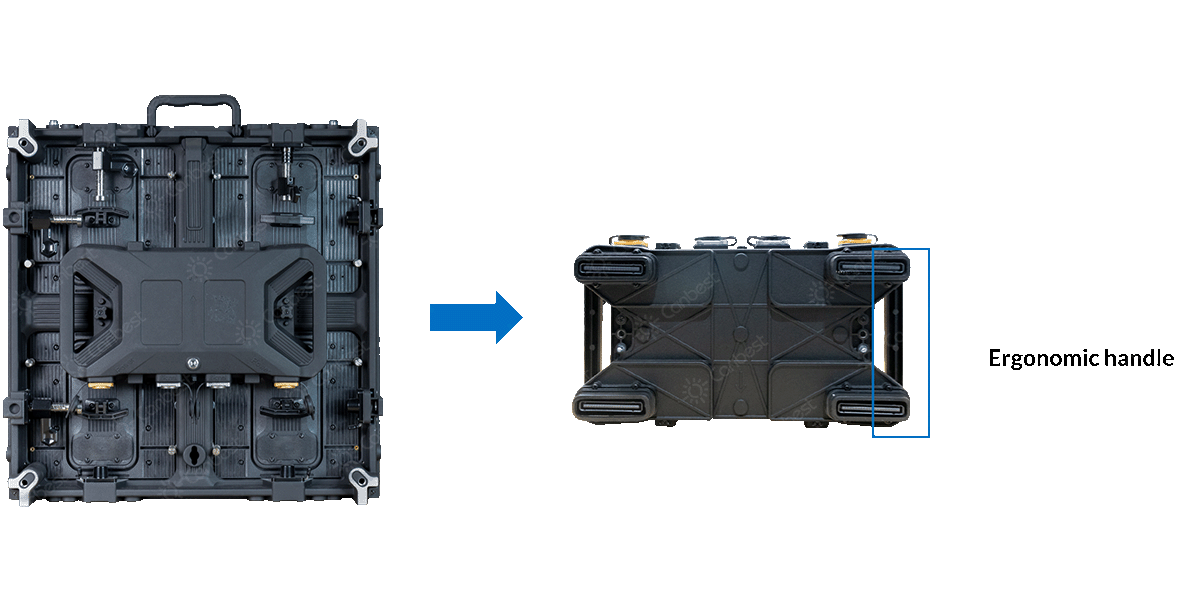

Independent Power Supply Design

Pluggable power box without cable connection, quick operation when doing maintenance, tool free;

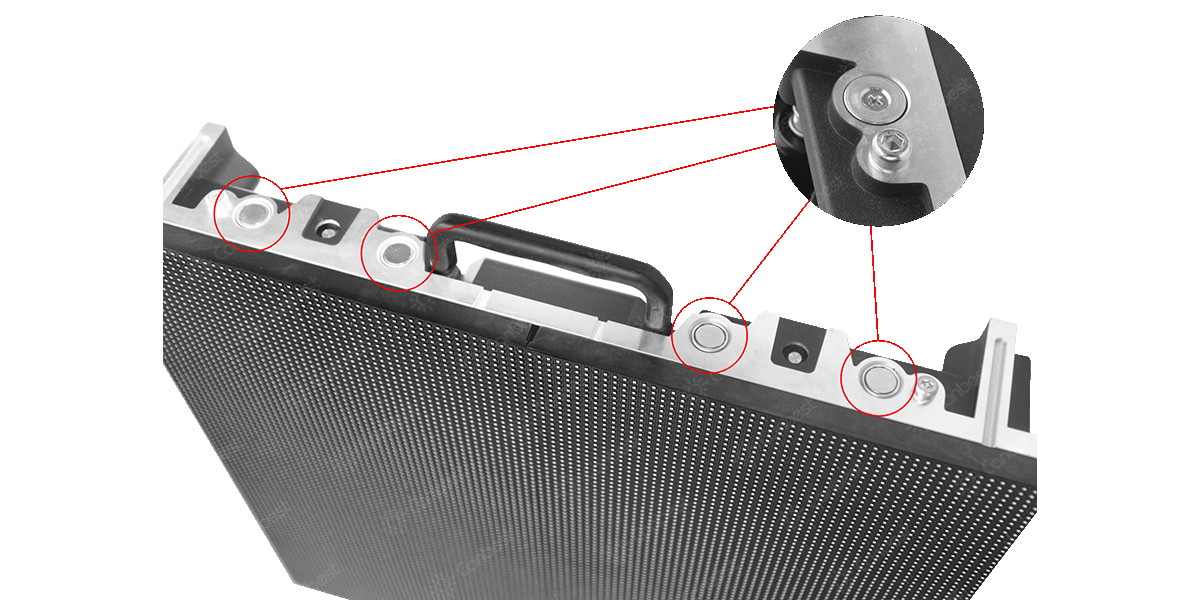

Strong Magnet Design, One Person Installation

Strong magnet for automatic pull-in when doing installation, easy for one person installation

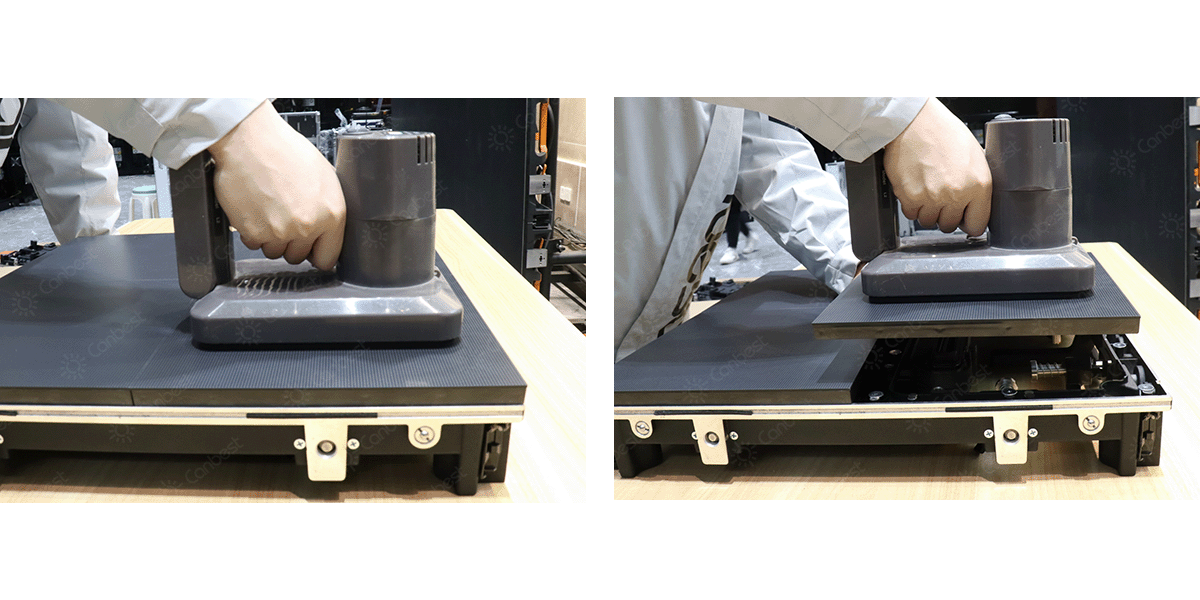

Front & Rear Access

Strong magnetic module design, front and rear installation and maintenance available

SPECIFICATIONS
Model RH150-COB  (Outdoor P1.5 ) RH190-COB  (Outdoor P1.9 )
Pixel Pitch (mm) 1.56mm 1.9mm
Brightness（nits） 2600~3500nits 3500~4000nits
Refresh Rate（hz） ≥3840 ≥3840
Cabinet Size(mm) 500x500x100 500x500x100
Cabinet Material Die Casting Aluminum Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡ 250/800 250/800
Cabinet Resolution Pixels 320*320 264*264
Pixel Density Pixels(㎡) 409600 277000
Maintenance Type Front & Rear Front & Rear

DOWNlOAD

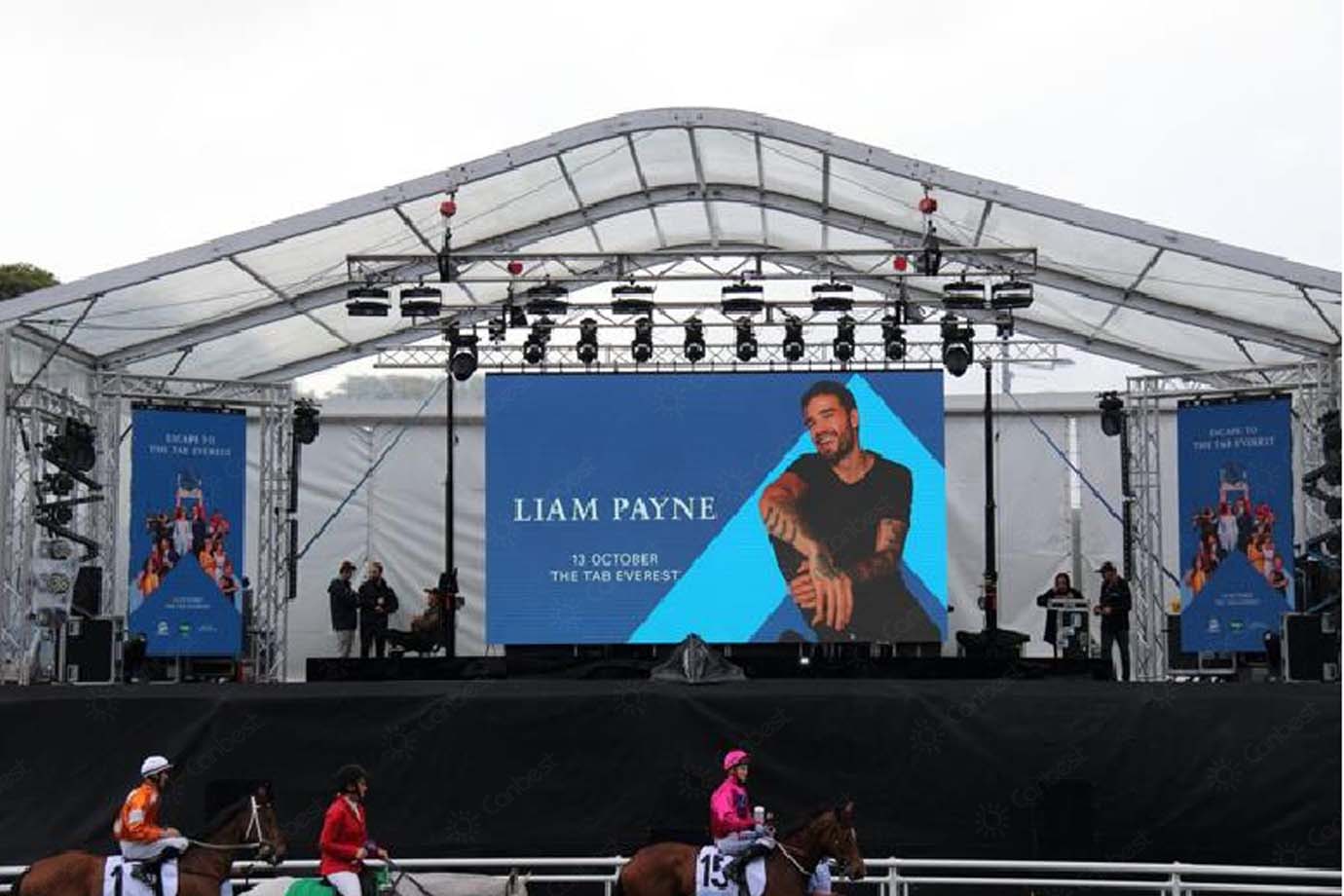

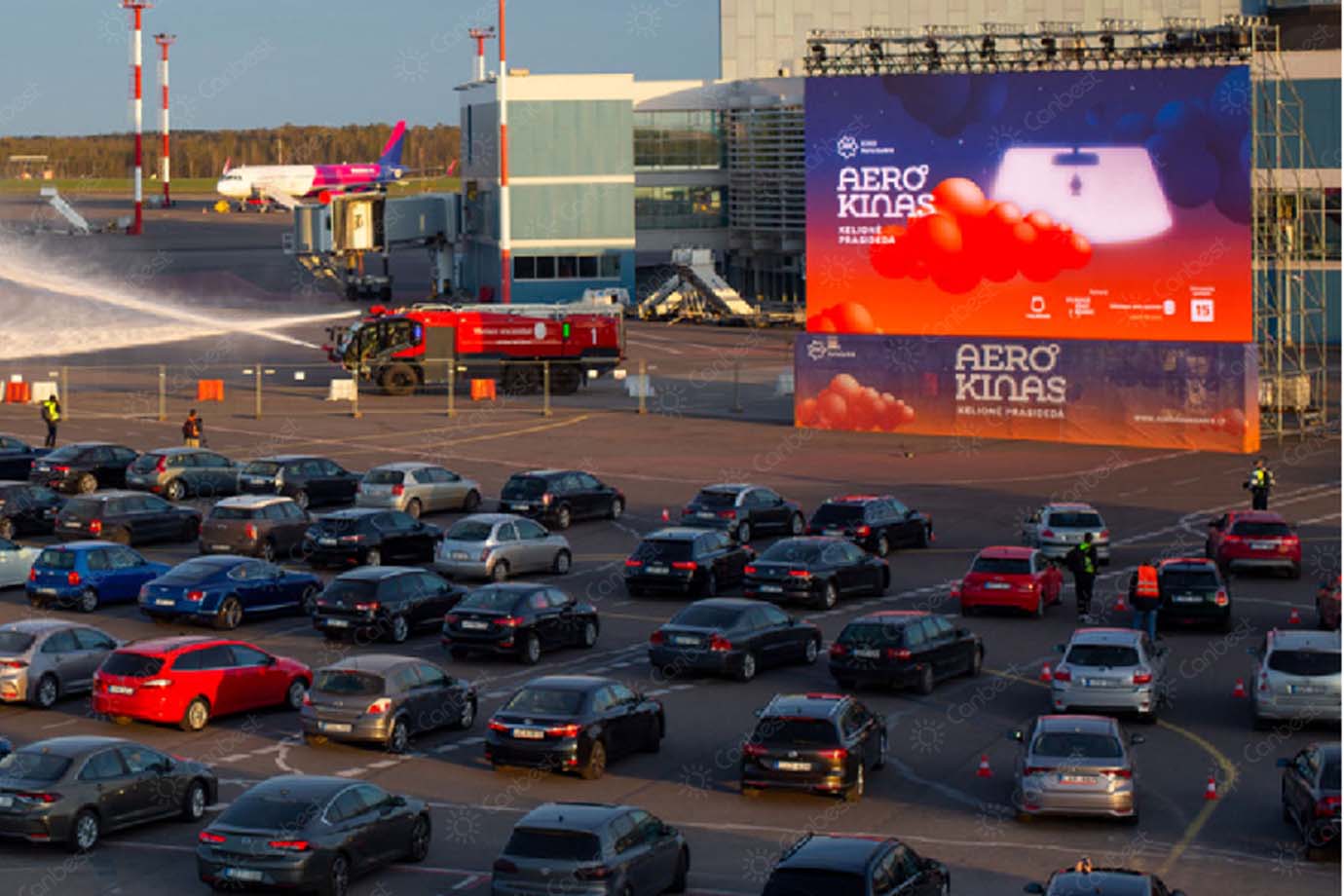

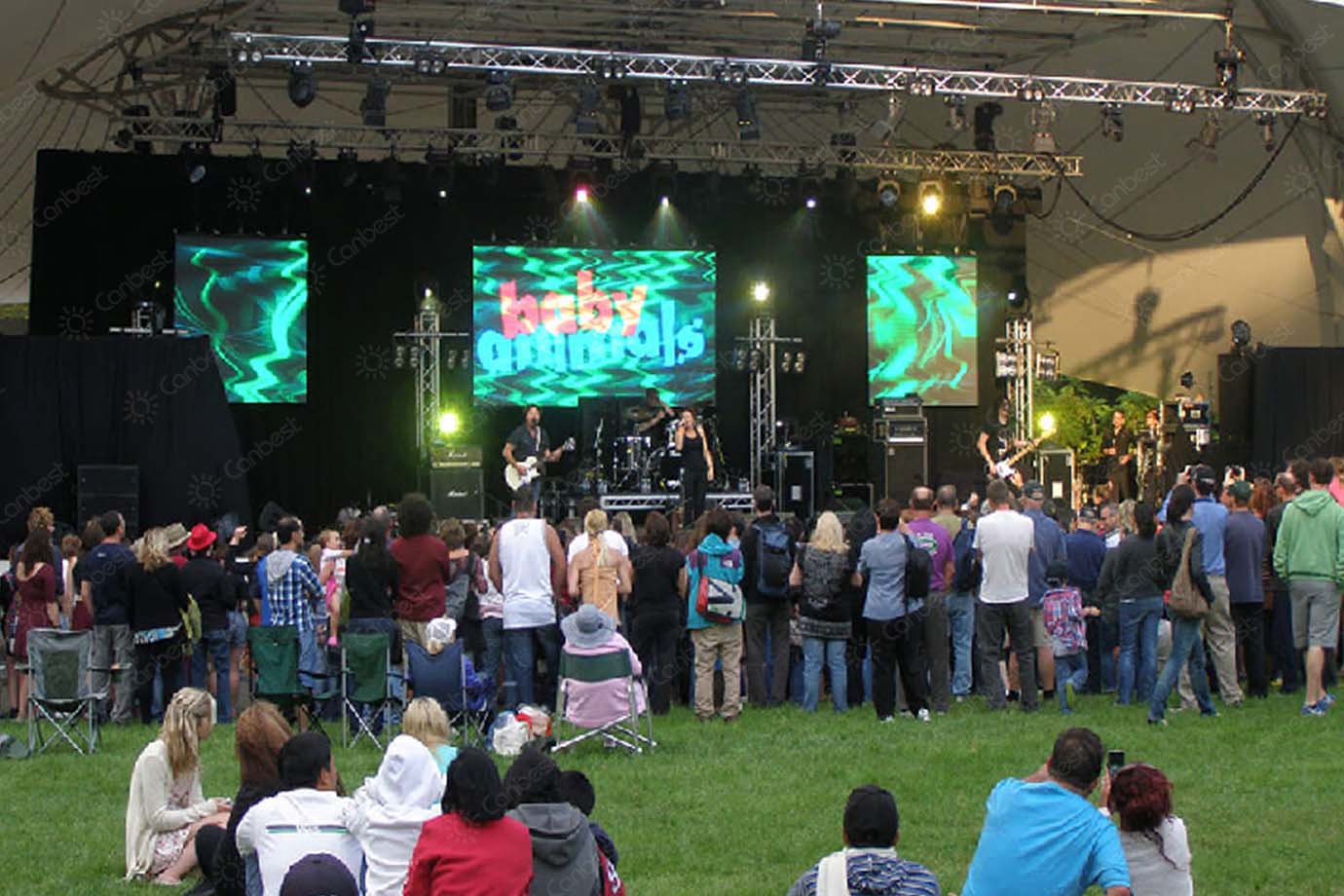

PRODUCT CASE
