E Pro Series

VIDEO

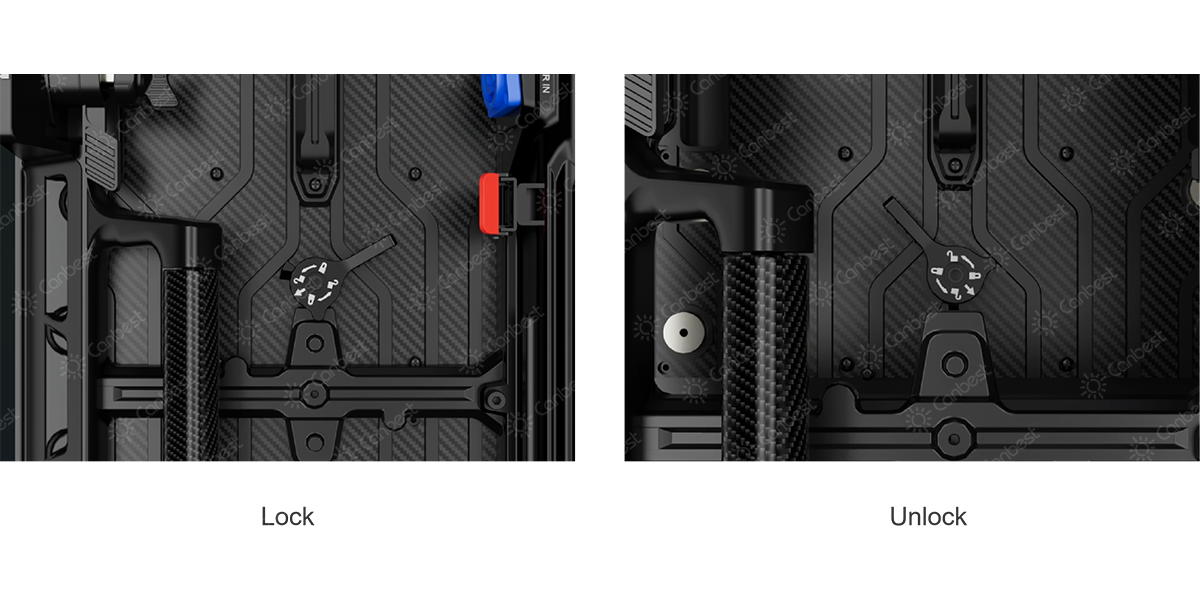

Twist the knob and the module will get demagnetized automatically , no tool required to do module rear maintenance

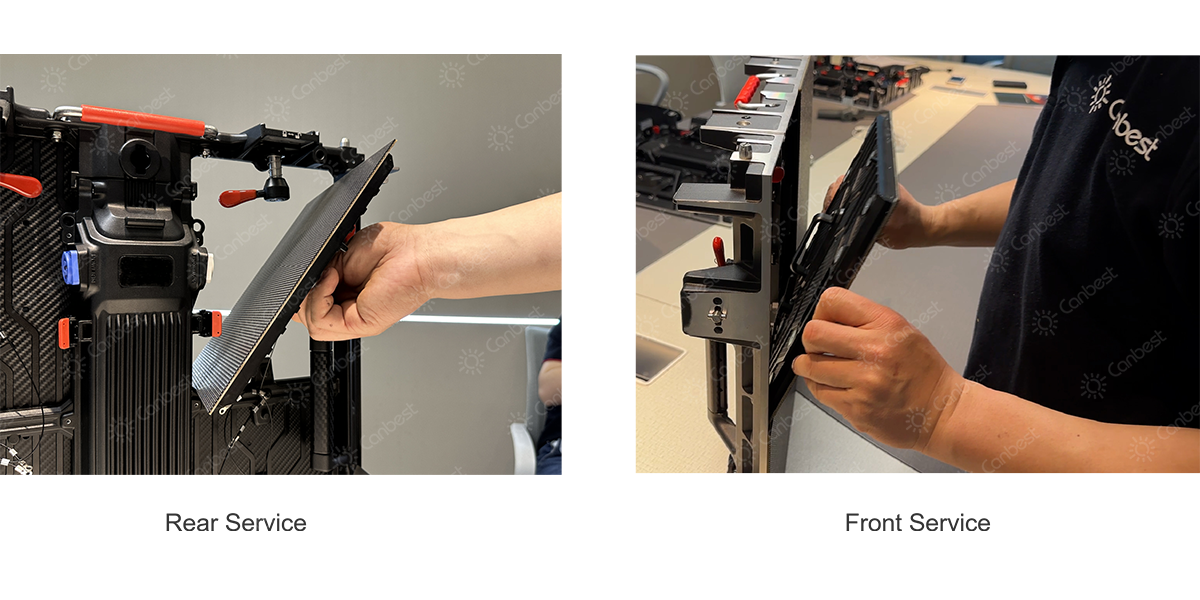

Module front maintenance/ full rear maintenance , ensures stability in various installation scenarios

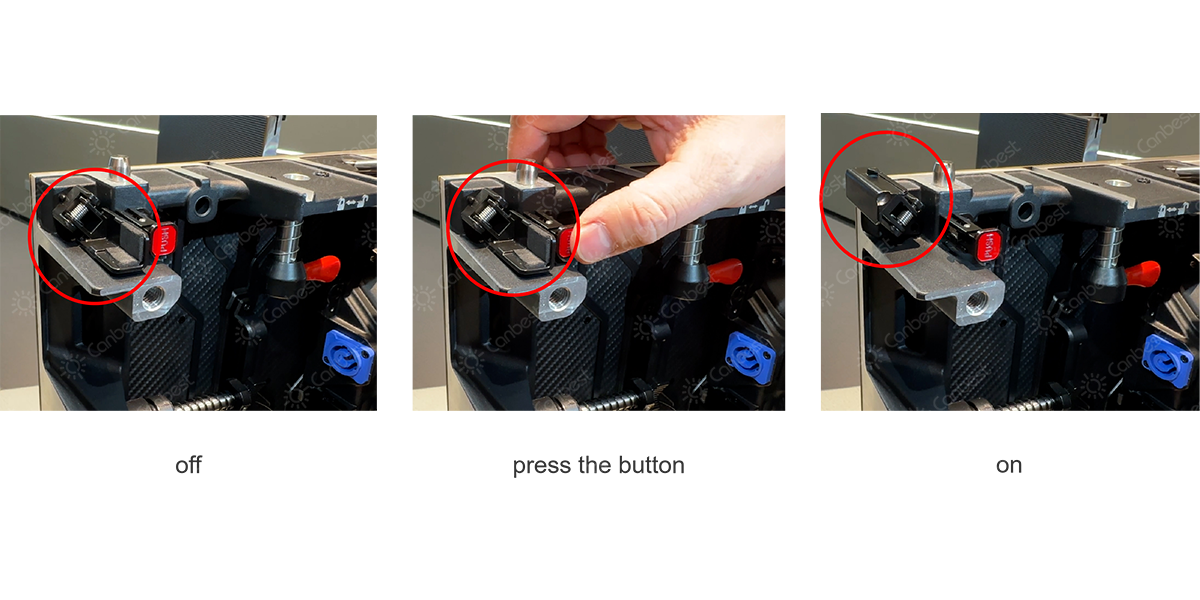

Incorporate semi-automatic edge protection on each panel corner, thereby reducing pixel damage drastically just with lightly press.

Pluggable power box without cable connection, quick operation when doing maintenance, tool free;

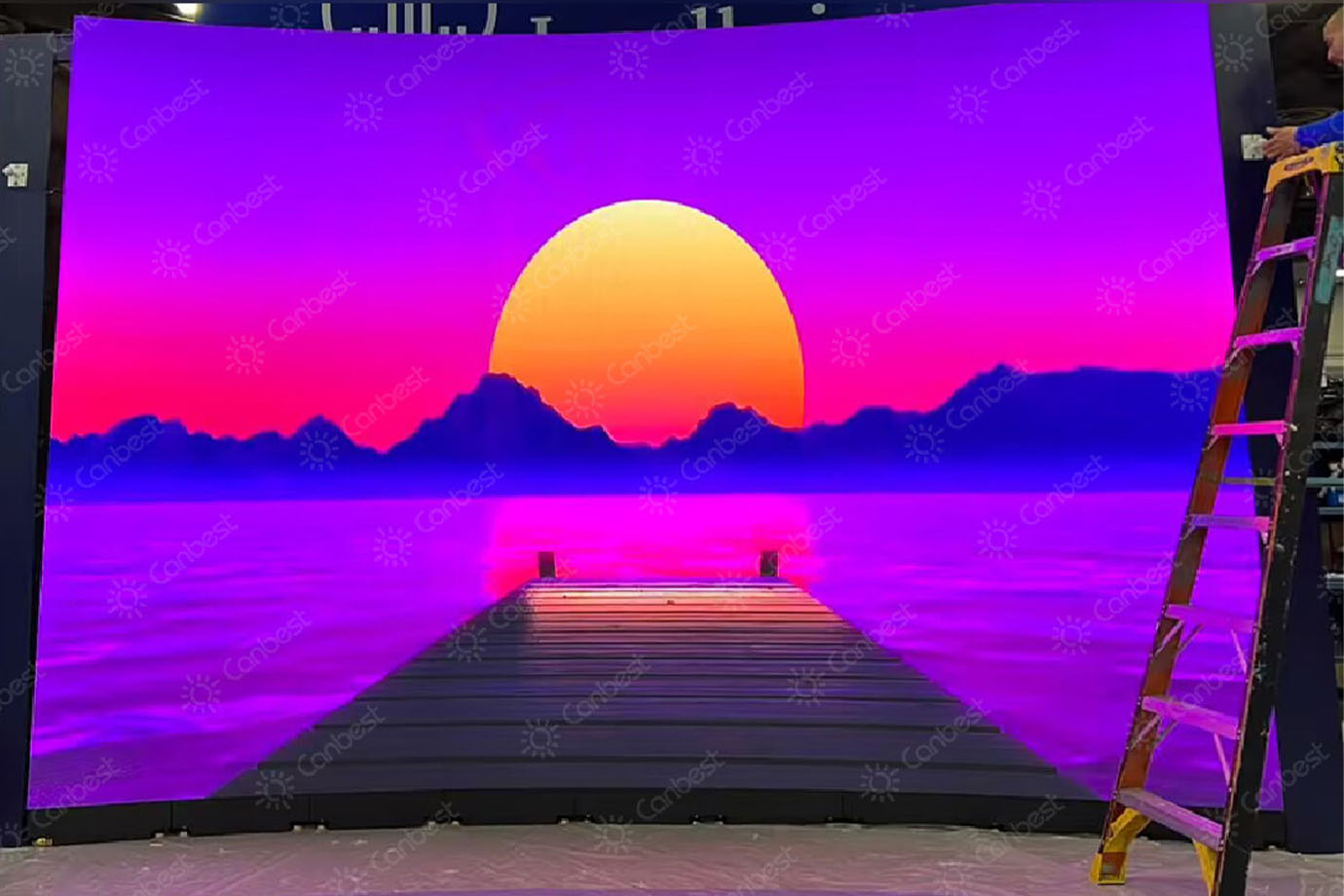

The cabinet can achieve -10 °~ +10 ° arc splicing effects, more possibility for creative staging design

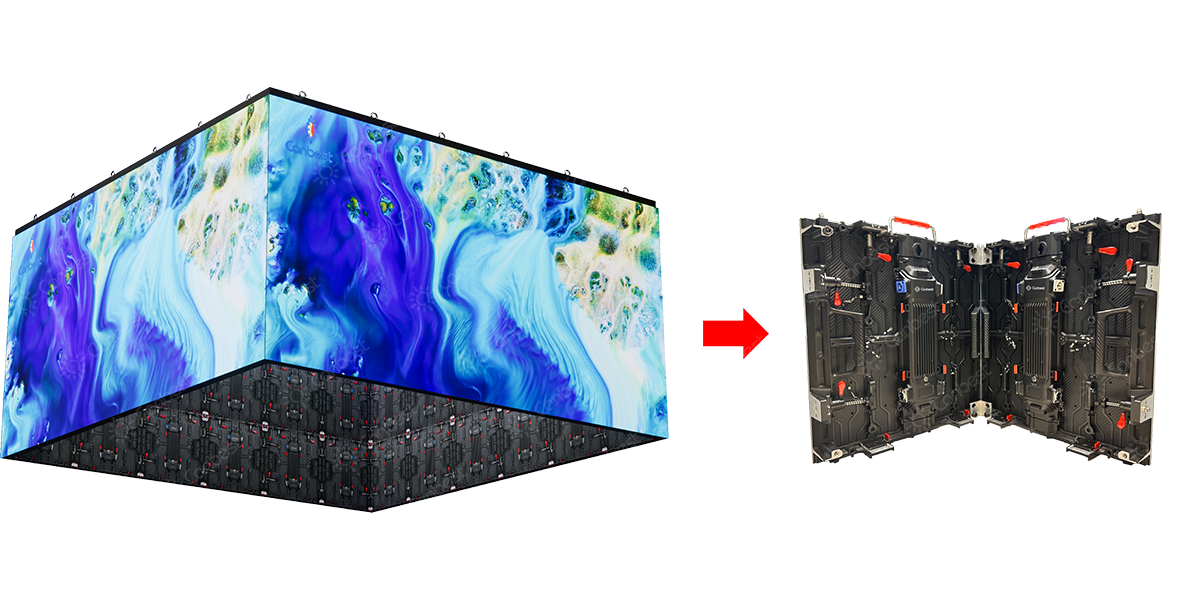

Ideal for cube, column solution

Model	E191 Pro ( Indoor P1.9 )	E261 Pro ( Indoor P2.6)	E391 Pro ( Indoor P3.91)
Pixel Pitch (mm)	1.953mm	2.604mm	3.91mm
Brightness（nits）	600~800	600~800	800-1000
Refresh Rate（hz）	≥3840 or 7680Hz for Virtual Production Solution		≥3840
Cabinet Size(mm)	500x500x75
Cabinet Material	Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡	200/650
Cabinet Resolution Pixels	256*256	192*192	128*128
Pixel Density Pixels(㎡)	262177	234736	65544
Maintenance Type	Front & Rear	Front & Rear	Front & Rear
