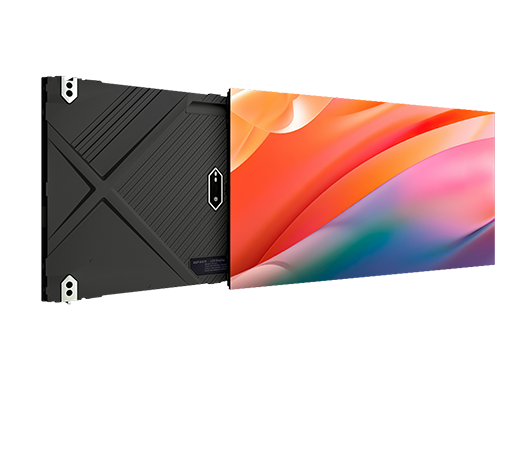

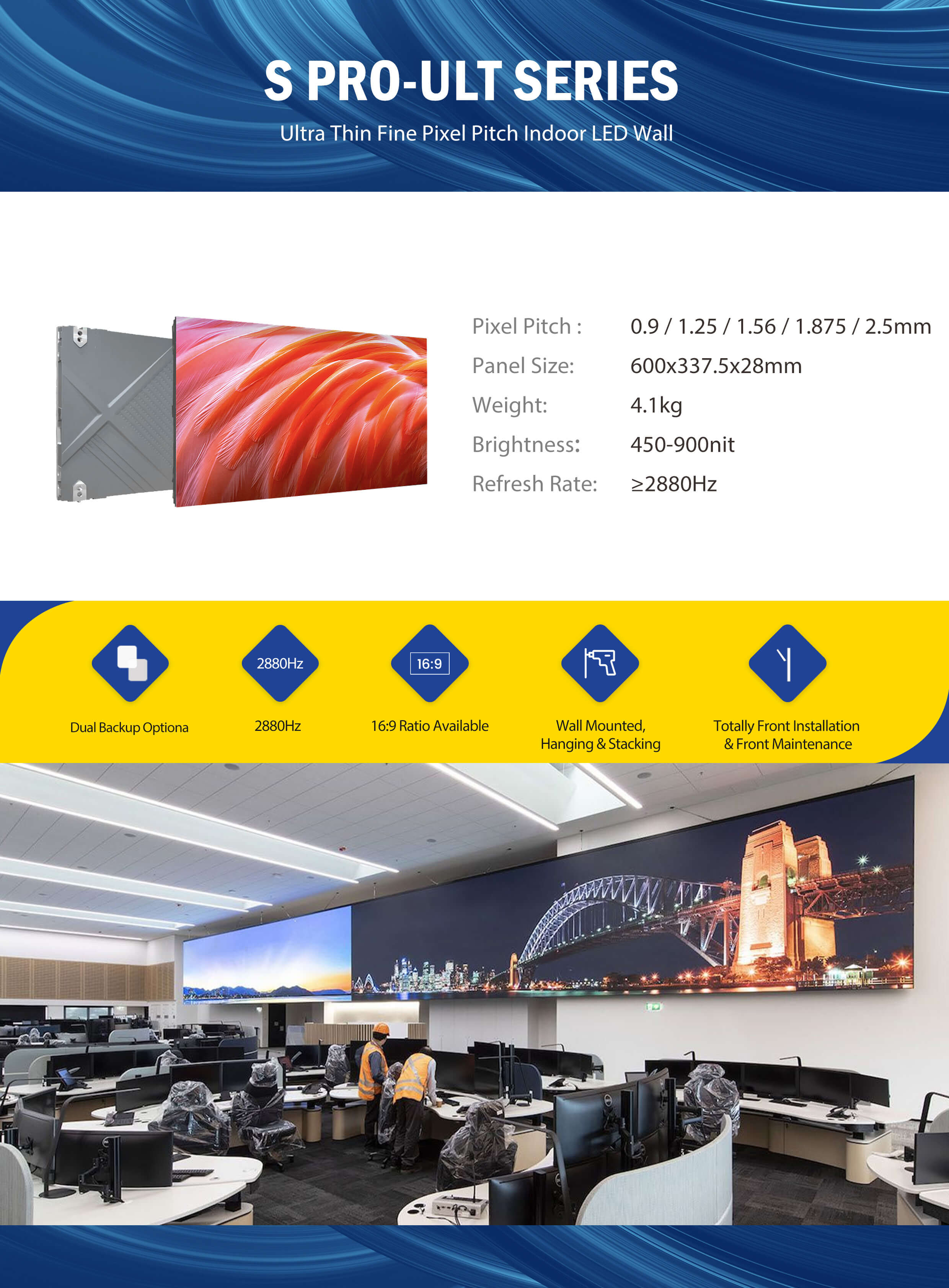

S PRO-ULT Series

Your location: Home > Hidden products >

VIDEO

Easy to Operate, Also Saving Installation Cost and Transportation Cost

Standard 27.5" Size FHD/4K Pixel to Pixel Resolutions

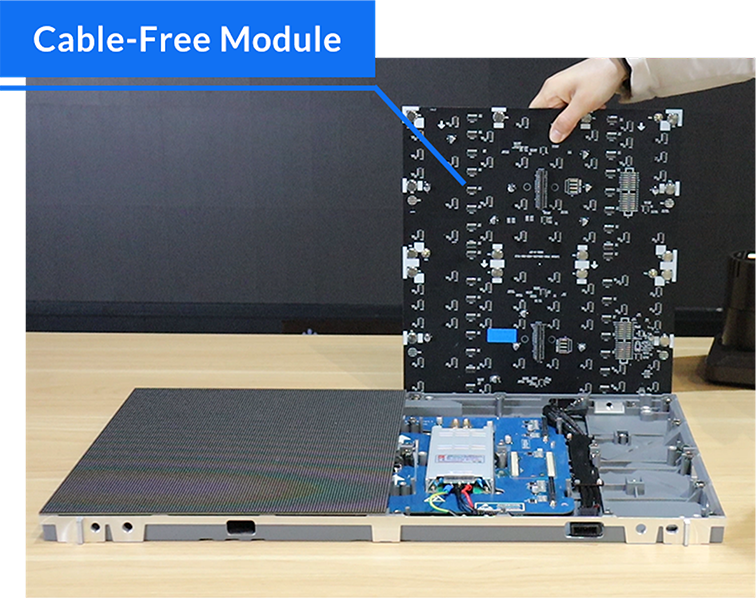

No Need with Back Maintenance Channel, Saving Installation Room and Structure Cost

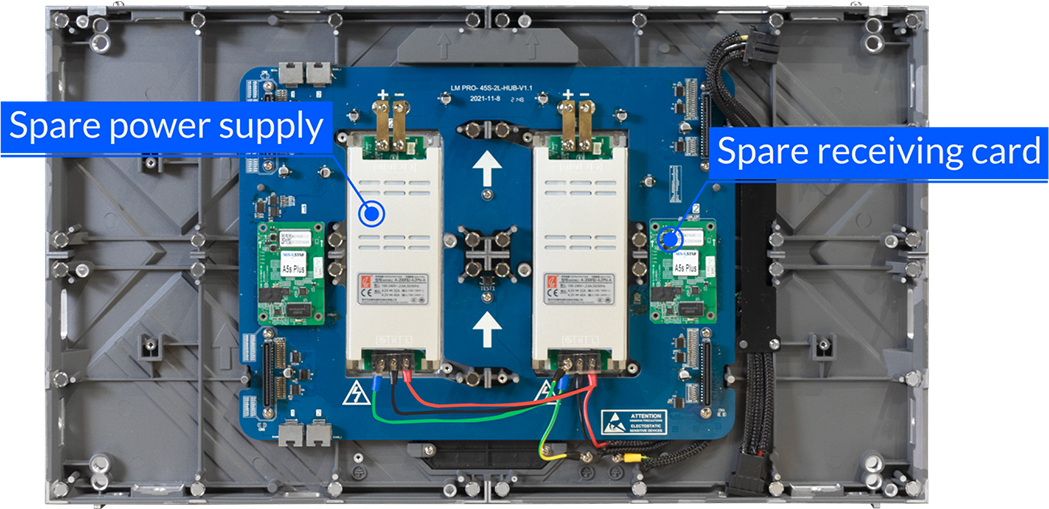

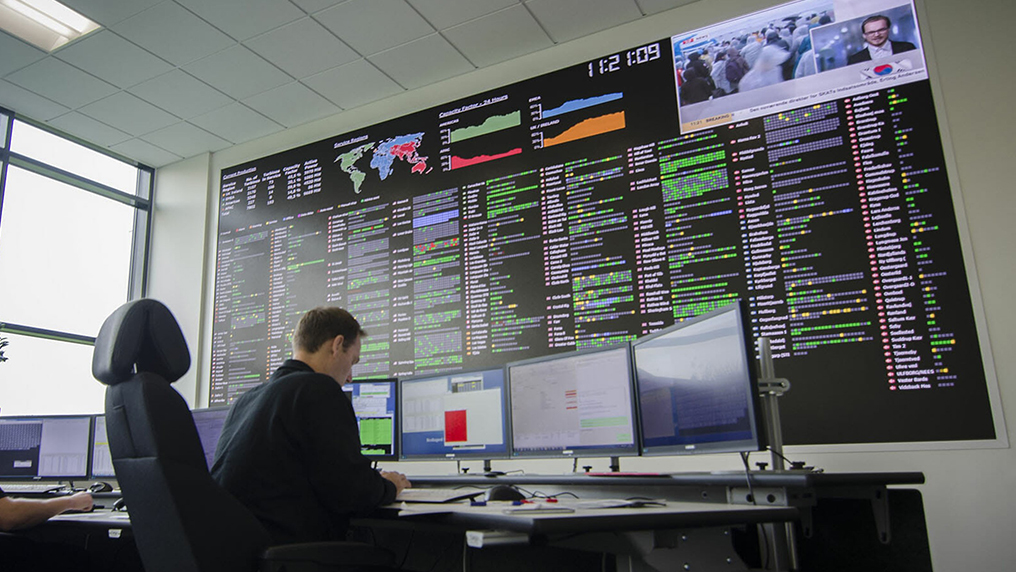

Suitable for Important Occasions to Ensure That The LED Display Works Normally

Model	S091PRO-ULT	S121PRO-ULT	S151PRO-ULT	S181PRO-ULT	S251PRO-ULT
Pixel Pitch (mm)	0.9375mm	1.25mm	1.56mm	1.875mm	2.5mm
Configurations	Mini 4in1	SMD1010	SMD1212	SMD1515	SMD2020
Refresh Rate（hz）	2880-3840	2880-3840	2880-3840	2880-3840	2880-3840

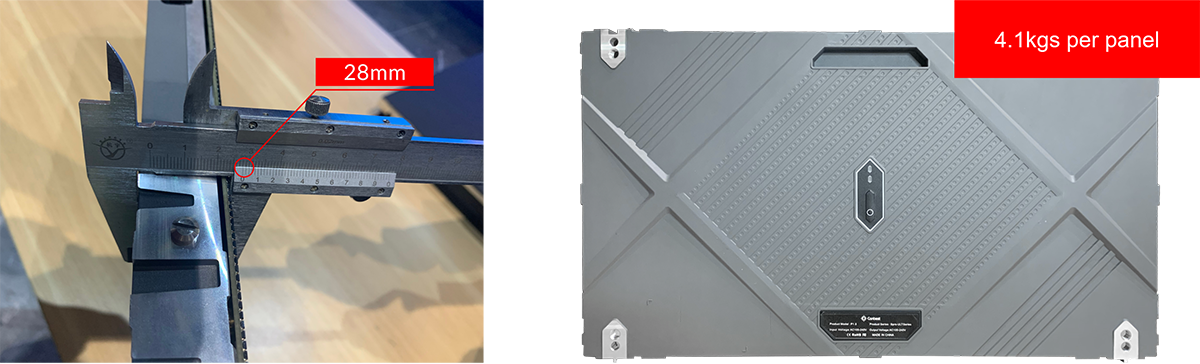

Cabinet Size(mm)	600x337.5x28	600x337.5x28	600x337.5x28	600x337.5x28	600x337.5x28
Cabinet Material	Die casting aluminum	Die casting aluminum	Die casting aluminum	Die casting aluminum	Die casting aluminum
Cabinet Weight	4.1 Kg / panel	4.1 Kg / panel	4.1 Kg / panel	4.1 Kg / panel	4.1 Kg / panel
Power Consumption(Max/Aver.)w/㎡	650/220	570/200	540/175	560/180	520/175
Brightness (nits)	450nit	450nit	450nit	600nit	900nit
Pixel Density Pixels(㎡)	1137777	640000	409600	284444	160000
Maintenance Type	front	front	front	front	front
Note: For more product materials, please contact us directly.
