BO Series

BO Series

Outdoor Transparent LED Display


VIDEO

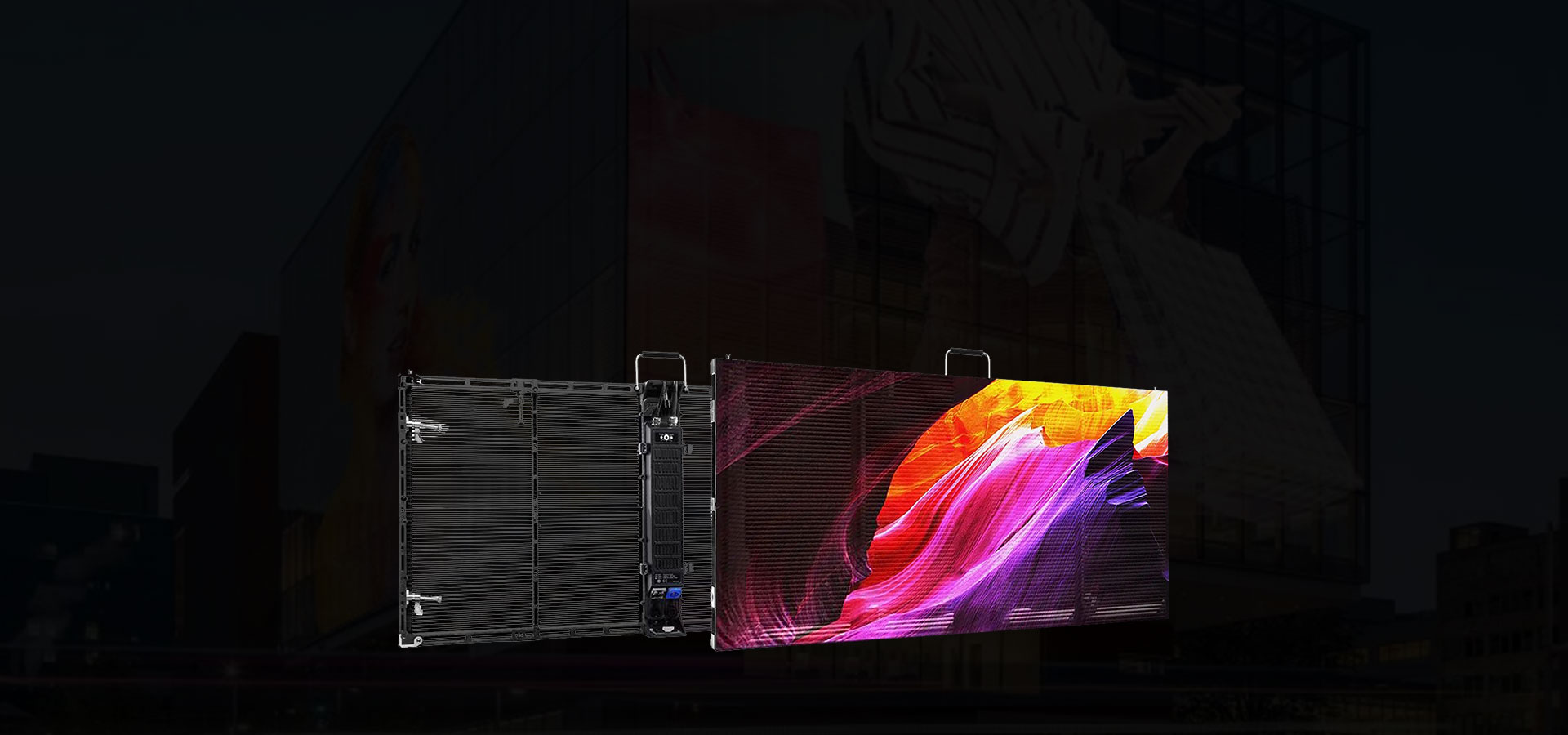

Simple Appearance , Super-light, Ultra-thin

Designed for ease of installation and maintenance , eliminating huge heavy load supporting structures which is often associated with alternative conventional LED methods.

BO Series

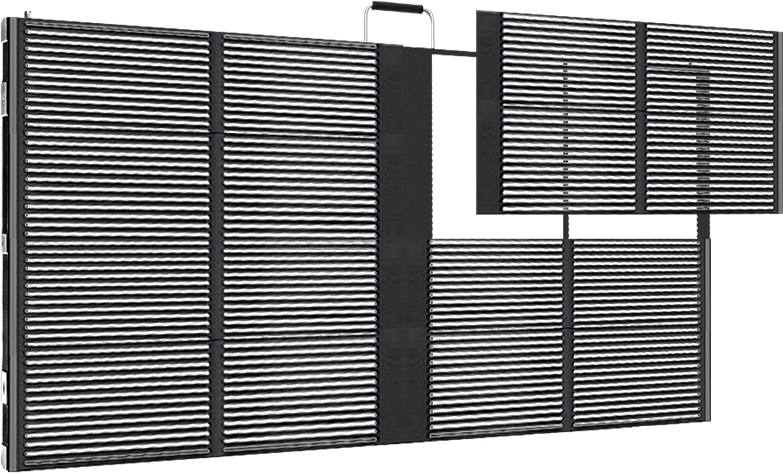

Modular Design, Easy Maintenance

Integrated modular design, maintenance only needs to replace single module, and single –point maintenance is also possible Pluggable design of network cable and power card ,quick connection operation

BO Series

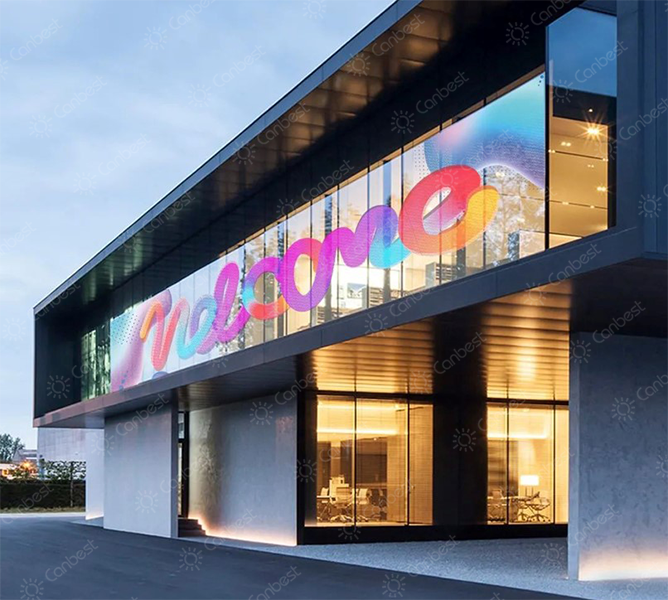

High Transparency

Transparency can reach up to 80% with the highest resolution, screen is almost invisible when viewed from 5 meter.

BO Series

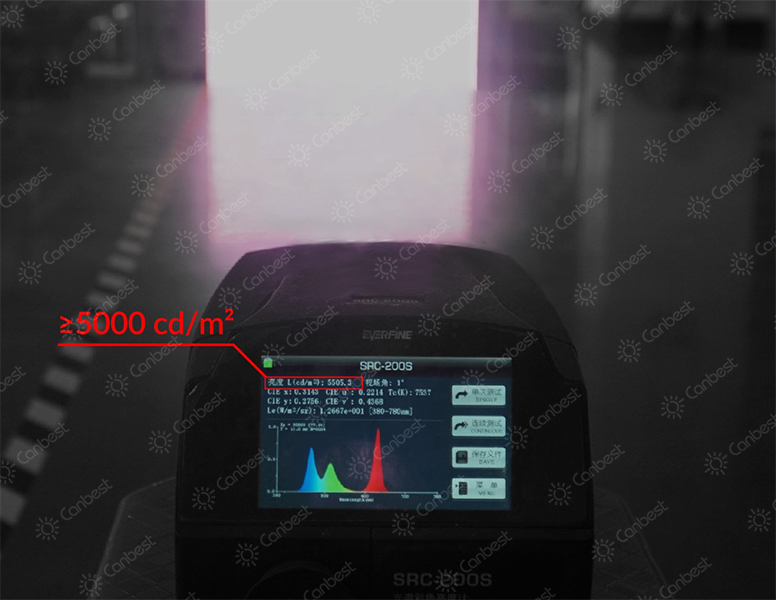

High-Brightness

Using high-brightness outdoor power supplies, the display can compete with direct sunlight exposure at peak times of the day

Quick Lock Feature

Our lock system allows for easy hanging and connection between panels. This unique locking system works with a speedy and effortless, easy operation

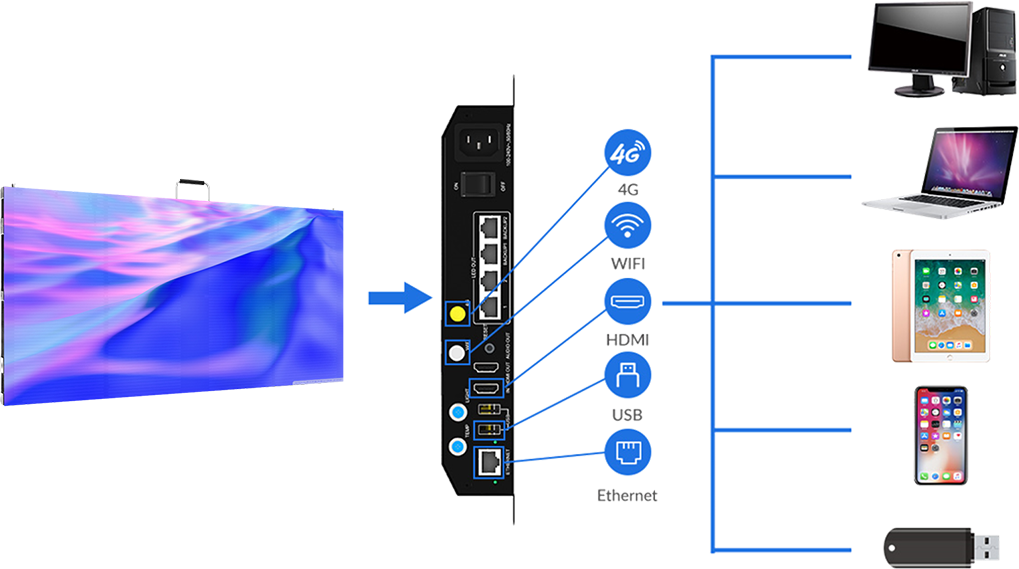

Convenient Control

BO transparent LED screen supports wireless control and multiple control methods.

SPECIFICATIONS
Model BO3 BO5 BO10
Pixel Pitch (mm) 3.91-7.81 5.2-10.4 10.4-10.4
LED configuration SMD1921 SMD1921 SMD2727
White balance brightness(nits) ≥5000 ≥5000 ≥5000
Refresh Rate(hz) ≥3840 ≥3840 ≥3840
Module size 500*250 500*250 500*250
Cabinet Size(mm) 1000*500 1000*500 1000*500
Cabinet weight(kg) 15KG/ ㎡ 15KG/ ㎡ 15KG/ ㎡
Viewing angle 160°/110° 160°/110° 160°/110°
Thickness 80 mm 80 mm 80 mm
Cabinet Material Die casting aluminum Die casting aluminum Die casting aluminum
Average power(w/㎡) ≤ 290/ ㎡ ≤280w/㎡ ≤260w/㎡
Max consumption(w/㎡) ≤800w/㎡ ≤800w/㎡ ≤800w/㎡
Drive mode 1/8 scanning 1/4 scanning 1/2 scanning
Waterproof IP65 IP65 IP65
Installation type Stacking , hanging, wall-mounted Stacking , hanging, wall-mounted Stacking , hanging, wall-mounted
Maintenance Type Front & Rear Front & Rear Front & Rear
Note: For more product materials, please contact us directly.

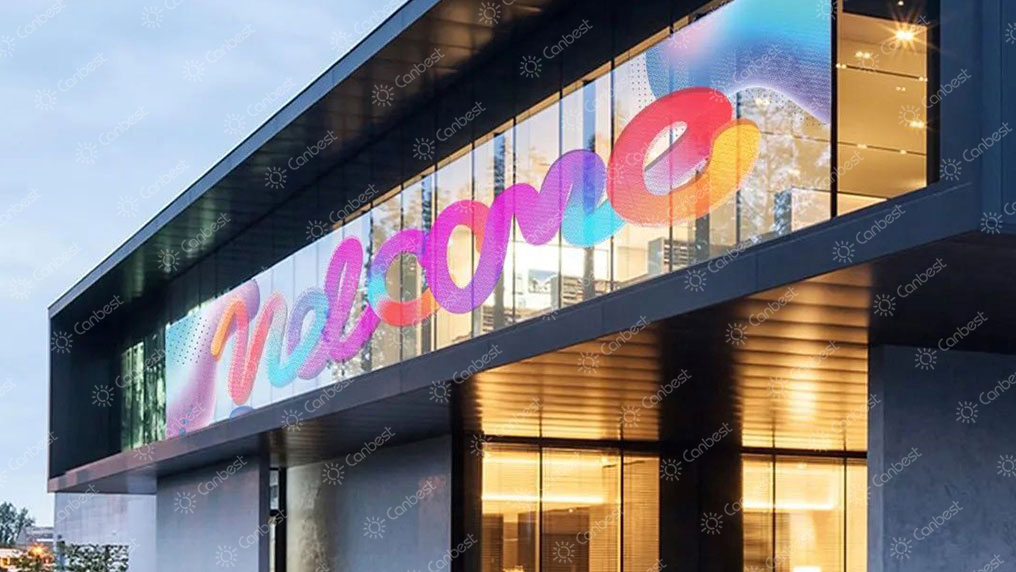

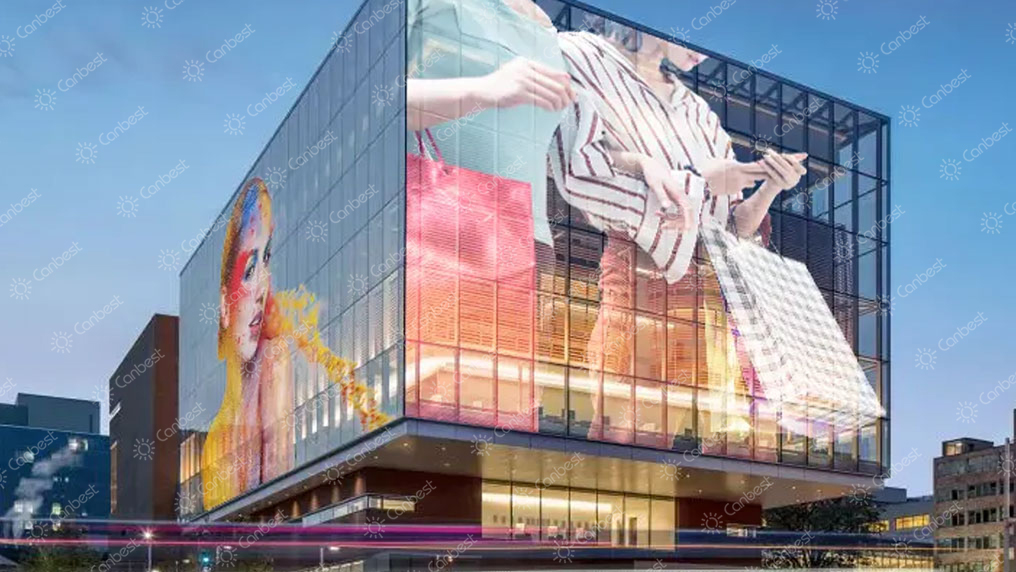

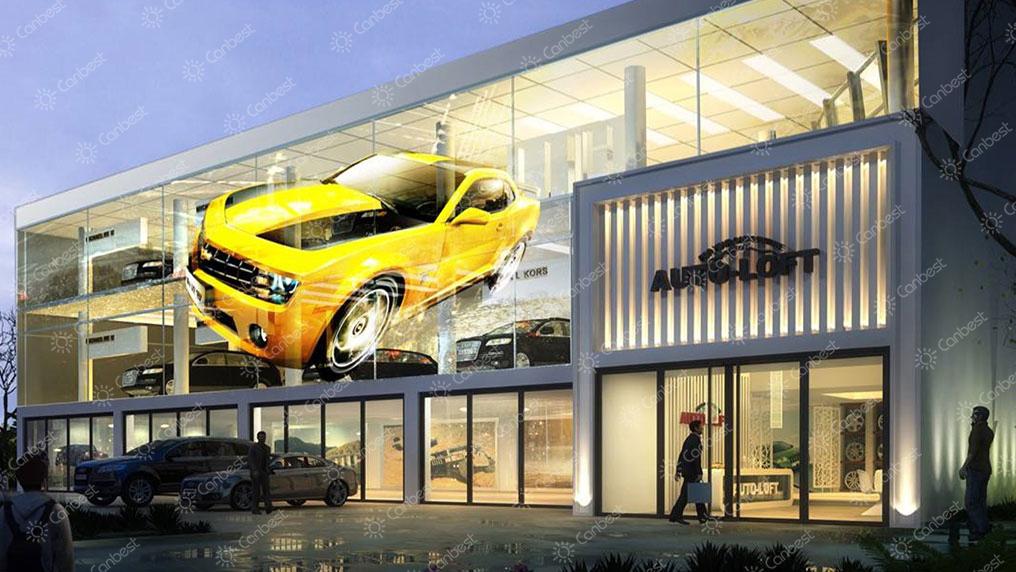

PRODUCT CASE
