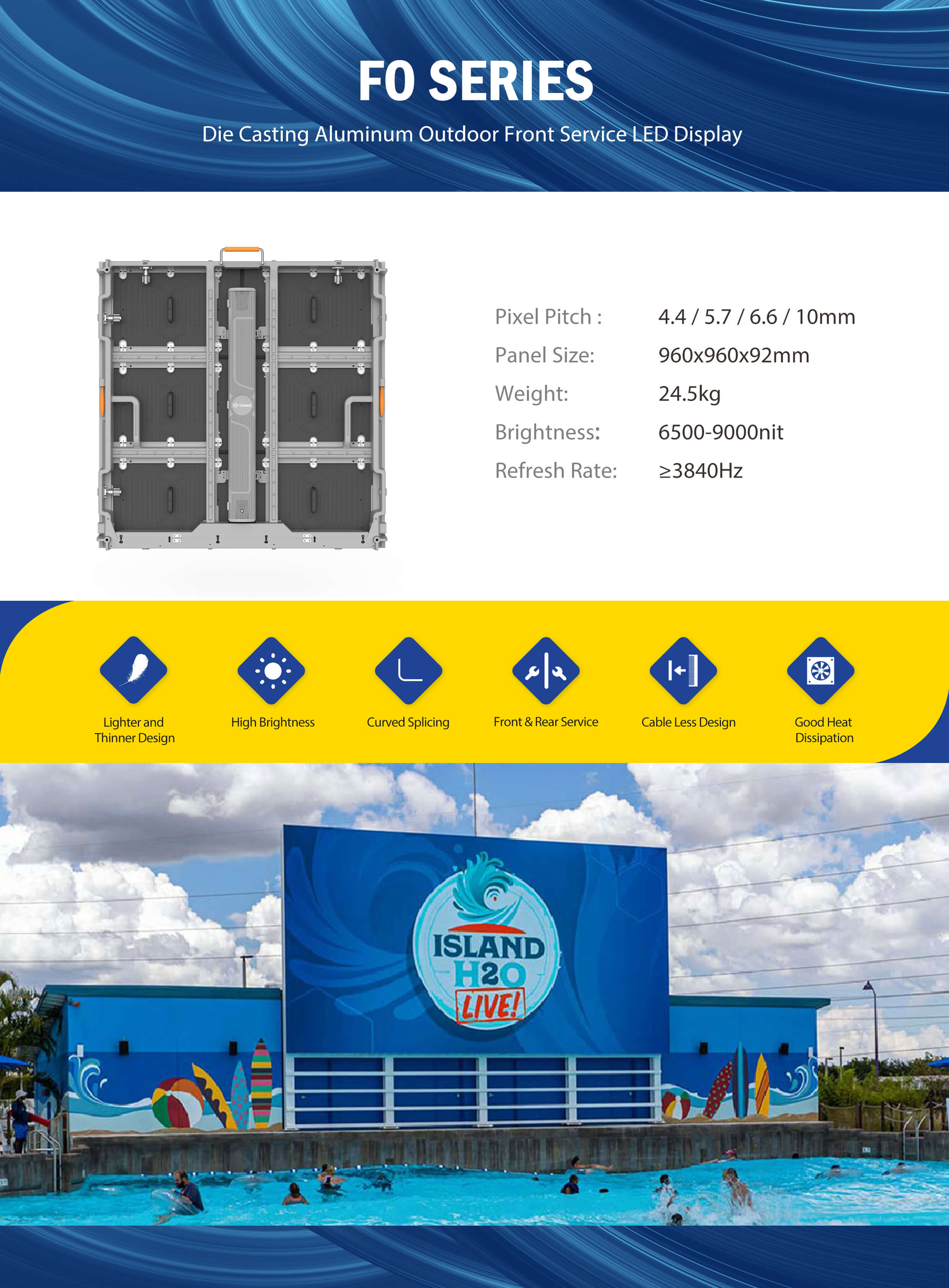

FO Series

FO Series

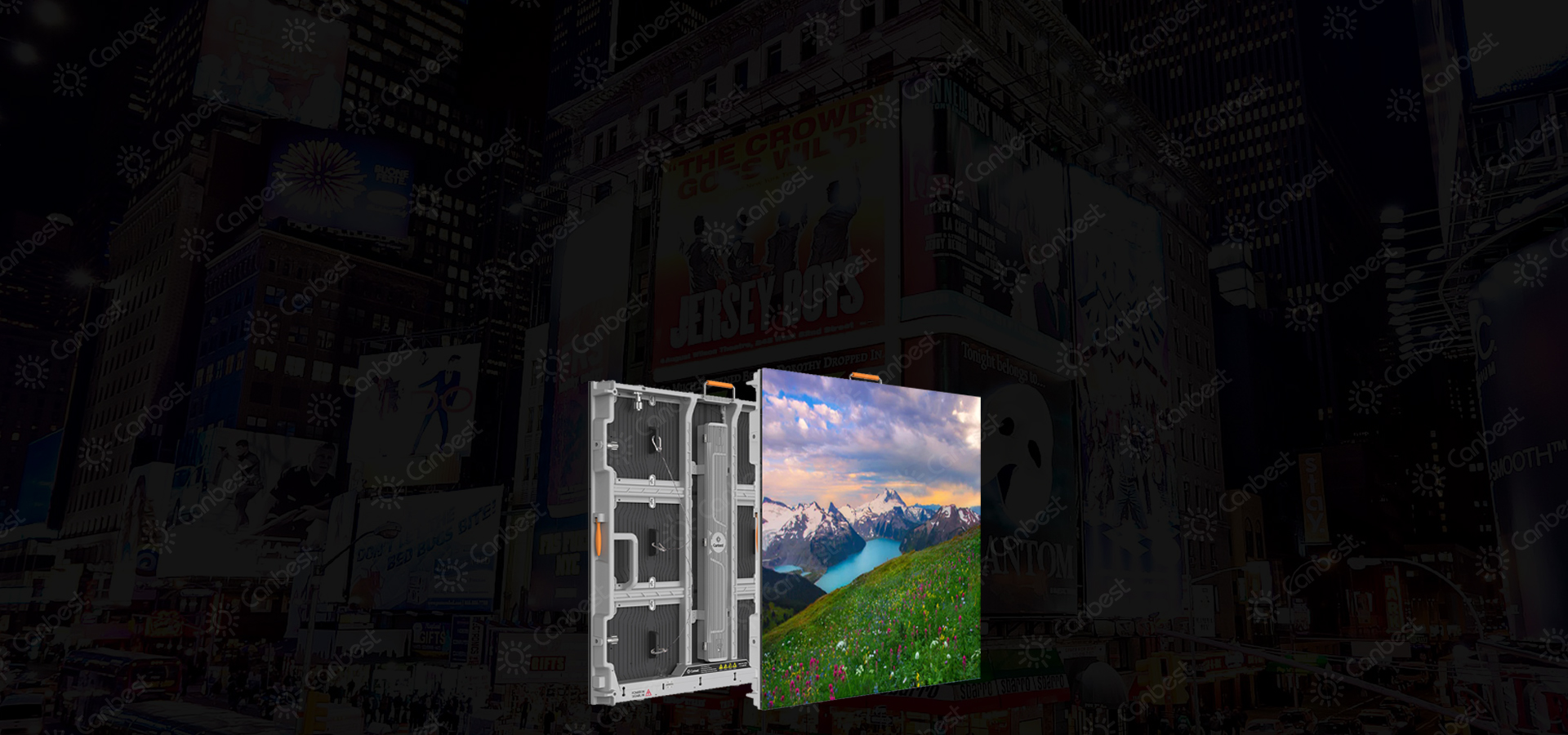

3D Curved Front Service Advertising LED Screen


VIDEO

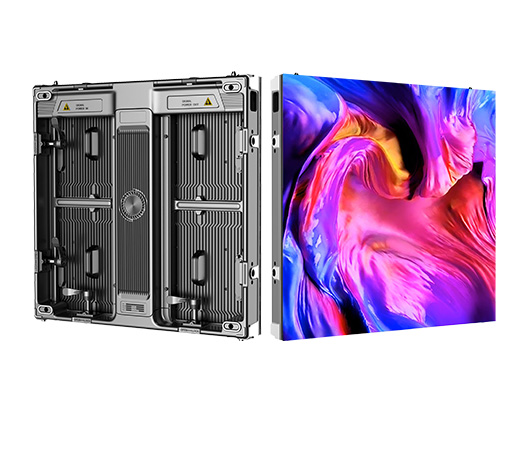

Lighter and Thinner Design

die casting aluminum material, lighter and thinner,and won't get deformed easily ;
Can attach to the wall directly without more structure, cost-saving and super tidy


FO Series

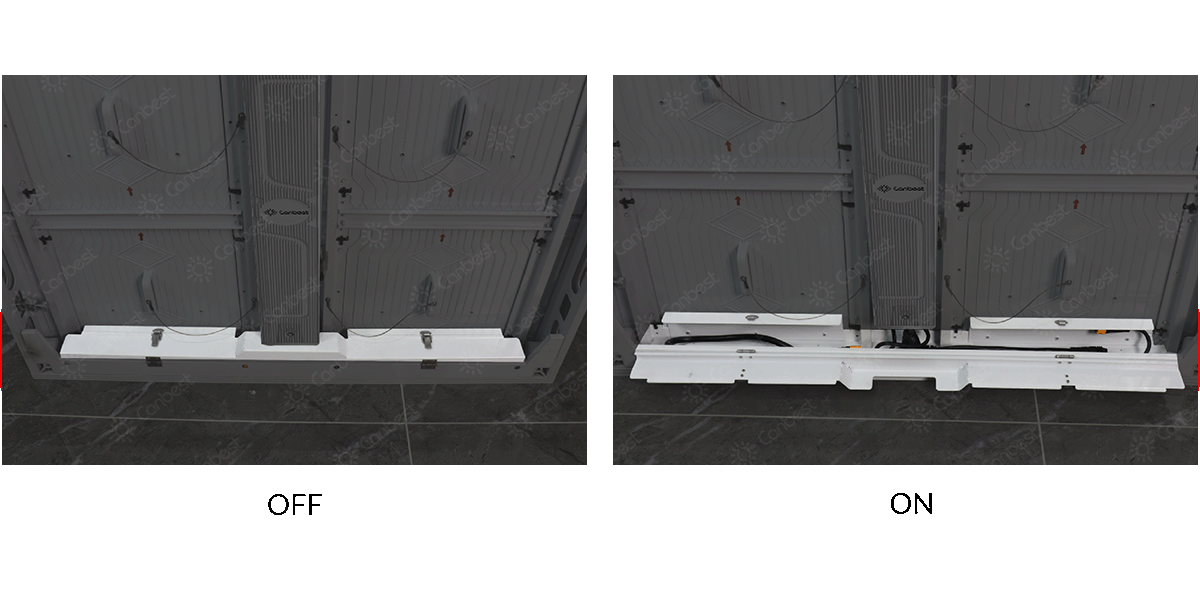

Hidden Cable Box Design

High density silicone cables, high & low temperature resistance, and excellent electrical insulation;
Protect the cables from damage caused by animals ,  bring down the possibility of maintenance.



FO Series

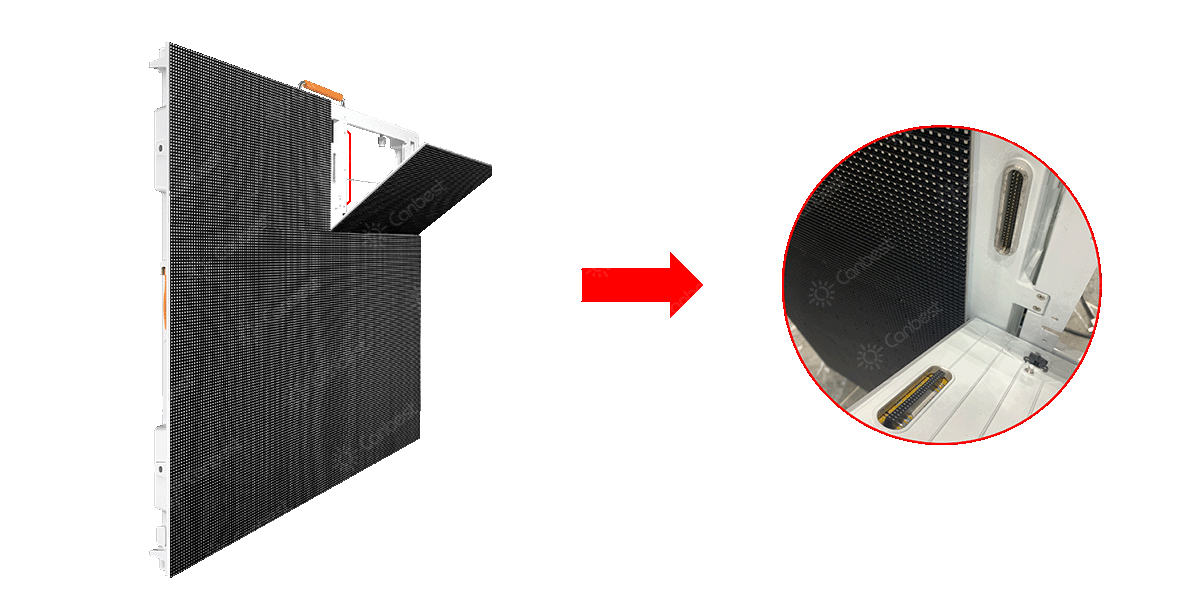

Cable Less Design

Decreasing the possibility of failure caused by cables, also make whole screen tidy and elegant appearance



FO Series

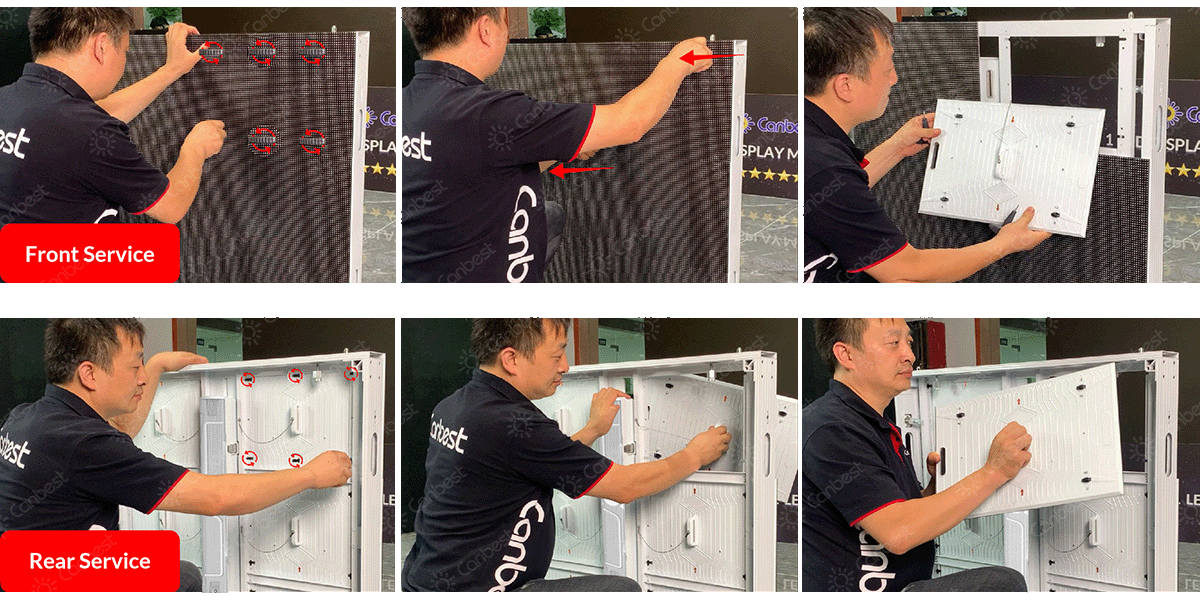

Front and Rear Service

Easy and simple operation, save maintenance time and cost

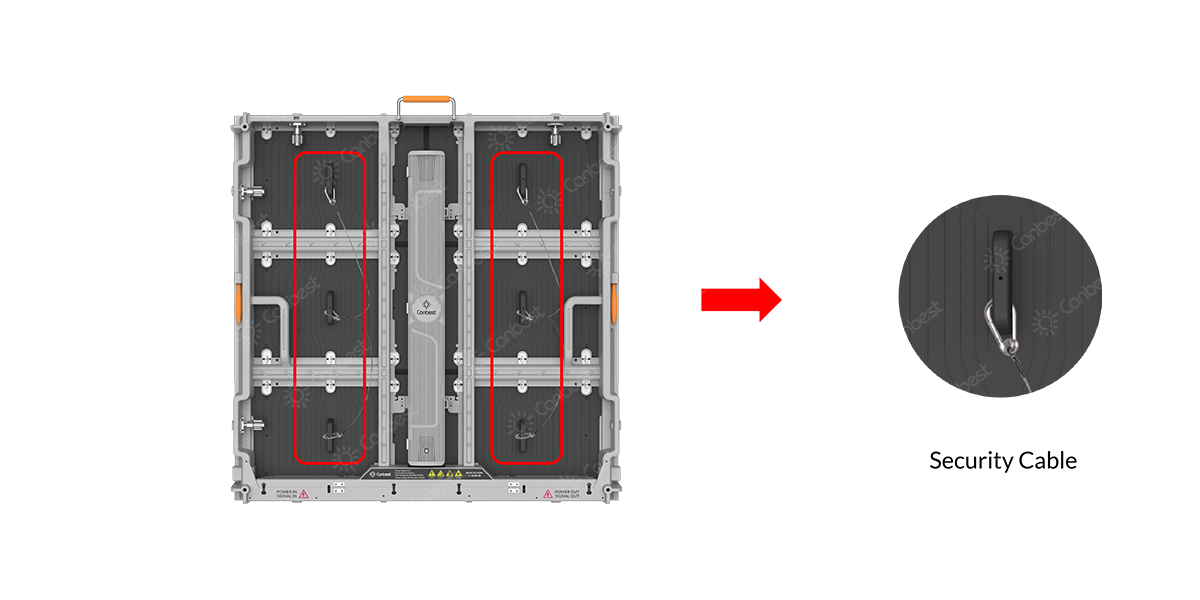

Security Cable Design


Protect module from falling down when doing maintenance.

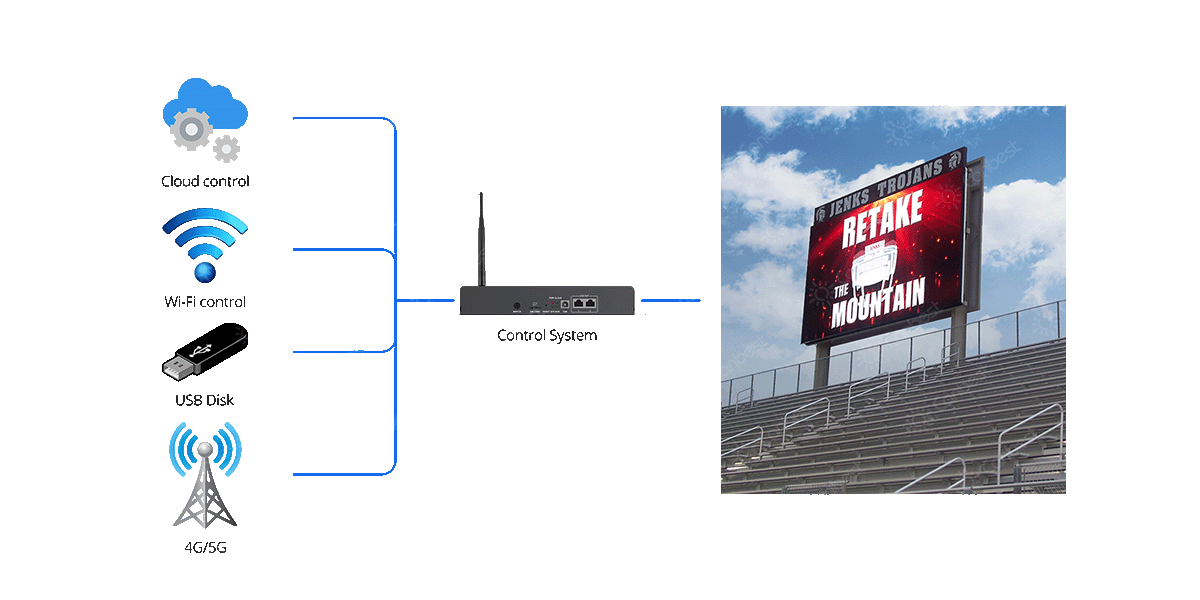

Smart Control System


For cloud control, Wi-Fi control,  USB Disk, 4G/5G, our smart control system are allowed to make it.



SPECIFICATIONS
Model FO4 (P4.4) FO5  ( P5.7 ) FO6  ( P6.67)   FO10  ( P10 )
Pixel Pitch (mm) 4.4mm 5.7mm 6.67mm 10mm
Brightness(nits) 5500cd/㎡ 5800cd/㎡ ≥ 6500cd/㎡ ≥ 6500cd/㎡
Refresh Rate(hz) ≥3840 ≥3840 ≥3840 ≥3840

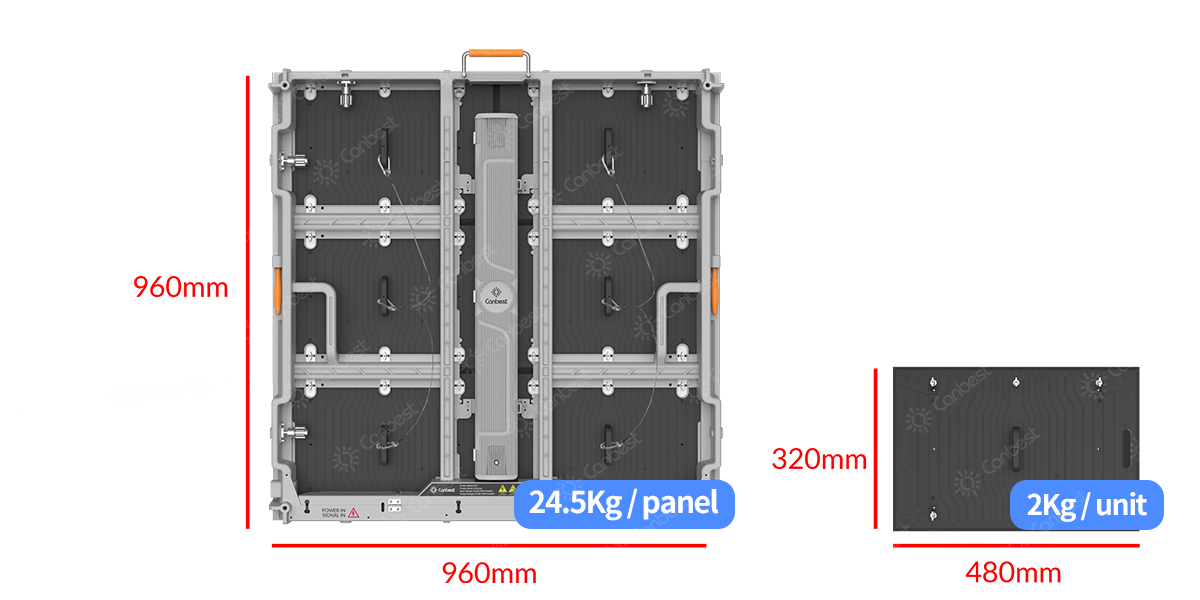

Cabinet Size(mm) 960*960*92 960*960*92 960*960*92 960*960*92
Cabinet weight(kg) 24.5 Kg/panel 24.5 Kg/panel 24.5 Kg/panel 24.5 Kg/panel
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡ 550/220 550/220 550/220 550/220
Cabinet Resolution Pixels 218*218 168*169 144*144 96*96
Pixel Density Pixels(㎡) 51652 30778 22477 10000
Maintenance Type   Front & Rear
Note: For more product materials, please contact us directly.

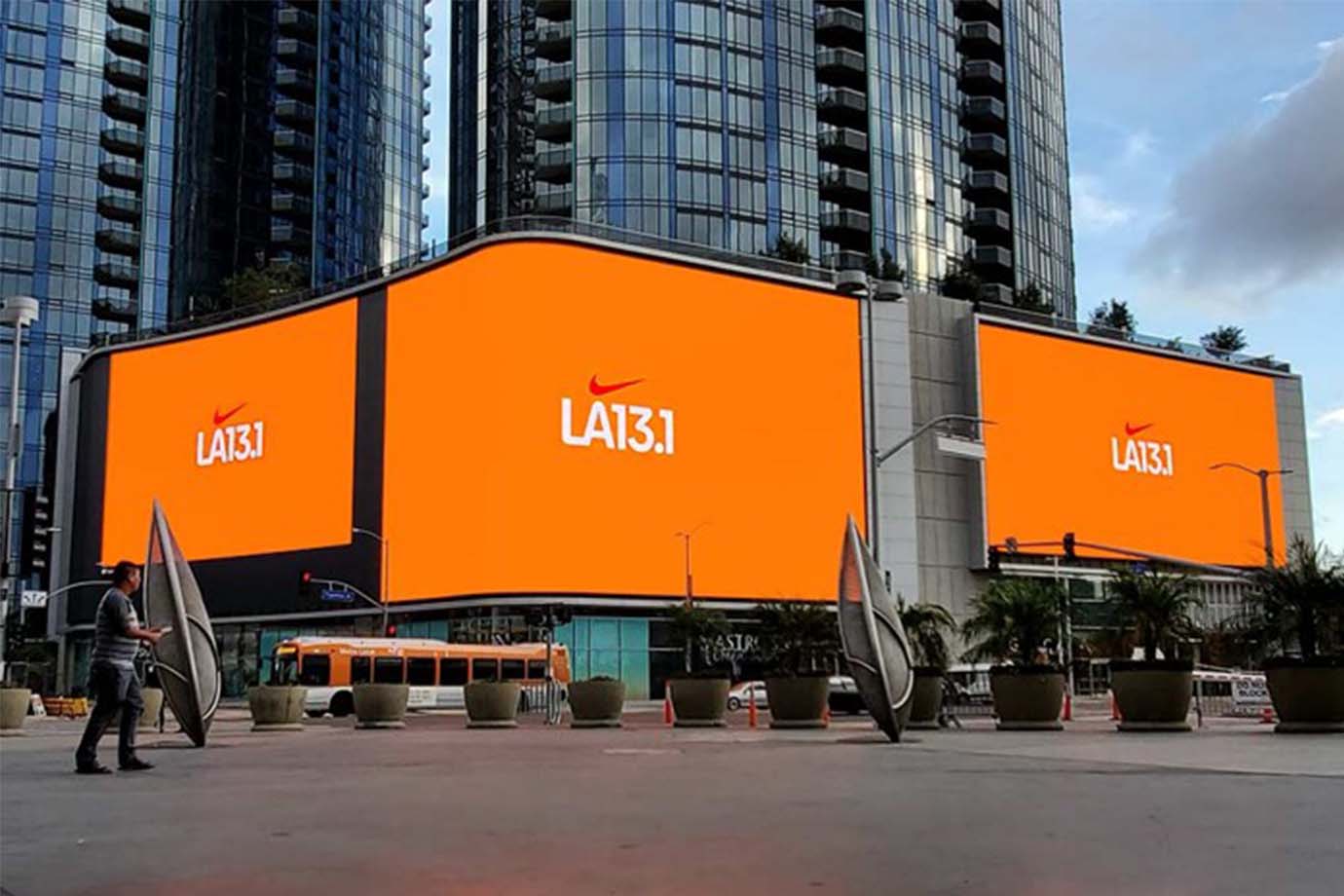

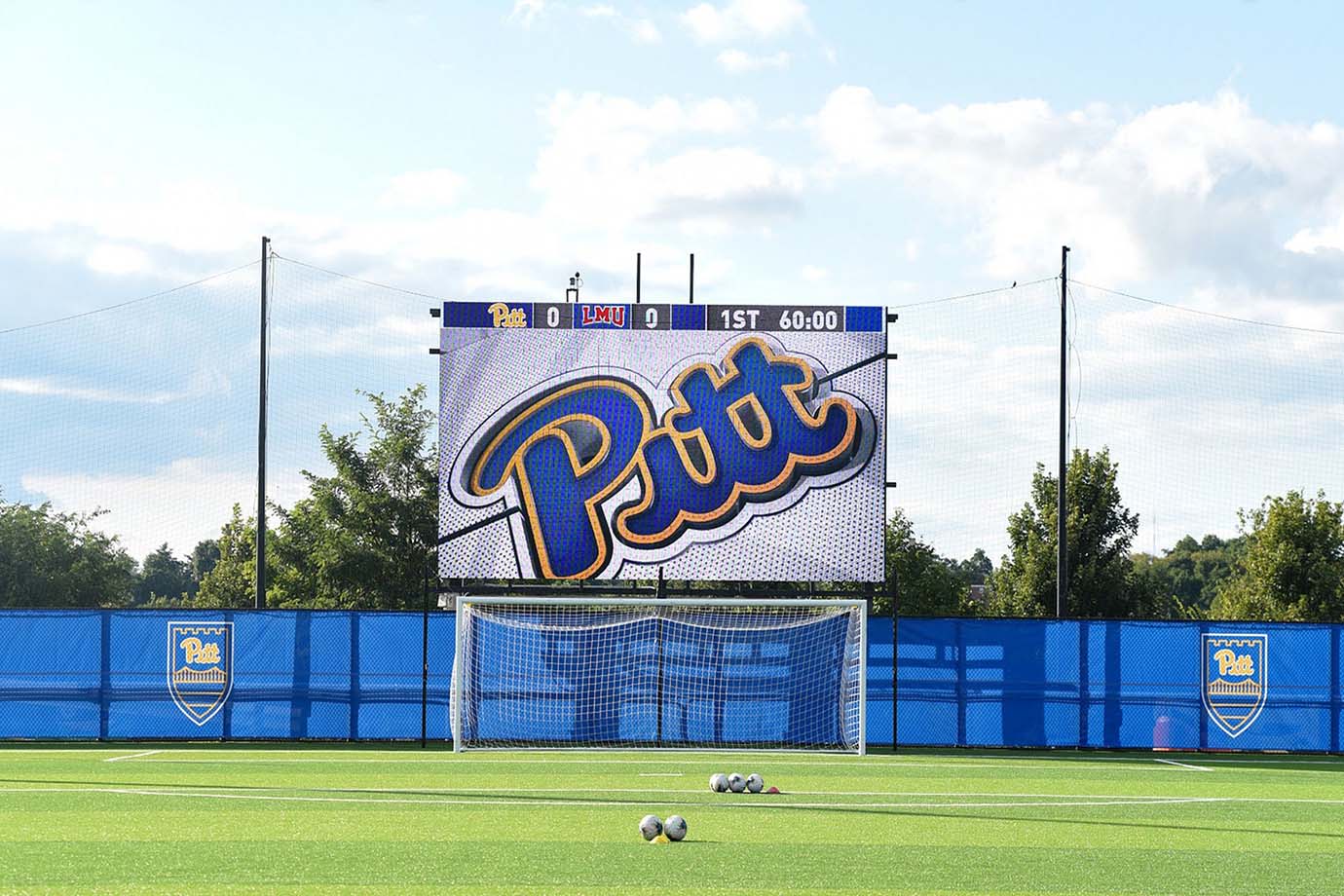

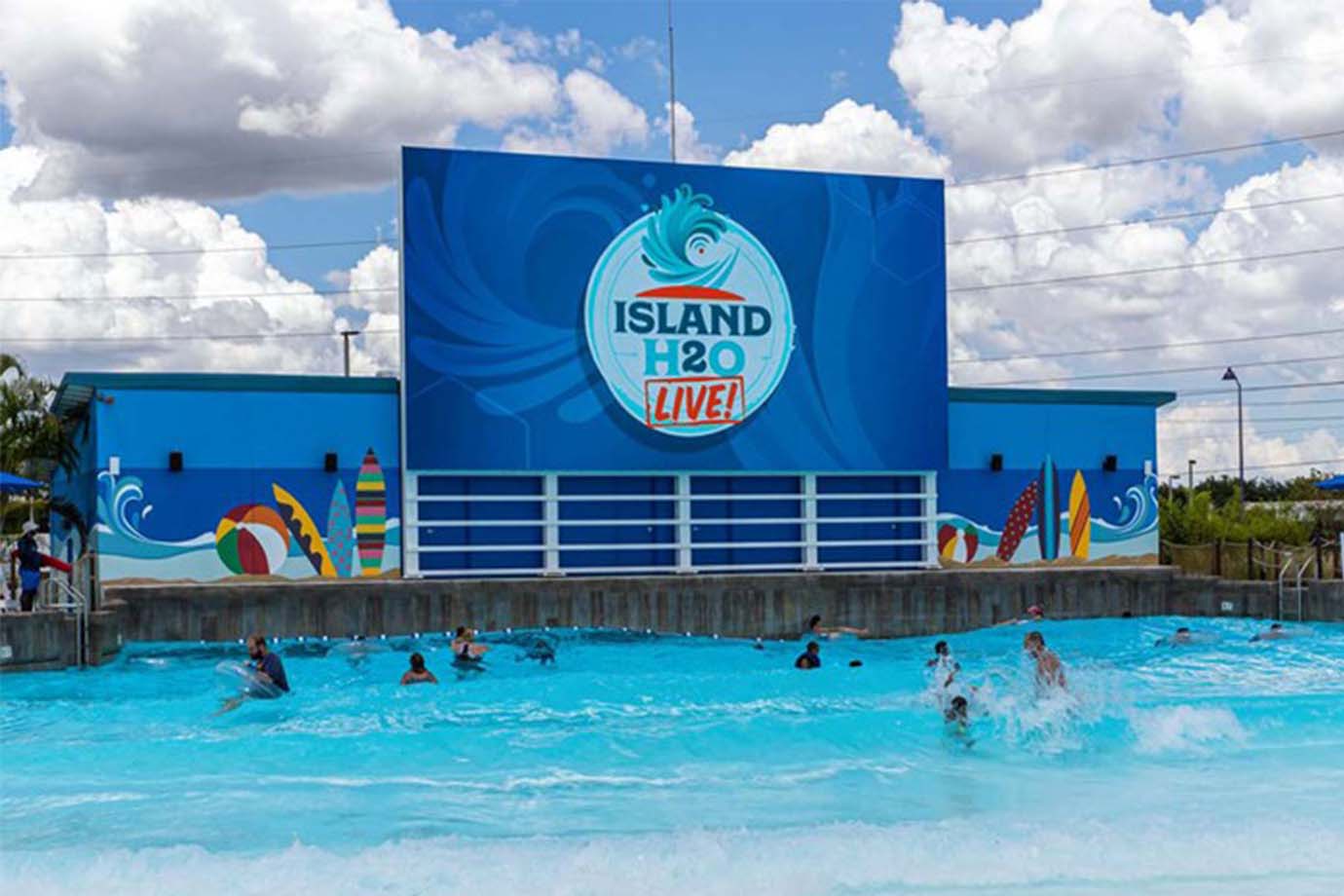

PRODUCT CASE
