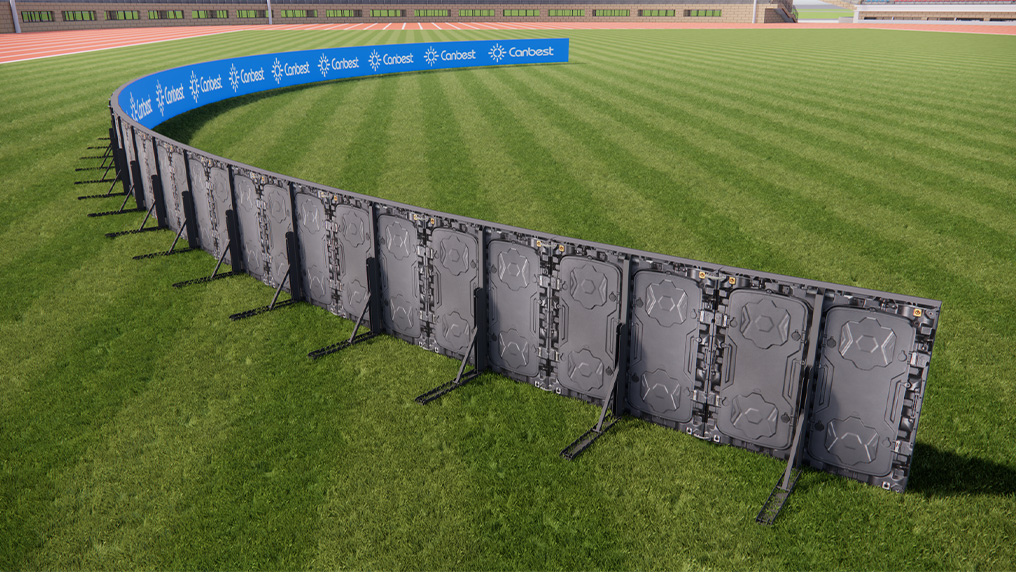

Arena Stadium Perimeter LED Screen Display-960*960mm

VIDEO

Humanization Design

With special soft screen mask and cabinet rubber cover protector, it can protect the players from being hurt during the match.

Quick Installation with High Standard Aviation Connector

Saving installation time and aviation connector will ensure the stable and reliable of the screen especially in some important occasions.

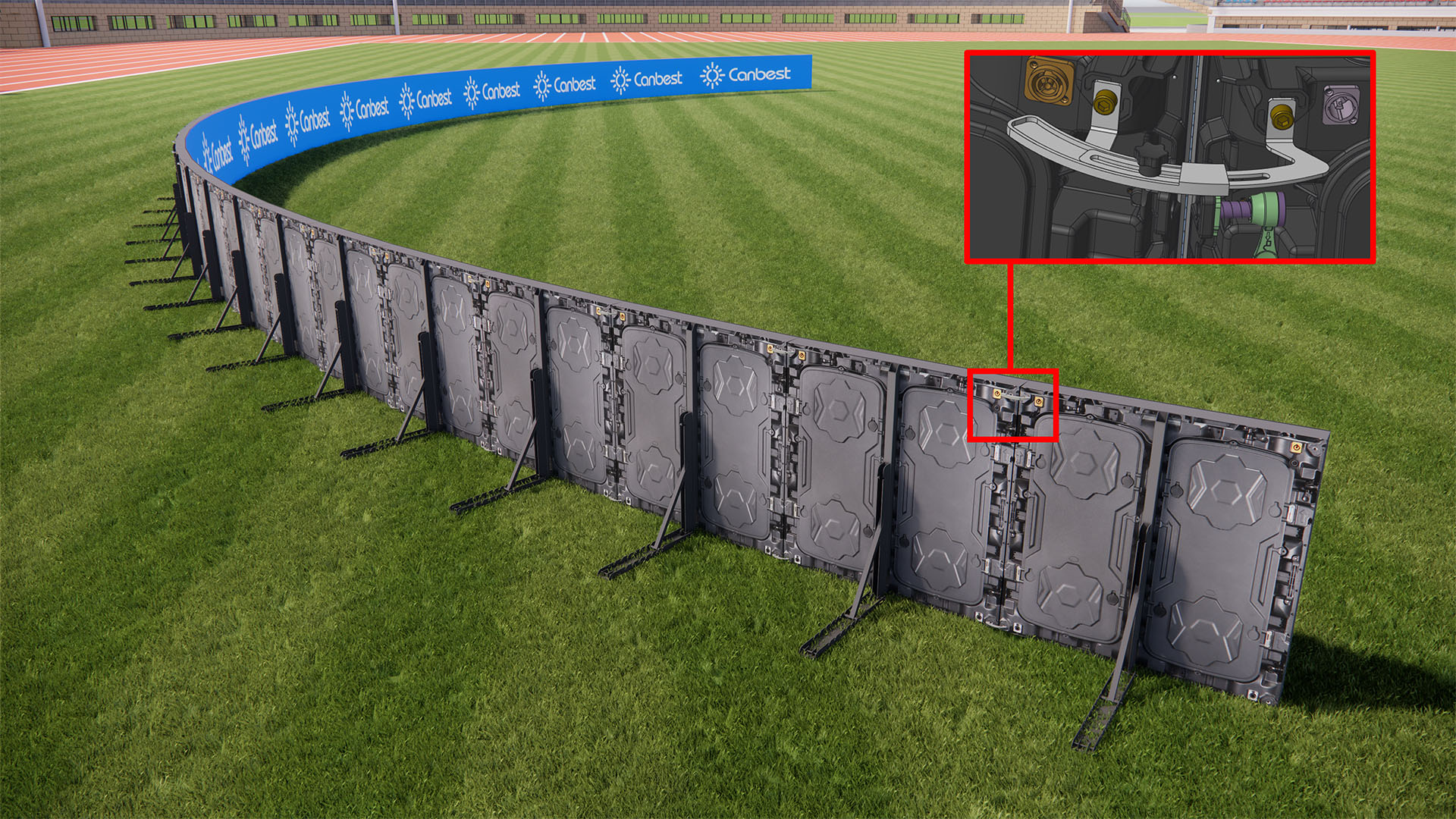

Curved Splicing Optional

The LED screen can present 0 °~20 ° arc splicing effects, providing more possibilities for stadium design

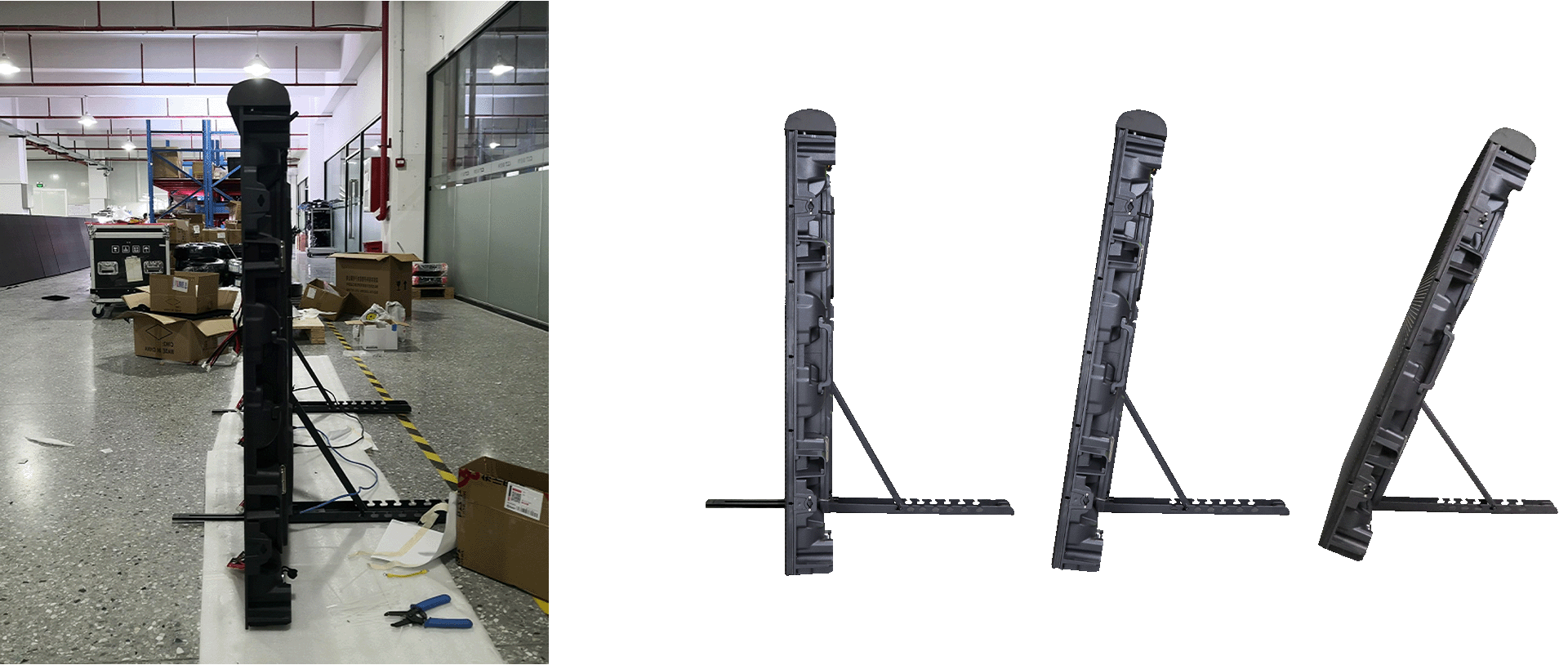

Independent Support Structure, Multi-angle Adjustment

The independent brackets support flexibly (60° ~ 90°) for audience and cameras

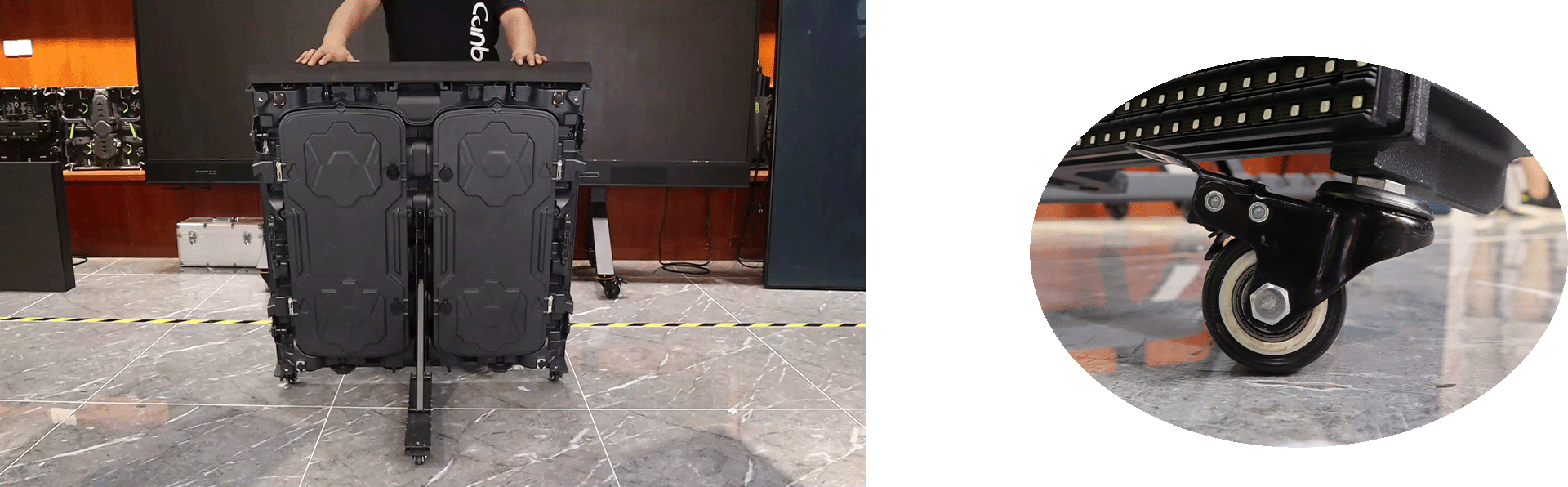

Rotating Design with Wheels For Emergency Exit

Q Series with rotating base and wheels for emergency exit for perimeter led display installation in stadium, this is necessary for quick and easy escape required by most football associations

Canbest One-stop Arena Stadium Perimeter LED Screen Display Solution

ISO9001 Quality Management System Certificate& ISO14001 Certificate, Products All with CCC, CE, FCC, Rohs, etc. Certificate for Global Market.

SPECIFICATIONS

Model	Q6	Q8	Q10
Pixel Pitch (mm)	6.67mm	8mm	10mm
Brightness（nits）	5500nits	6000nits	6000nits
Refresh Rate（hz）	≥3840Hz	≥3840Hz	≥3840Hz
Cabinet Size(mm)	960*960mm	960*960mm	960*960mm
Cabinet weight(kg)	28kg per panel	28kg per panel	28kg per panel
Cabinet Material	Die Cast Magnesium	Die Cast Magnesium	Die Cast Magnesium
Power Consumption(Max/Aver.)w/㎡	600/175	600/175	600/175
Cabinet Resolution Pixels	144*144	120*120	96*96
Pixel Density Pixels(㎡)	22477	15625dots	10000dots
Maintenance Type	Rear	Rear	Rear
Note: For more product materials, please contact us directly.

DOWNlOAD

Q Series Arena Stadium Perimeter LED Screen Display-960*960mm Brochure
