A PRO Series

A PRO Series

10000nits High Brightness Outdoor LED Screen Scoreboard Advertising Board


VIDEO

Super Energy Saving

Common Cathode Design, 10,000 Brightness, White Balance Corresponding to The Maximum Power Consumption of 550w, 7000 Brightness, Corresponding to The Power Consumption of 280w.

Low Heat, Good Heat Dissipation, No Need for Air Conditioning.

A PRO Series

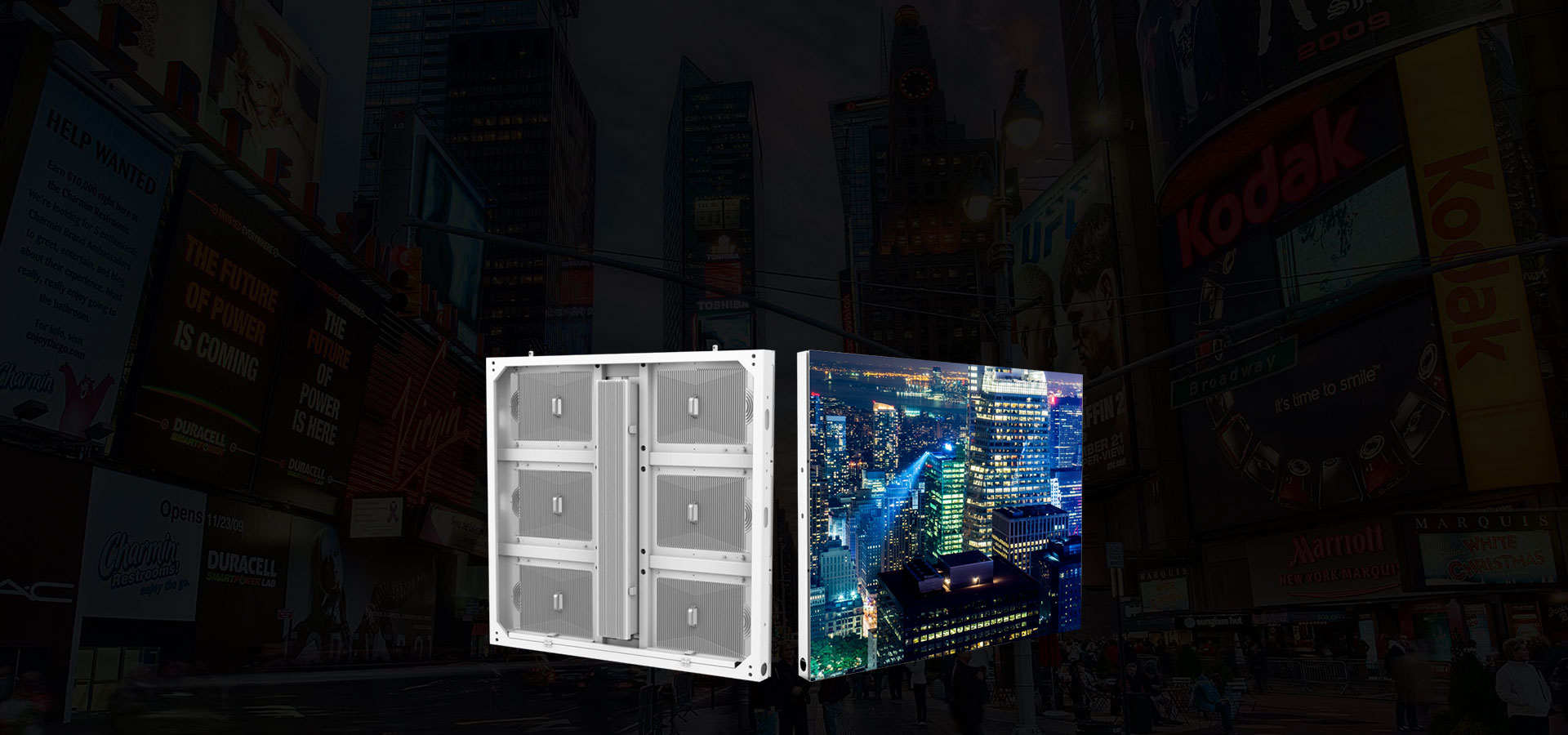

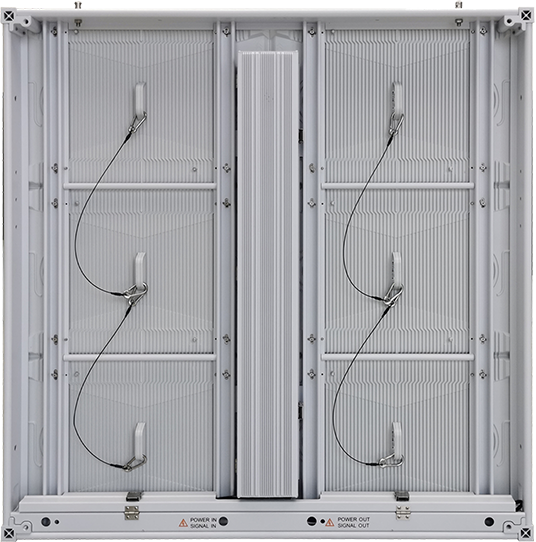

Super Lightweight

Light Weight, Aluminum Panel 28kg/㎡ with Thickness is 75mm.

Support Full Front or Full Rear Maintenance, Front Maintenance Can Be Installed Directly on The Wall.

Cable Slot Design, Anti-insect and Rodent.

A PRO Series

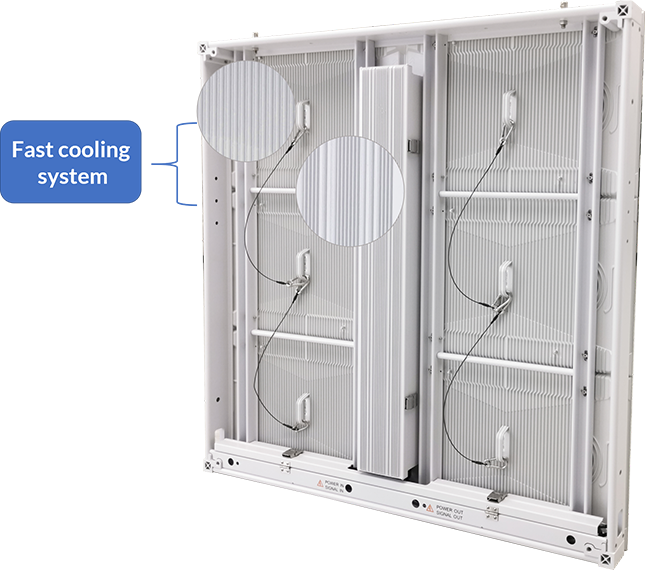

Super Stable & Engine Cooling Technology

Common Cathode Energy-Saving Design, Low Heat;

All Aluminum Bottom Shell Products, Good Heat Dissipation;

Using Engine Principle Heat Dissipation Technology, High Heat Dissipation Efficiency;

The Supply of Big-brand Raw Materials, After Undergoing Strict High and Low Temperature Tests, The Products are Stable As Before;

Wireless Connection, Higher Stability Than 5V Cable Connection.

A PRO Series

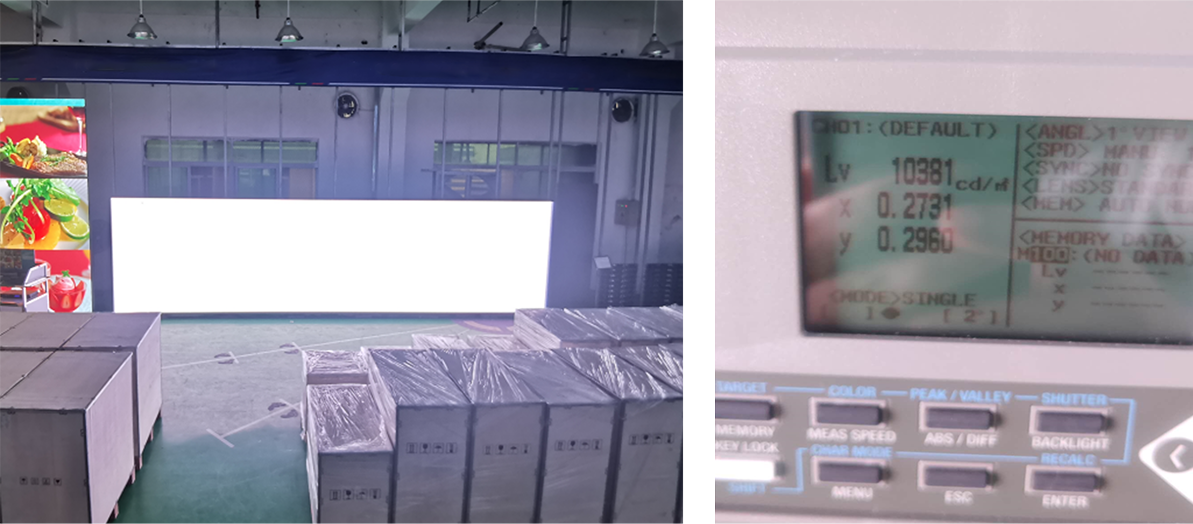

Super High Brightness



High Brightness More Than 10,000nits with Light Decay ≤ 5%, and It Is Still As New After 5 Years




Super Safe -5VB Fire Rating

SPECIFICATIONS
Model    A6 Pro  ( P6 )    A8 Pro ( P8 )    A10 Pro  ( P10 )
Pixel Pitch (mm) 6.67mm 8mm 10mm
Brightness(nits) 7500CD-8000/5500 9000-10000/6000 9000-10000/6500
Refresh Rate(hz) ≥3840 ≥3840 ≥3840
Cabinet Size(mm) 960*960*75 960*960*75 960*960*75
Cabinet weight(kg) 28 per sqm 28 per sqm 28 per sqm
Cabinet Material Aluminum Aluminum Aluminum
Power Consumption(Max/Aver.)w/㎡ 550/170 550/170 550/170
Cabinet Resolution Pixels 144*144 120*120 96*96
Pixel Density Pixels(㎡) 22477 15625 10000
Maintenance Type Front & Rear
Note: For more product materials, please contact us directly.

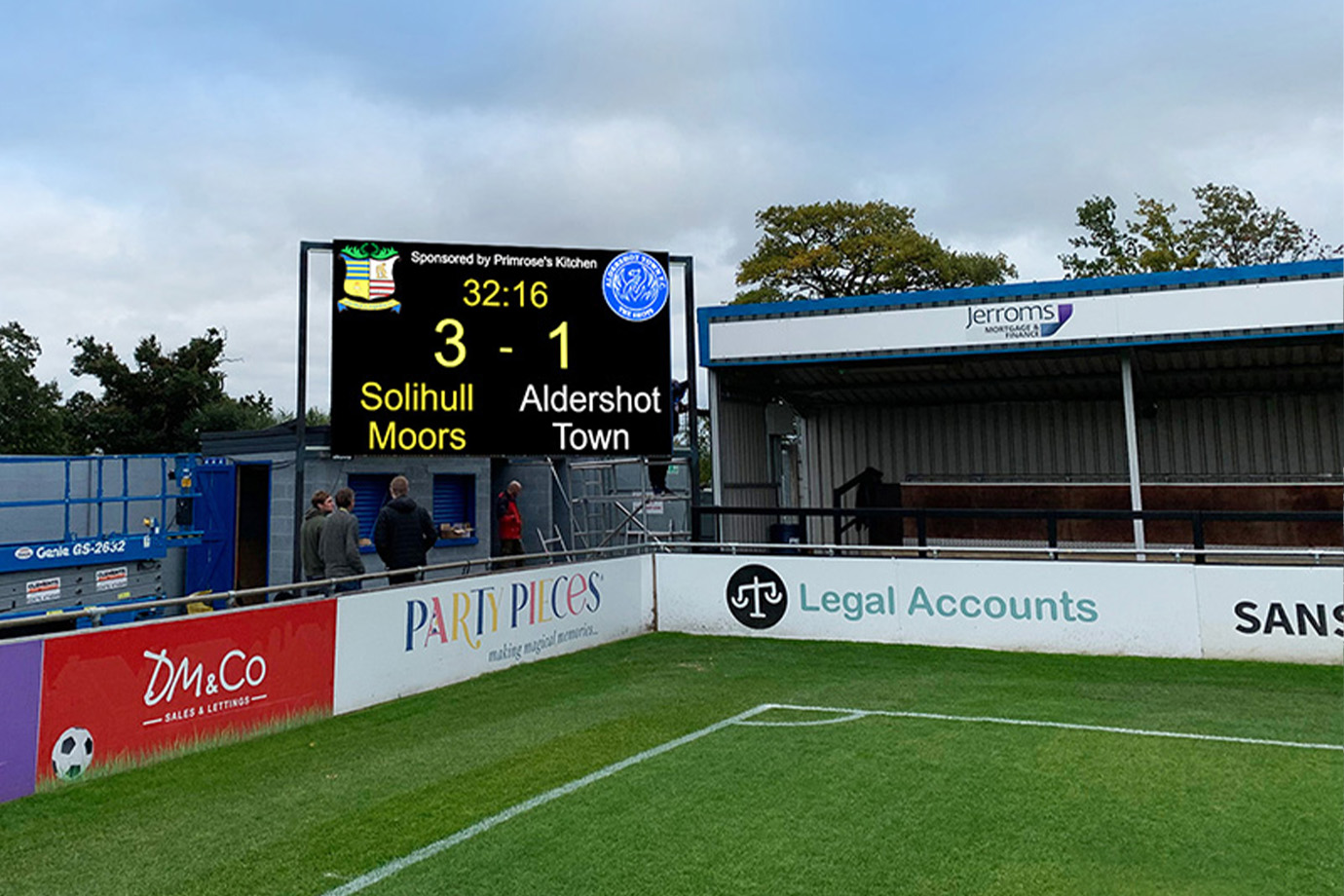

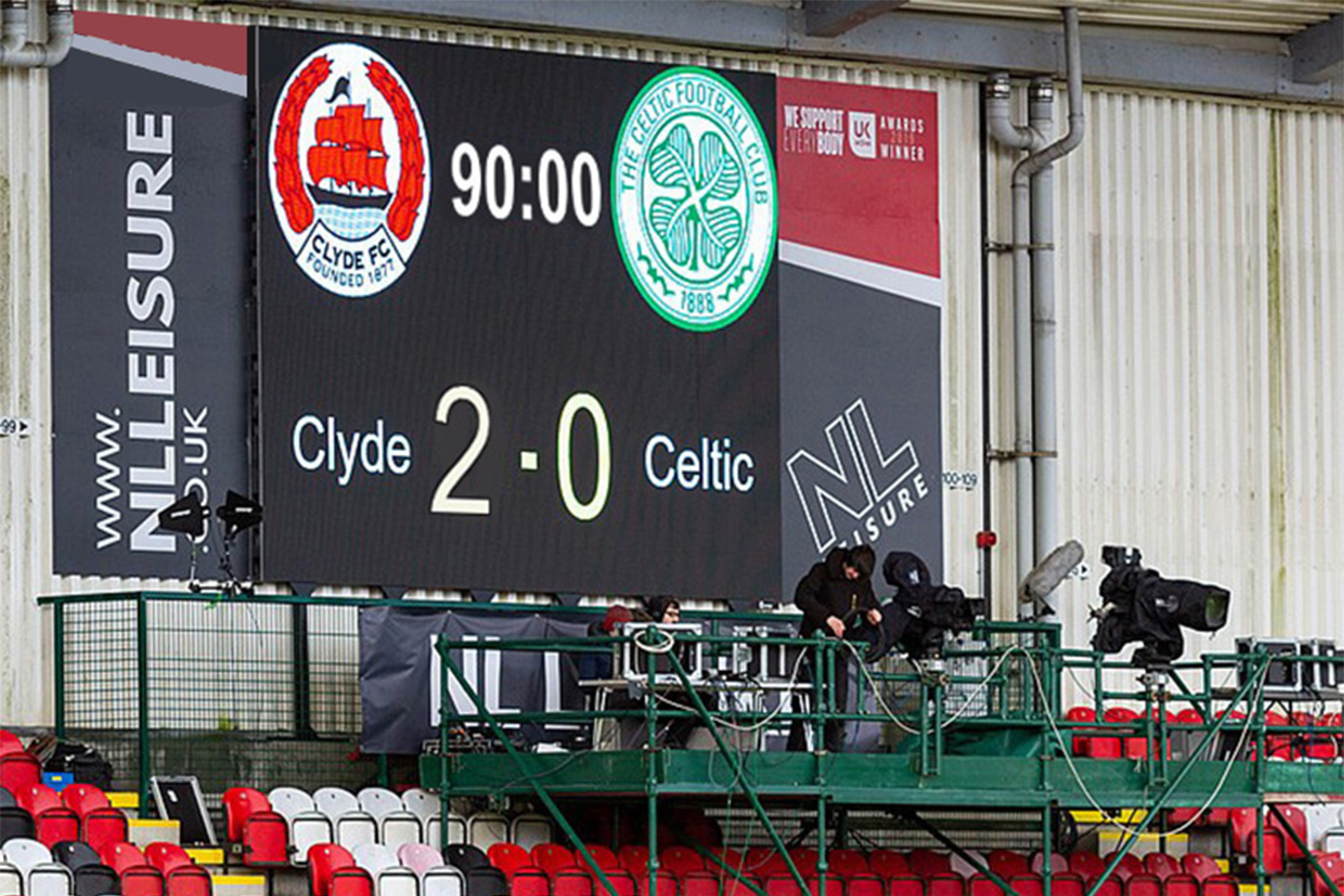

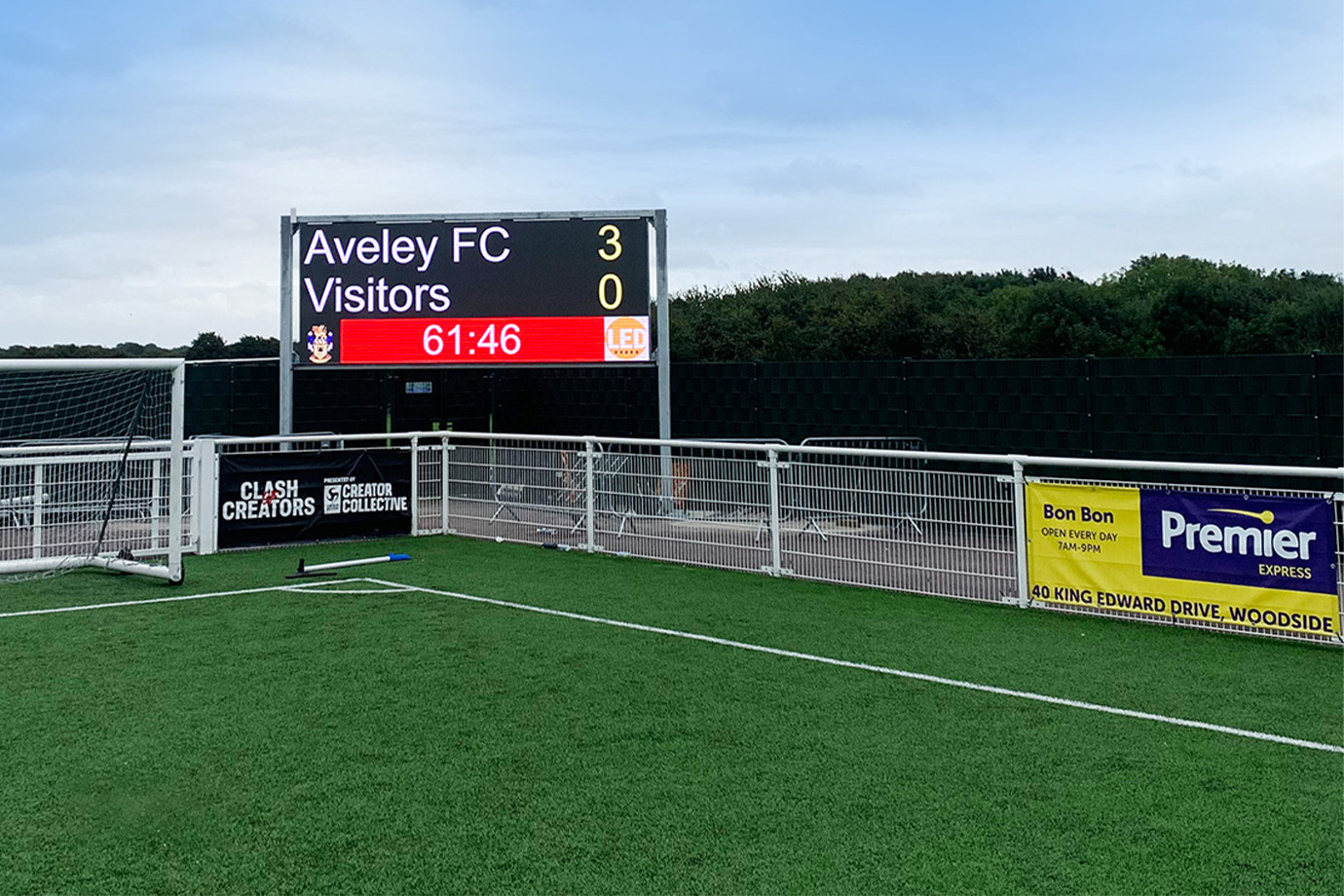

PRODUCT CASE
