S Plus Series

S Plus Series

Cable-less Connection 16:9 Small Pixel Pitch LED Wall


VIDEO

16:9 Golden Ratio
S Plus Series
Cable-less Connection

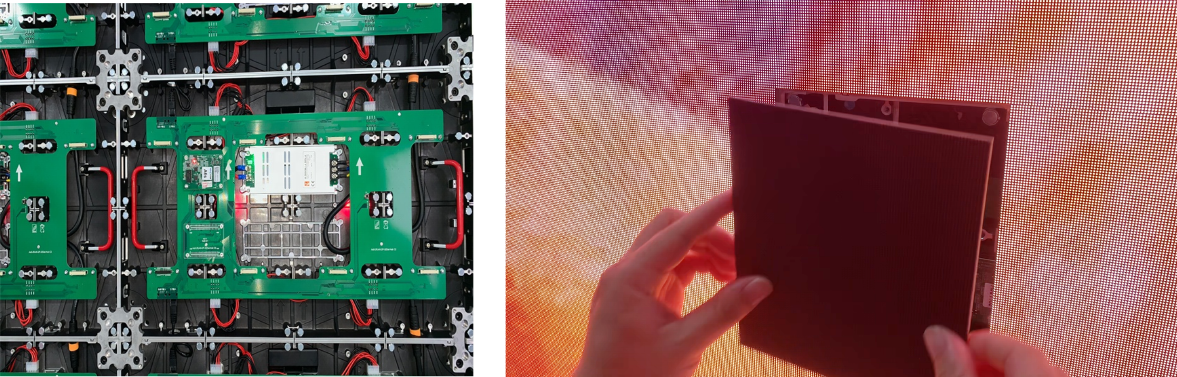

Cableless connection between module and cabinets, support front and rear maintenance and cableless installation.

S Plus Series
Power & Data Redundancy

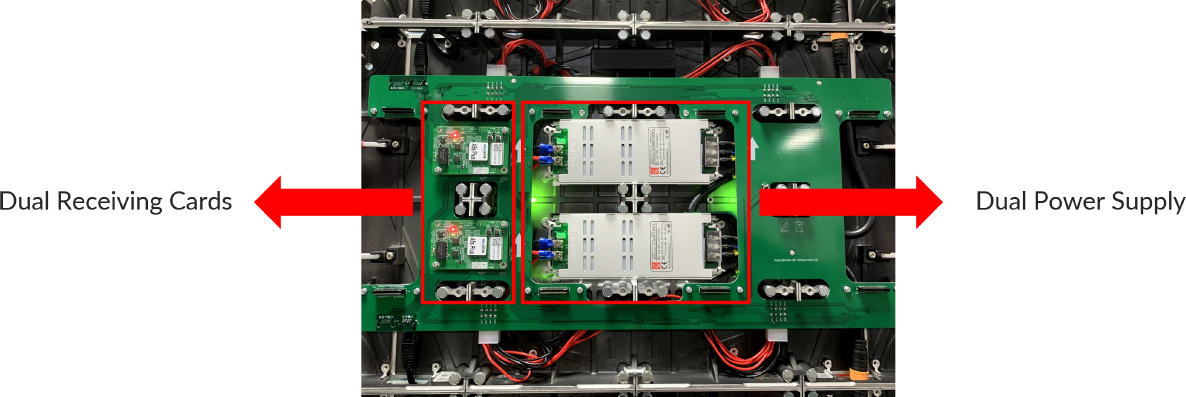

Featuring Dual Receiving Cards & Dual Power Supply, The product ensures continuity of information transmission with no power cut or signal loss, Particularly for mission-critical events and meetings .

S Plus Series
Easy installation

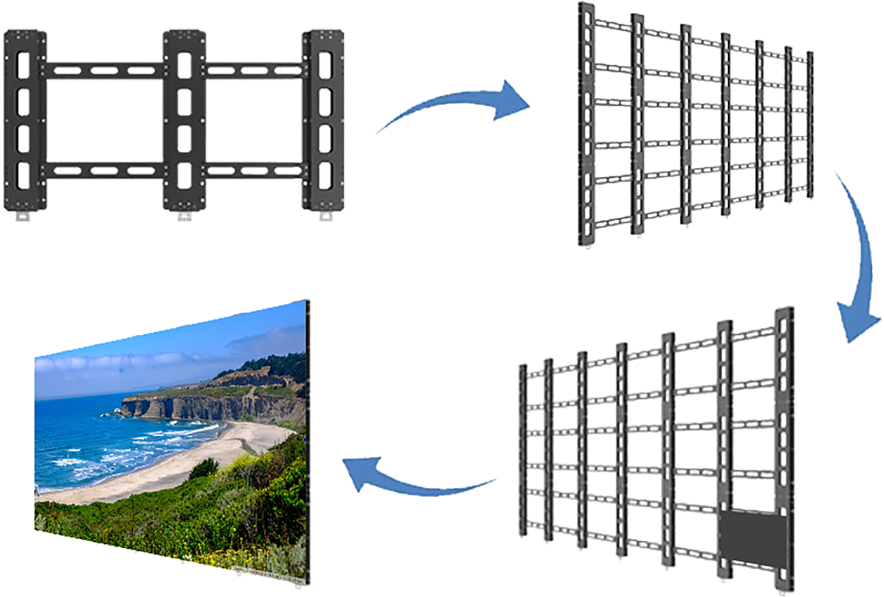

Ready-made brackets, ensuring the whole screen flat and seamless; Just 4 steps can finish the installation.

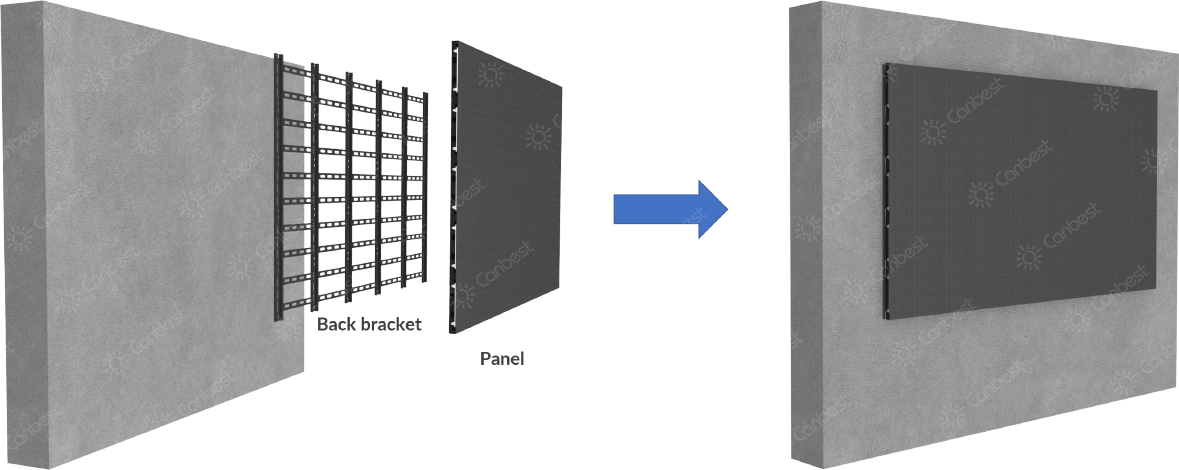

Wall mounting installation

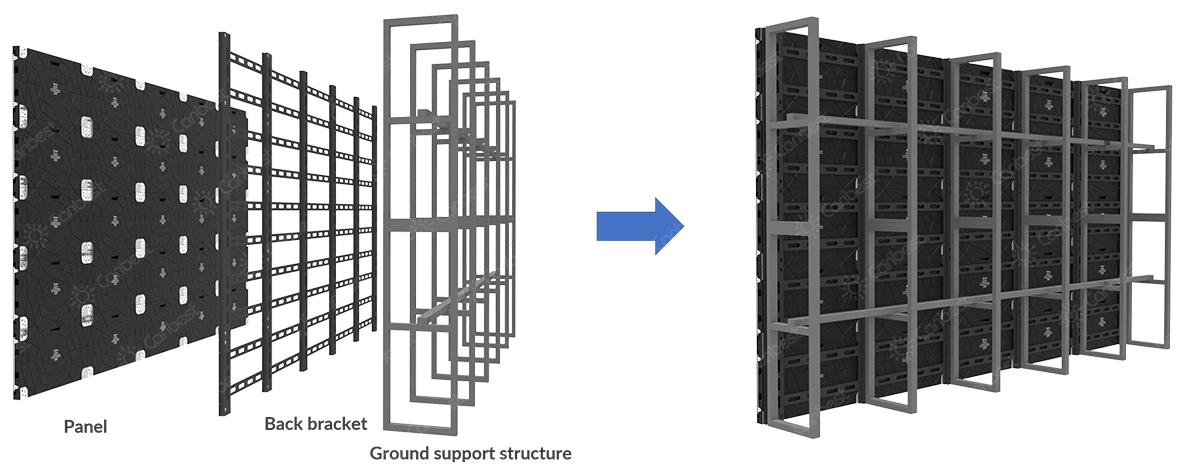

Stacking installation
SPECIFICATIONS
Model S121 Plus S151 Plus S181 Plus S251 Plus
Pixel Pitch (mm) 1.25mm 1.56mm 1.875mm 2.5mm
Brightness（nits） 500-900cd/㎡ 500-900cd/㎡ 500-900cd/㎡ 500-900cd/㎡
Refresh Rate（hz） 3840 3840 3840 3840
Cabinet Size(mm) 600*337.5mm 600*337.5mm 600*337.5mm 600*337.5mm
Cabinet weight(kg) 7.5 7.5 7.5 7.5
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡ 650/220 650/220 650/220 550/170
Cabinet Resolution Pixels 480x270 384x216 320x180 240x135
Pixel Density Pixels(㎡) 640000 409600 284444 160000
Signal Type(with video processor) AV,S-Video,VGA,DVI,HDMI,SDI,DP AV,S-Video,VGA,DVI,HDMI,SDI,DP AV,S-Video,VGA,DVI,HDMI,SDI,DP AV,S-Video,VGA,DVI,HDMI,SDI,DP
Note: For more product materials, please contact us directly.
