B Series

Your location: Home > Hidden products >

VIDEO

Waterproof, dustproof, anti-collision with strict LED display production process.

Based on the Horizontal arrangement lighting technology, it is up to 55% transparency .

Configure with high refresh rate ICs and high-quality LED chips. High contrast, Wide viewing angle , and no shadow nor light dark line.

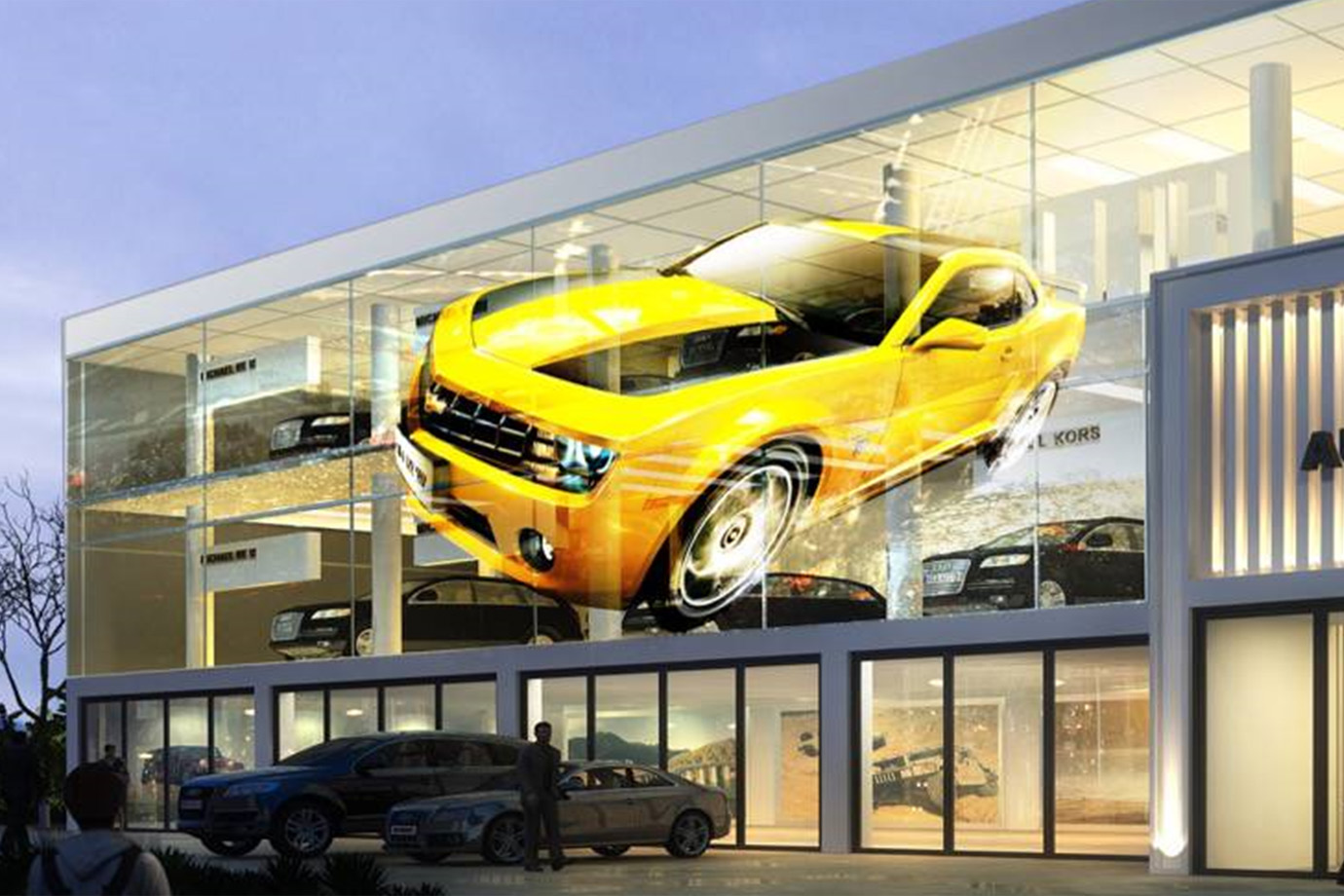

Cabinet size is customized according to application , match with the building glass perfectly.

Individual strip design with hot plug . support front and rear maintenance. easy to maintain and low cost maintenance

Model	B3
Pixel Pitch (mm)	3.91-7.8mm
Brightness（nits）	1000nits / 4000nits
Refresh Rate（hz）	≥1920
Cabinet Size(mm)	1000*500
Cabinet weight(kg)	6.5 per panel
Cabinet Material	Die Cast Magnesium
Power Consumption(Max/Aver.)w/㎡	600/175
Cabinet Resolution Pixels	256*64
Pixel Density Pixels(㎡)	32747
Maintenance Type	Front & Rear
Note: For more product materials, please contact us directly.
