AES Series

AES Series

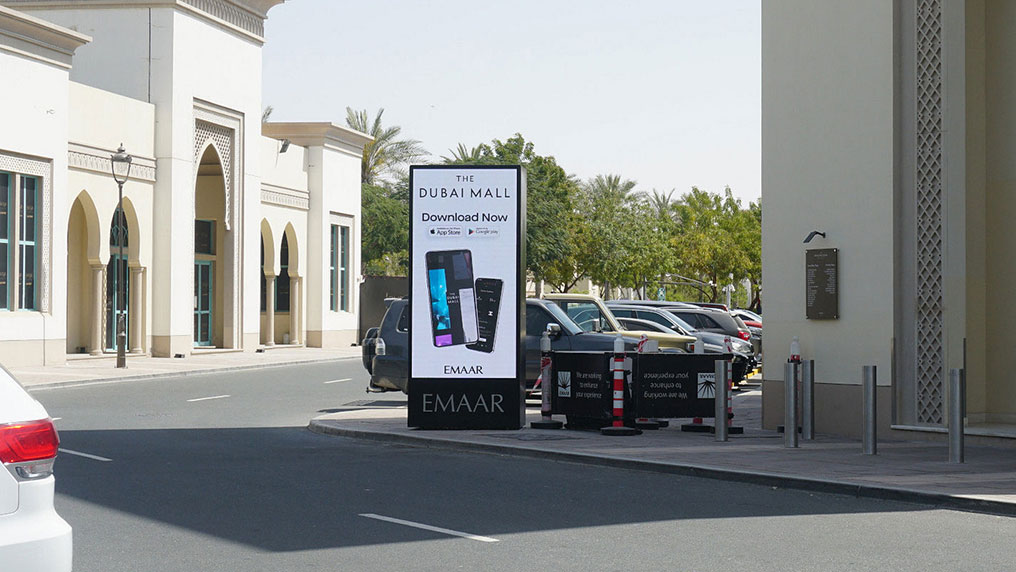

HD Front & Rear Access IP68 Energy Saving Outdoor LED Display


VIDEO

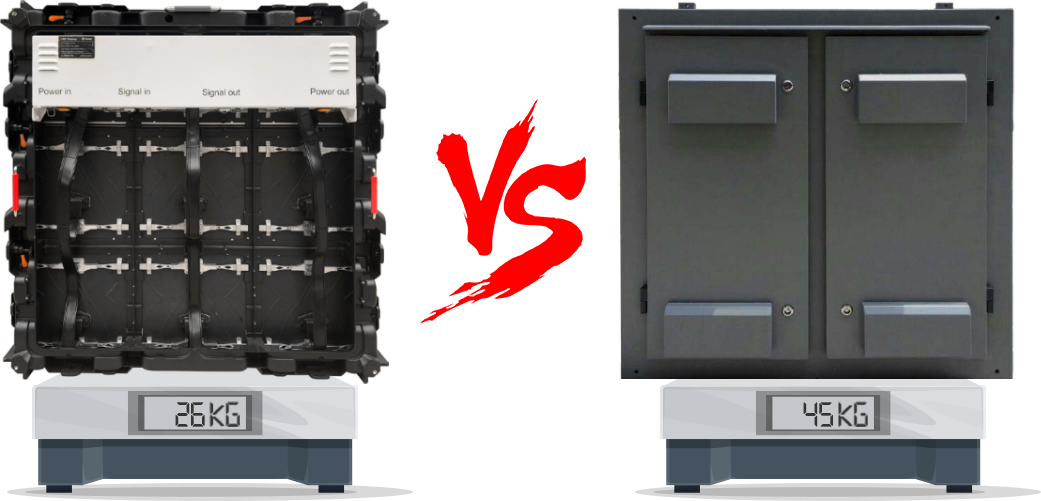

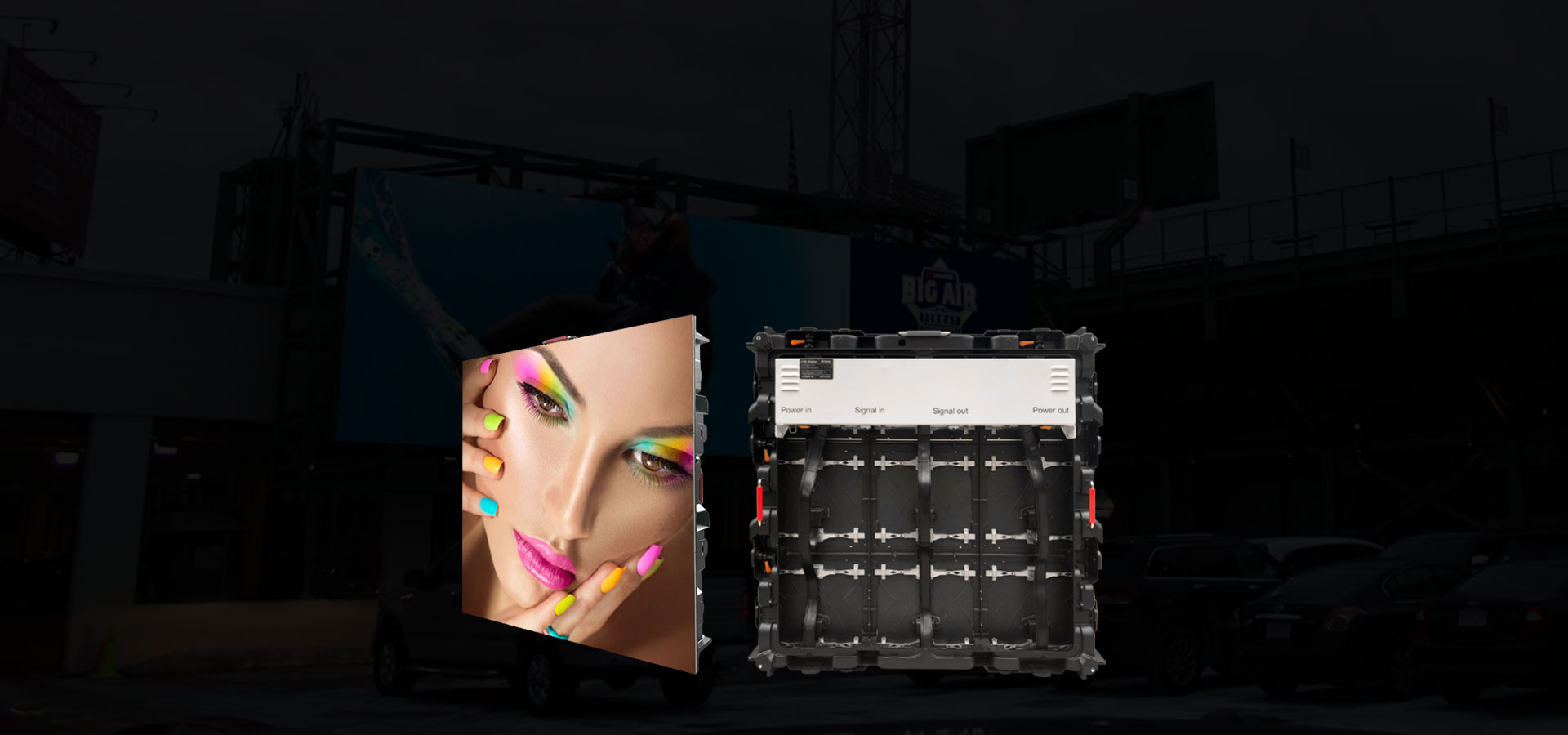

Super light design

Die Casting cabinet, 40% lighter than iron cabinet, saving structure cost and transportation cost

AES Series
Aluminum Module Design, High weather resistance
AES Series
Energy Saving

Advanced common cathode technology with highly efficient ICs can reduce 50% power consumption than conventional panels

AES Series

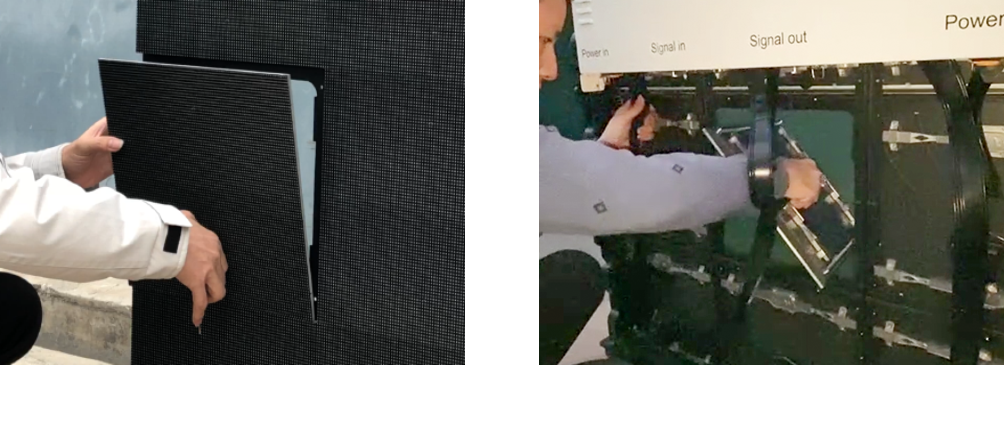

Fast assembly and easy operation

Saving maintenance cost by labors

Flatness & Seamless

Advanced Die-casting technology, higher flatness and seamless

Outstanding Performance

Outstanding performance that can work well from -40 ℃ to 60 ℃ ;

SPECIFICATIONS
Model    AES3 ( P3.81) AES5  ( P5.33 )
Pixel Pitch (mm) 3.81mm 5.33mm
Brightness(nits) ≥5500 ≥6000
Refresh Rate(hz) ≥1920 ≥1920
Cabinet Size(mm) 960*960 960*960
Cabinet weight(kg) 26 per panel 26 per panel
Cabinet Material Die Cast Magnesium Die Cast Magnesium
Power Consumption(Max/Aver.)w/㎡ 600/175 600/175
Cabinet Resolution Pixels 252*252 180*180
Pixel Density Pixels(㎡) 68889 35200
Maintenance Type Front & Rear
Note: For more product materials, please contact us directly.

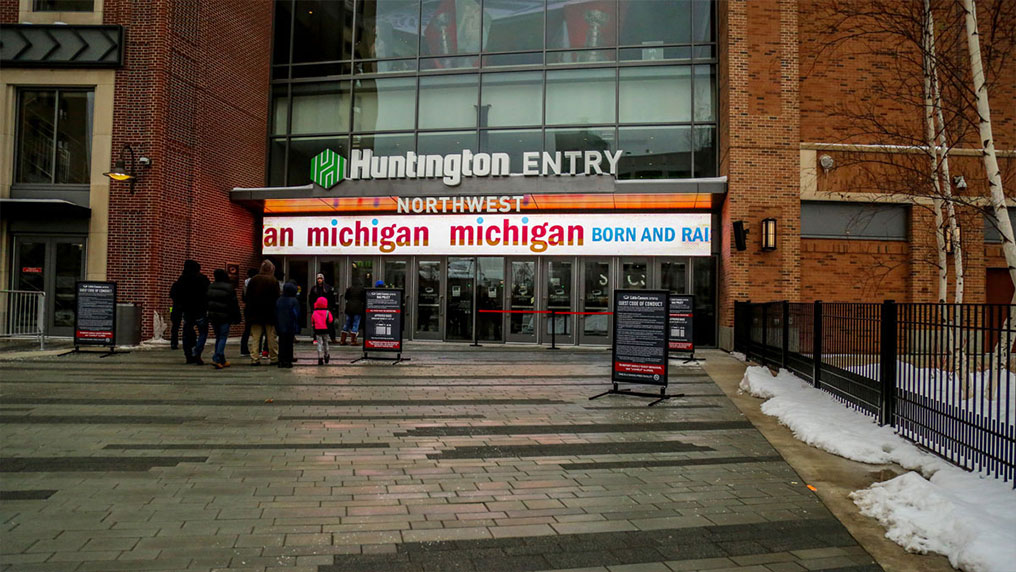

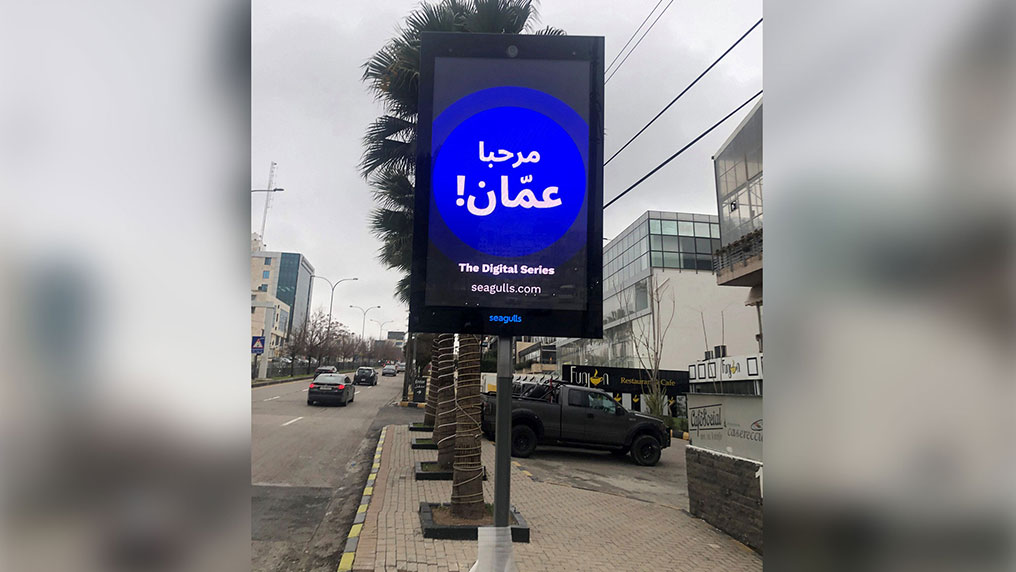

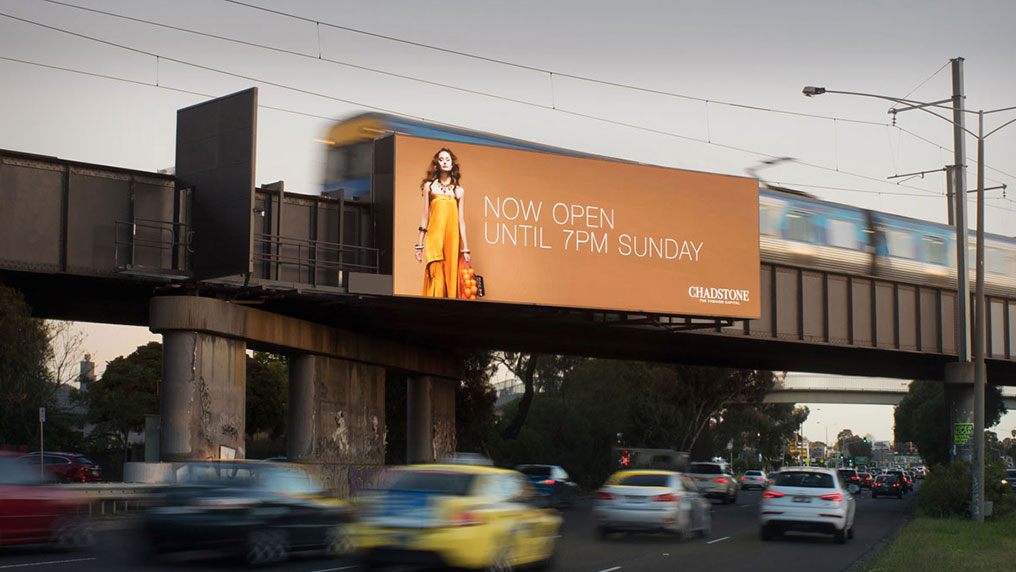

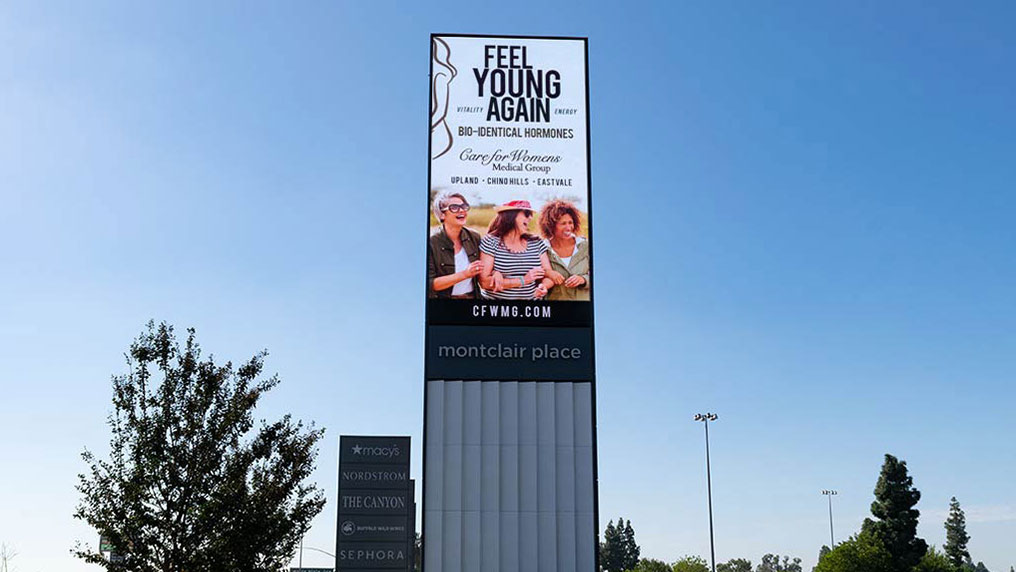

PRODUCT CASE
