FIW Series

FIW Series

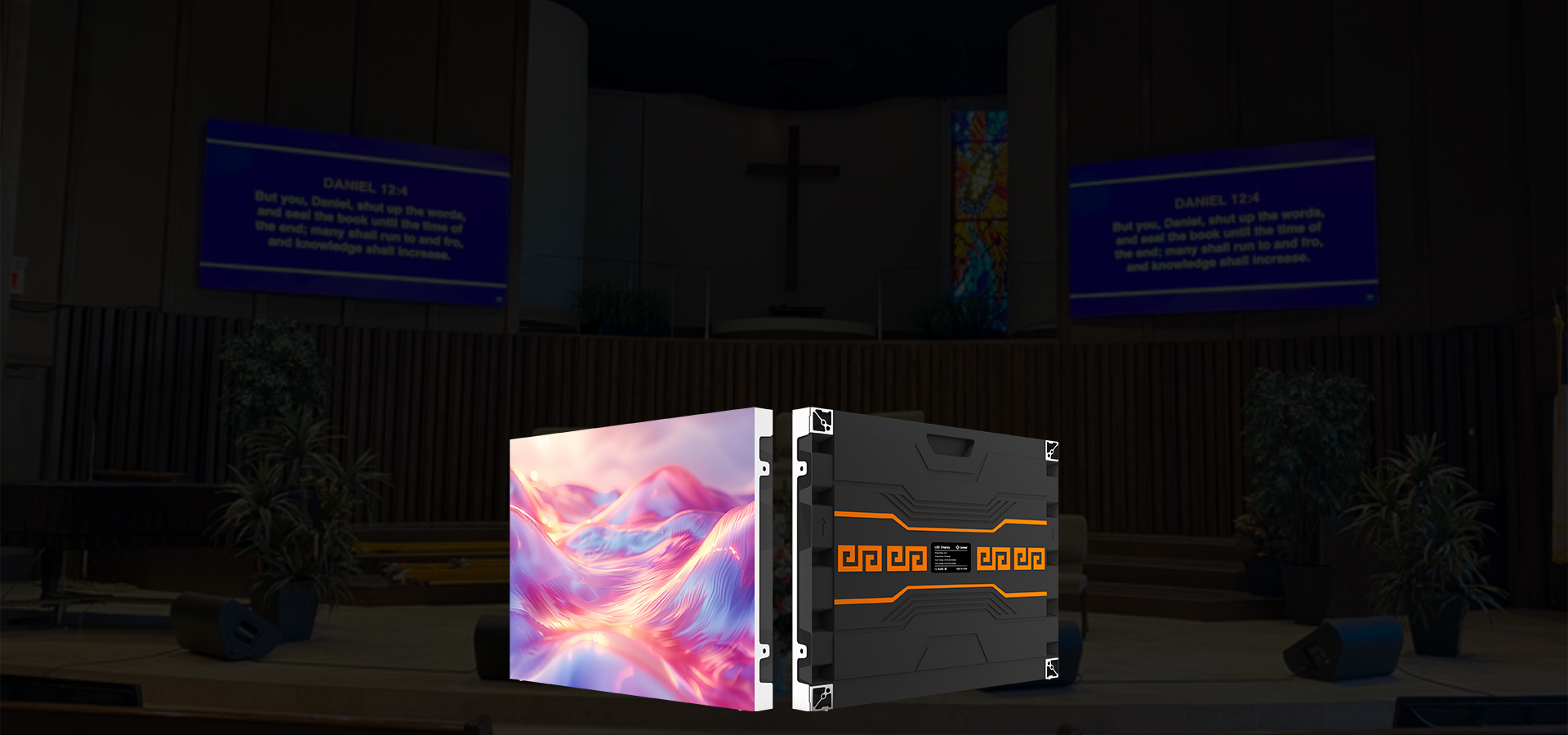

Indoor Cable-less Wall Mounted LED Display


VIDEO

GOB Technology Available, Durable & Lasting
GOB technology will make LED Screen waterproof and moisture resistant, high impact resistance, easy maintenance and cleaning. Higher stability with longer lifespan.
FIW Series
FIW Series

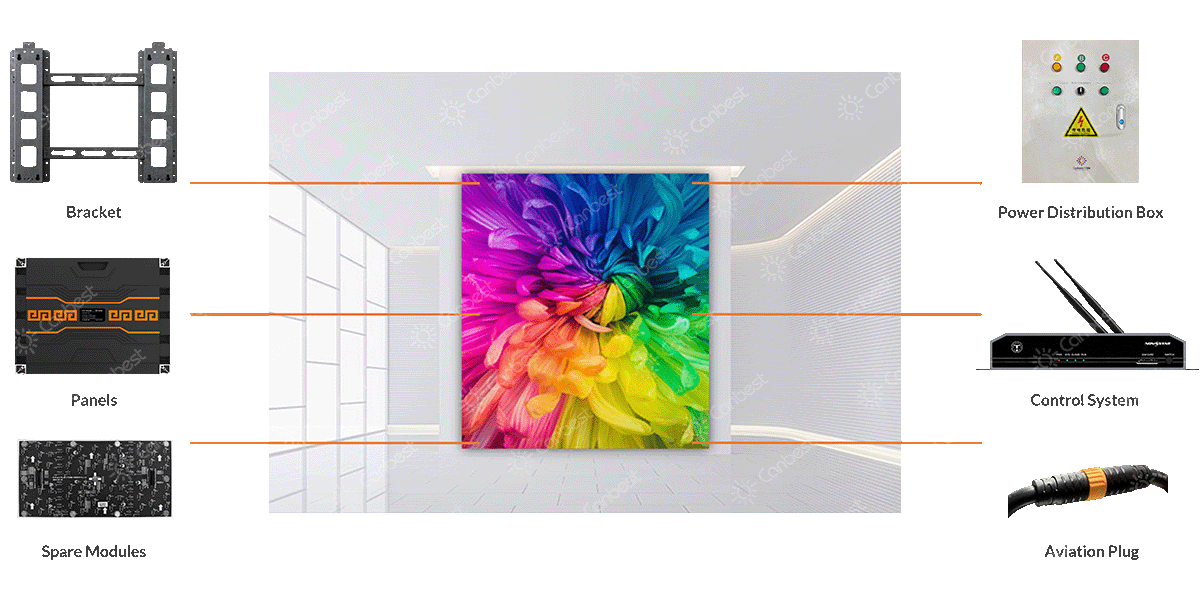

All-in-one Package
FIW Series

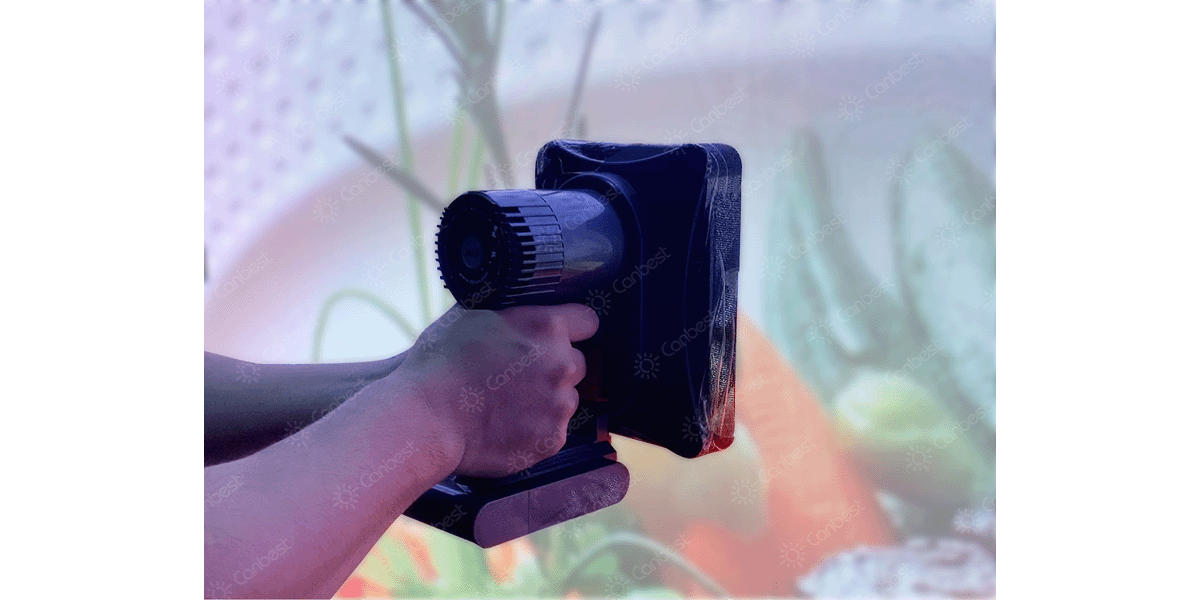

Module Cable-less with Front Access

Module, receiving cards and power supplies can be maintained front, no maintenance channels needed Greatly improving the installation efficiency, also it will reduce the occurrence of some problems caused by cable .

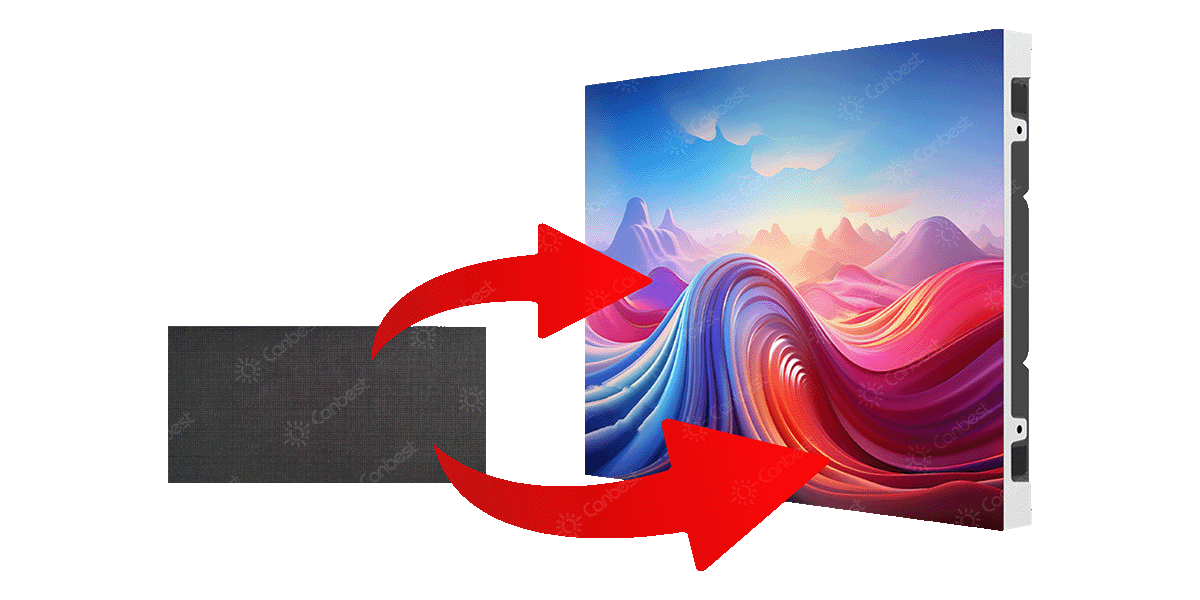

Interchangeable LED Module Design

The interchangeable led module can make installation and replacement faster and easier; there is no need to buy modules in pairs, reducing the purchase cost.

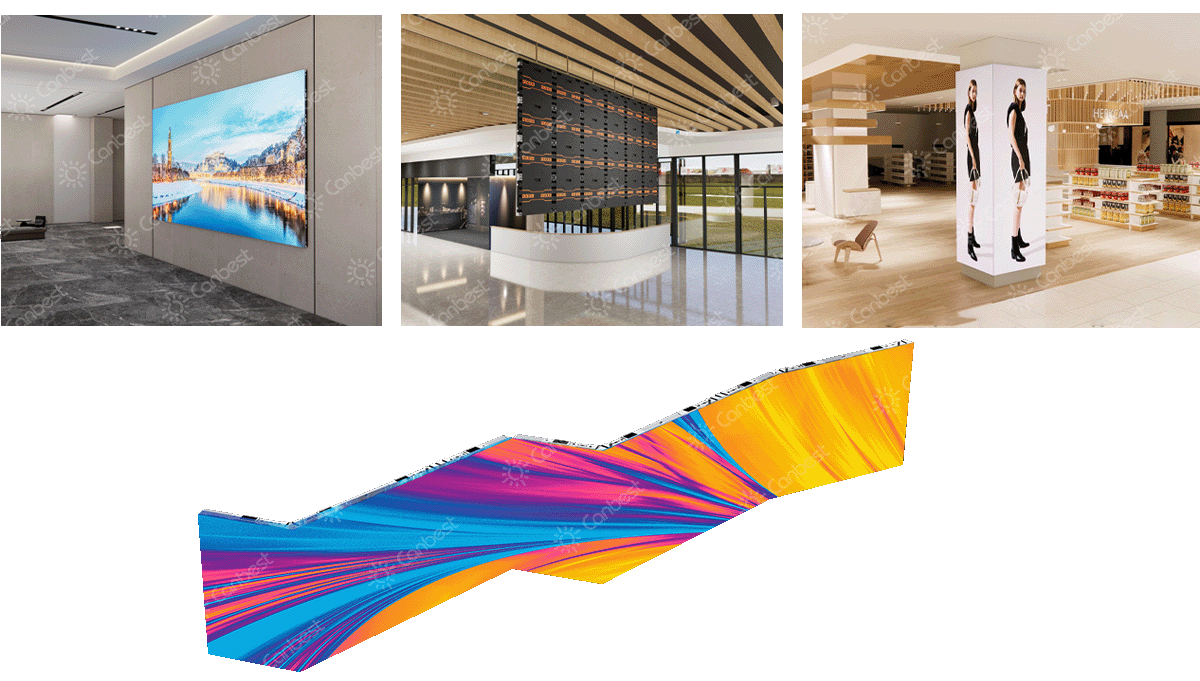

Creative Installation
SPECIFICATIONS
Model FIW121  FIW151 FIW181 FIW201  FIW251 (P2.5)
Pixel Pitch (mm) 1.25mm 1.538mm 1.86mm 2.0mm 2.5mm
Brightness(nits) 600~700cd/㎡ 600~700cd/㎡ 600~700cd/㎡ 600~700cd/㎡ 600~700cd/㎡
Refresh Rate(hz) 3840 3840 3840 3840 3840
Cabinet Size(mm) 640x480x45 640x480x45 640x480x45 640x480x45 640x480x63
Cabinet weight(kg) 8 8 8 8 8
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡ 560/200 560/200 560/180 560/180 560/160
Cabinet Resolution Pixels

512*384

418*314 344*258 320*240 256*192
Pixel Density Pixels(㎡) 640000 427186 289050 250000 160000
Signal Type(with video processor) AV,S-Video,VGA,DVI,HDMI,SDI,DPAV,S-Video
Note: For more product materials, please contact us directly.

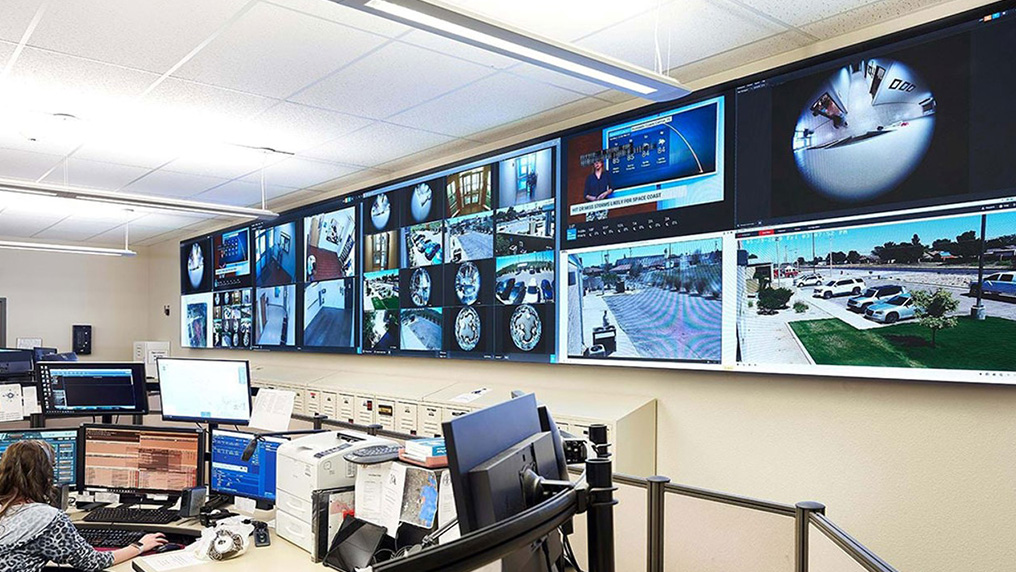

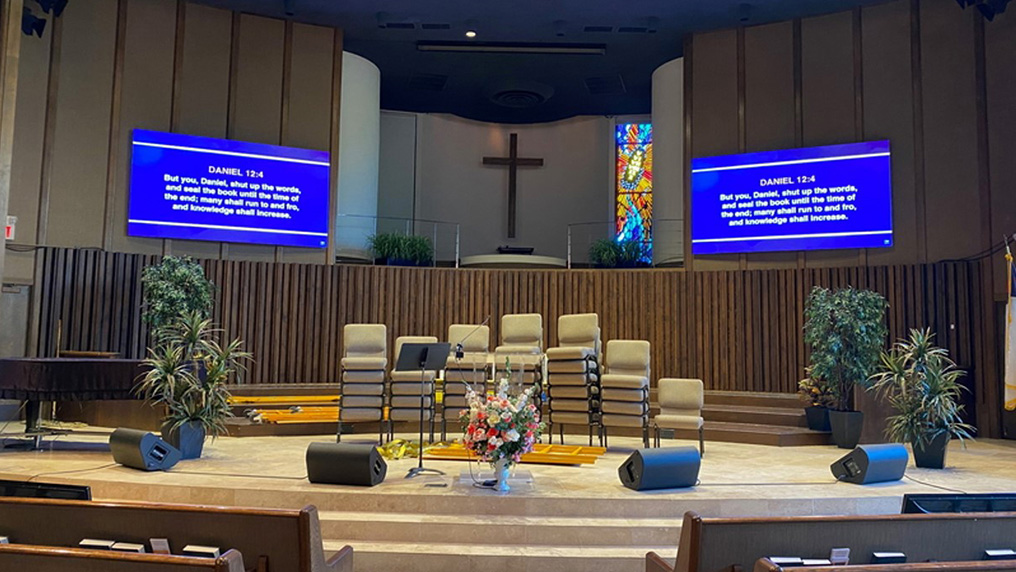

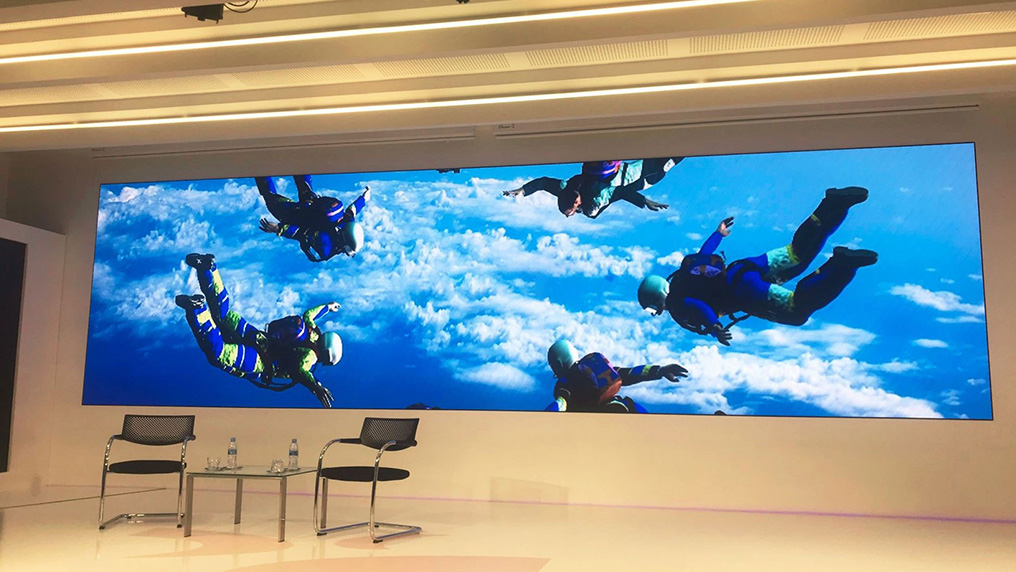

PRODUCT CASE
