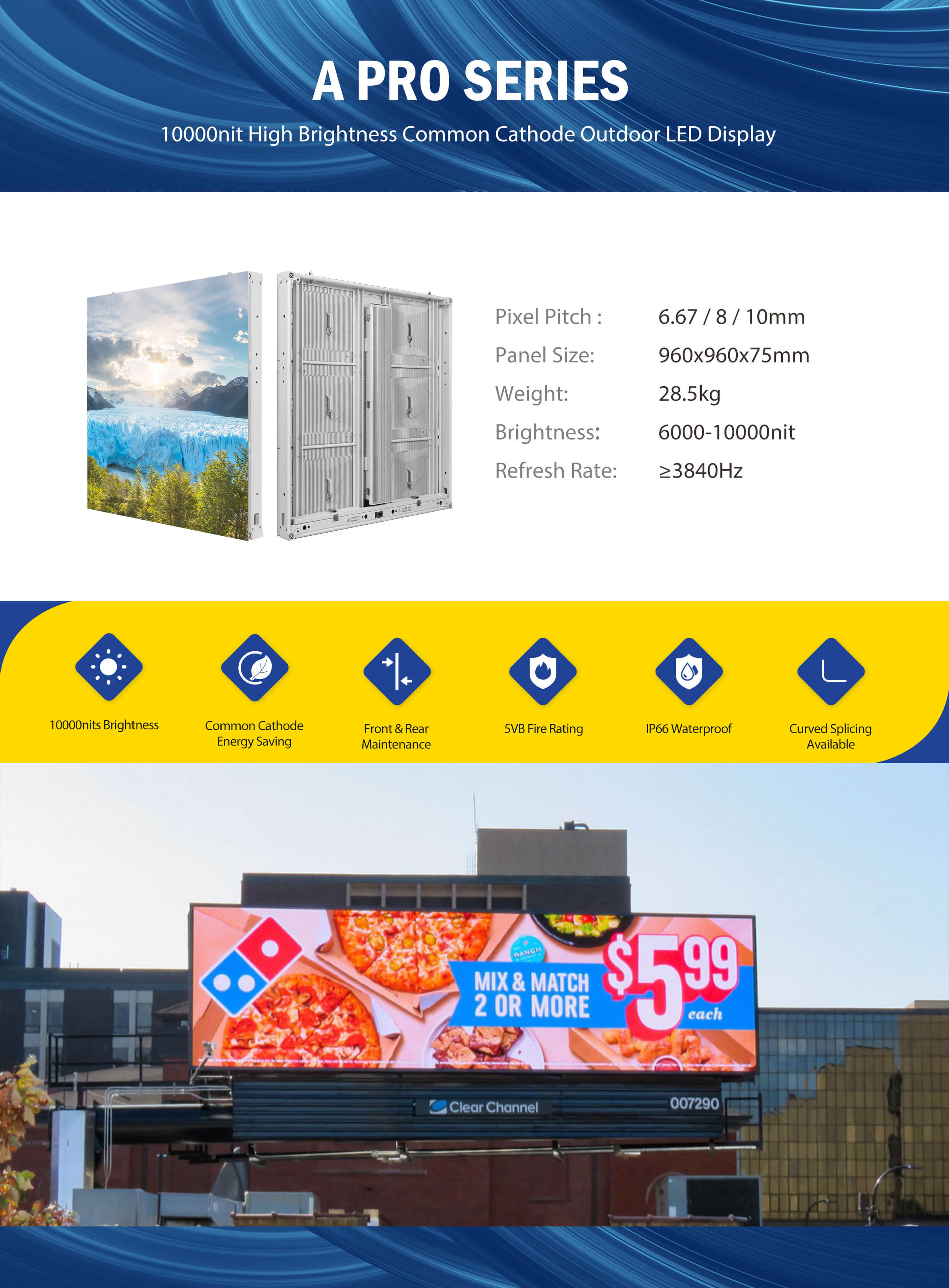

A PRO Series

A PRO Series

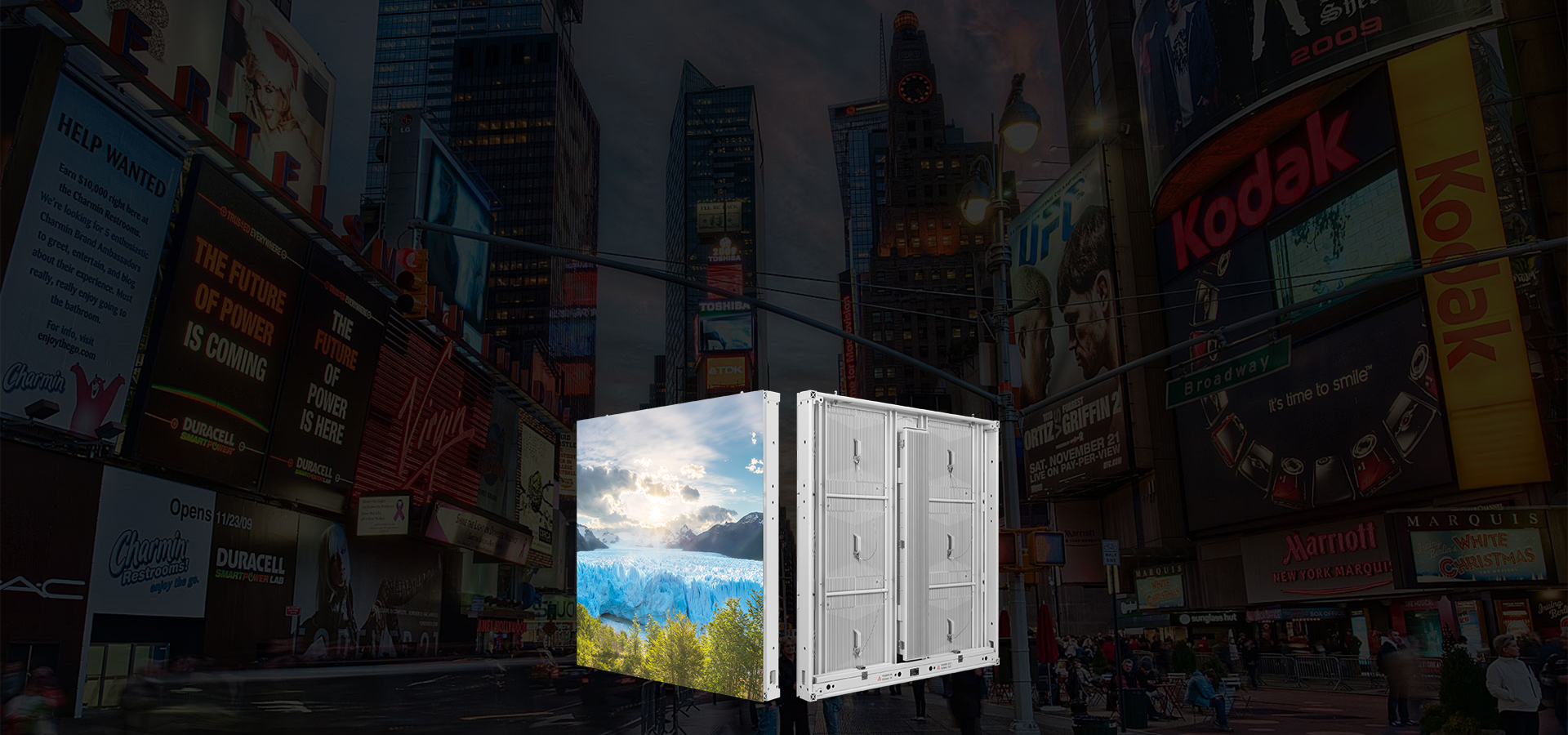

Outdoor Led Screen Display Common Cathode Aluminum


VIDEO

Super Energy Saving

Common Cathode Design,  10,000 Brightness, White Balance Corresponding to The Maximum Power Consumption of 550w, 7000 Brightness, Corresponding to The Power Consumption of 280w.

Low Heat, Good Heat Dissipation, No Need for Air Conditioning.

A PRO Series
Super Lightweight

Light Weight, Aluminum Panel 28kg/㎡ with Thickness is 75mm.

Support Full Front or Full Rear Maintenance, Front Maintenance Can Be Installed Directly on The Wall.

Cable Slot Design, Anti-insect and Rodent.



A PRO Series

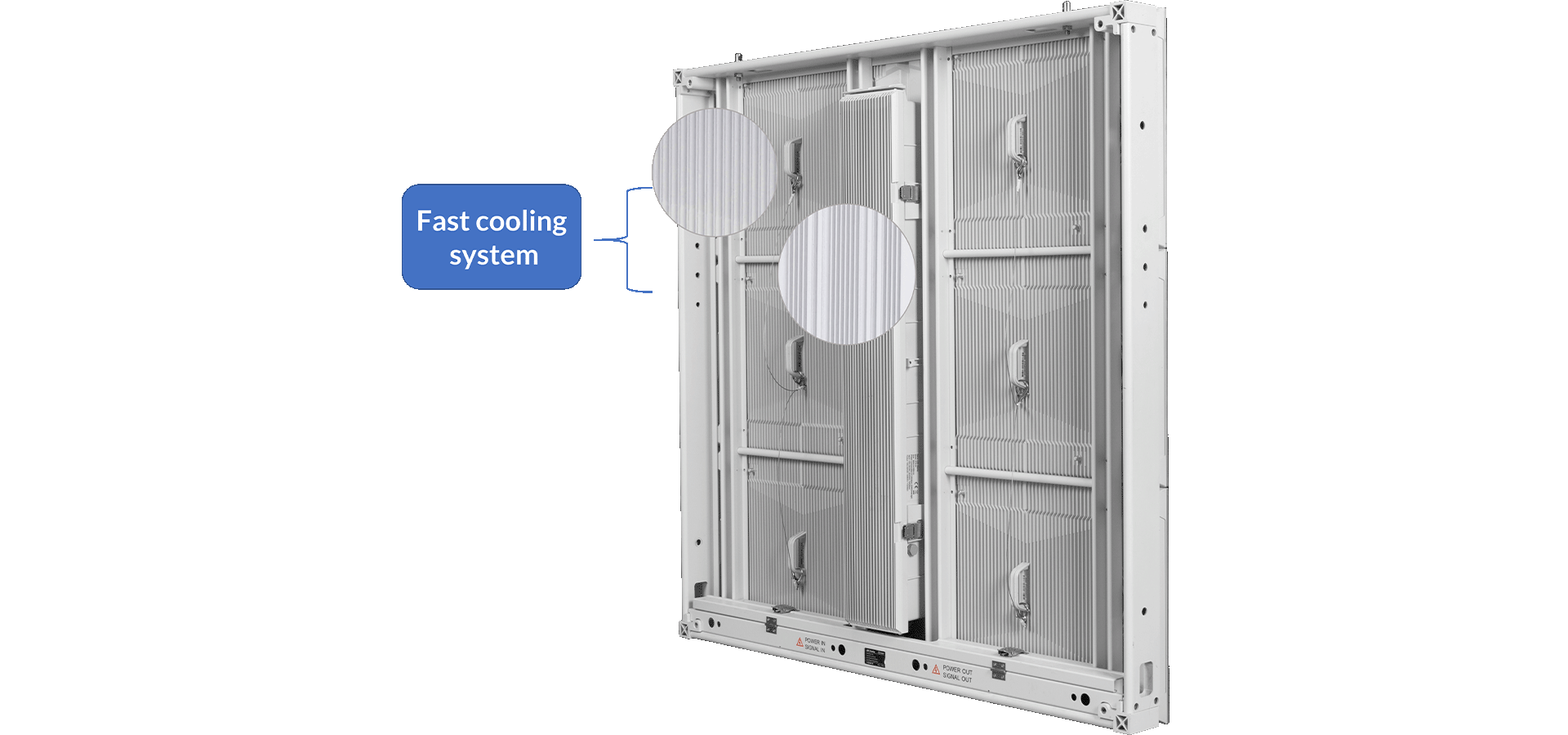

Super Stable - Engine Cooling Technology

 Common Cathode Energy-Saving Design, Low Heat;

 All Aluminum Bottom Shell Products, Good Heat Dissipation;

Using Engine Principle Heat Dissipation Technology, High Heat Dissipation Efficiency;

The Supply of Big-brand Raw Materials, After Undergoing Strict High and Low Temperature Tests, The Products are Stable As Before;

Wireless Connection, Higher Stability Than 5V Cable Connection.



A PRO Series
Super Safe- IP66 Waterproof





Super Safe -5VB Fire Rating

Anti-electromagnetic & Better Heat Dissipation

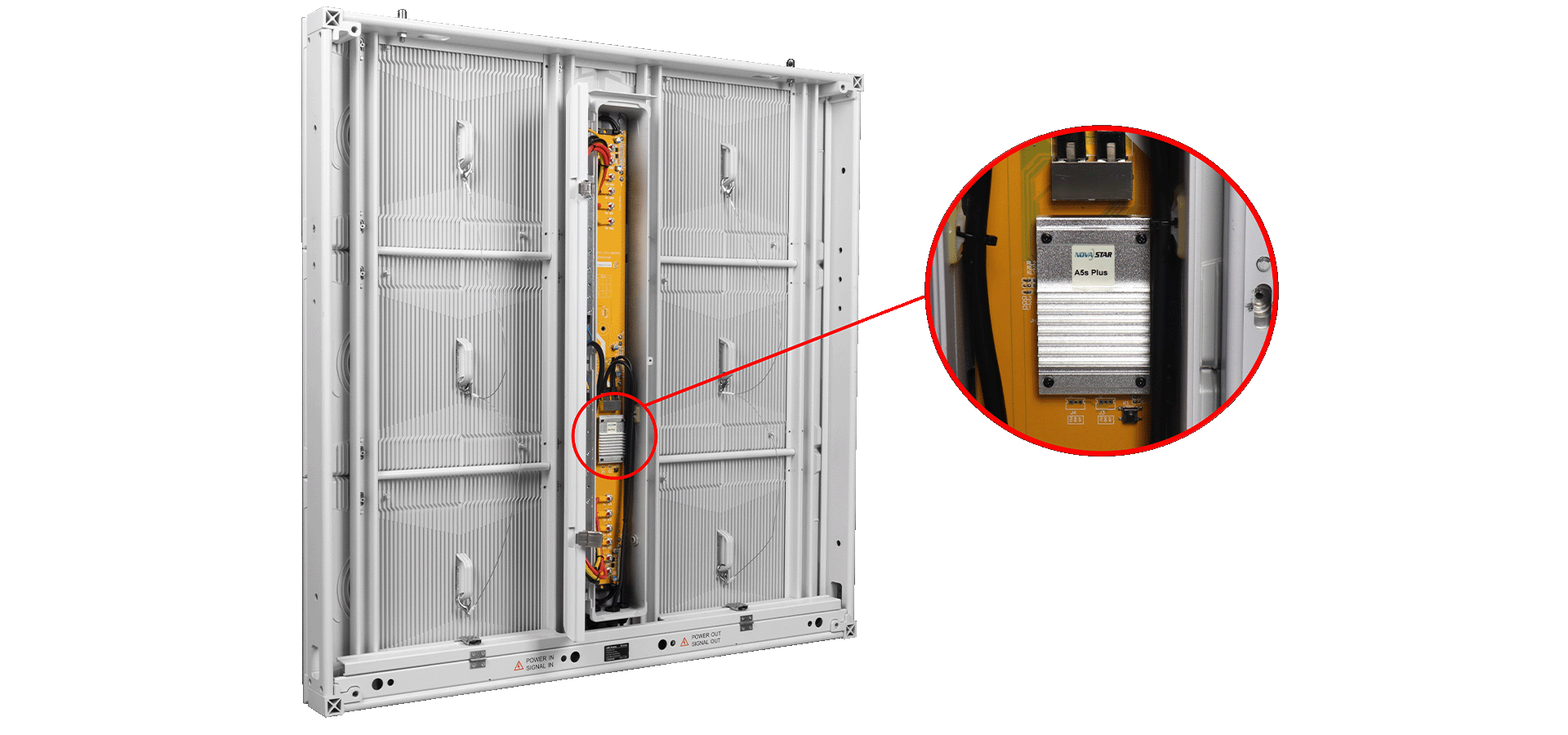

We updated our receiving card with aluminum cover,
Better anti-electromagnetic interference and heat dissipation for inner panel.


SPECIFICATIONS
Model    A5 Pro  ( P5 )    A6 Pro  ( P6 )    A8 Pro ( P8 )    A10 Pro  ( P10 )
Pixel Pitch (mm) 5.7mm 6.67mm 8mm 10mm
Brightness(nits) 5500-7500 6000-10,000 6000-10,000 6000-10,000
Refresh Rate(hz) ≥3840 ≥3840 ≥3840 ≥3840
Panel  Size(mm) 960*960*75 960*960*75 960*960*75 960*960*75
Cabinet Weight(kg/m2) 28 28 28 28
Cabinet Material Aluminum Aluminum Aluminum Aluminum
Power Consumption(Max/Aver.)w/㎡ 550/170 550/170 550/170 550/170
AC Power Input(V) AC220±10% AC220±10% AC220±10% AC220±10%
Pixel Density Pixels(㎡) 28224 22500 15625 10000
IP Rating IP66 IP66 IP66 IP66
Maintenance Type Front & Rear
Working Temperature -20~50
Note: For more product materials, please contact us directly.

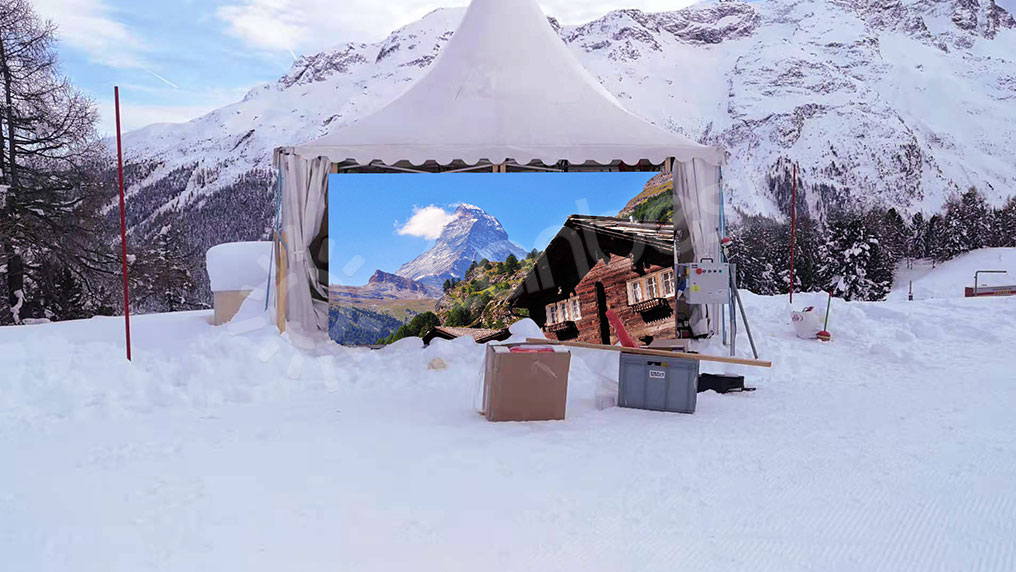

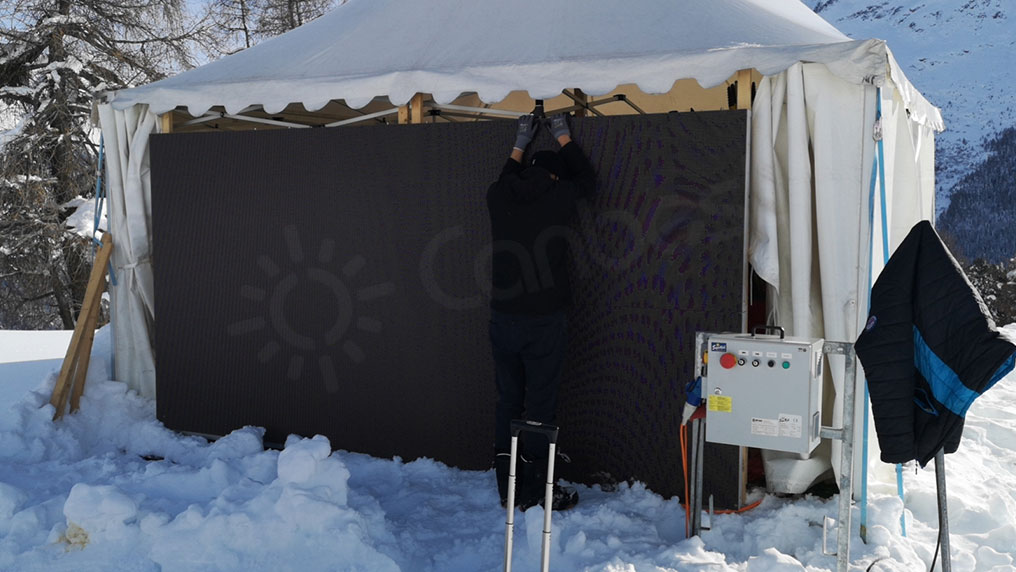

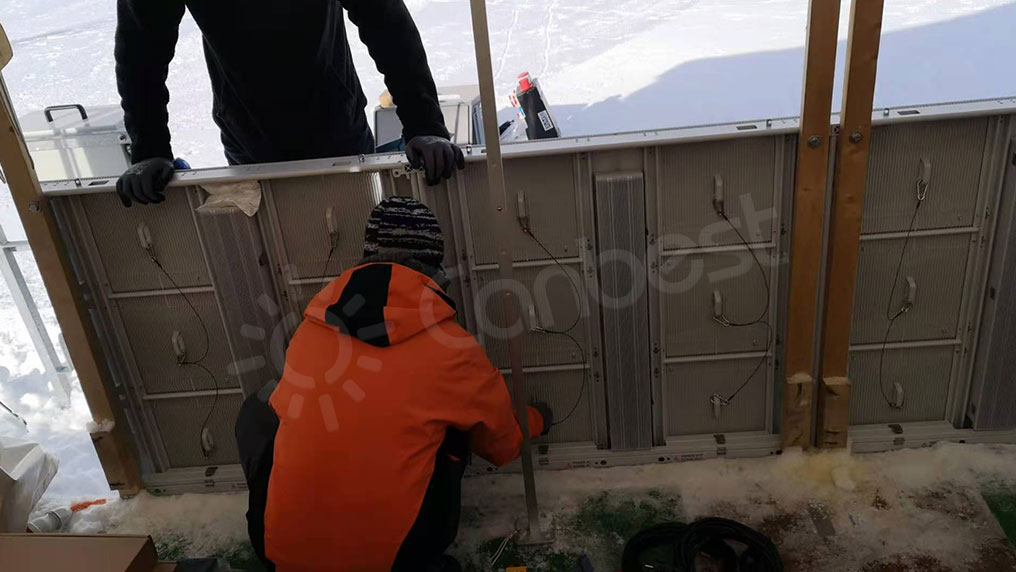

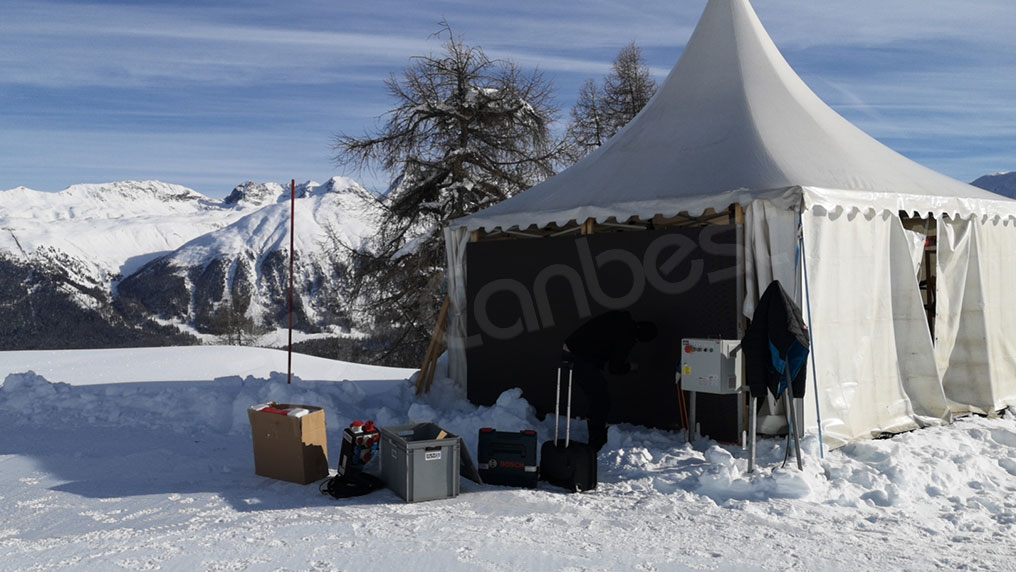

PRODUCT CASE
