Whale Series

Whale Series

Anti-corrosion Outdoor LED Screen For Seaside Coastal Beach Swimming Pool


VIDEO

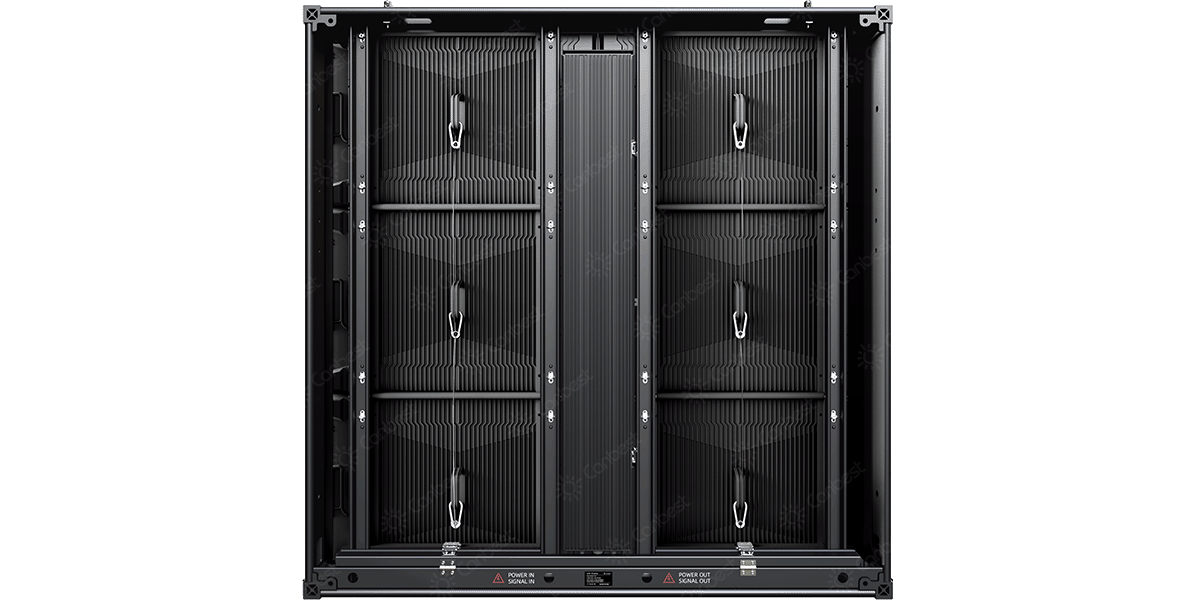

Full Aluminum, Lightweight & Corrosion-proof
•Light weight, full aluminum panel 28kg/㎡ with thickness is 75mm;
•Pure black panel, more resistant to rust
•Support full front or full rear maintenance, front maintenance can be installed directly on the wall;

Whale Series

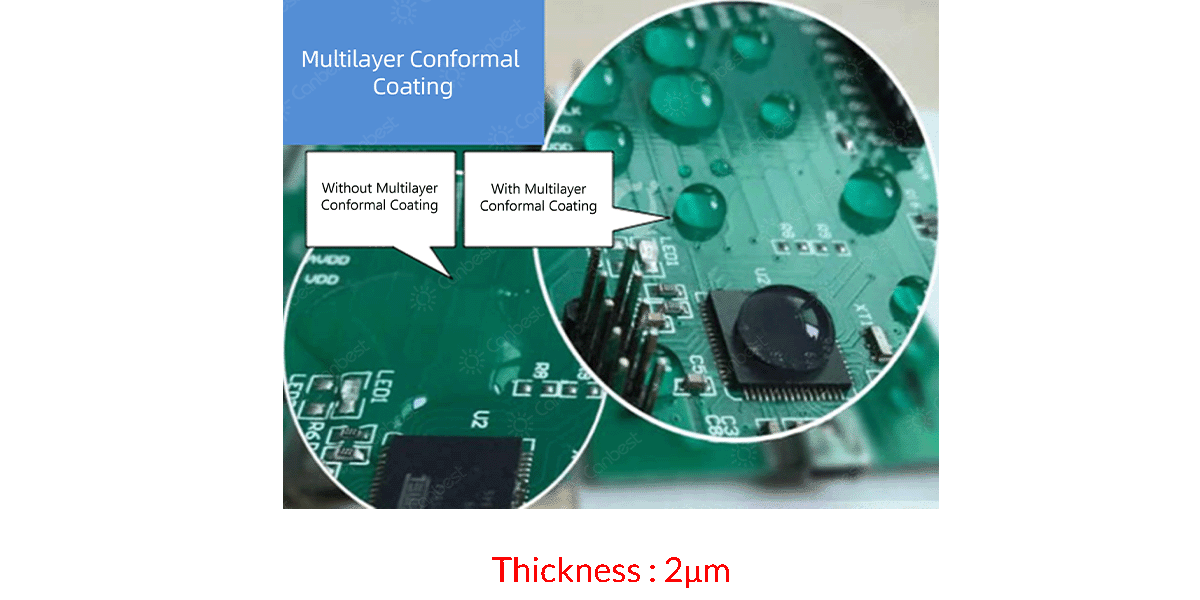

Multilayer Conformal Coating

All display adapter boards and power adapter boards of whale series are protected by super-strong multi-layer triple-proof paint, which prevents the electronic components from contacting with the humid air on the seashore and improves the stability of the products.

Whale Series

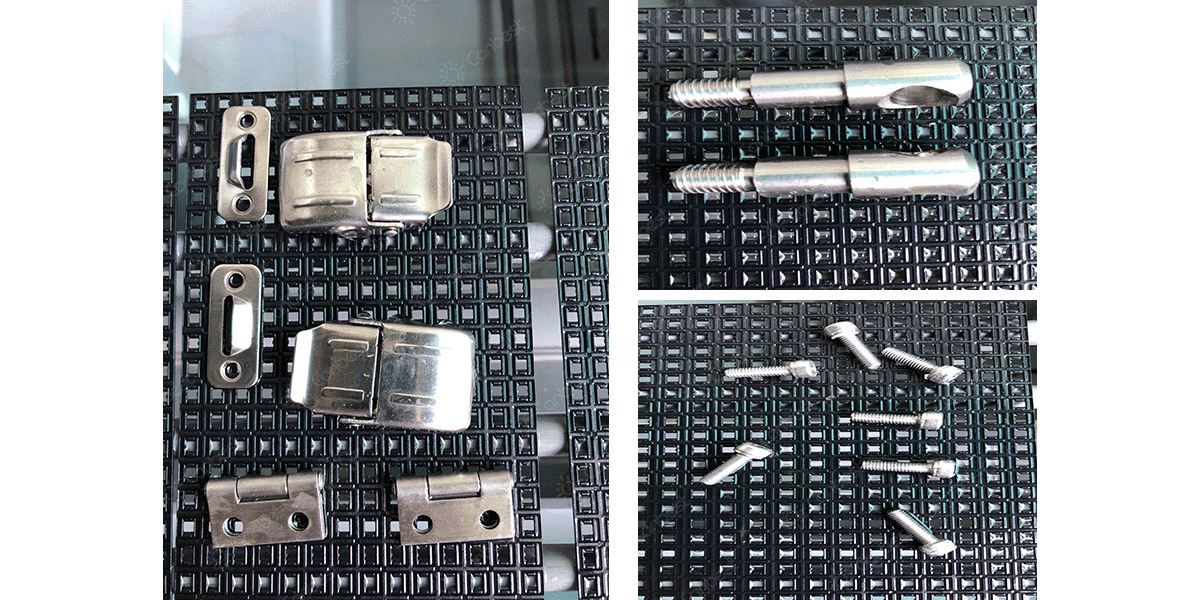

All components are corrosion-resistant

Power Supply, Mask, Locker, Screws, Pins

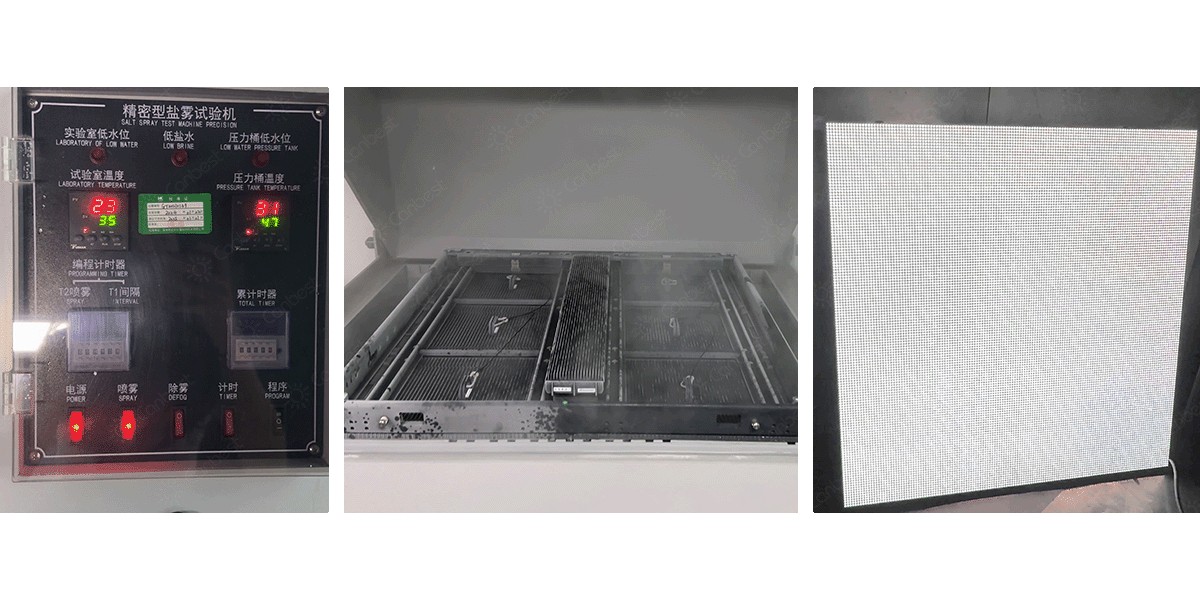

After 72hours Salt Spray Test
Test Area Appearance     ■No discoloration
Test Area Inner coating   ■No corrosion

Whale Series

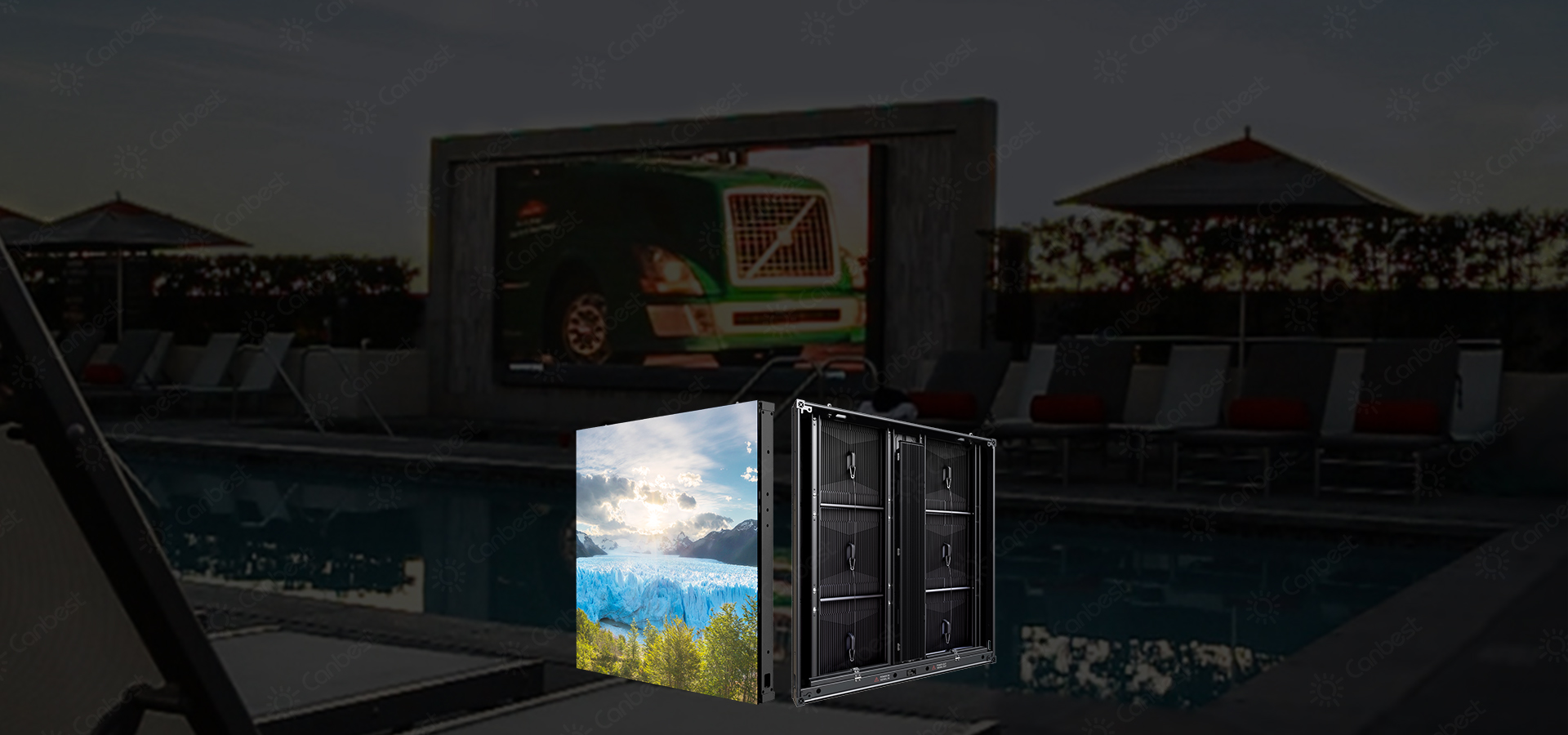

Corrosion-Proof

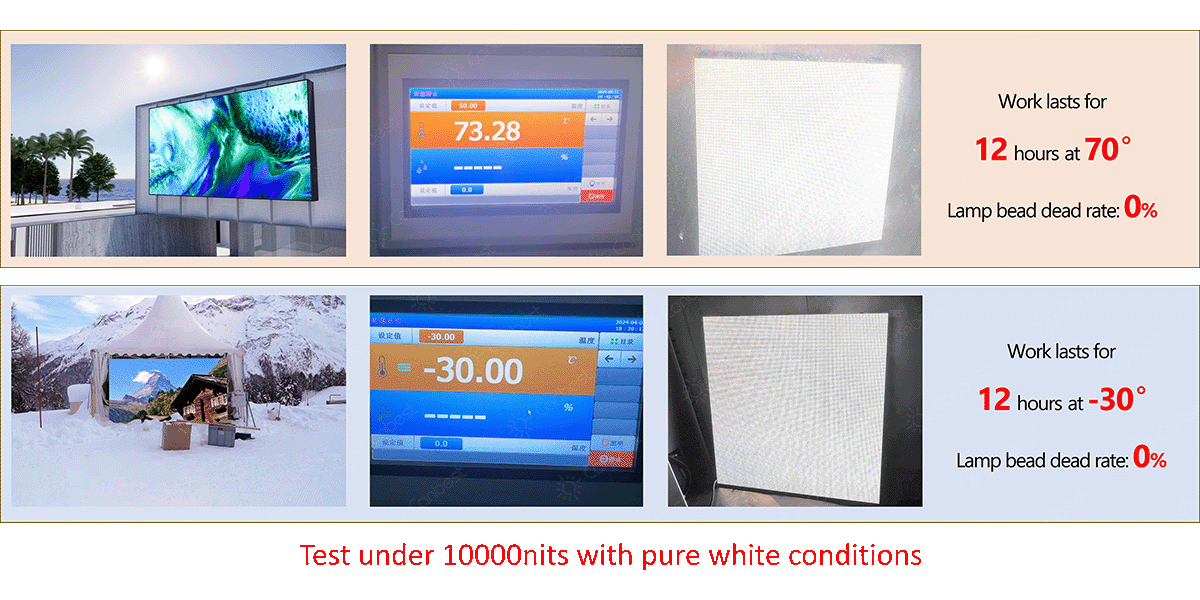

Excellent Performance for Harsh conditions
  • Ideal for extremely cold and hot, seaside, swimming pool etc. applications

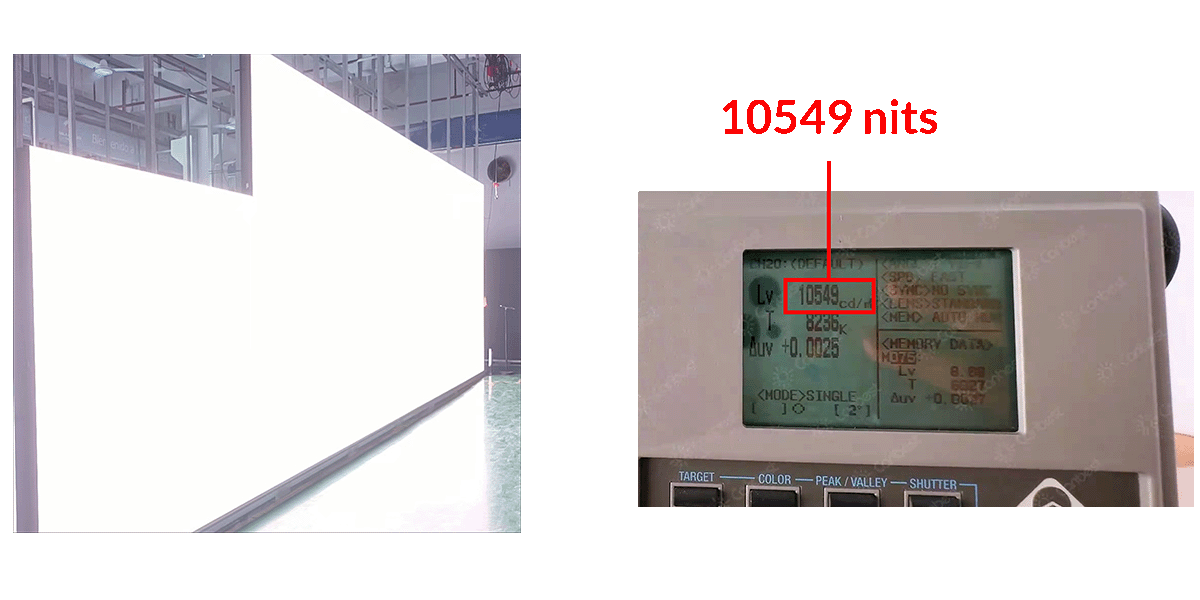

Super High Brightness

High brightness more than 10,000nits with  light decay ≤5%, and it is still as new after 5 years



SPECIFICATIONS
Model   W5  ( P5 )    W6  ( P6 ) W8 ( P8 )   W10  ( P10 )
Pixel Pitch (mm) 5.7mm 6.67mm 8mm 10mm
Brightness(nits) 5500-7500 6000-10,000 6000-10,000 6000-10,000
Refresh Rate(hz) ≥3840 ≥3840 ≥3840 ≥3840
Panel  Size(mm) 960*960*75 960*960*75 960*960*75 960*960*75
Cabinet Weight(kg/m2) 28 28 28 28
Cabinet Material Aluminum Aluminum Aluminum Aluminum
Power Consumption(Max/Aver.)w/㎡ 550/170 550/170 550/170 550/170
AC Power Input(V) AC100~220±10%
Pixel Density Pixels(㎡) 28224 22500 15625 10000
IP Rating IP66 IP66 IP66 IP66
Maintenance Type Front & Rear
Working Temperature -30~70℃
Note: For more product materials, please contact us directly.

DOWNlOAD

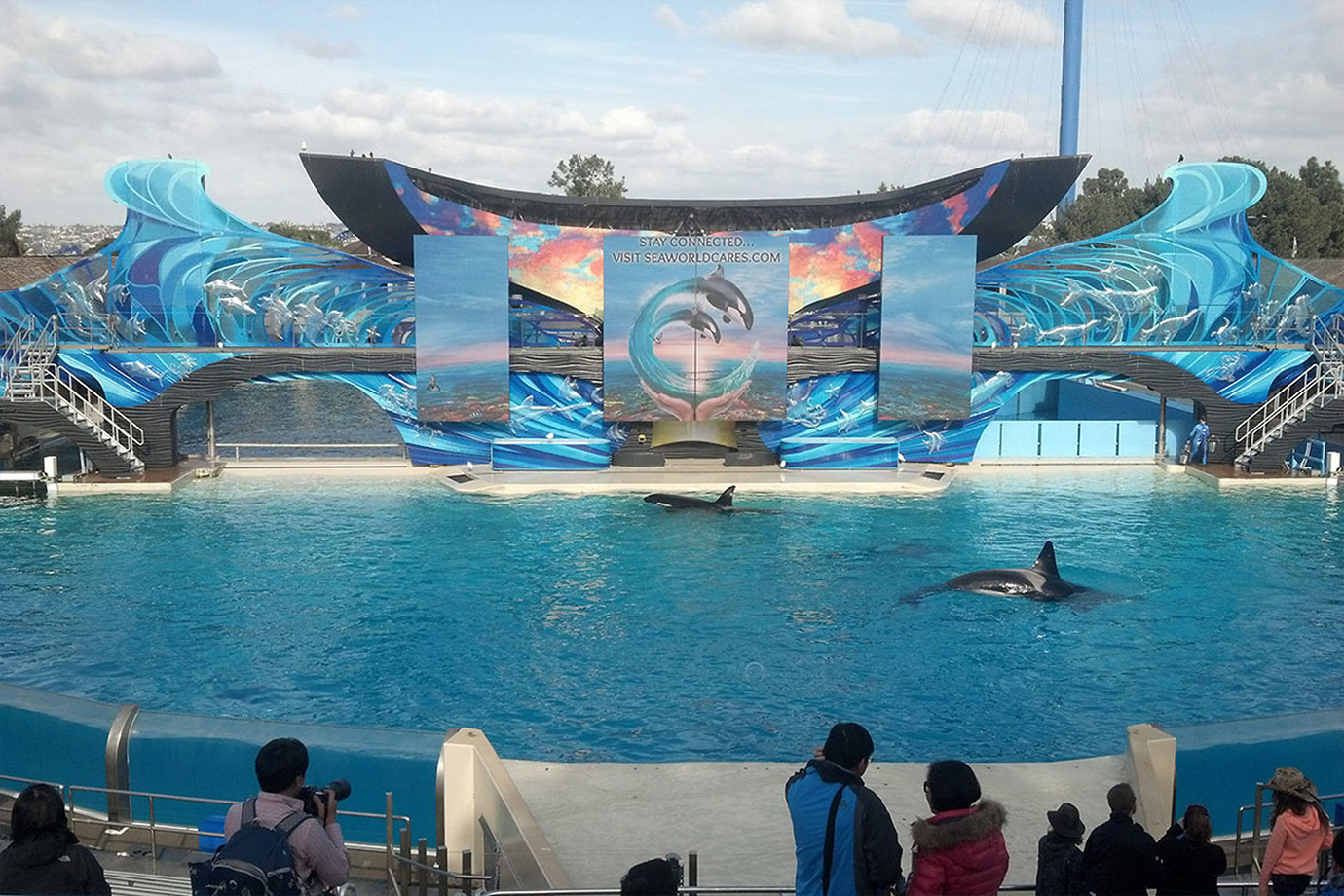

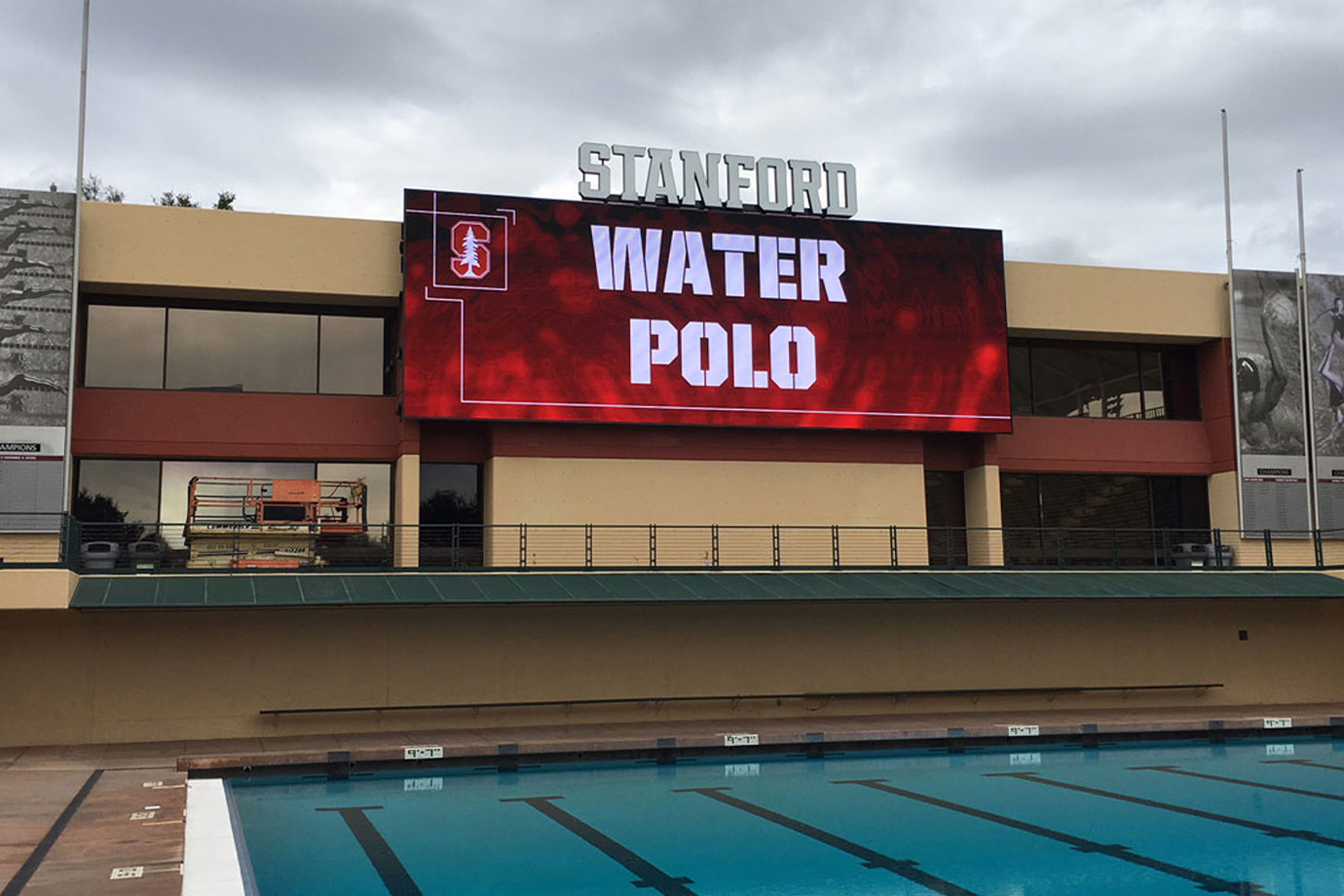

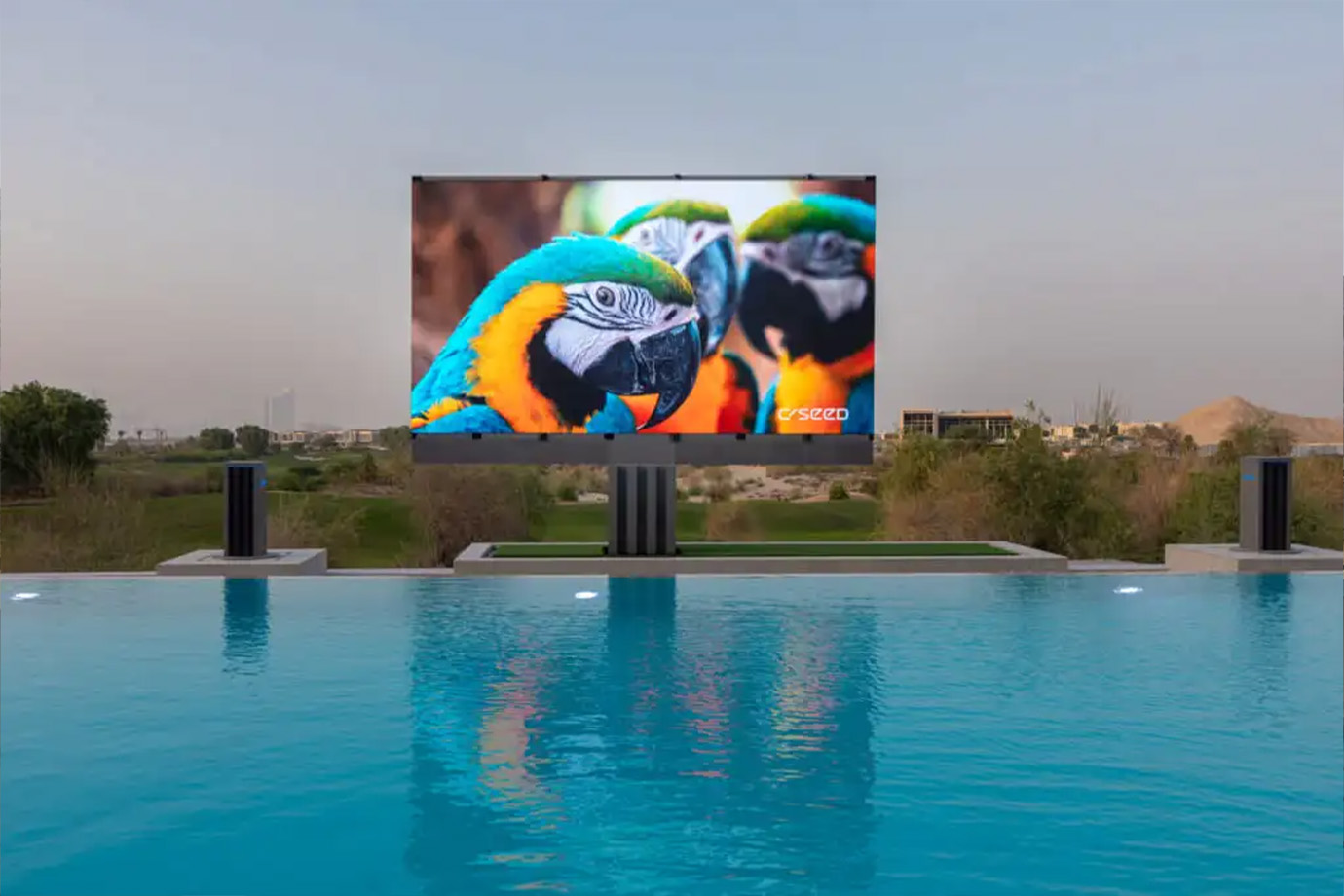

PRODUCT CASE
