A Series

A Series

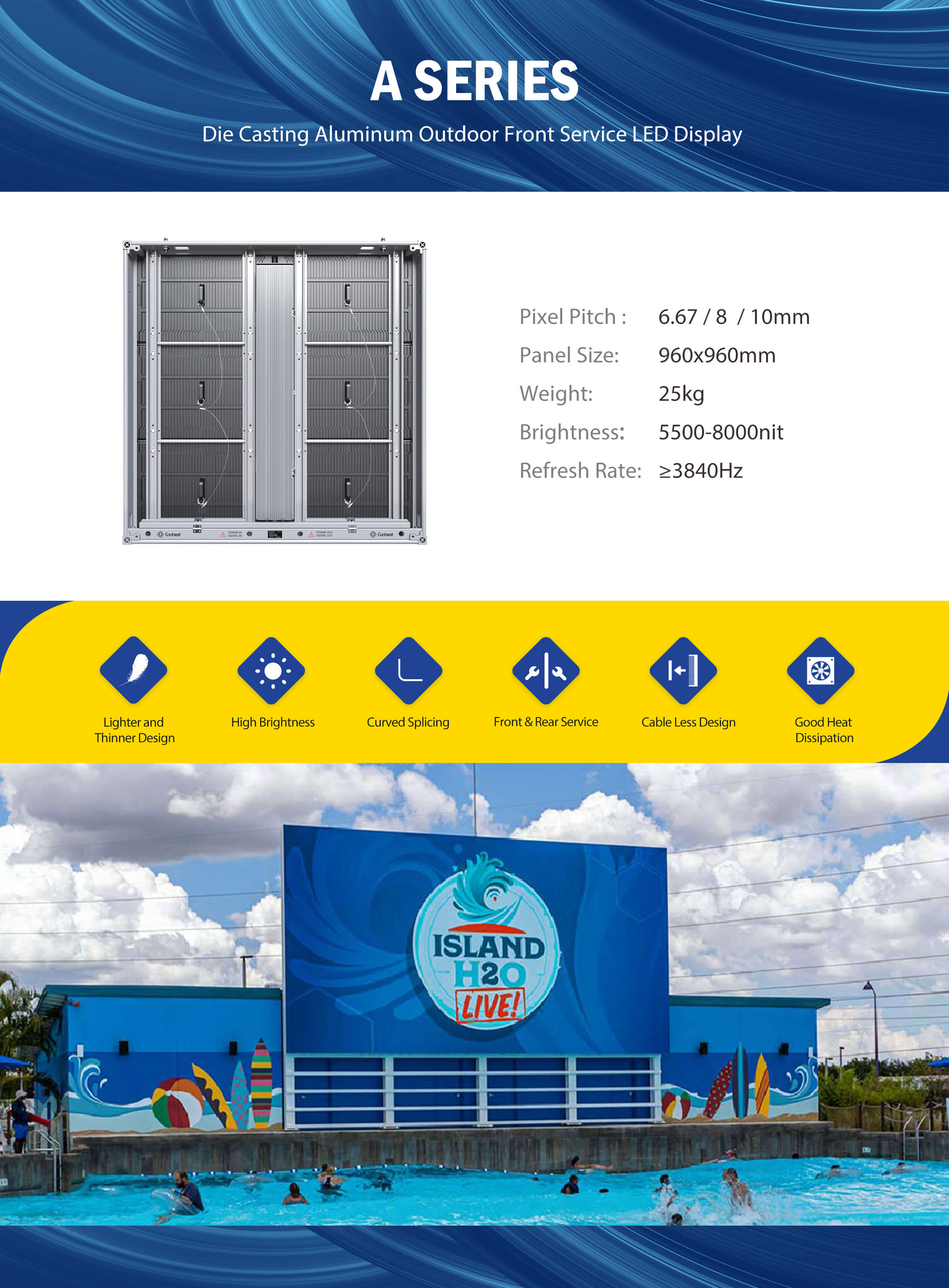

Full Aluminum Energy Saving Outdoor LED Display


VIDEO

A Series
Full Aluminum  Module+Frame+Powerbox

Excellent heat dissipation performance, corrosion resistance, rust prevention, deformation prevention, and high/low-temperature resistance.

A Series
High Brightness

With Nationstar High brightness SMD2727/SMD3535 LED lamps.
Highest Bright can up to 8000nits (gold wire), ideal for outdoor daylight conditions.

A Series
Super Stable -Engine Cooling Technology

• Using engine principle heat dissipation technology, high heat dissipation efficiency;
• The supply of big-brand raw materials, after undergoing strict high and low temperature tests, the products are stable as before;
• Wireless connection, higher stability than 5V cable connection.

Support Naked 3D VR Solution
Waterproof Design

The unique power box top brim design is specially designed to deal with water leakage problems that may be caused by snow on the top of the power box in winter.

SPECIFICATIONS
Model    A6    A8    A10
Pixel Pitch (mm) 6.67mm 8mm 10mm
Brightness(nits) 5500(8000nits gold wire optional) 5500(8000nits gold wire optional) 5500(8000nits gold wire optional)
Refresh Rate(hz) 3840 3840 3840
Panel  Size(mm) 480*320  480*320  480*320
Cabinet Weight(kg/m2) 27  26 25
Cabinet Material Aluminum Aluminum Aluminum
Power Consumption(Max/Aver.)w/㎡ 640/190 640/190 640/190
AC Power Input(V) AC100--240V±10%/50~60Hz  AC100--240V±10%/50~60Hz  AC100--240V±10%/50~60Hz
Pixel Density Pixels(㎡) 22500 15625  10000
IP Rating IP66 IP66 IP66
Maintenance Type Front & Rear Maintenance
Working Temperature(℃) -30~50
Note: For more product materials, please contact us directly.

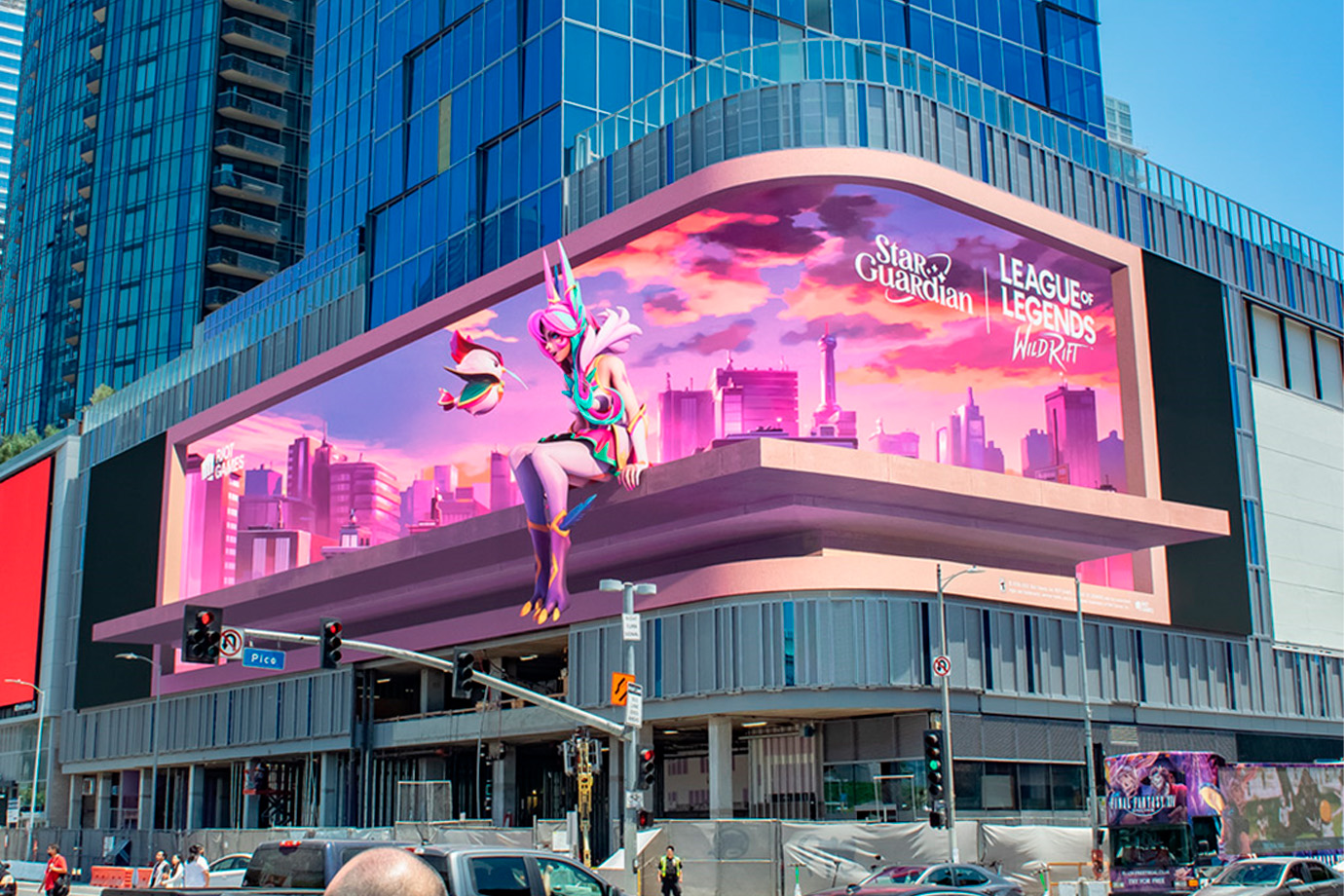

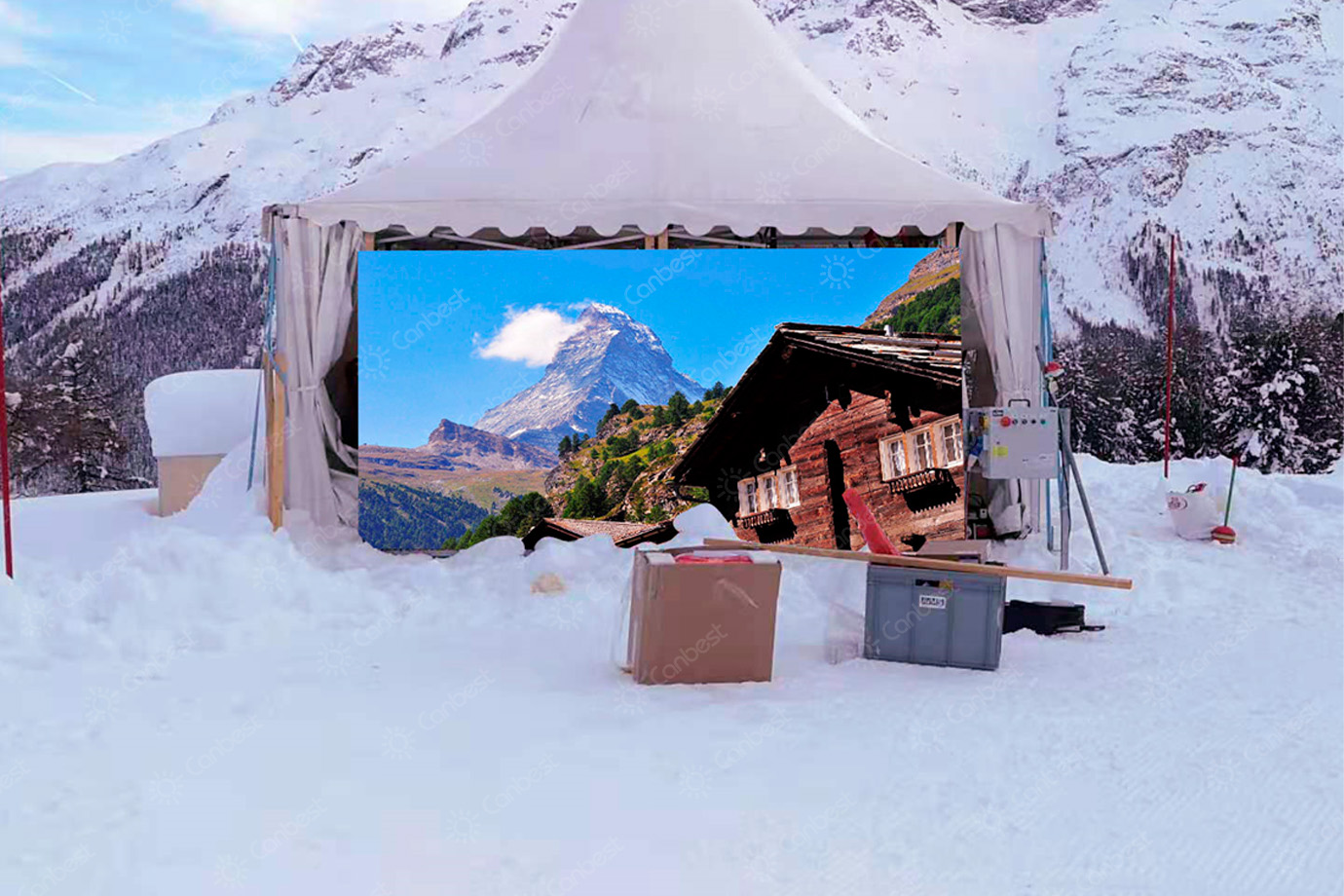

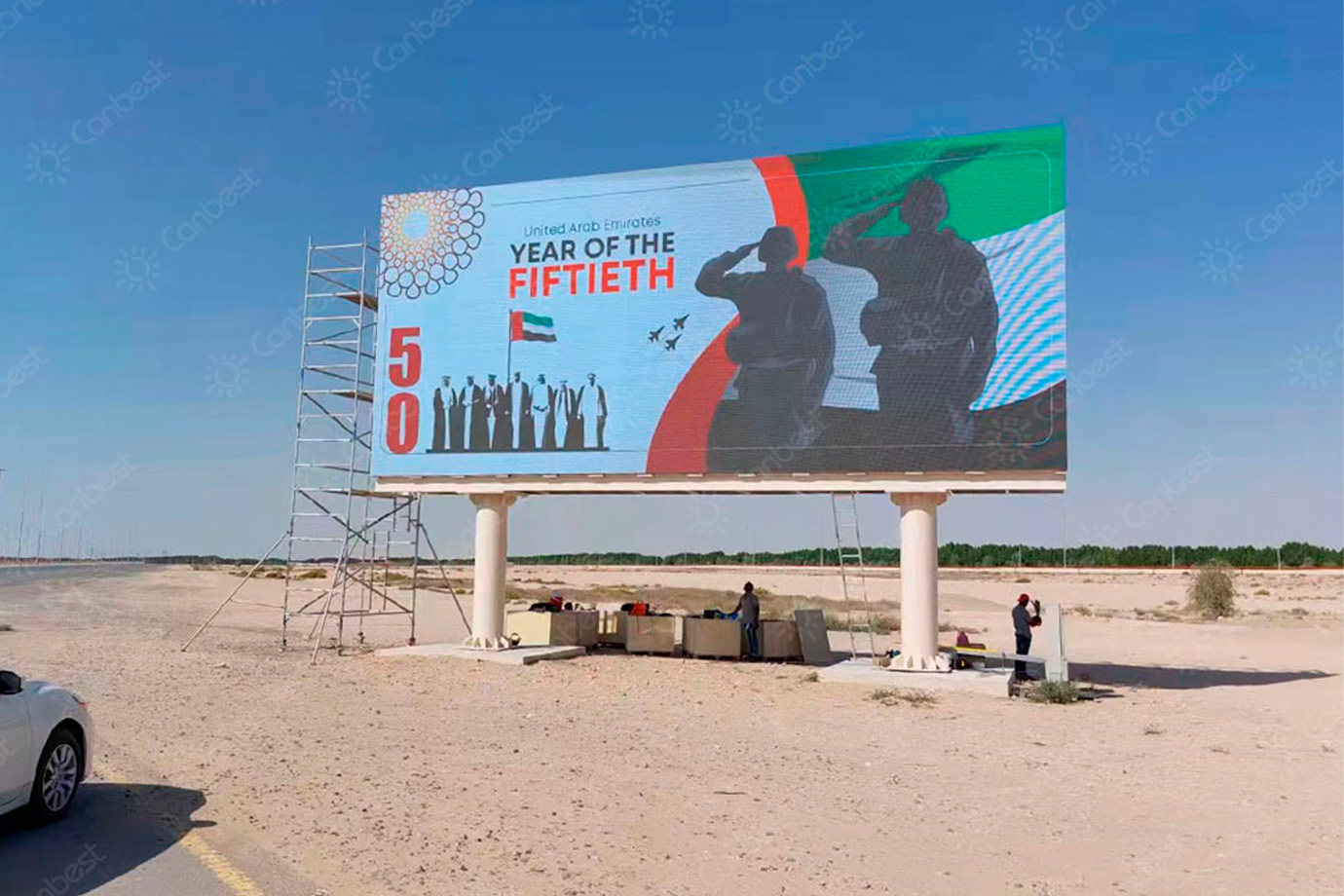

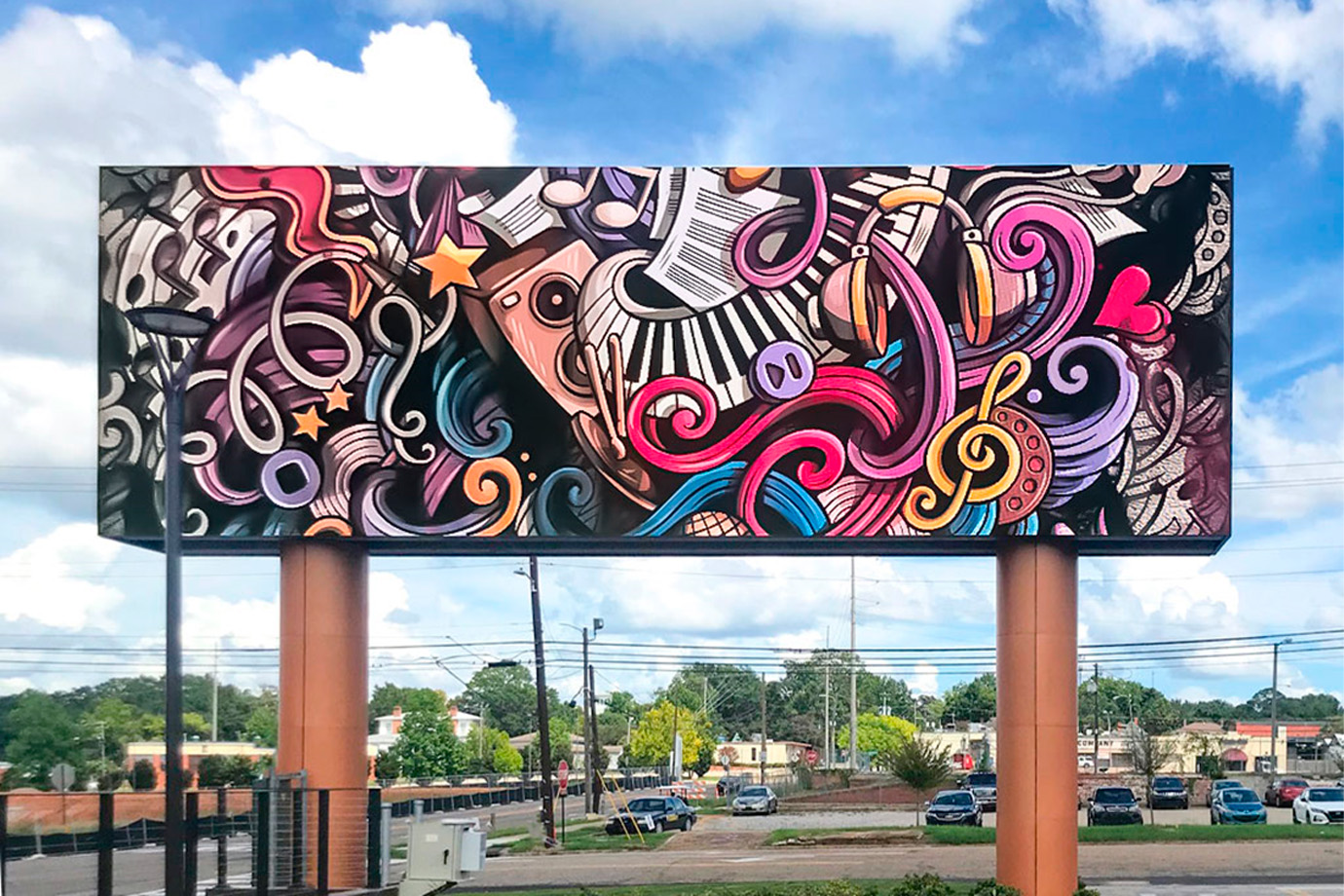

PRODUCT CASE
