XSC Series

XSC Series

Flexible Creative Indoor Never Black Screen Smart Staging LED Screen (P2.6 P2.9)


VIDEO

Never Black Screen with Power Sharing Technology (PST)

When the AC circuit breaks down, the LED screen can be powered by the DC power of adjacent LED panel , preventing the power failure and keep led screen working normally and stably, Our PST technology enable the whole panels reach “ Never Black Screen”, which is preferred for some important applications.

XSC Series
Power Monitoring System, Low Operation Cost

Our PMS system can monitor the working status of all power supply in real time. When any failure detected, the system will automatically locate the faulty and notify the operator through email ,so that they can get replaced easily, improving troubleshooting efficiency, saving operation costs.

XSC Series

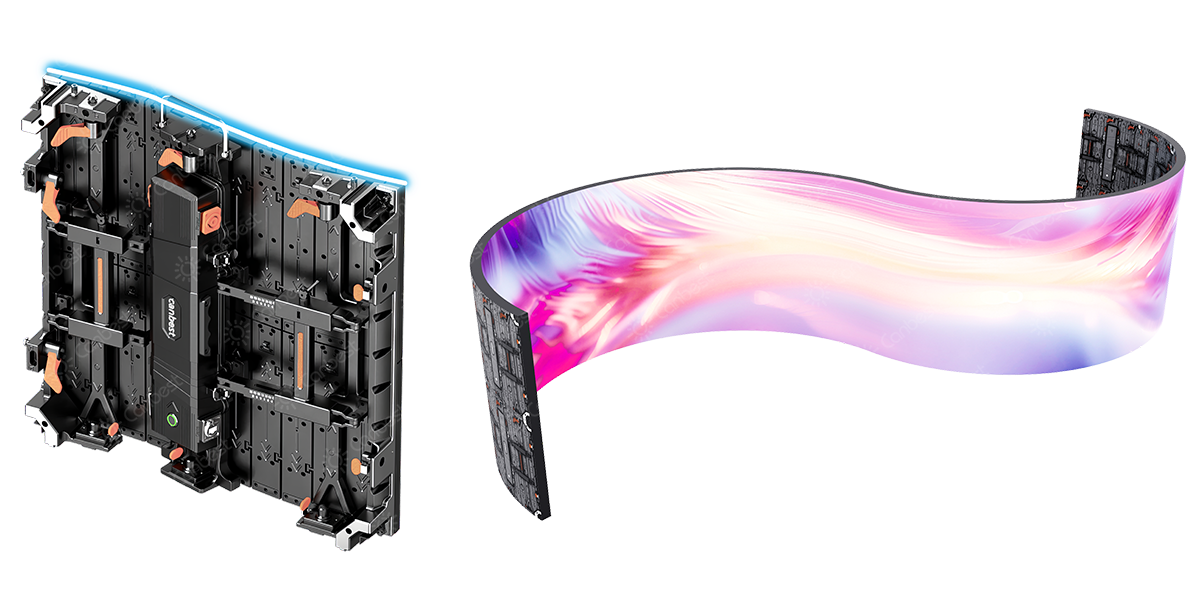

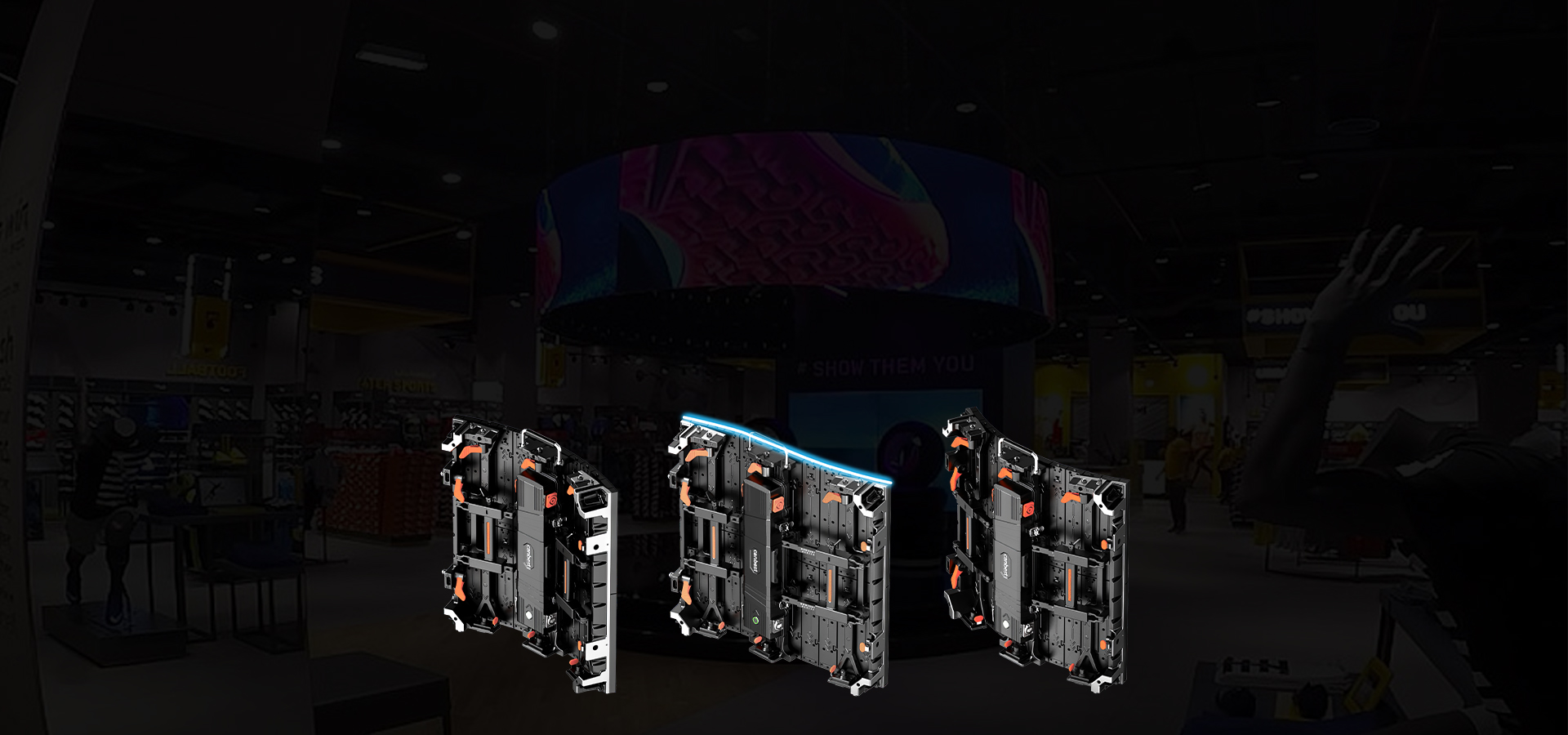

S Shape Available For Each Panel

ONE panel ONLY can realize “S ”shape, which can meet the display of various creative shapes easily.

XSC Series

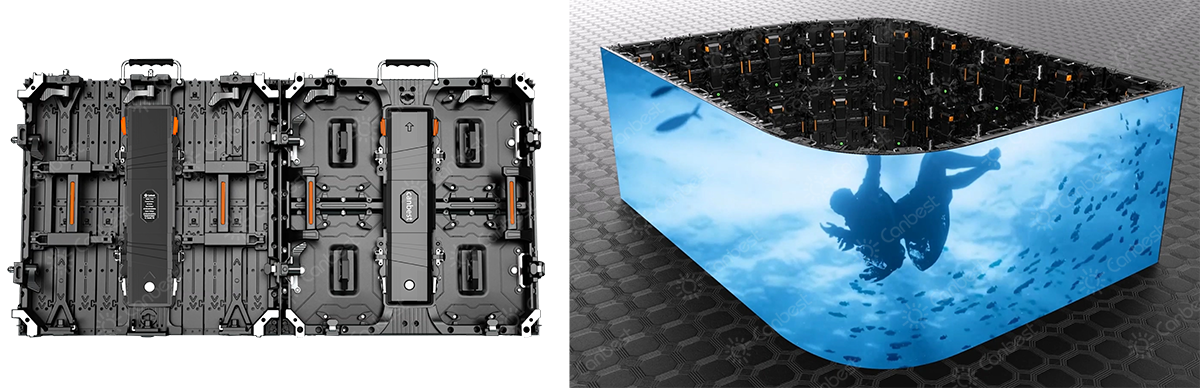

Column Installation

The curvature of a single cabinet can reach 45°, and 2 cabinets can be assembled at 90°and 8 cabinets can form a circle with 1.2 meters in diameter ONLY.

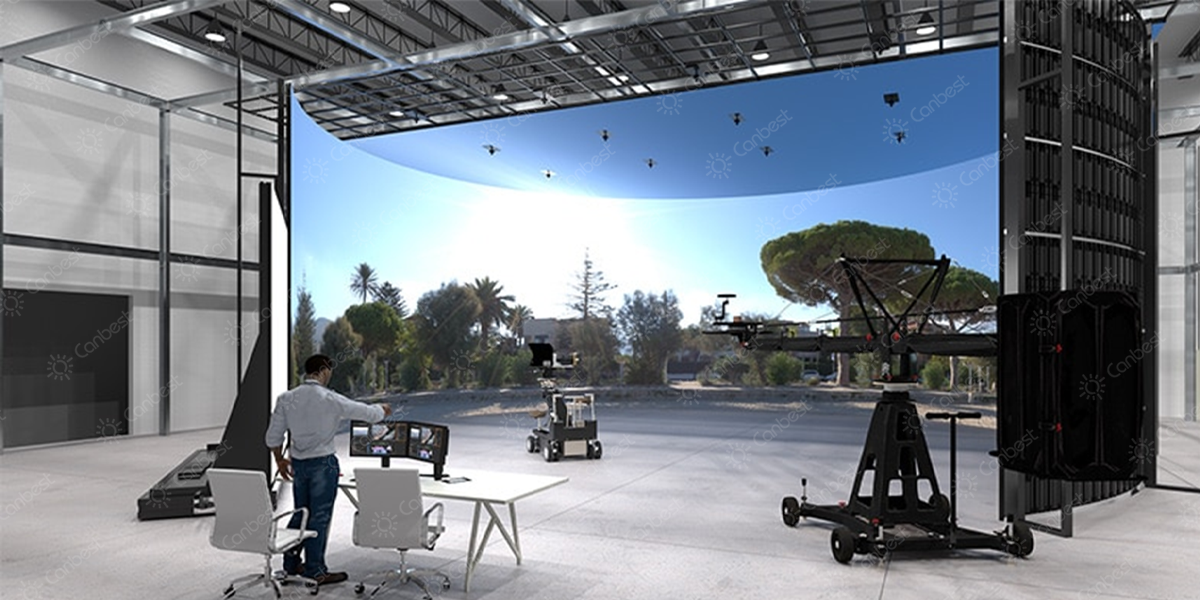

Solution for XR Virtual Studio

Super flexible setup , up to 16bit and 7680Hz refresh rate, ideal for virtual production solution

Mutually Splicing

The XSC series can compete with the XS series , which has a very strong expandability. can greatly meet the needs of creative display.

SPECIFICATIONS
Model RX261( Indoor P2.6) RX291( Indoor P2.9 )
Pixel Pitch (mm) 2.604mm 2.91mm
Brightness(nits) 800 1000
Refresh Rate(hz) 3840/7680Hz 3840/7680Hz
Cabinet Size(mm) 500*500*80
Cabinet weight(kg) 7.1
Cabinet Material Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡ 540/162 540/162
Cabinet Resolution Pixels 192*192 172*172
Pixel Density Pixels(㎡) 147474 118900
Maintenance Type Front & Rear
Note: For more product materials, please contact us directly.

DOWNlOAD

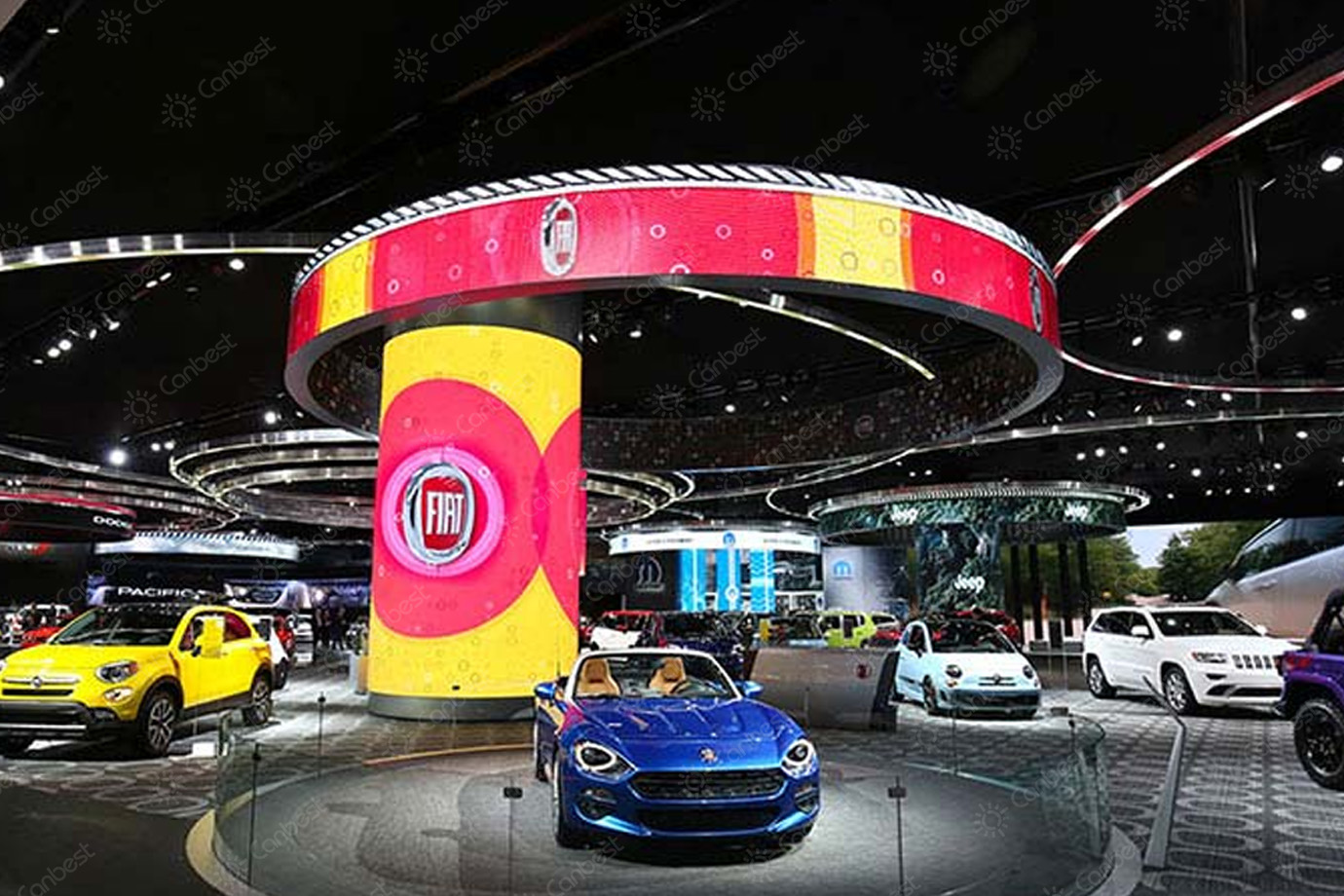

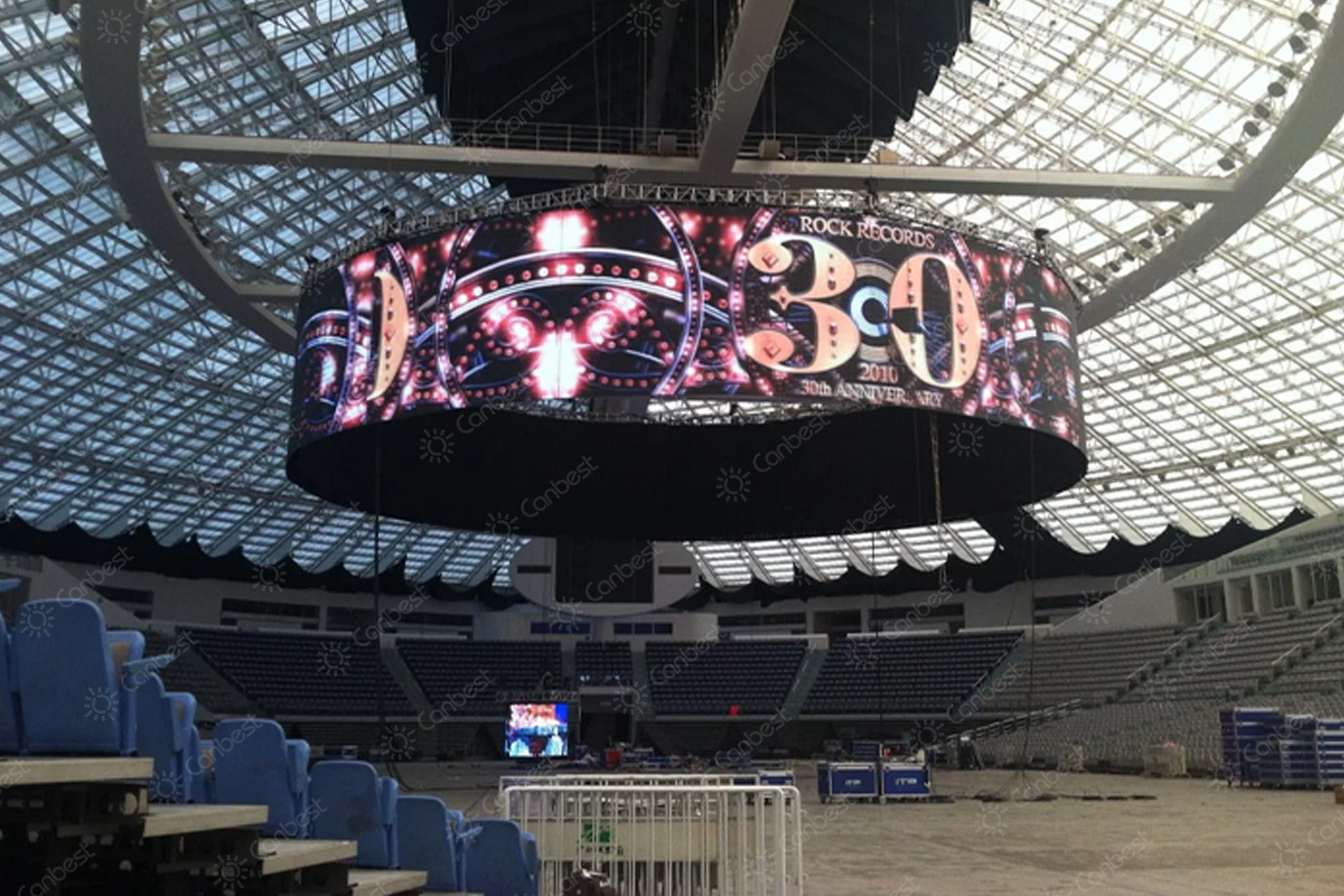

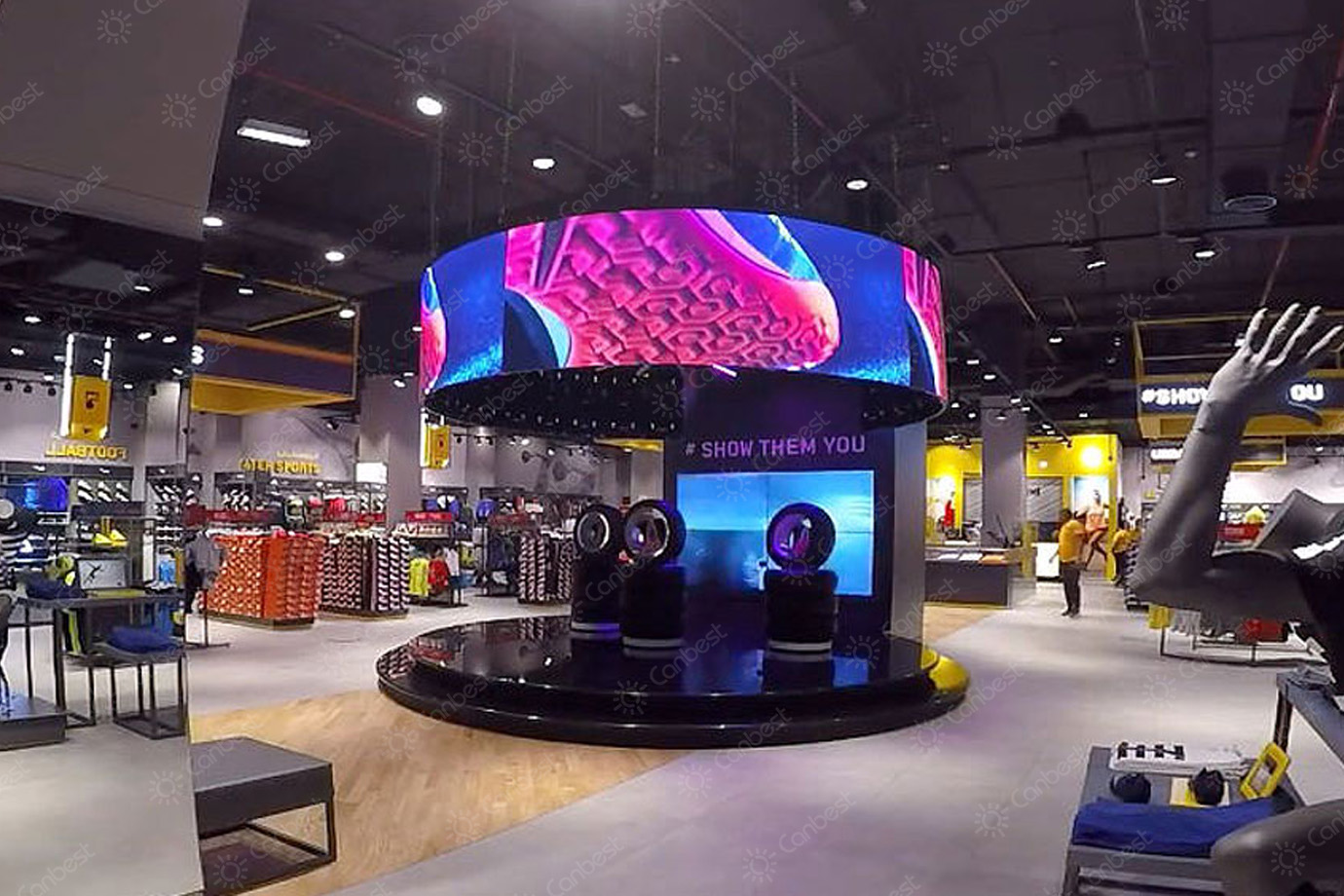

PRODUCT CASE
