FIS PLUS Series

Your location: Home > Hidden products >

VIDEO

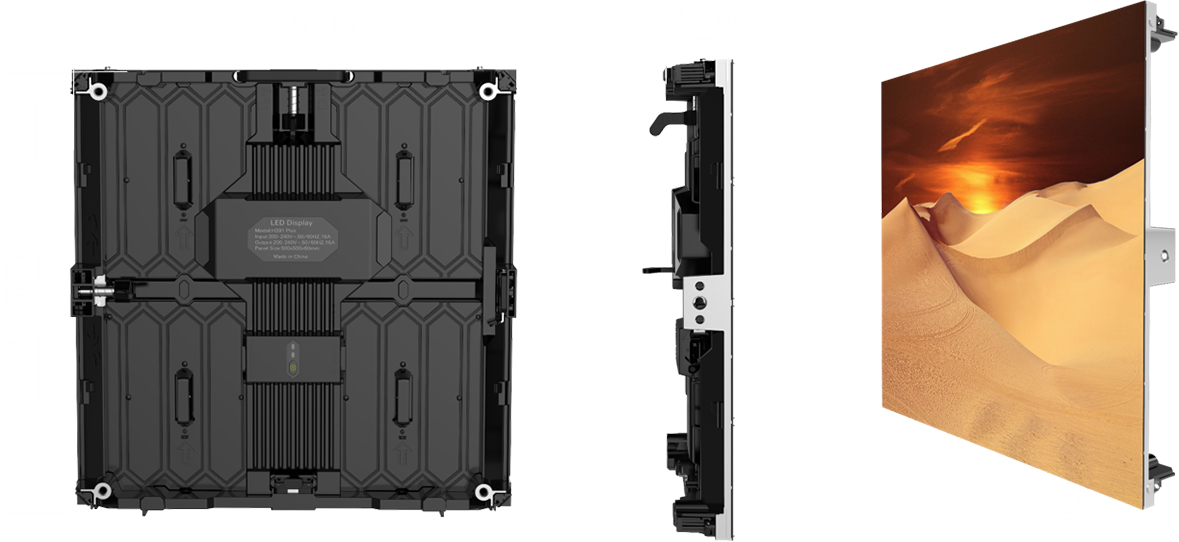

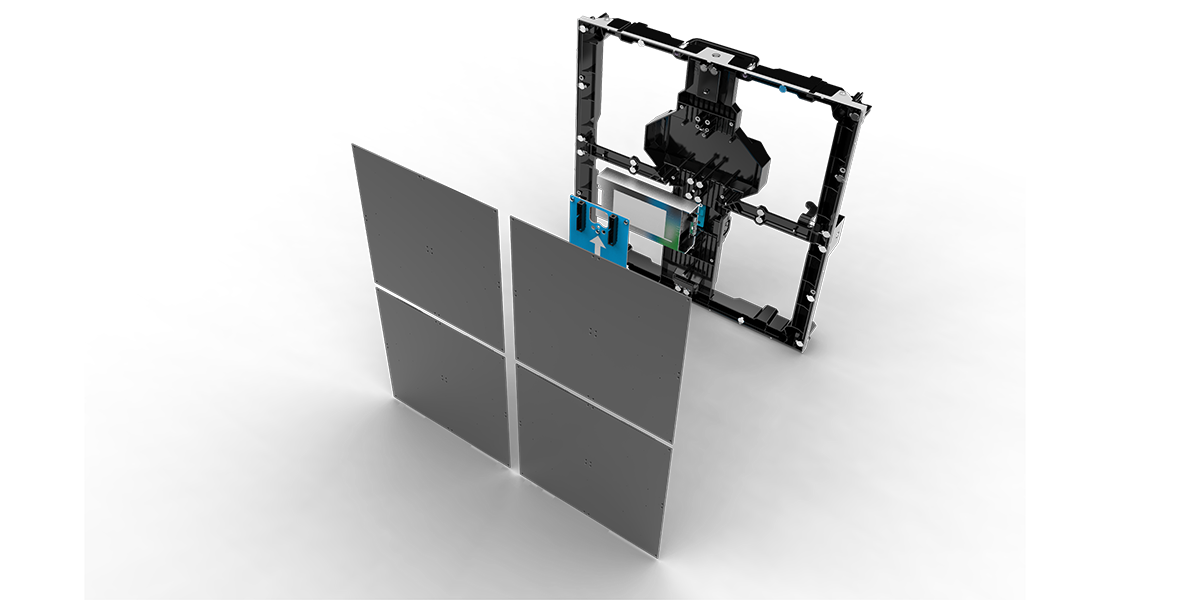

Module, HUB board and power can be taken out from the front Reduce the numbers of the screws, simplified the procedure

Weight: 5.15kg/panel, save time and lobor cost to carry and build ,Thickness: 60mm, small footprint

Four panel structures and more right-angle splicing projects.

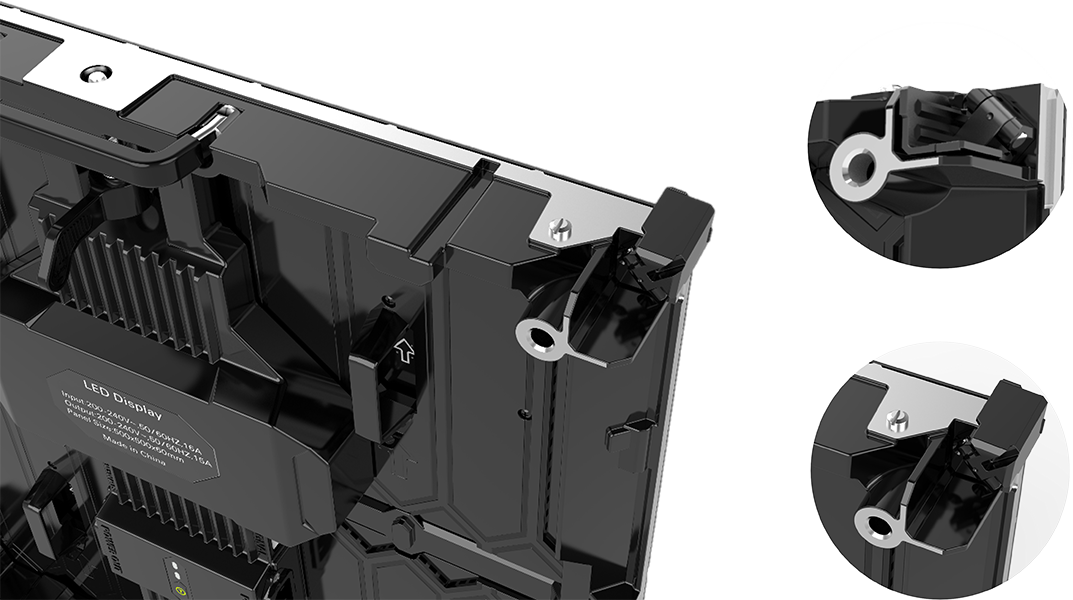

Safe and Reliable,Easy to open

Model	FI1S Plus ( P1.9 )	FI2S Plus (P2.6)	FI3S Plus ( P3.9)
Pixel Pitch (mm)	1.953mm	2.604mm	3.91mm
Brightness（nits）	1000	1000	1000
Refresh Rate（hz）	≥3840	≥3840	≥1920
Cabinet Size(mm)	500*500	500*500	500*500
Cabinet Weight(kg)	5.15 per panel	5.15 per panel	5.15 per panel
Cabinet Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡	470/160	620/220	620/220
Cabinet Resolution Pixels	256*256	192*192	128*128
Pixel Density Pixels(㎡)	262177	147928	65746
Maintenance Type	Front & Rear
Note: For more product materials, please contact us directly.
