S PRO-COB Series

S PRO-COB Series

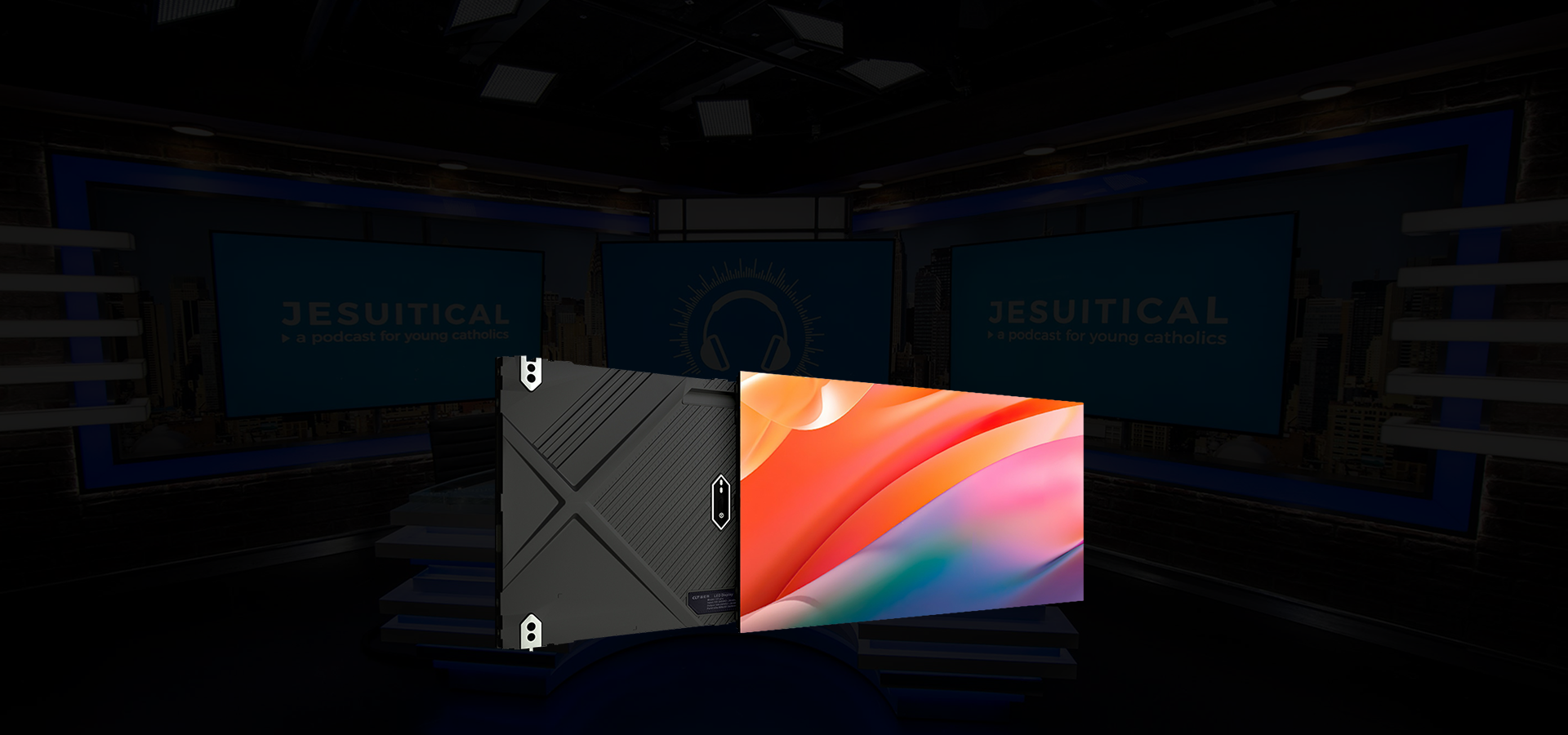

Cutting-edge COB Fine Pitch LED Wall Screen


VIDEO

16:9 Golden Ratio

Standard 27.5" Size FHD/4K Pixel to Pixel Resolutions.

S PRO-COB Series

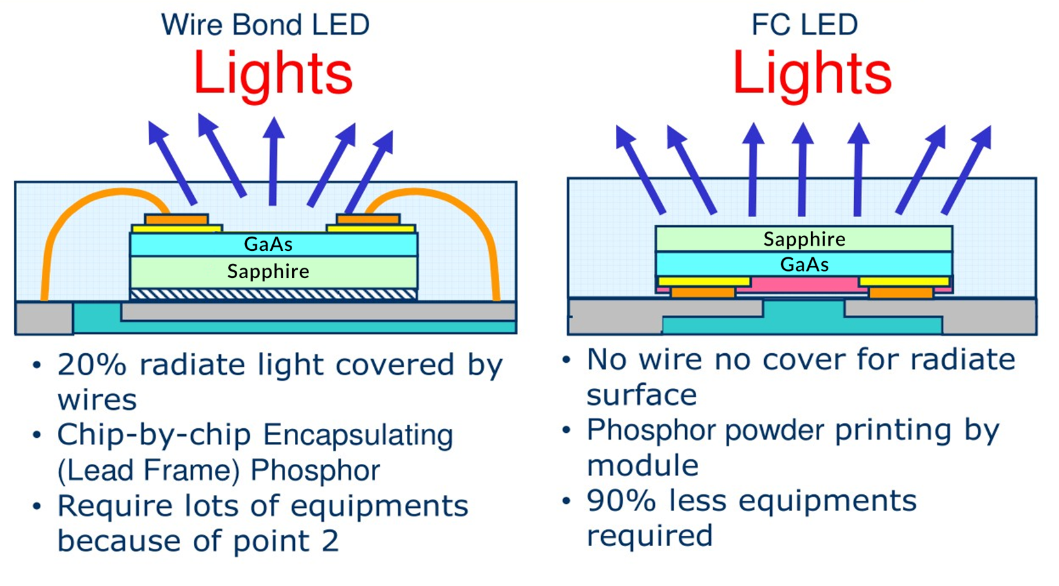

Full Flip-chip COB Design
S PRO-COB Series
High Protection Package Technology

Can be cleaned directly with wet cloth, Completely solve the damage caused by bumps, impacts, moisture, salt spray corrosion, electrostatic breakdown etc.

S PRO-COB Series
Front Maintenance Tool Creative Design

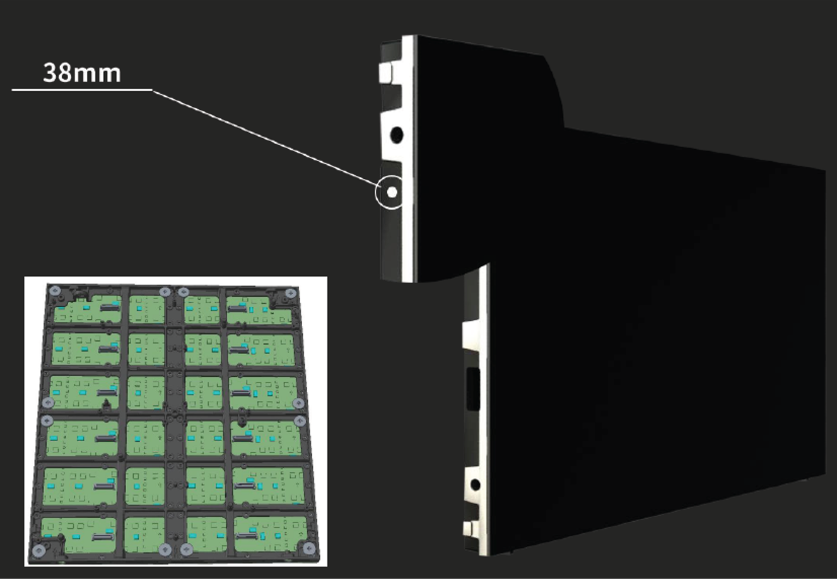

Fine Die-casting Aluminum Cabinet

High precision,good flatness, Ultra-thin cabinet -Hidden rear cable connection hole.

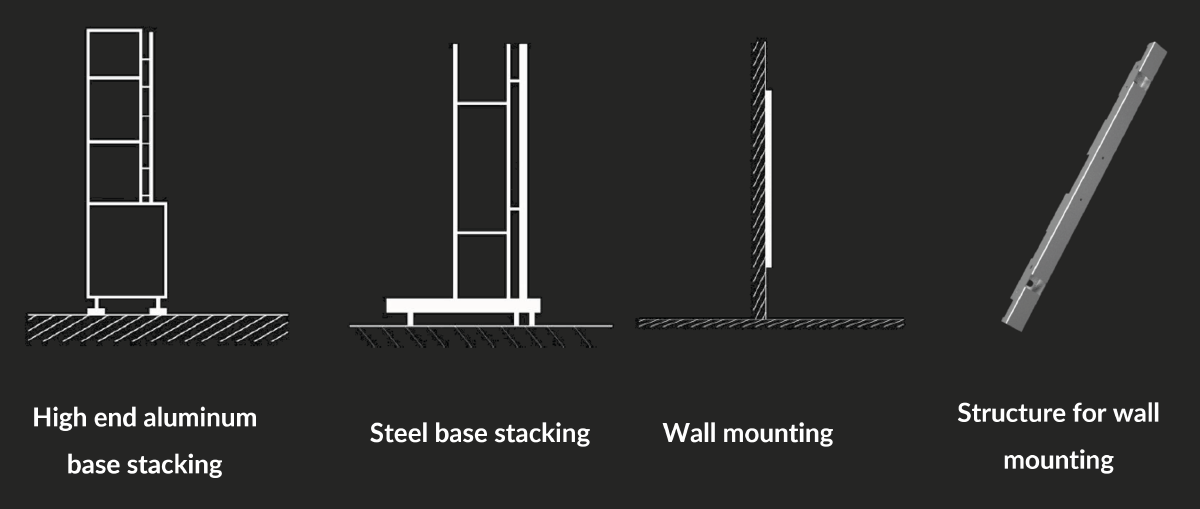

Multiple Installation

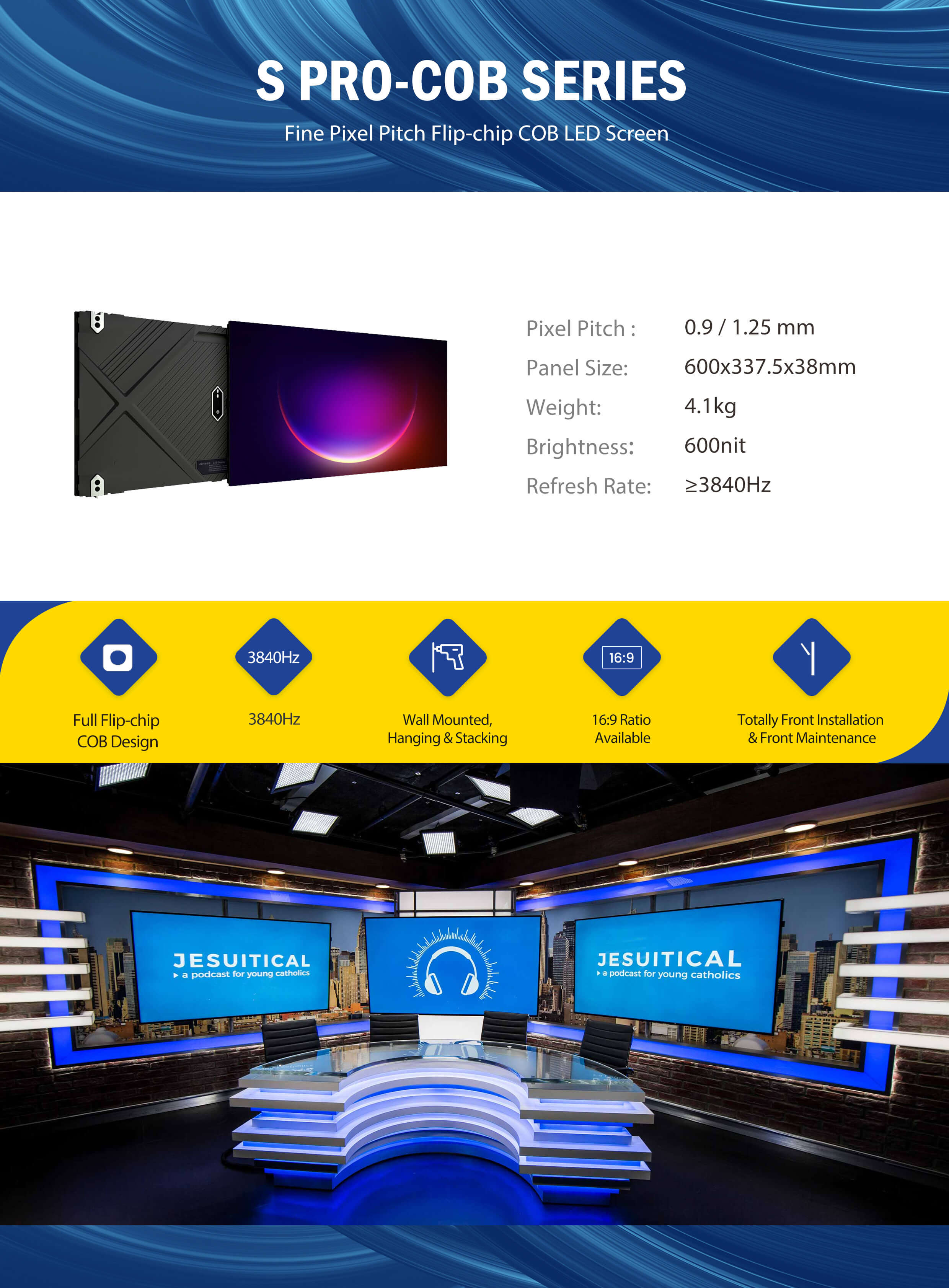

SPECIFICATIONS
Model S091PRO-COB S121PRO-COB
Pixel Pitch (mm) 0.9375mm 1.25mm
Configurations FC COB FC COB
Refresh Rate(hz) 3840 3840
Cabinet Size(mm) 600x337.5x38 600x337.5x38
Cabinet Material Die casting aluminum Die casting aluminum
Power Consumption(Max/Aver.)w/㎡ 700/300 600/250
Brightness (nits) 600nit 600nit
Pixel Density Pixels(㎡) 1137777 640000
Maintenance Type front  front
Note: For more product materials, please contact us directly.

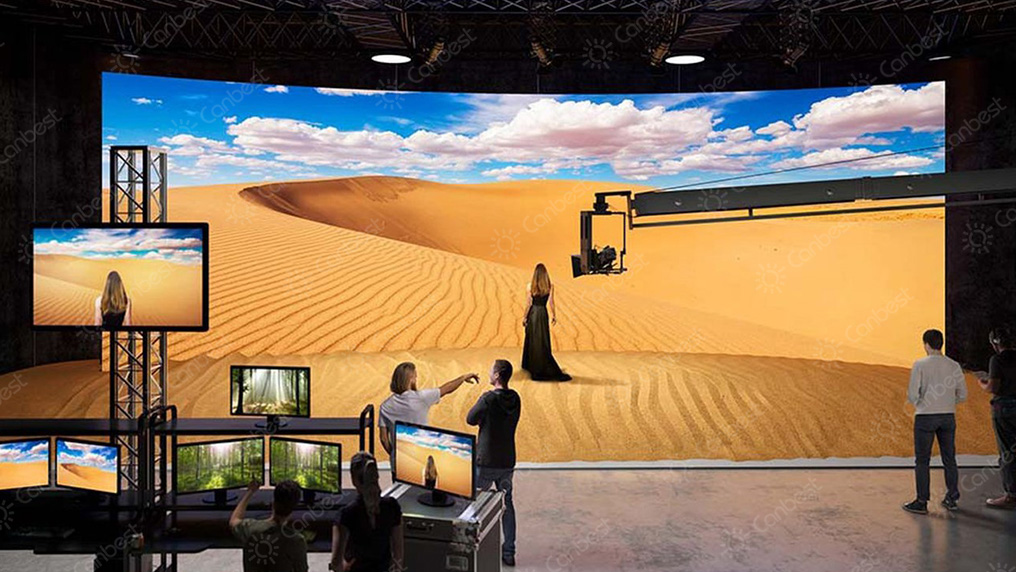

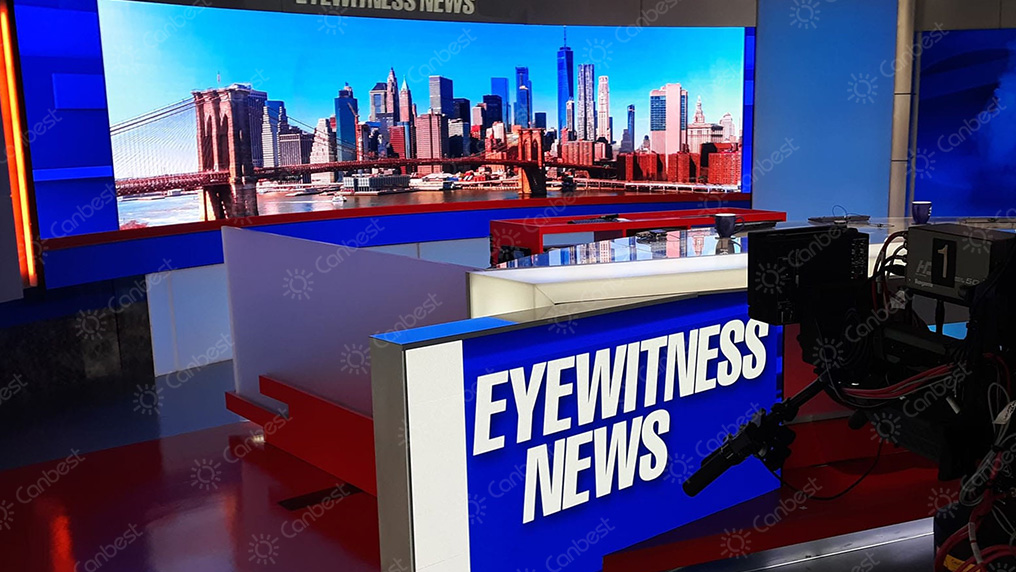

PRODUCT CASE
