Y Series

Y SERIES

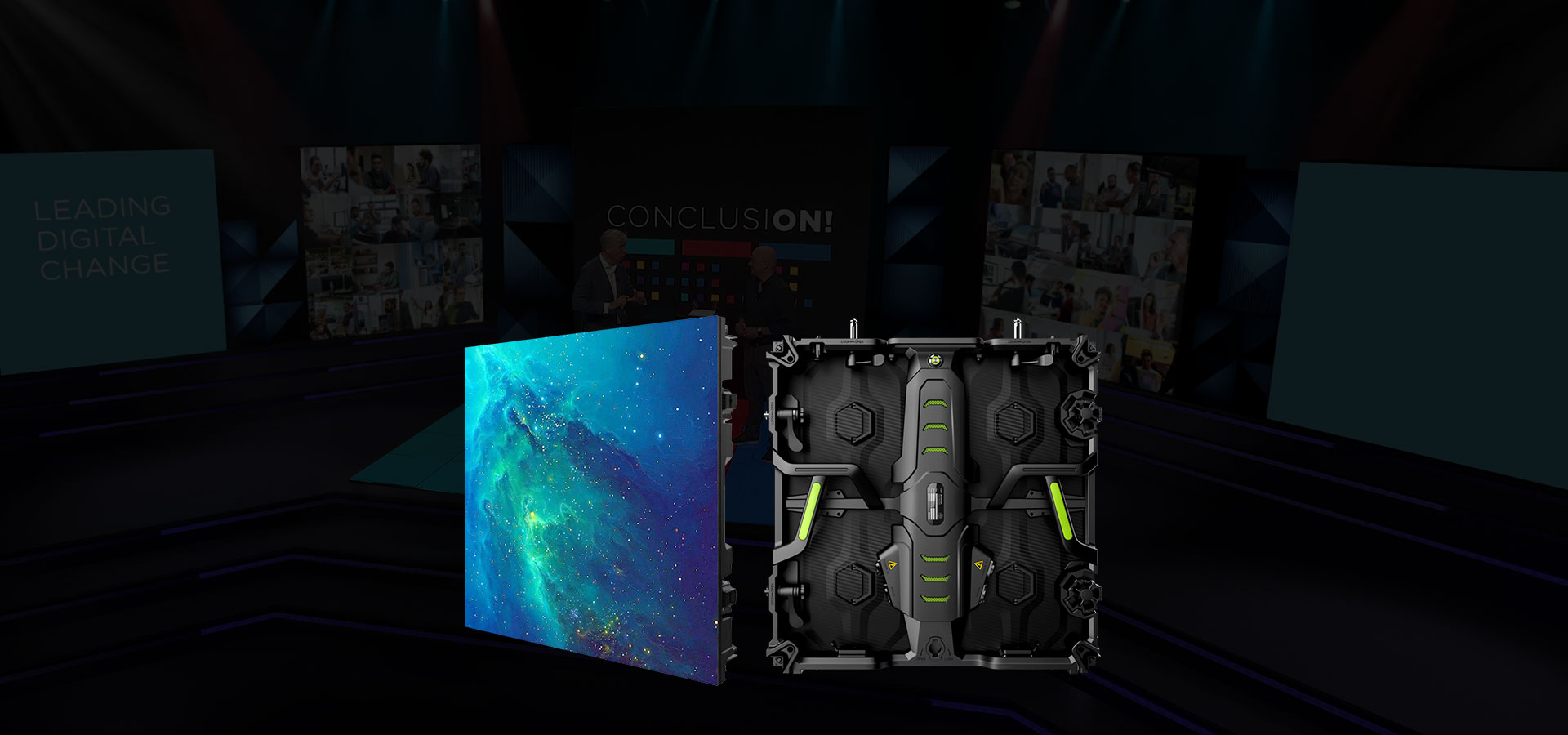

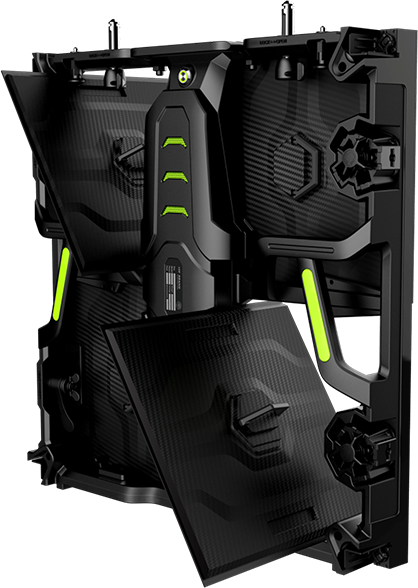

Indoor Stage LED Screen


VIDEO

Installation Protection

Protect the LEDs near the edge of the cabinet, effectively reducing damage caused during installation Ensure that the LEDs are free from contact with the ground when the cabinet is placed on the ground

Y Series
One-Person Maintenance

Independent power box, the integration of power box, receiving card, and Hub Card, easy to change the power box enables fast and easy replacement

Y Series
Concave & Convex curves installations

High precision curving blocks support customized 5 different angles, creative screen shapes and sizes

Y Series

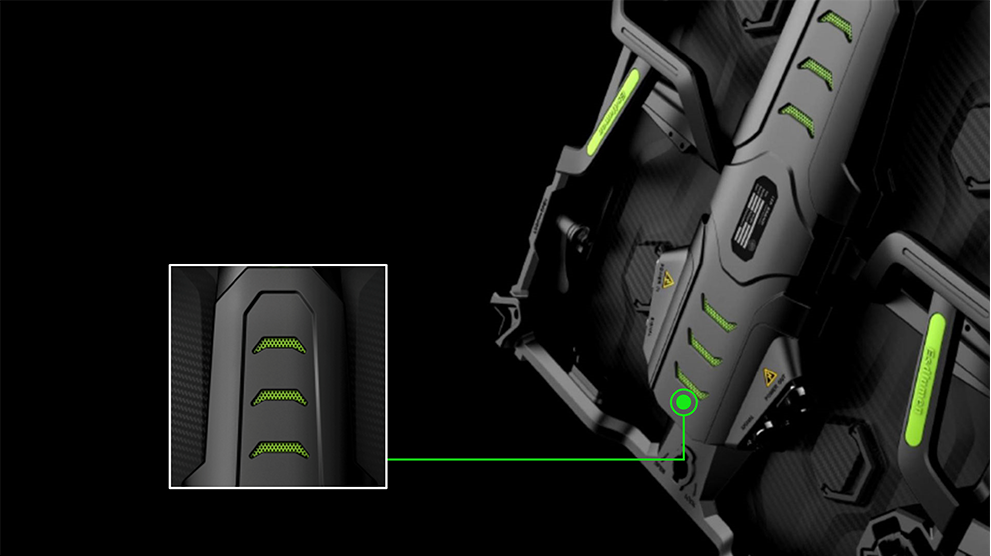

Efficient heat dissipation

Automatically cooling system can save 20% in consumption and prolong 35% in power lifetime

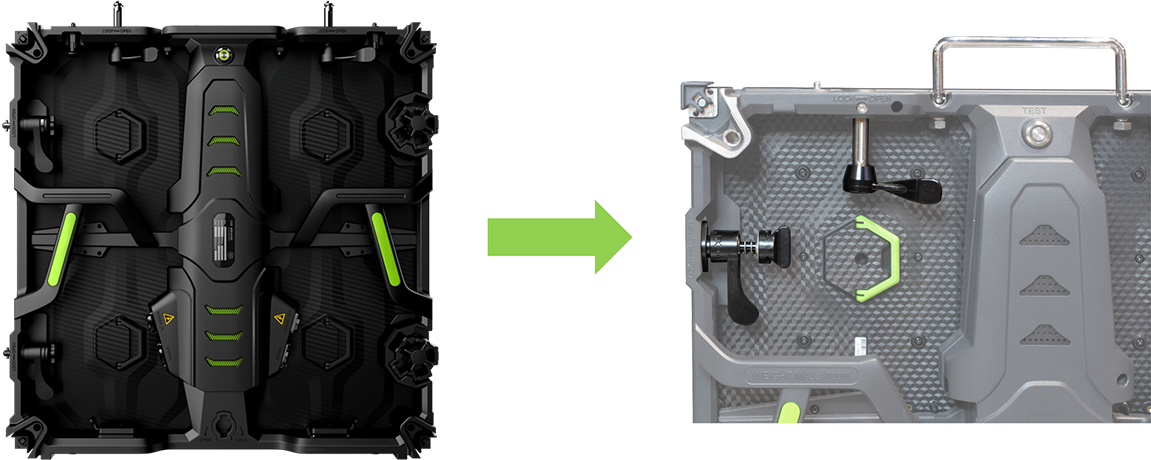

One-Person installation

Innovation lock system for installation within 5s by one-person installation without tool

One-Person Installation And Disassembly

Handle design and specialized magnets enables simply one person to assemble and disassemble

SPECIFICATIONS
Model Y191 Y261 Y291 Y391
Pixel Pitch (mm) 1.9mm 2.6mm 2.91mm 3.91mm
Brightness（nits） 800~1200 800~1200 800~1200 ≥4000 / 8000nits(optional)
Refresh Rate（hz） ≥3840 ≥3840 ≥3840 ≥3840
Cabinet Size(mm) 500*500*71
Cabinet weight(kg) 8.2
Cabinet Material Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡ 220/560 160/410 160/410 160/410
Cabinet Resolution Pixels 256x256 pixels 192x192 pixels 168x168 pixels 128x128 pixels
Pixel Density Pixels(㎡) 262,144 147,456 112,896 65,536
Maintenance Type Front & Rear Front & Rear Front & Rear Front & Rear
Note: For more product materials, please contact us directly.
