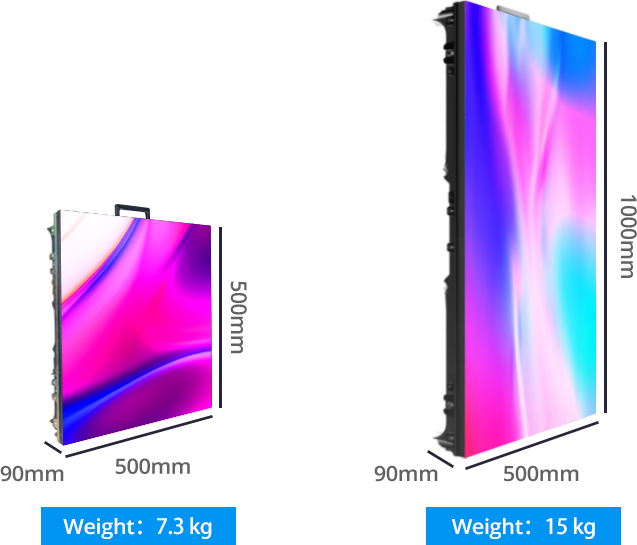

High precision die casting aluminum alloy housing,7.3 /15kg per panel.

Cable-less design, quick replacing for power box, saving time.

Anti-Collision on four corners. Protect the led lamp not to be damaged. Easy for operation.

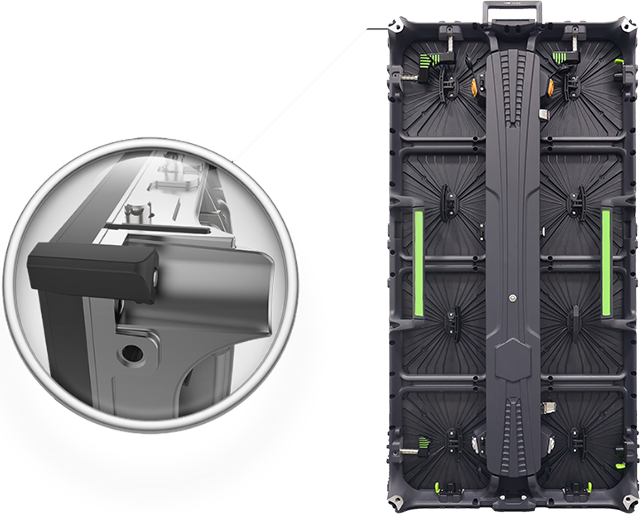

Dual fast locks to ensure the panels evenness and anti-drop handle to protect cabinets dropping when doing events .

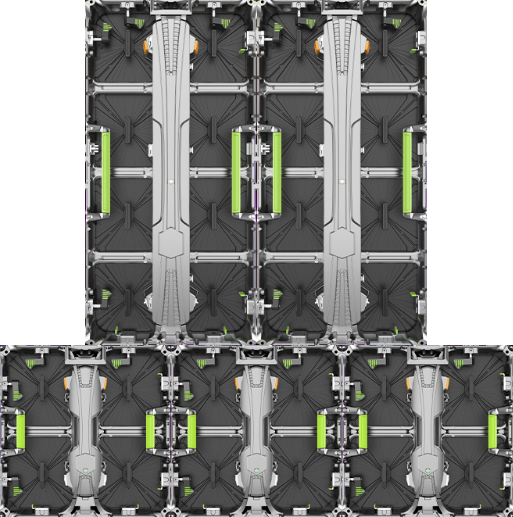

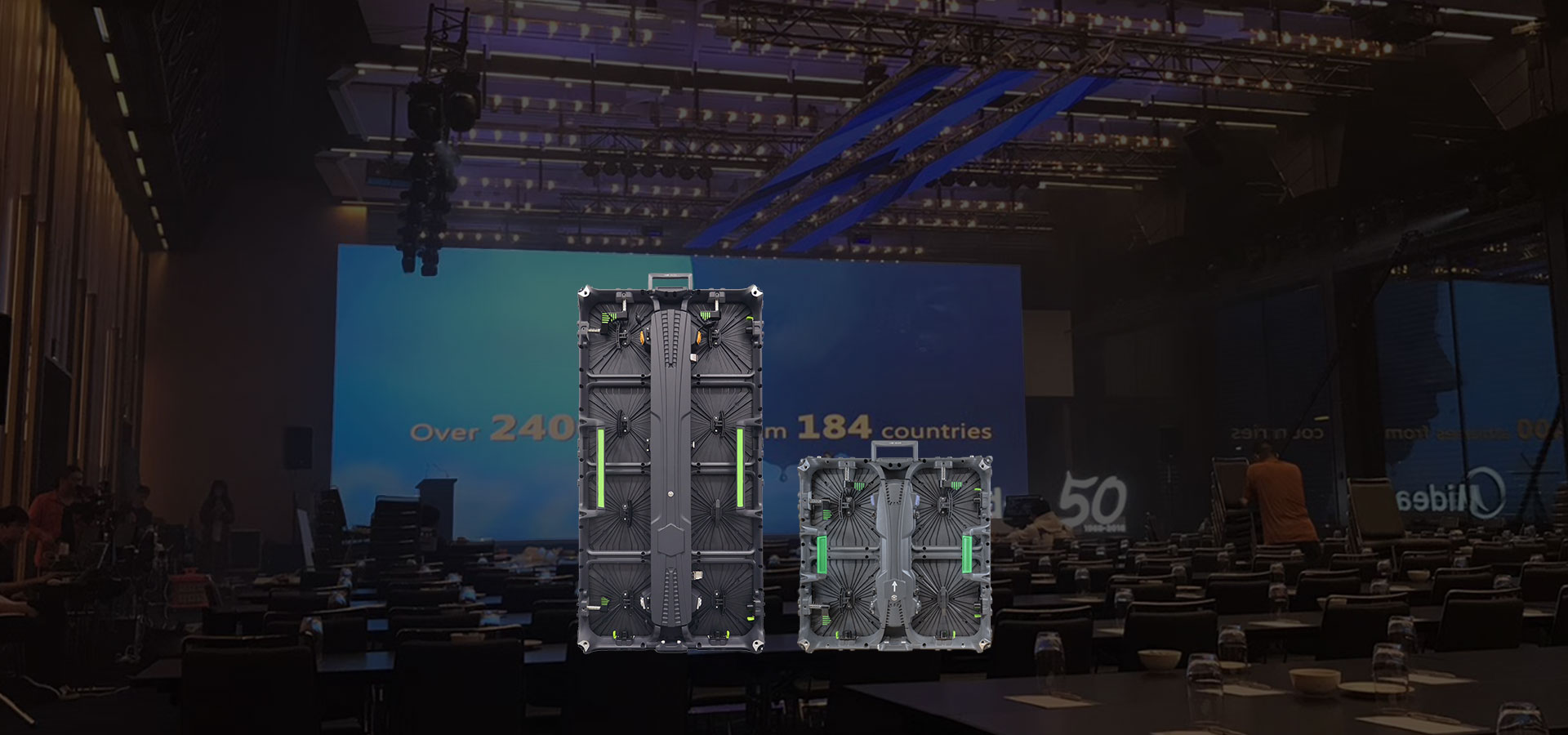

500*500mm and 500*1000mm cabinets can be easily spliced up and down,greatly satisfying different needs of stage design .

Model	C261(Indoor P2.6 )	C391(Indoor P3.91)	C390 ( Outdoor P3.91 )	C480 ( Outdoor P4.81 )
Pixel Pitch (mm)	2.604mm	3.91mm	3.91mm	4.81mm
Brightness（nits）	1000	1000	3500-5000	3500-5000
Refresh Rate（hz）	3840	3840	3840	3840
Cabinet Size(mm)	500500 \| 5001000
Cabinet weight(kg)	7.3/15	7.3/15	7.3/15	7.3/15
Cabinet Material	Die Casting Aluminum
Power Consumption (Max/Aver.)w/㎡	650/200	650/220	800/260	800/260
Cabinet Resolution Pixels	108108 \| 108216	128128 \|128256	128128/ \| 128256	104104 \| 104208
Pixel Density Pixels(㎡)	147929	65410	65410	43222
Signal Type(with video processor)	AV,S-Video,VGA,DVI,HDMI,SDI,DP
Note: For more product materials, please contact us directly.
