FIY Series

FIY SERIES



VIDEO

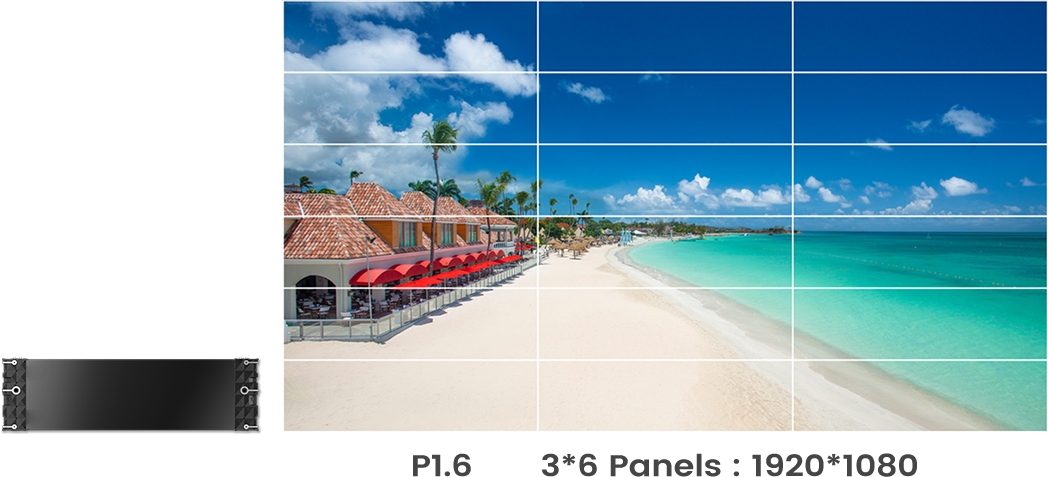

Perfect 16:9 aspect ratio, a better visual enjoyment

Support 2K / 4K /8K video sources dot by dot., bringing more wonderful display effects

FIY Series

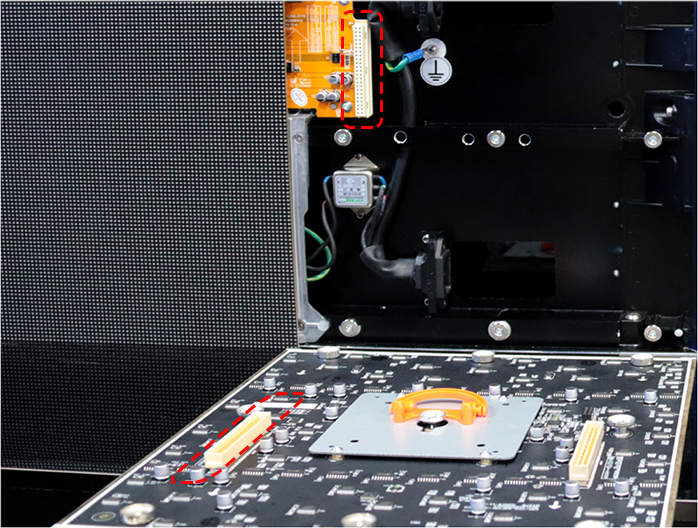

Cableless connection, simple maintenance

Tidy inner layout, also reducing the malfunctioning possibility caused by cable

FIY Series
Backup for both power and data, assuring the working status in case of problems

Once one of the power or data can’t work normally, the backup will start to ensure the screen working

FIY Series

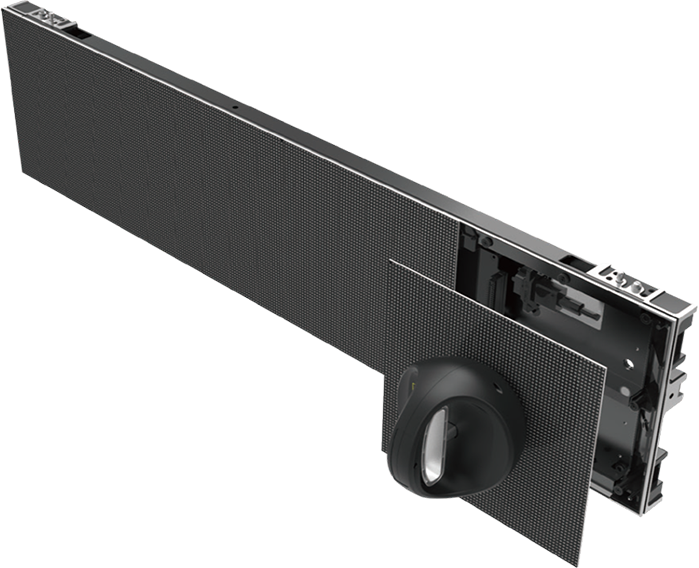

Fully front maintenance, no need back maintaining space

Magnetic module design, you can maintain it from front by the magnetic tool

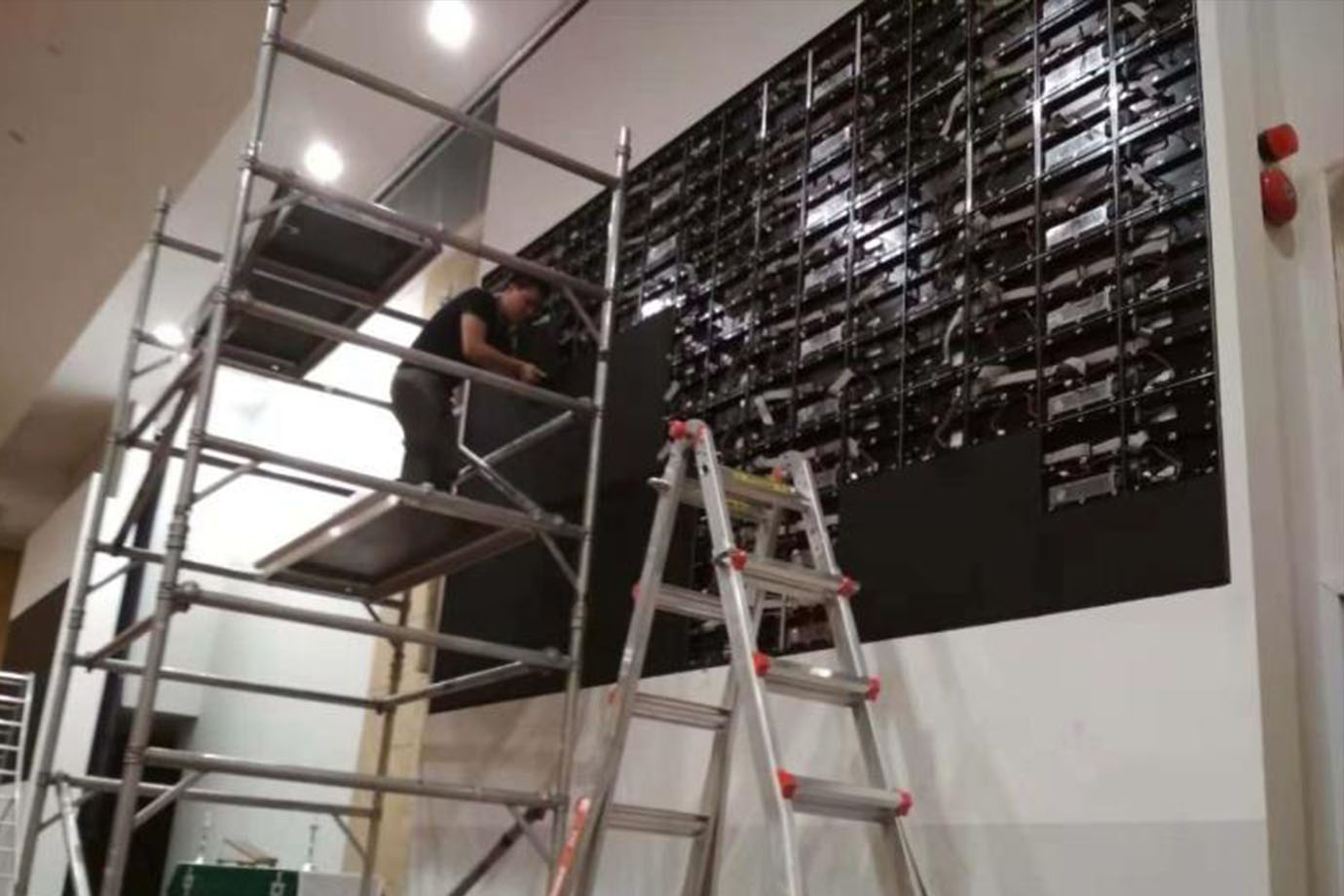

Various installation type support

upport hanging, stacking, wall mounted and ceiling mounted, solving the problem of maintaining space

Three cabinet size and flexible installation shape

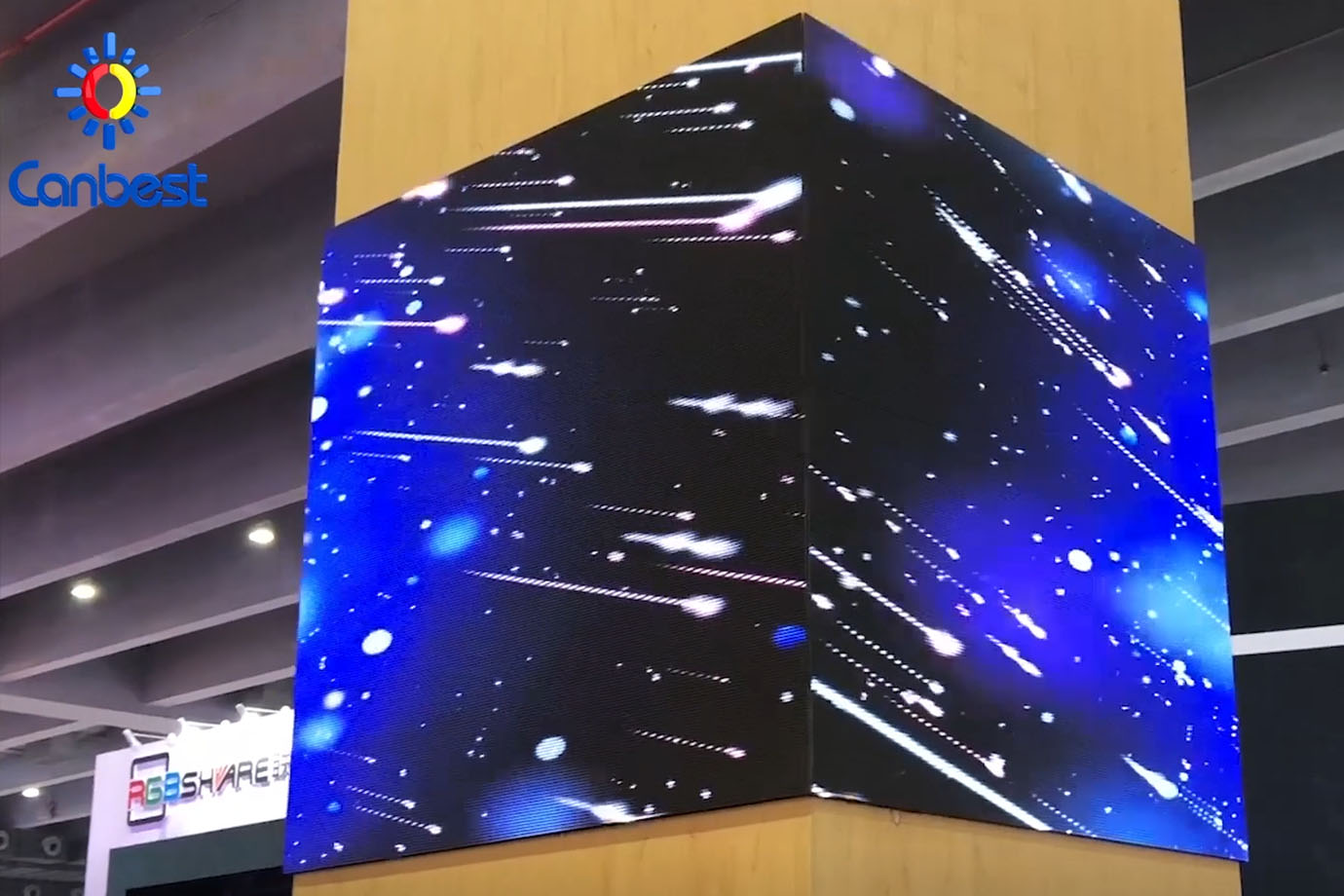

There will be 1024*2888 mm ,768*288 mm and 512*288 mm to choose . We can customize into bevel angle cabinet to meet the demands of applications. Such as right-angle, cube and convex and concave type

SPECIFICATIONS
Model FIY1.6 FIY2.6
Pixel Pitch (mm) 1.6 2.6
Brightness（nits） 800 1000
Refresh Rate（hz） 3840 3840
Cabinet Size(mm) 1024*288*40/ 768*288*40 / 512*288*40 1024*288*40/ 768*288*40 / 512*288*40
Cabinet weight(kg) 7 / 6  / 5 7 / 6  / 5
Cabinet Material  Aluminum   Aluminum
Power Consumption(Max/Aver.)w/㎡ 640/256 640/256
Cabinet Resolution Pixels 640*180  / 480*180 / 320*180 384*108 / 288*108 / 192*108
Pixel Density Pixels(㎡) 40000
Maintenance Type Front
Note: For more product materials, please contact us directly.

DOWNlOAD

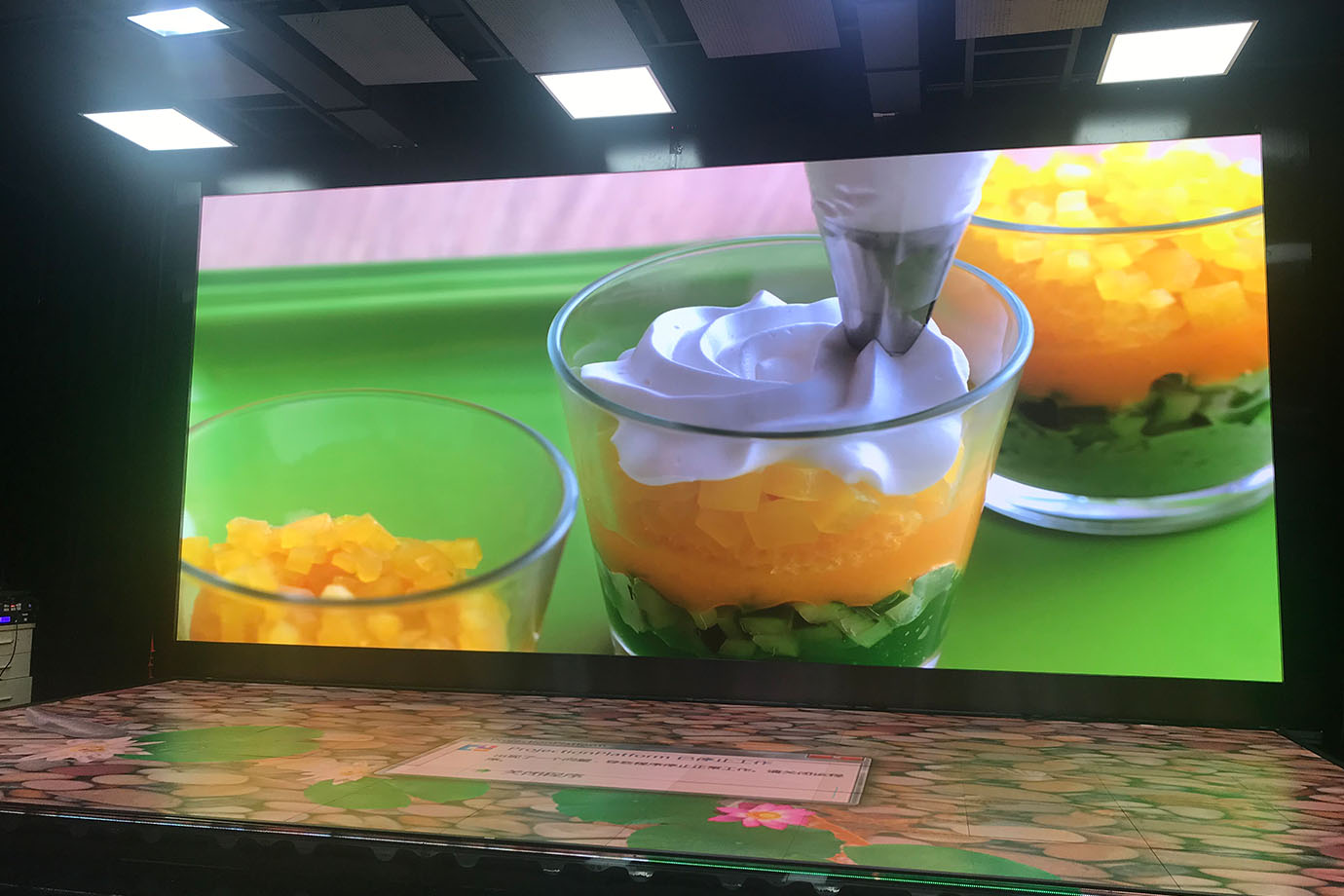

PRODUCT CASE
