Cableless Design Indoor Trade Show LED Wall

VIDEO

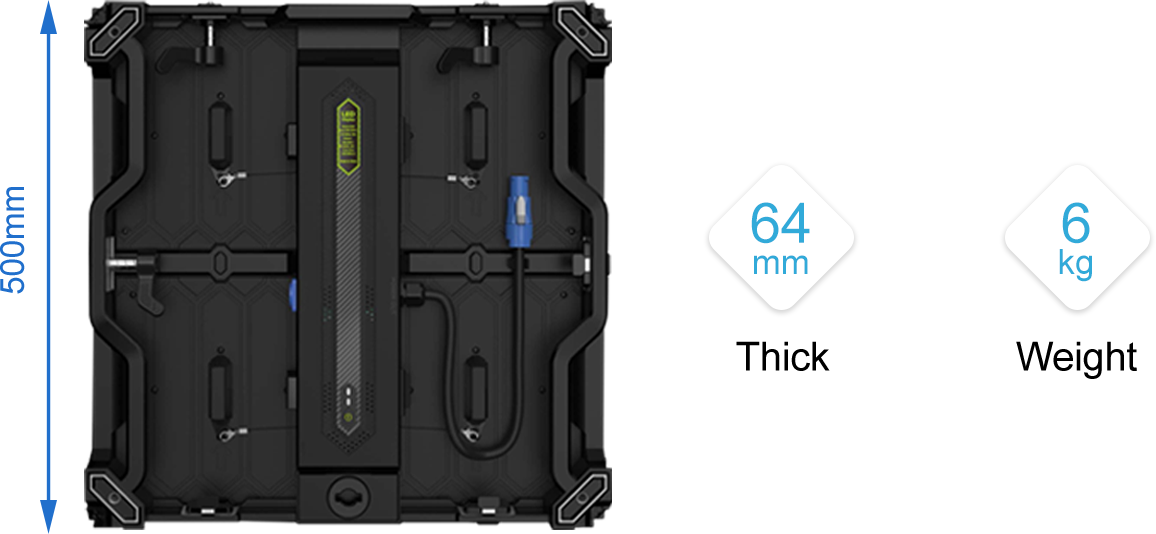

EXTREMELY LIGHT WEIGHT

-Thickness less than 64mm, weight in 6kg, one person can handle it easily.

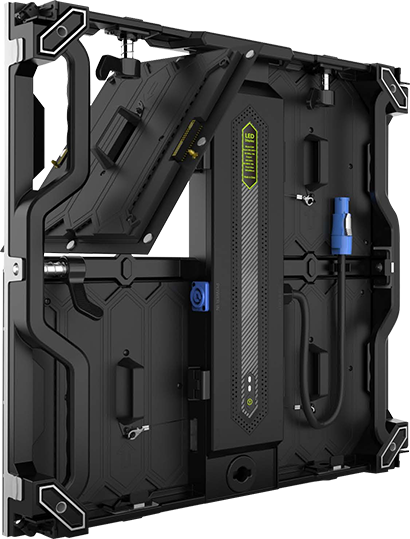

QUICK FRONT AND BACK SERVICE DESIGN

-Support front service with magnetic tool or non-tool maintenance.

ANTI-COLLISION FOR LED LAMPS

-Four protectors for each cabinet, to prevent the lamps from damage when transportation or installation.

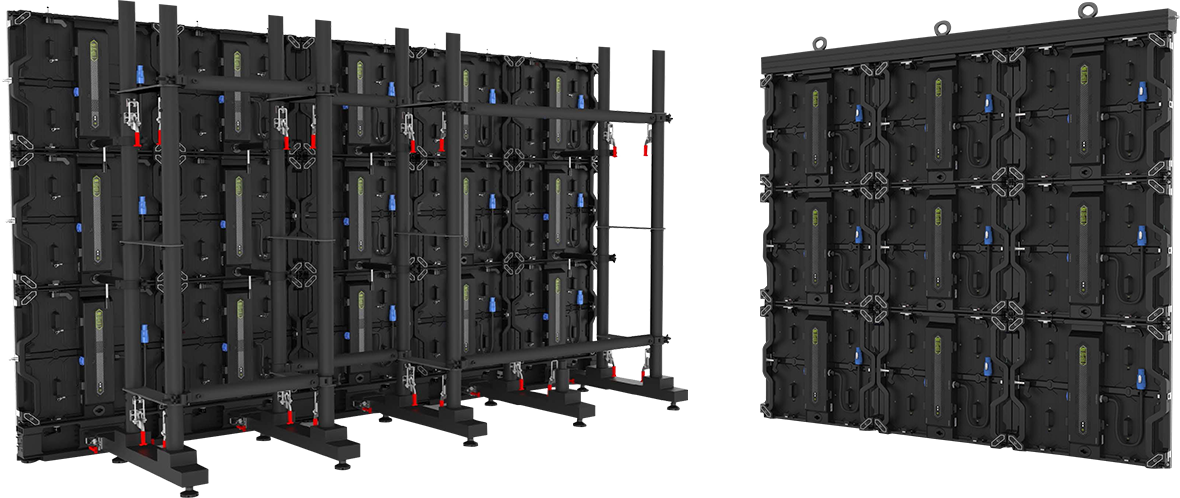

FLEXIBLE HANGING AND STACKING INSTALLATION WAY

-For Indoor rental use LED Video Wall, there will be always two types installation way, we call it Hanging and Stacking, which means hanging with hanging beam or bar. and stacking on floor.

SPECIFICATIONS

Model	E2.6 (P2.6)	E3.9(P3.9)
Pixel Pitch (mm)	2.604mm	3.906mm
Brightness（nits）	1200	1200
Refresh Rate（hz）	≥1920	≥1920
Cabinet Size(mm)	50050065
Cabinet weight(kg)	6.0
Cabinet Material	Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡	620/220	620/220
Cabinet Resolution Pixels	192*192	128*128
Pixel Density Pixels(㎡)	147475	65544
Maintenance Type	Front & Rear
Note: For more product materials, please contact us directly.
