V Series COB

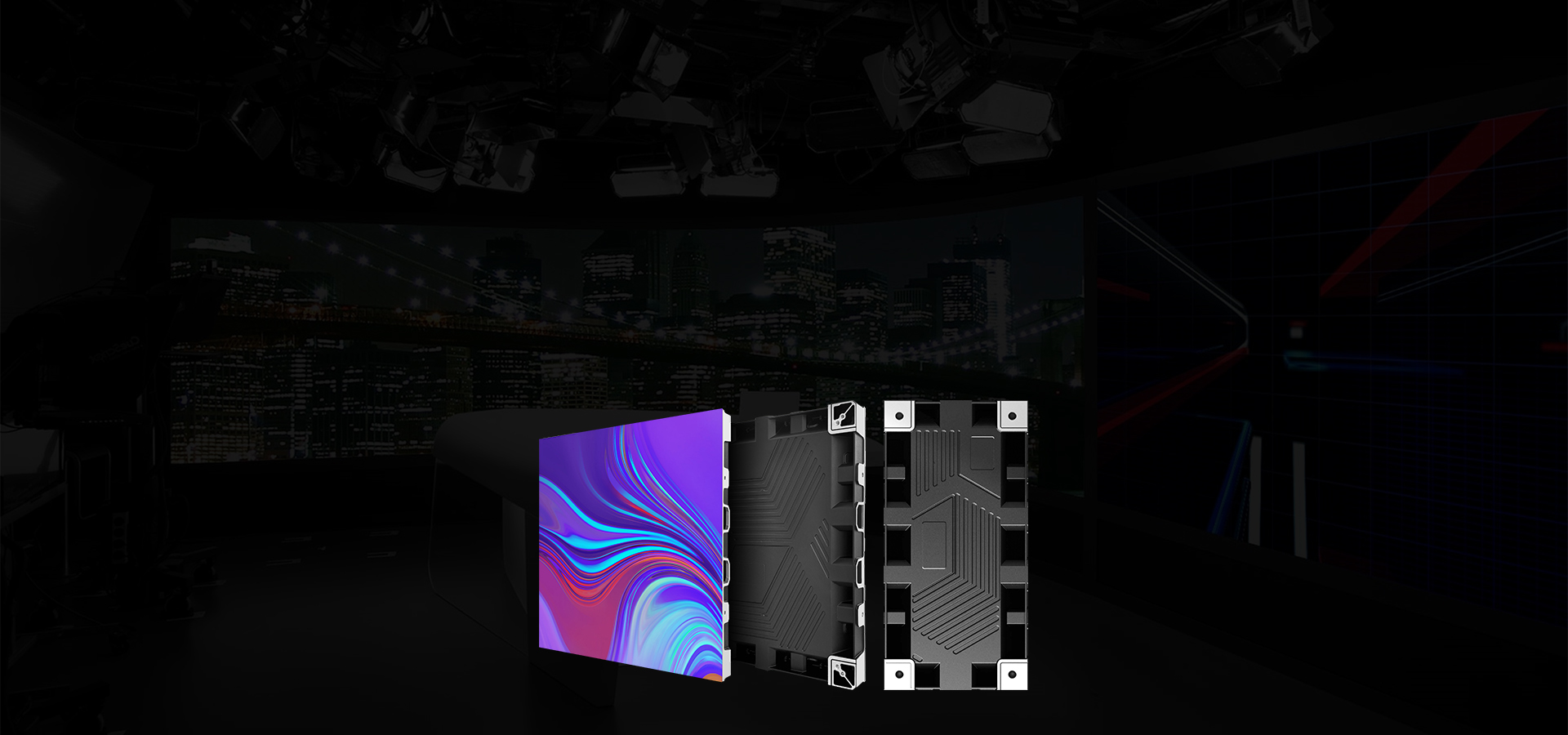

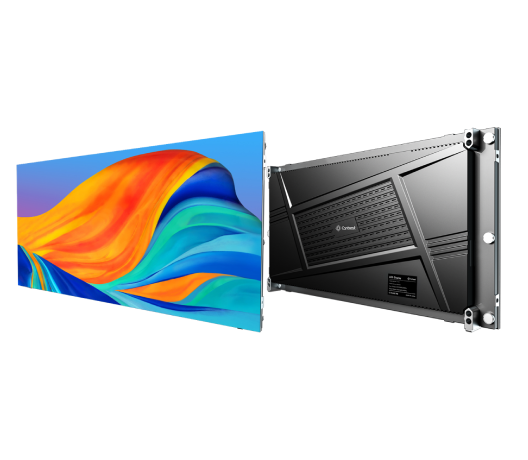

V Series COB Right-angle Indoor LED Video Wall



VIDEO

Strong Against External Impact

Canbest COB technology deliver comprehensive, all-around protection against external impacts, ensuring robust defense efficiently.

V Series COB

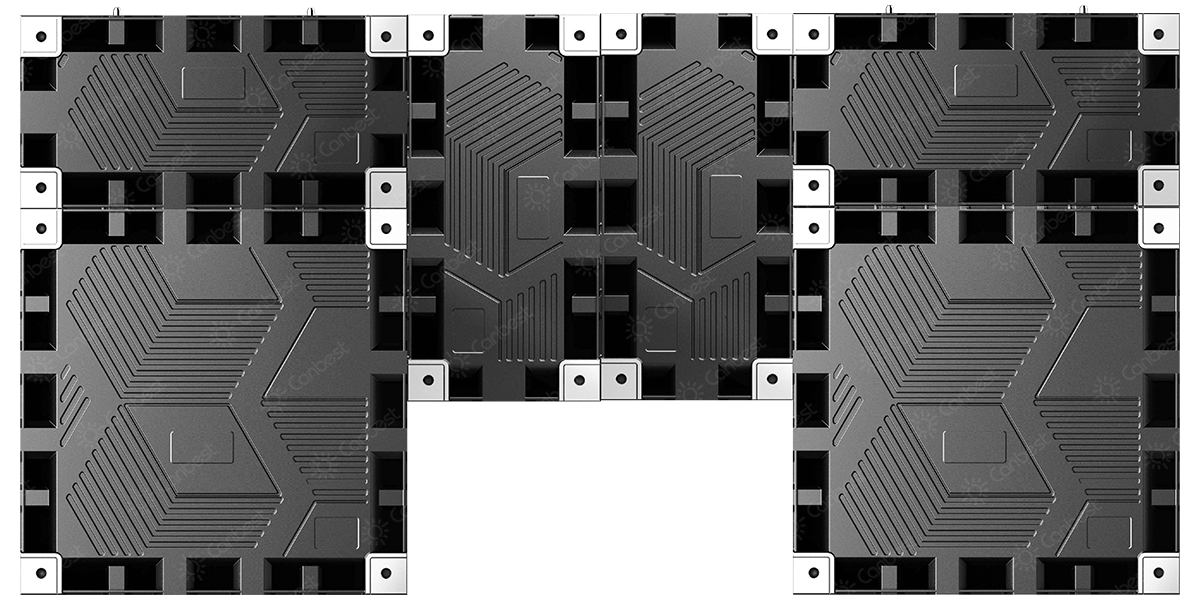

Flexible Splicing with Multiple Panel Size

500*500mm/500*250mm/250*500mm can assembly into different sizes and various shape .

V Series COB

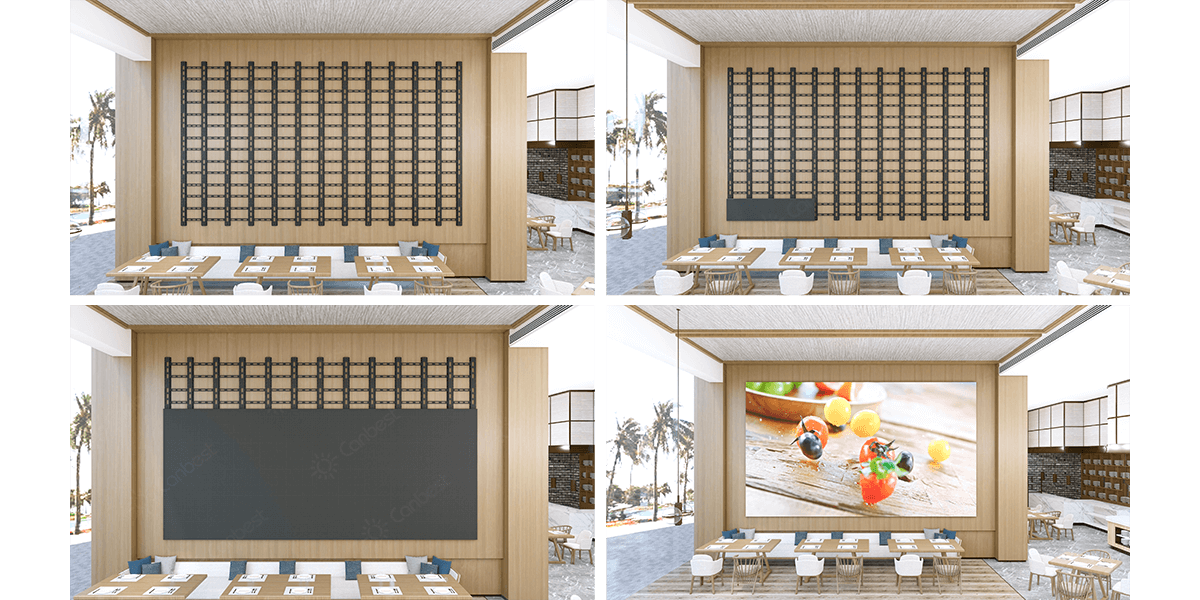

Complete Package Available

Ready-made brackets, ensuring the whole screen flat and seamless; Easy installation.

V Series COB

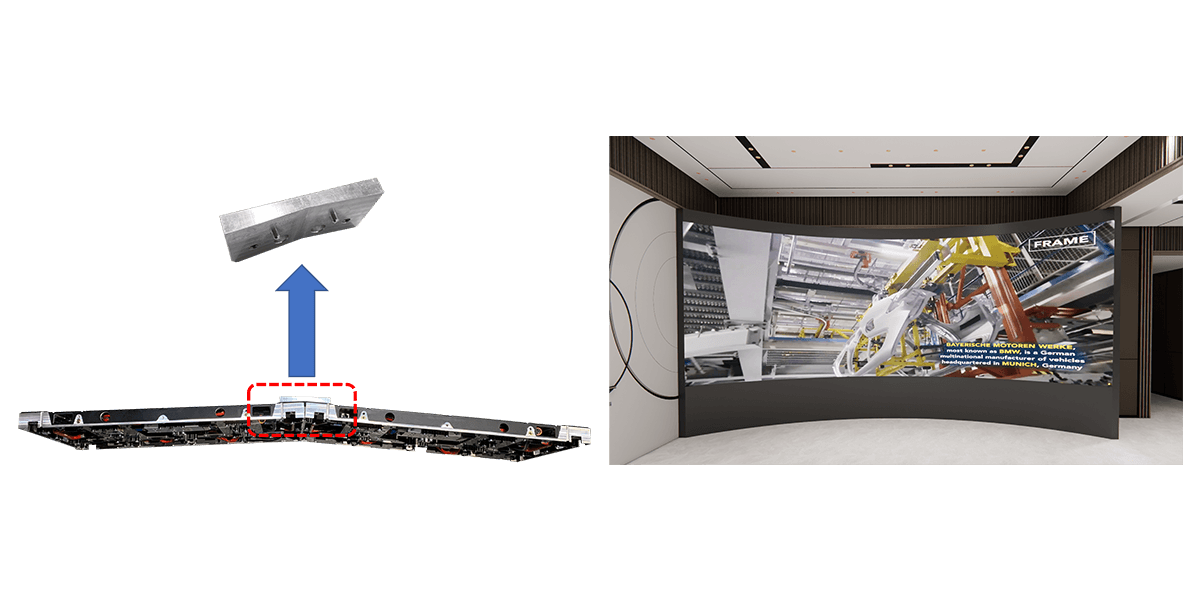

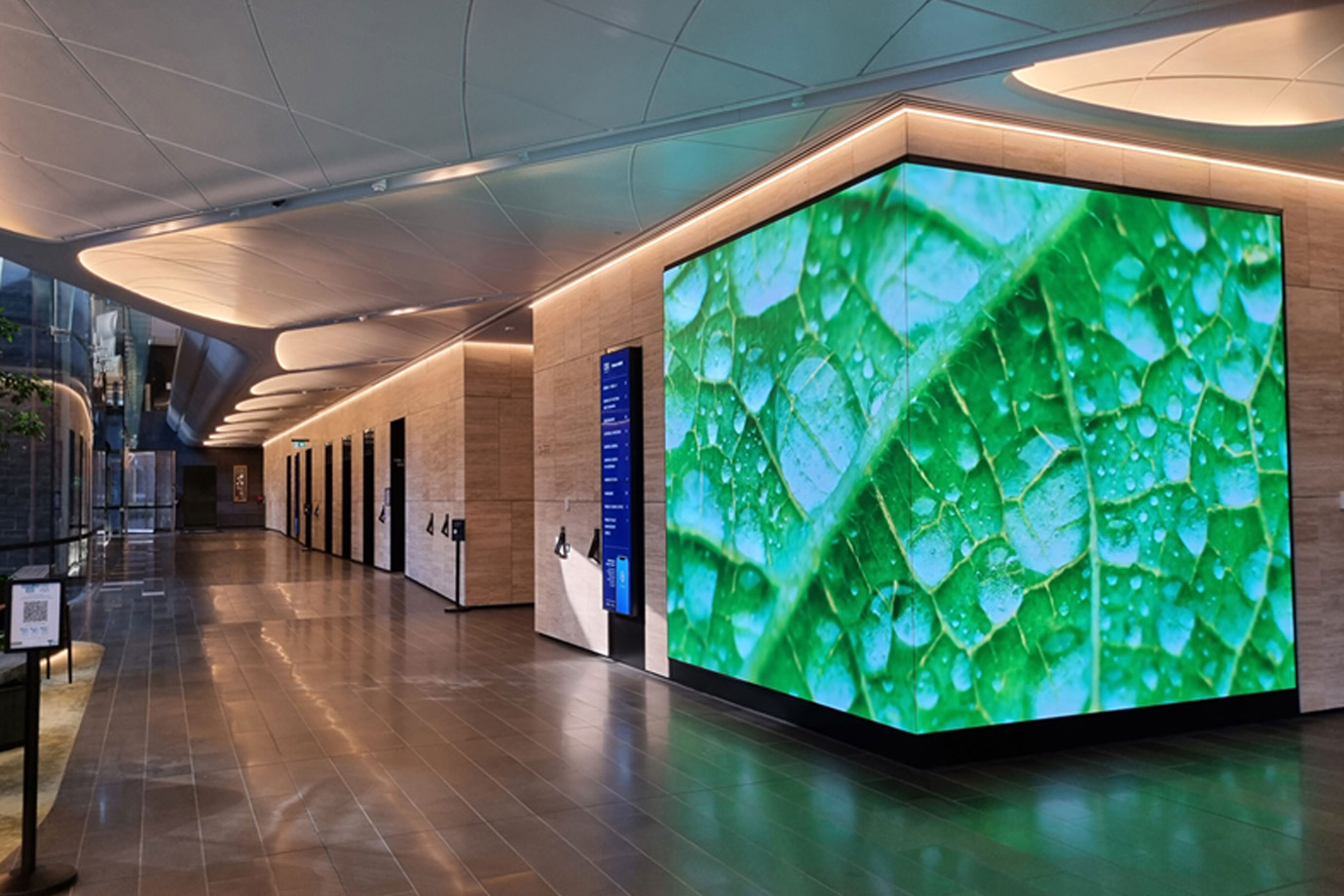

Right-angle Installations

Thanks to the die casting aluminum, the cabinet supports bevel shape, enabling various splicing methods such as right-angle and cube installations, creating more possibility of indoor applications.

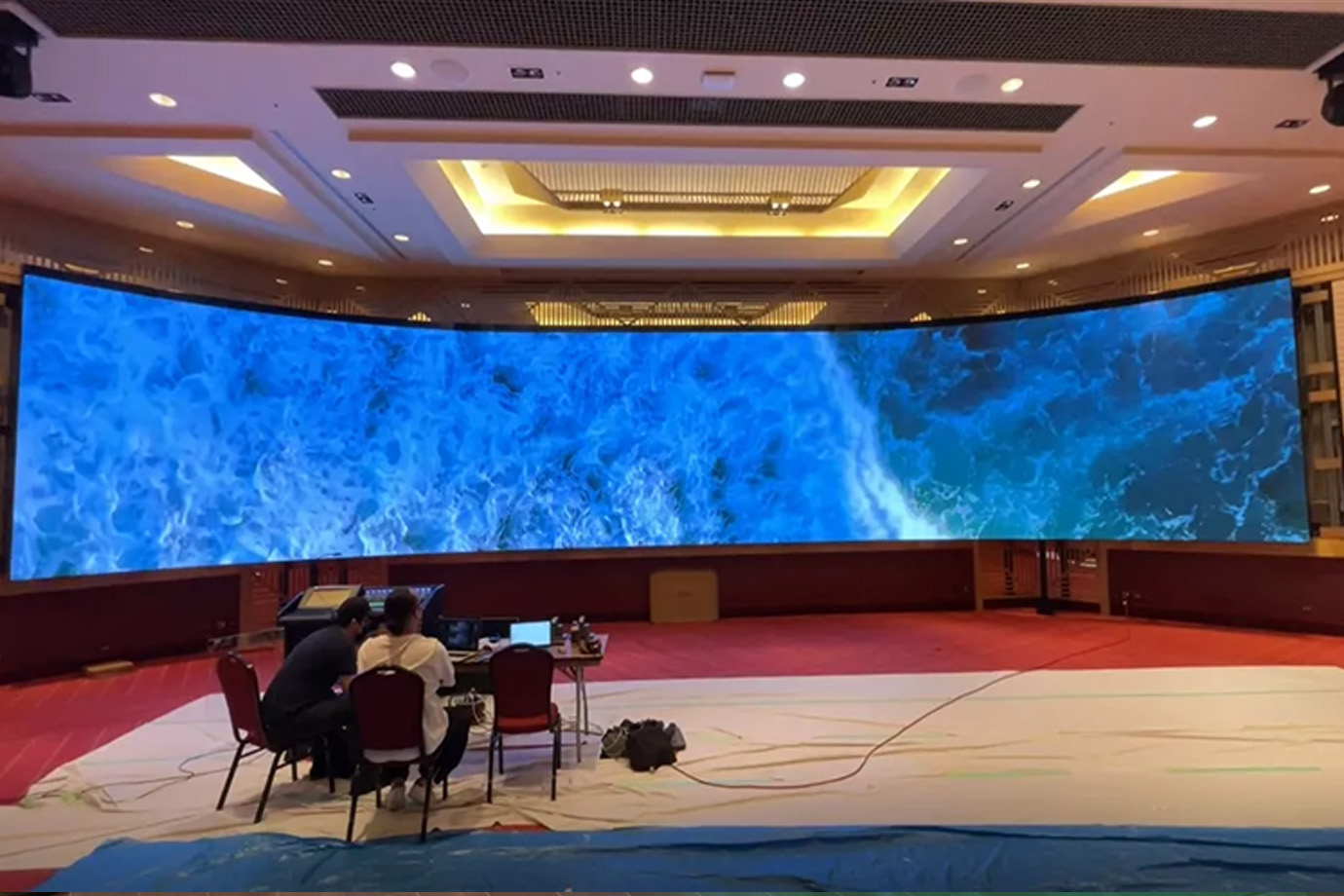

Curved Installation

Support up to 15°arc splicing connection

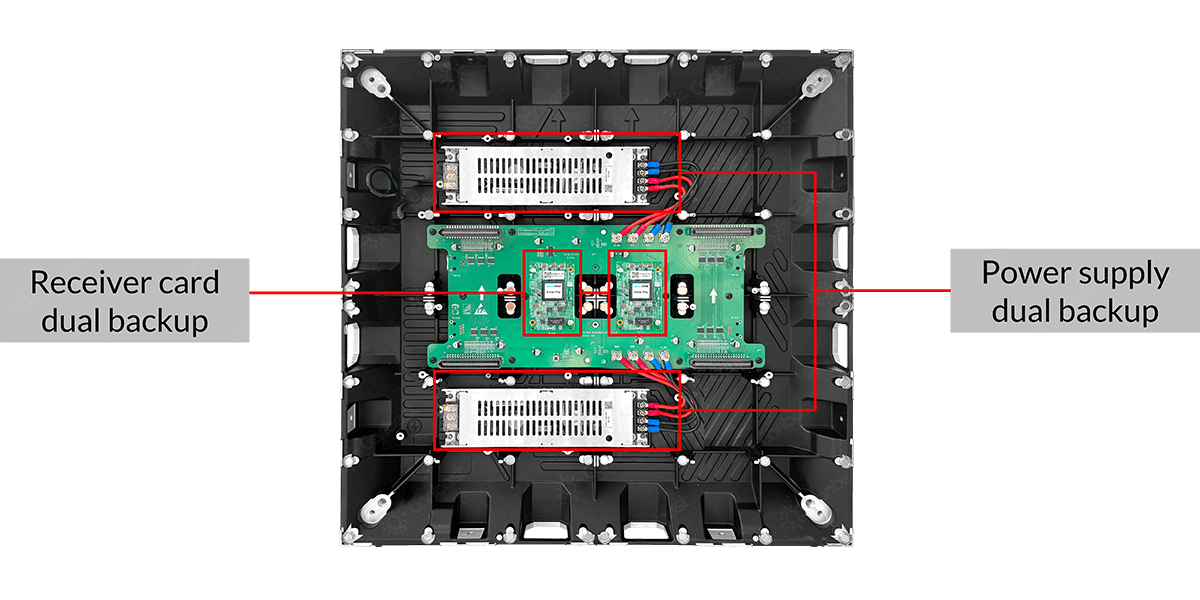

Dual Data and Power Backup Optional

Power and data redundancy optional ,trouble-free for important occasions ,safe and reliable

SPECIFICATIONS
Model V121 COB V151COB V191COB
Pixel Pitch (mm) 1.25mm 1.56mm 1.95mm
Brightness（nits） 500-700cd/㎡ 500-700cd/㎡ 500-700cd/㎡ | 2000cd/㎡
Refresh Rate（hz） ≥3840 ≥3840 ≥3840  | 7680Hz
Cabinet Size(mm) 500*500*50 500*500*50 500*500*50
Cabinet weight(kg) 6.5
Cabinet Material Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡ 460/210 460/210 460/210
Cabinet Resolution Pixels 400*400 320*320 256*256
Pixel Density Pixels(㎡) 640000 409600 262144
Maintenance Type Front
Note: For more product materials, please contact us directly.

DOWNlOAD

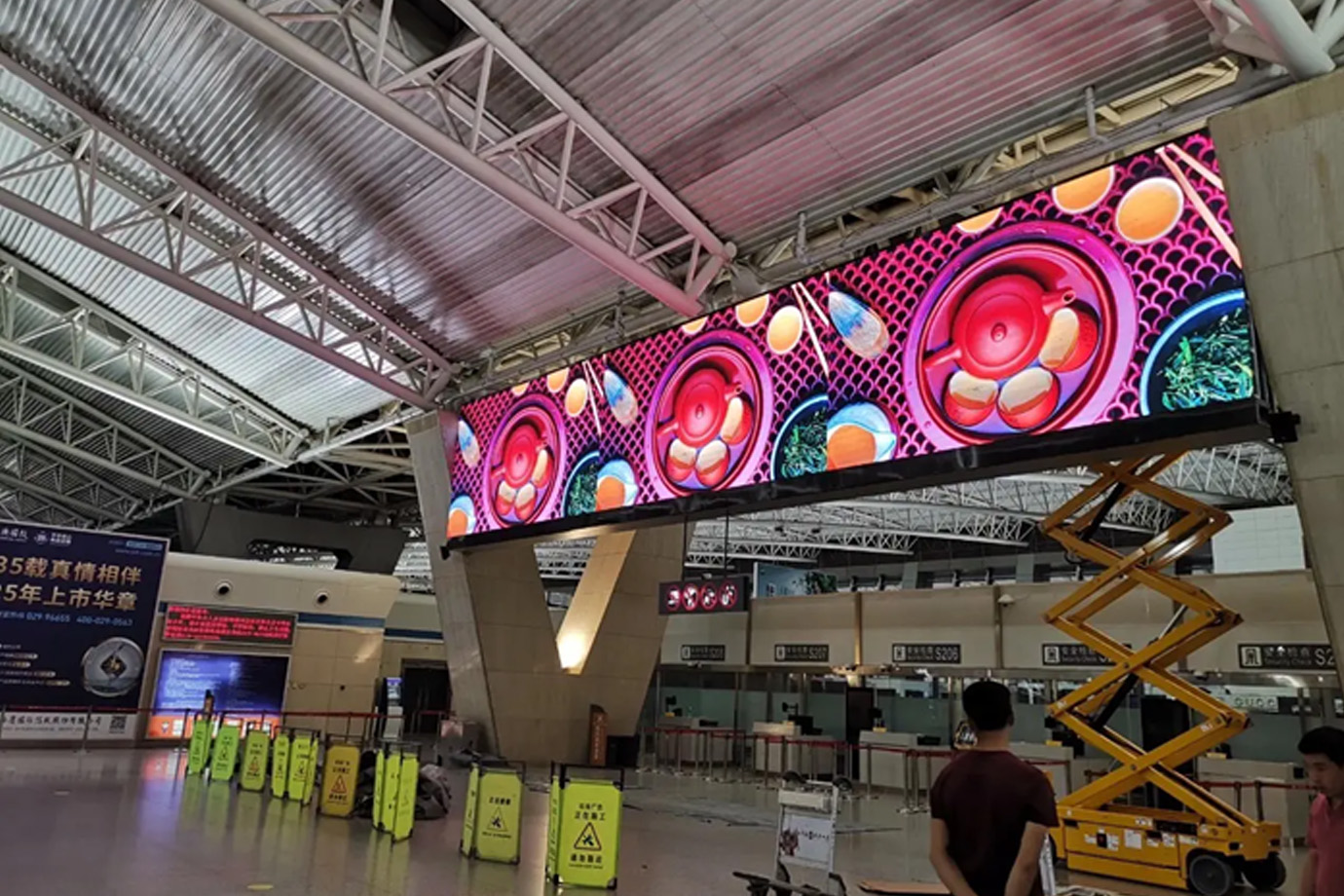

PRODUCT CASE
