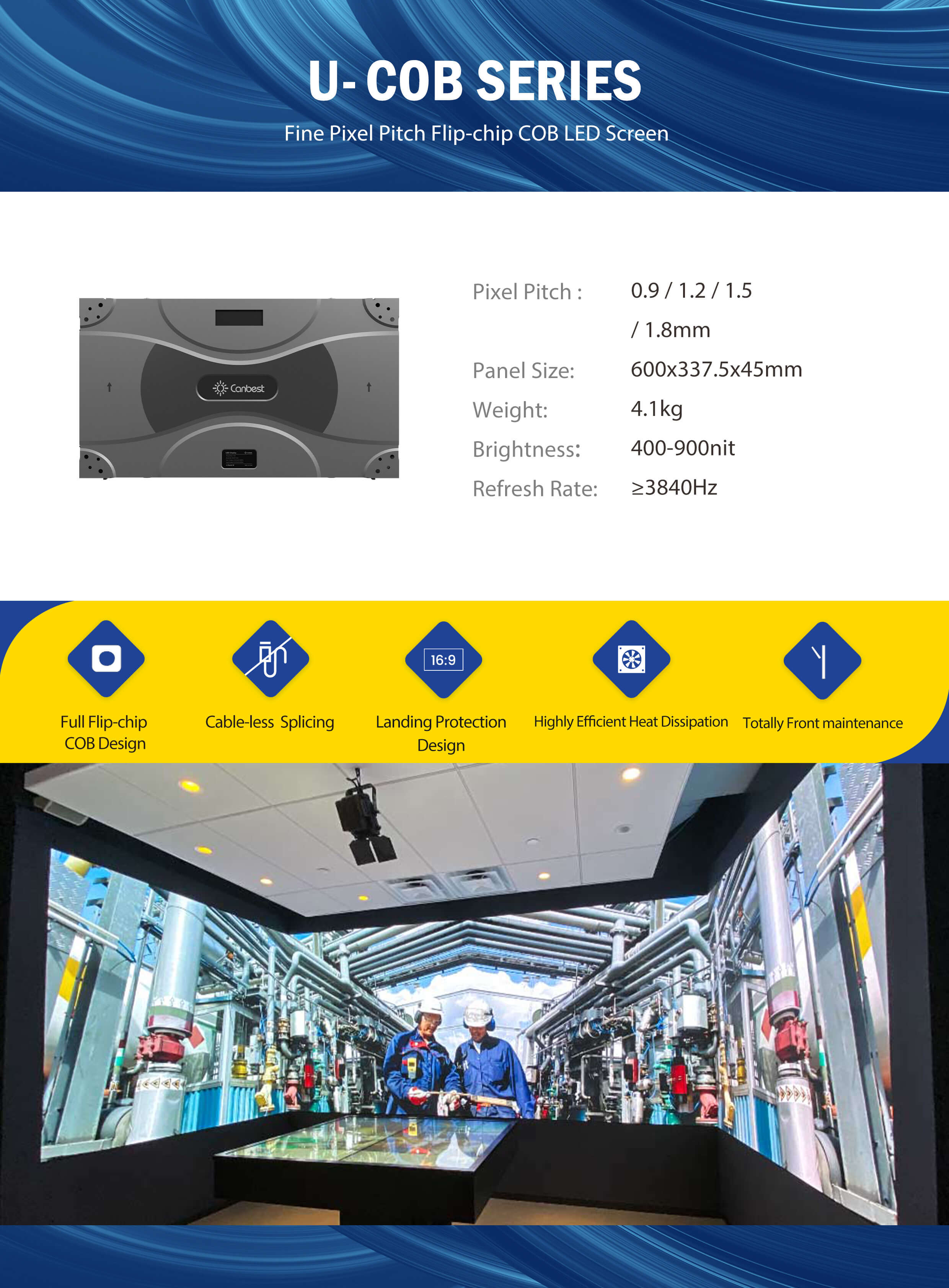

U-COB Series

U-COB Series

Cutting-edge Flip COB Fine Pitch LED Video Wall


VIDEO

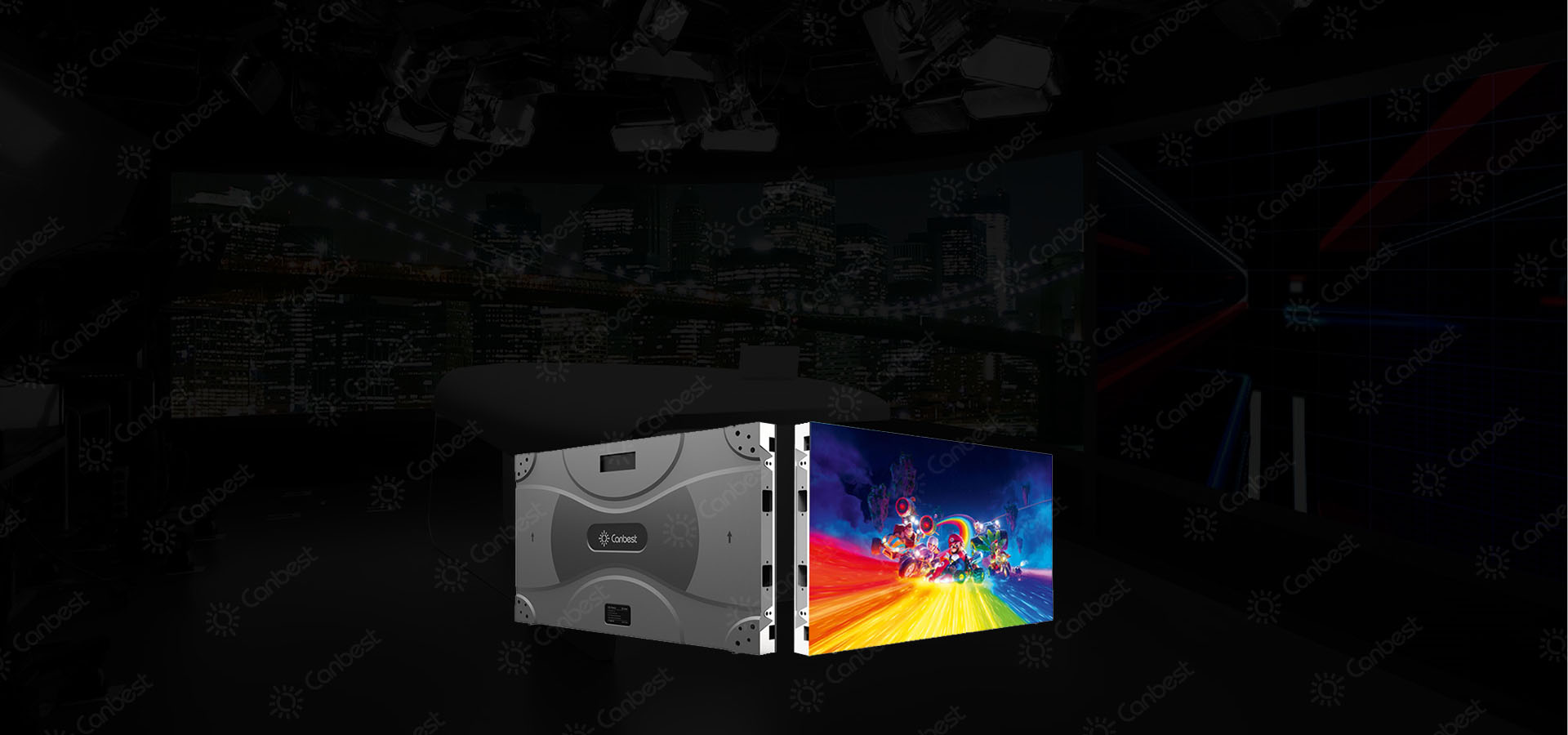

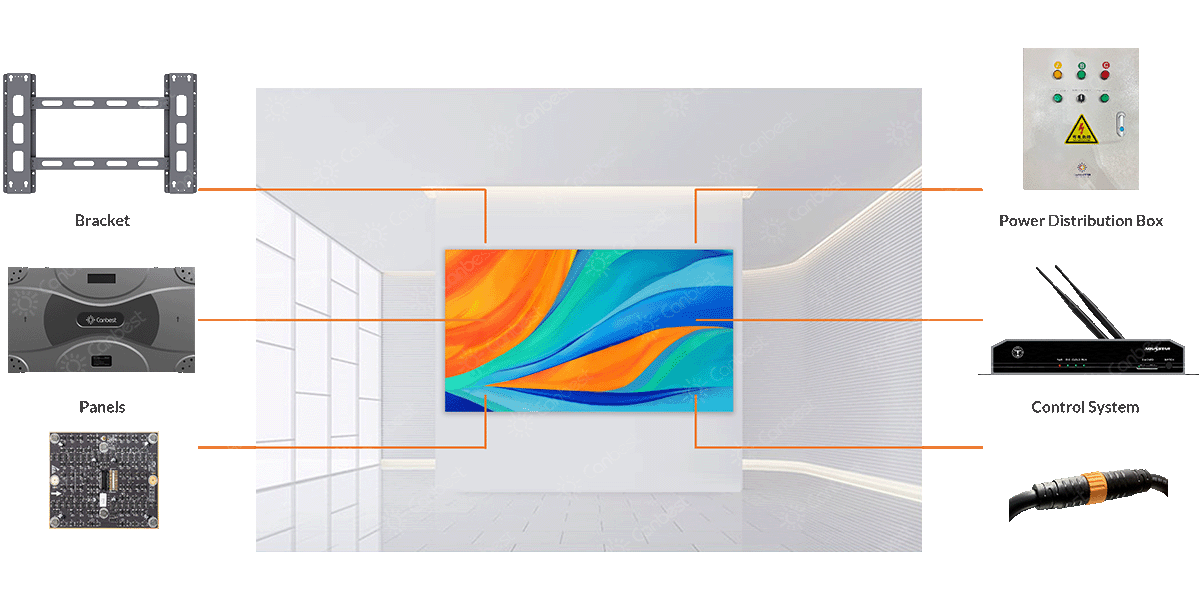

All-in-one Package
U-COB Series

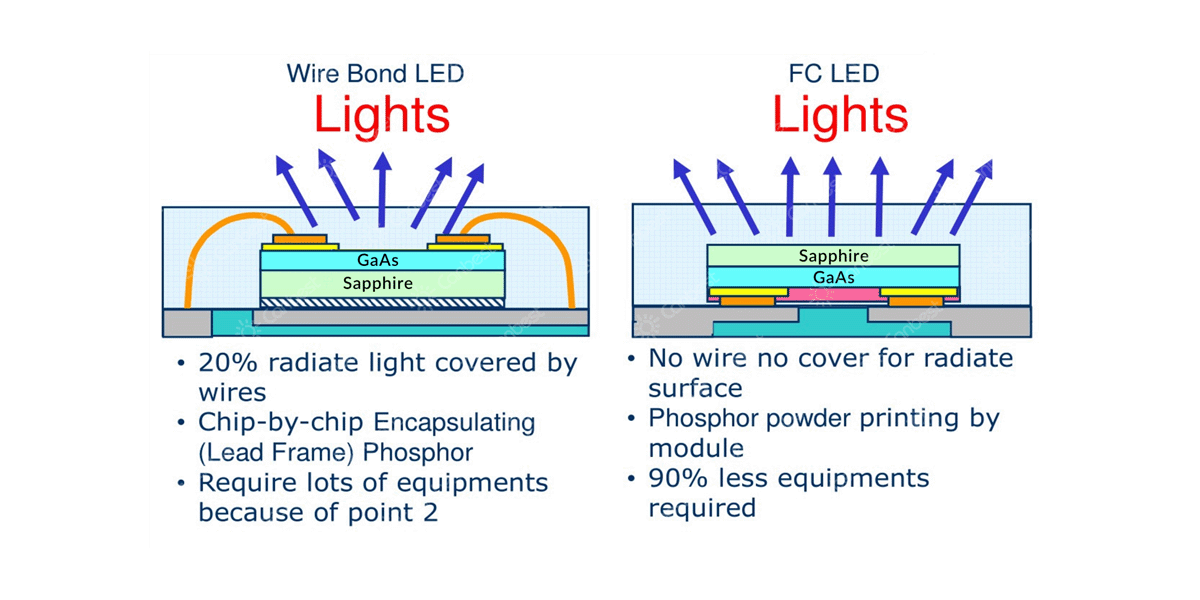

Full Flip-chip COB Design
U-COB Series
High Protection Package Technology

Can be cleaned directly with wet cloth, Completely solve the damage caused by bumps, impacts, moisture, salt spray corrosion, electrostatic breakdown etc.

U-COB Series

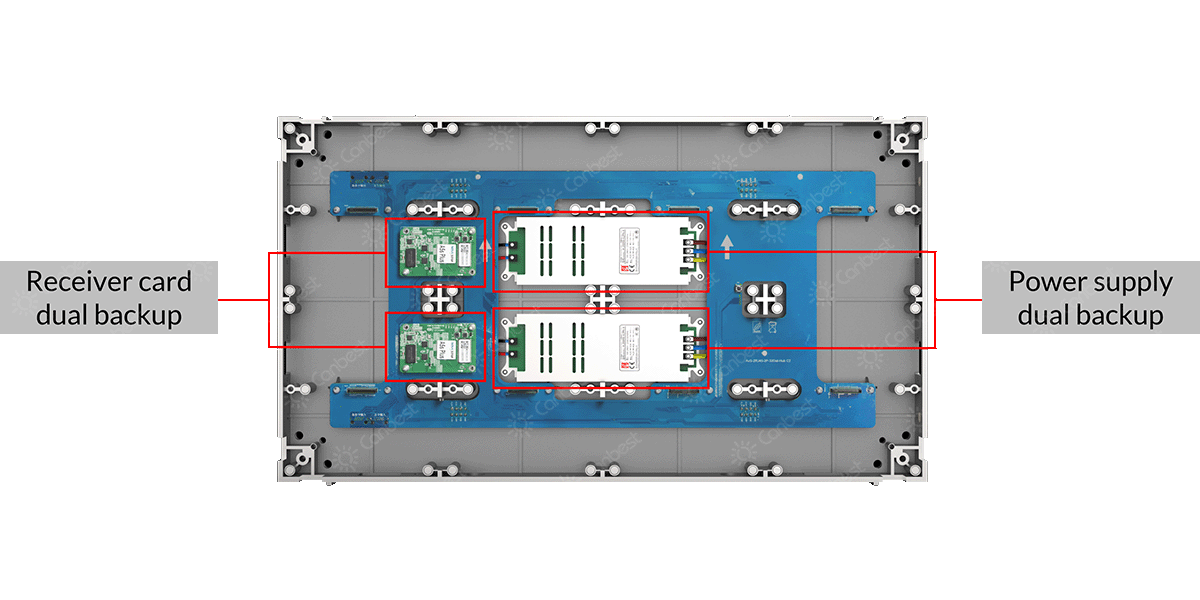

Dual Backup Optional

Ensure continuity of information transmission without power cut or data loss, suitable for important occasions to guarantee that the LED display works normally

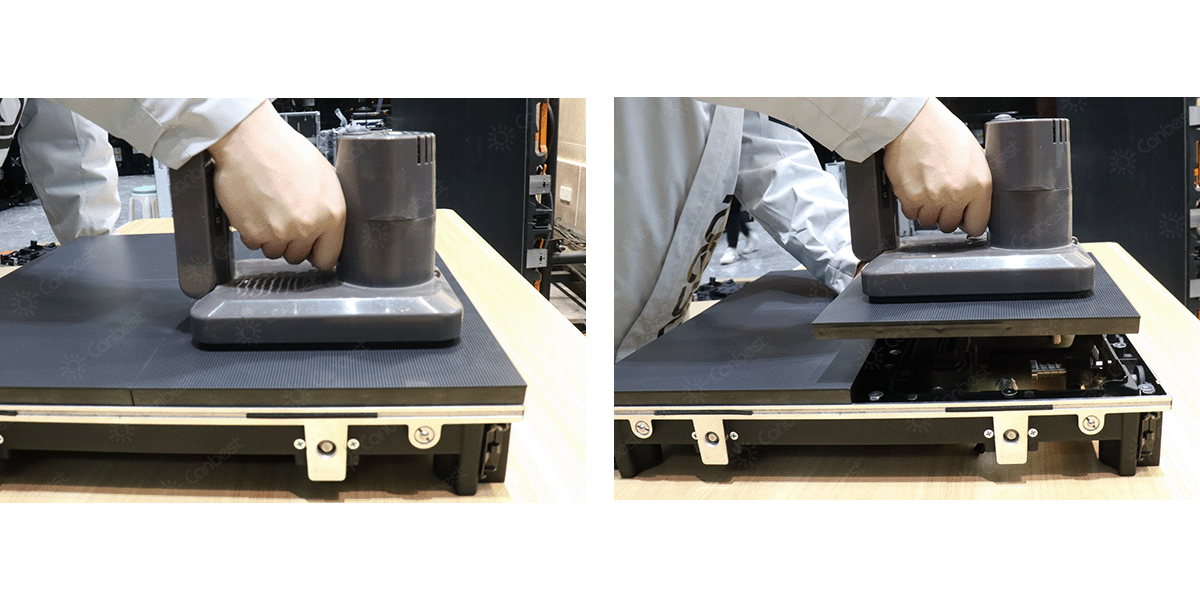

Front & Rear Access

Strong magnetic module design, front and rear installation and maintenance available , saving installation room and structure cost

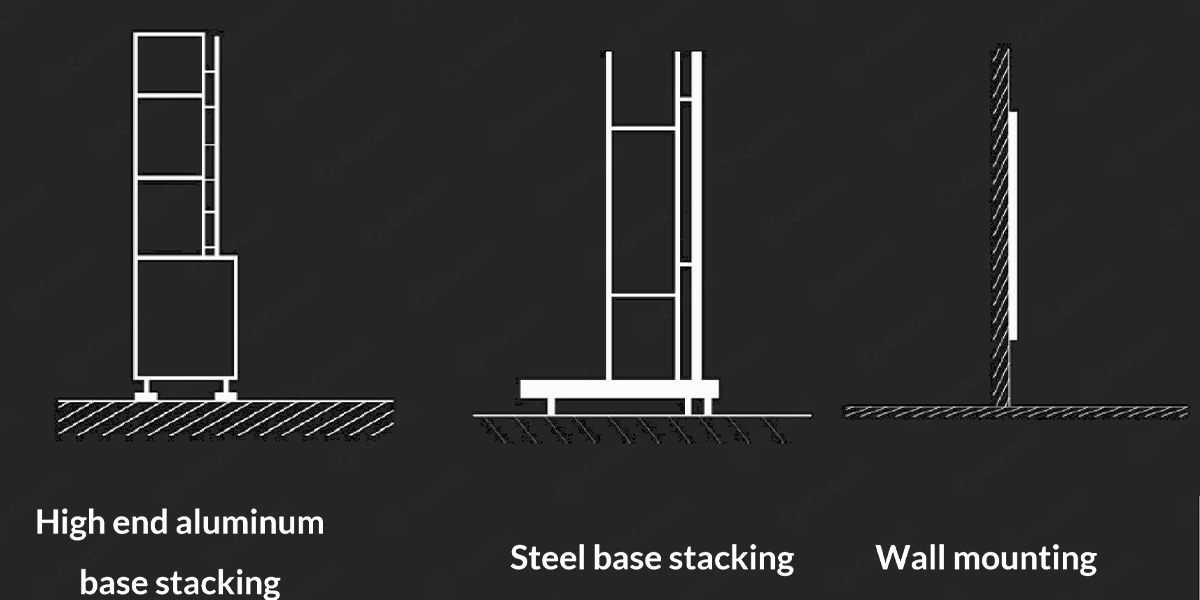

Multiple Installation
SPECIFICATIONS
Model U071-COB U091-COB U121-COB U151-COB U181-COB
Pixel Pitch (mm) 0.79mm 0.9375mm 1.25mm 1.56mm 1.875mm
Configurations FC COB FC COB FC COB FC COB FC COB
Refresh Rate(hz) 3840 3840 3840 3840 3840
Cabinet Size(mm) 600x337.5x50 600x337.5x50 600x337.5x50 600x337.5x50 600x337.5x50
Cabinet Material Die casting aluminum Die casting aluminum Die casting aluminum Die casting aluminum Die casting aluminum
Power Consumption(Max/Aver.)w/㎡ 300/100 300/100 300/100 300/100 300/100
Brightness (nits) 450nit 450nit 450nit 450nit 600nit
Pixel Density Pixels(㎡) 1602300 1137777 640000 409600 284444
Maintenance Type front  front  front  front  front
Note: For more product materials, please contact us directly.

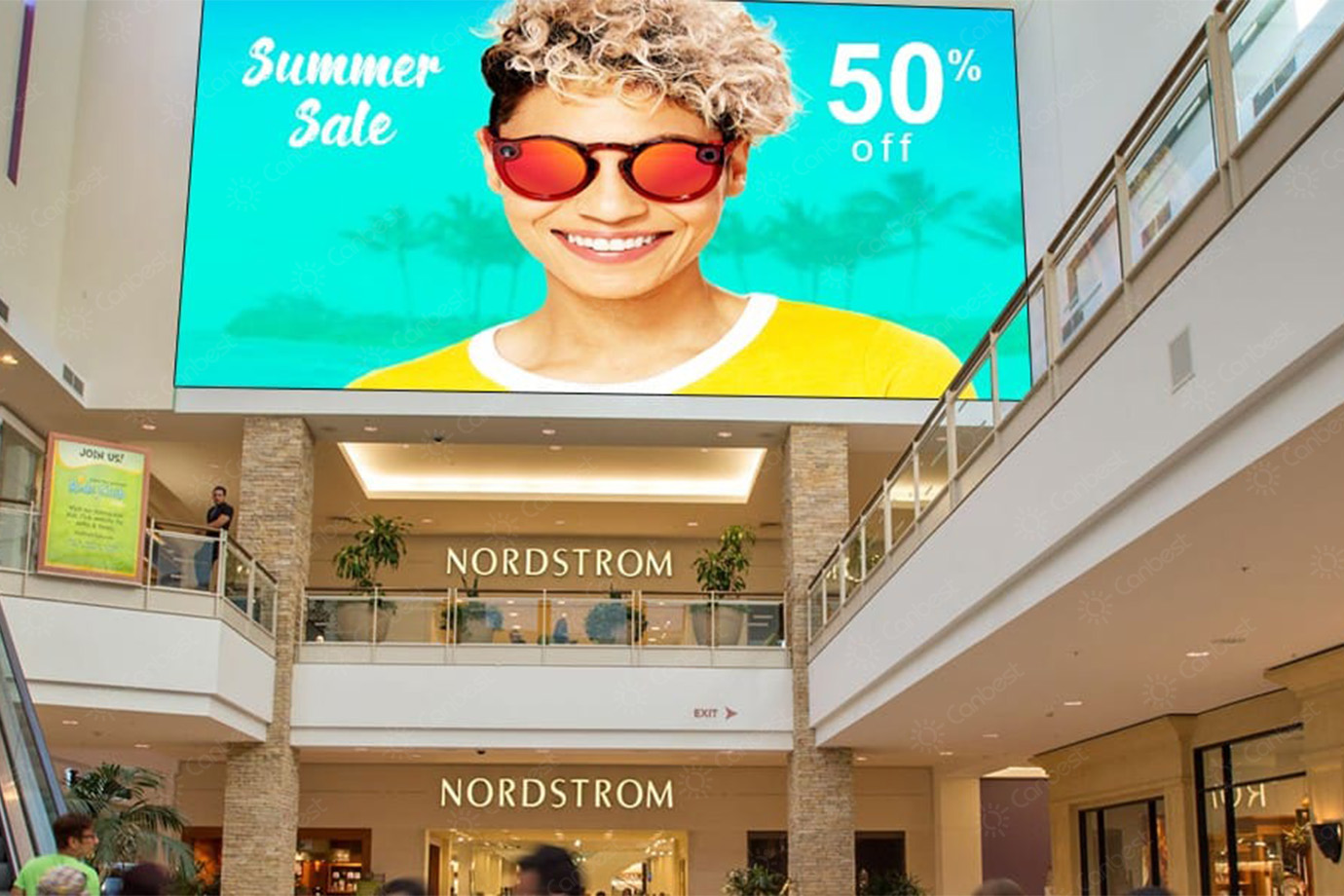

PRODUCT CASE
