U Series

U Series

Commercial 16:9 Cable-less Indoor LED Video Wall


VIDEO

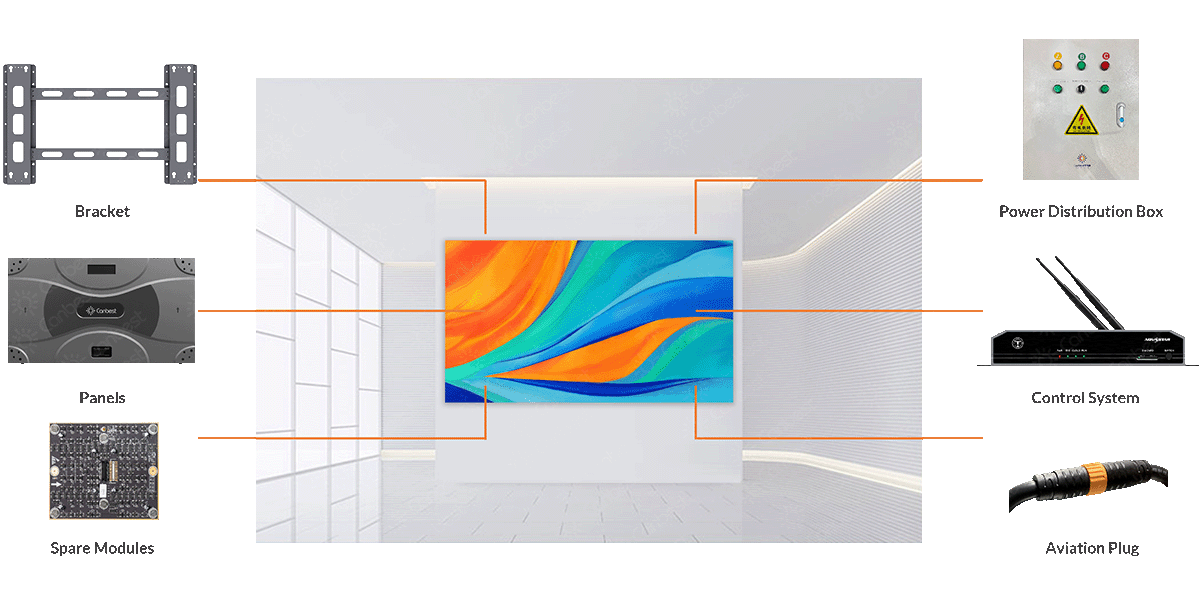

All in One Package
U Series
16:9 Golden Ratio

Standard 27.5inch Size FHD, 4K Pixel to Pixel Resolutions

U Series

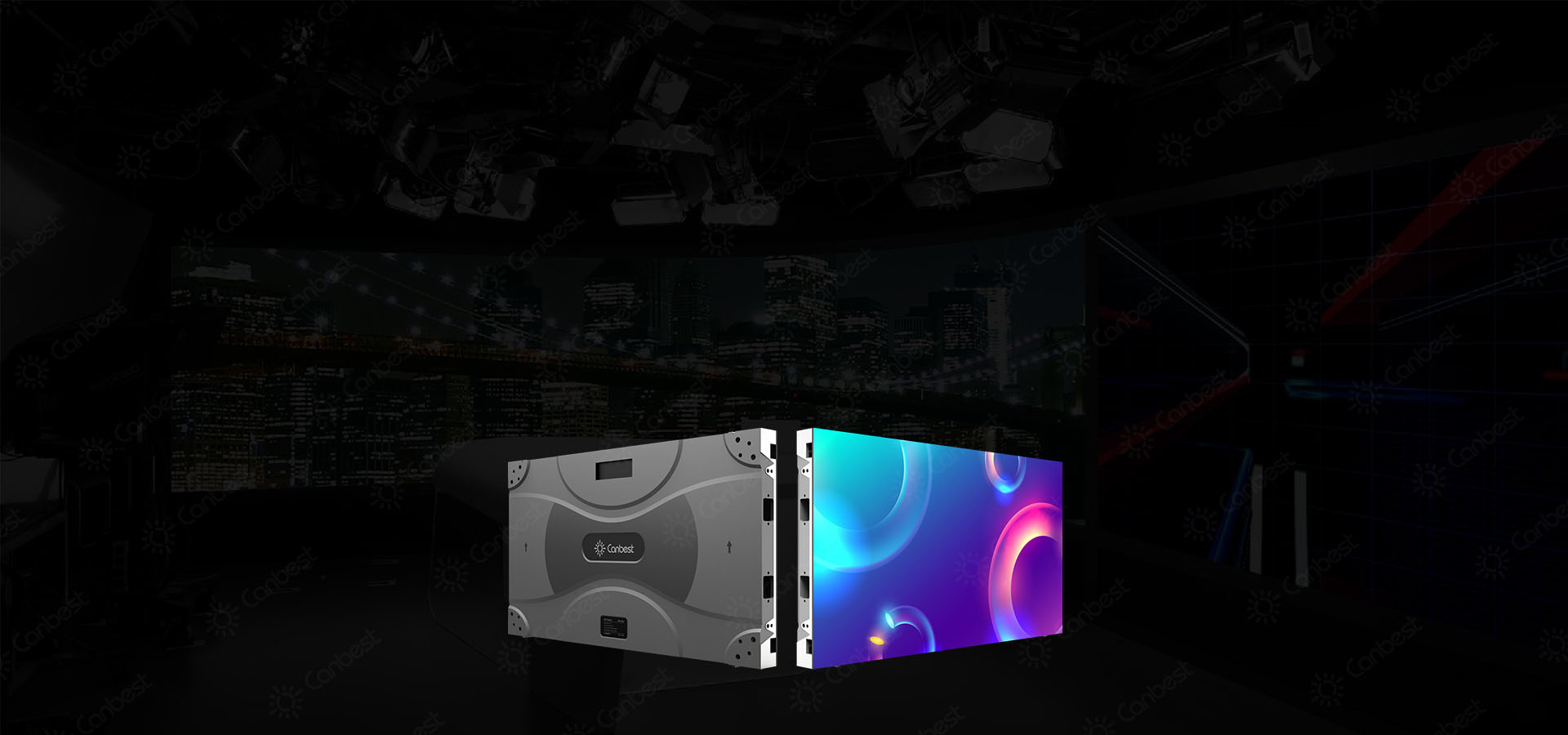

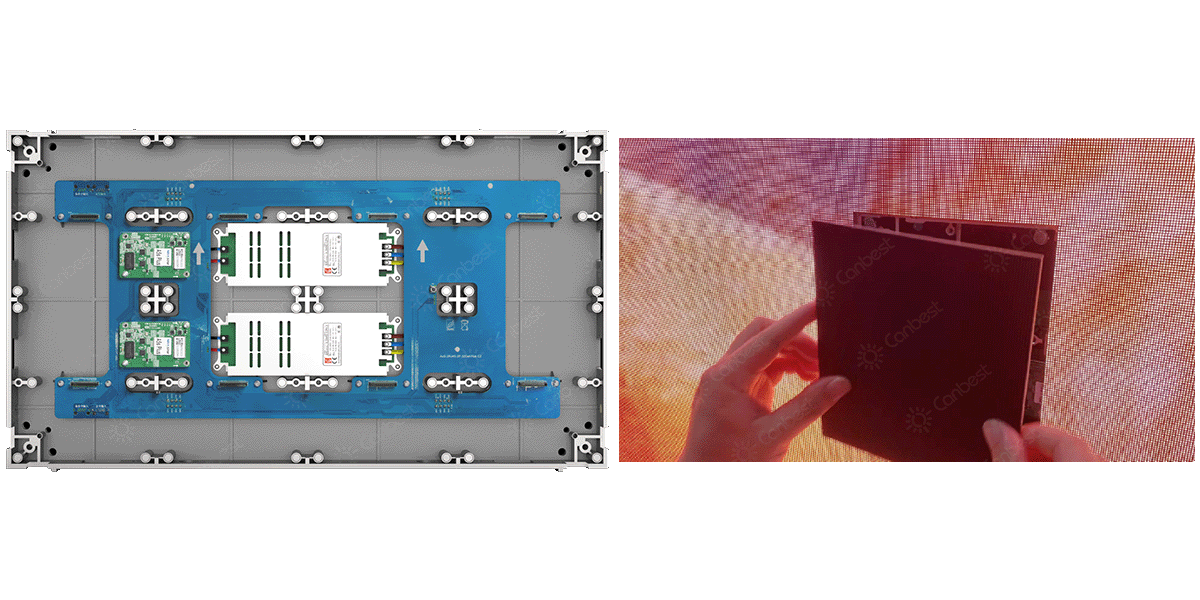

Cable-less Splicing

Cableless connection between module and cabinets, support front and rear maintenance and cableless installation.

U Series

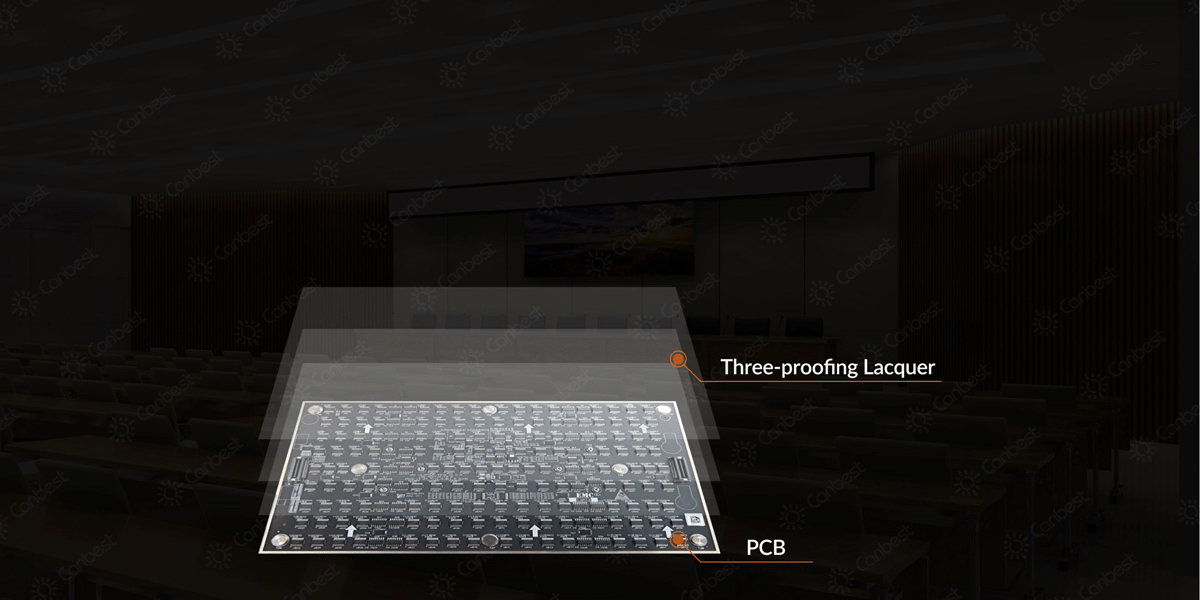

Dust-proof, Moisture-proof, Corrosion-proof

The surface of PCB is painted with three-proofing lacquer, which can form a protective film, dust-proof,
moisture-proof, corrosion-proof, and protect PCB from malfunction, prolong its lifespan

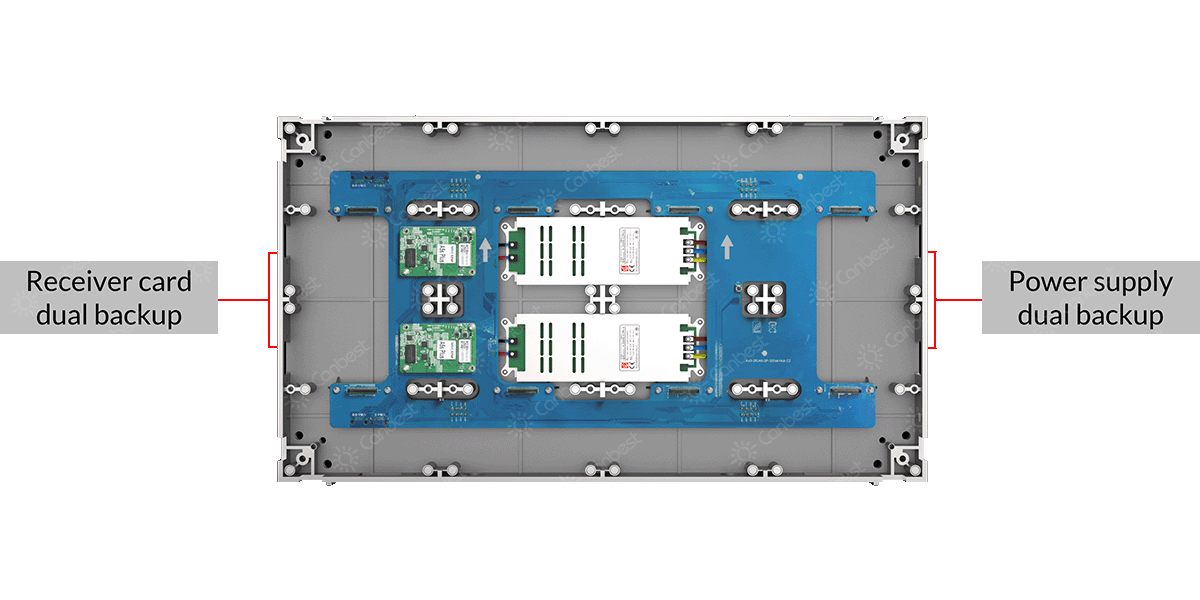

Dual Backup Optional

Suitable for important occasions to ensure that the LED display works normally

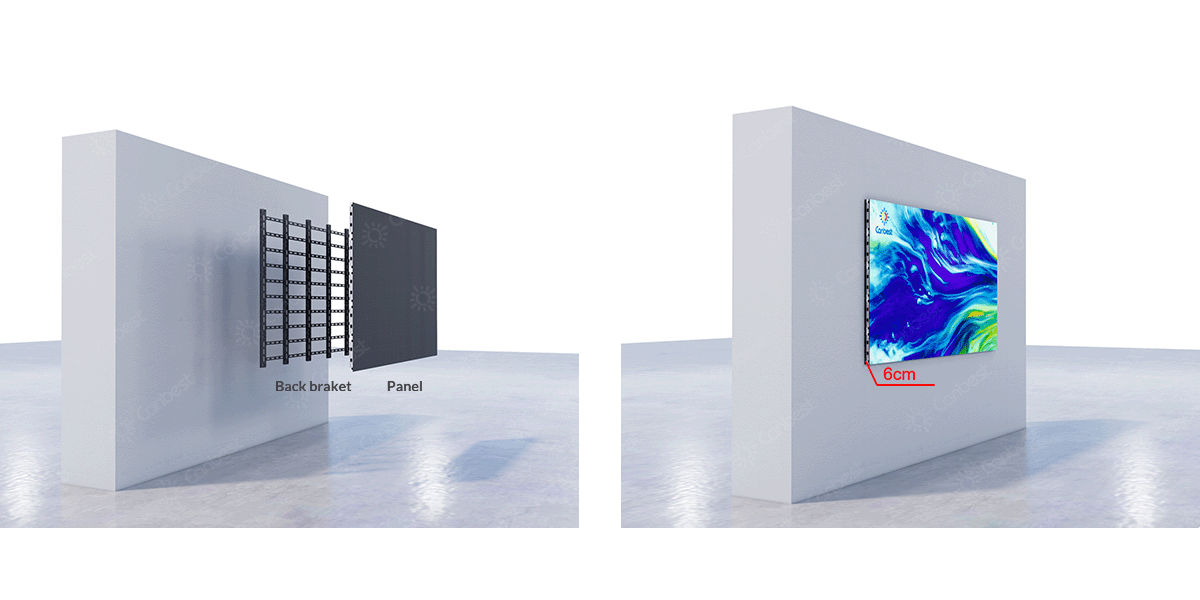

Flat Wall Mounted

The whole screen will be ultra thin about 6cm after installation

SPECIFICATIONS
Model U121 U151 U181 U251
Pixel Pitch (mm) 1.25mm 1.56mm 1.875mm 2.5mm
Configurations SMD1010 SMD1212 SMD1515 SMD1515
Refresh Rate(hz) 3840 3840 3840 3840
Cabinet Size(mm) 600x337.5x44 600x337.5x44 600x337.5x44 600x337.5x44
Cabinet Material Die casting aluminum Die casting aluminum Die casting aluminum Die casting aluminum
Power Consumption(Max/Aver.)w/㎡ 600/200 600/175 600/220 550/220
Brightness (nits) 450nit 450nit 600nit 900nit
Pixel Density Pixels(㎡) 640000 409600 284444 40000
Maintenance Type front  front  front  front
Note: For more product materials, please contact us directly.

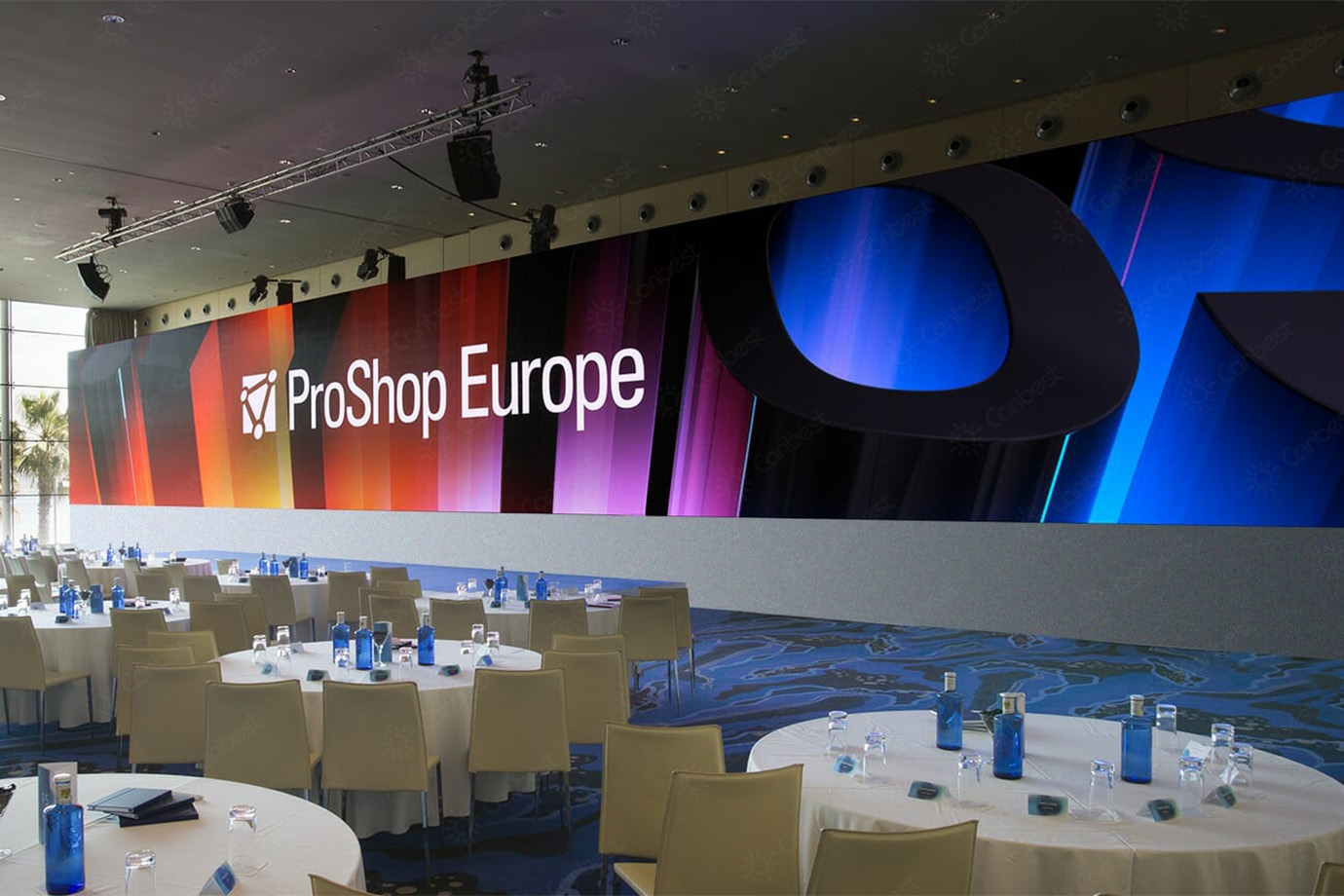

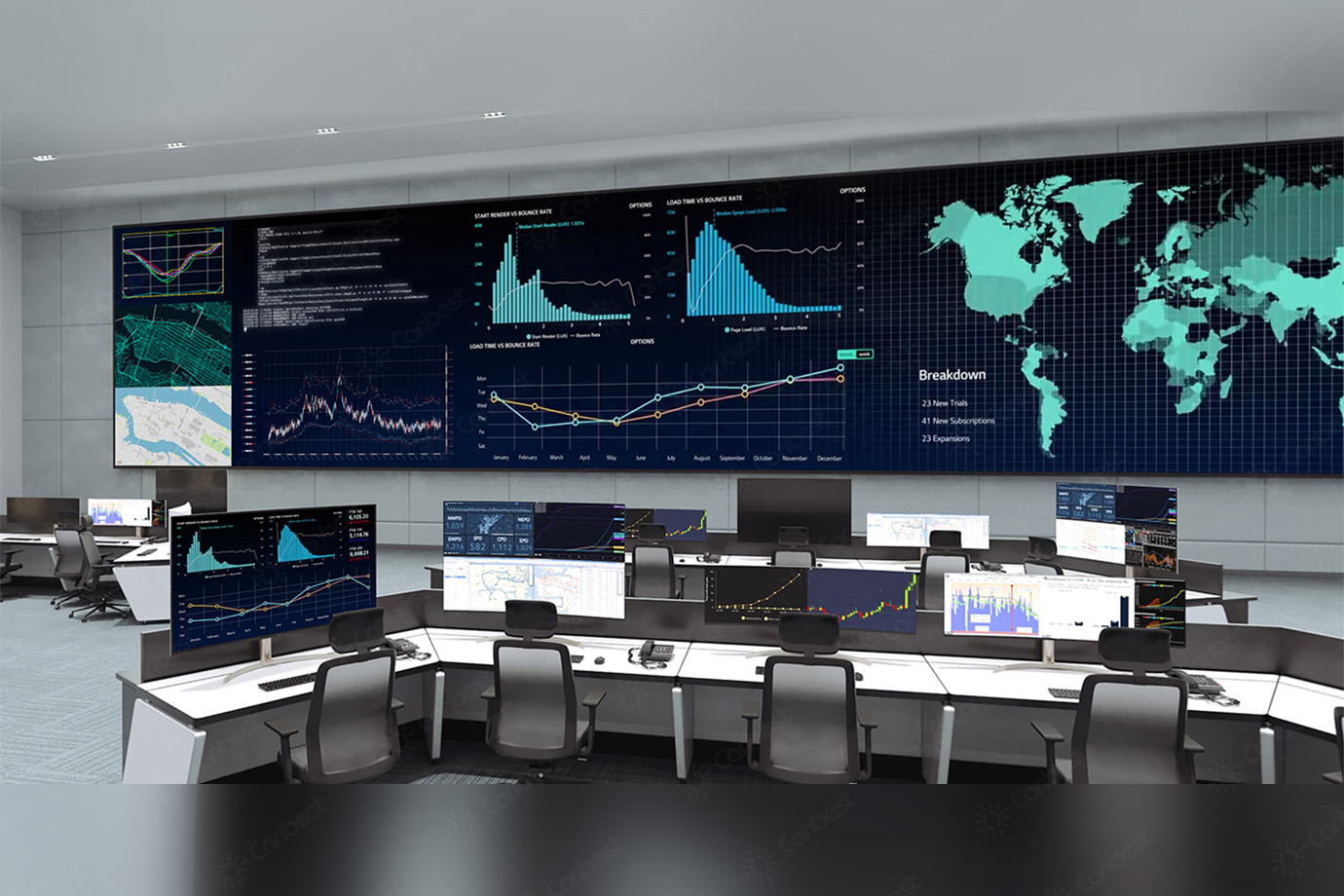

PRODUCT CASE
