F Series

VIDEO

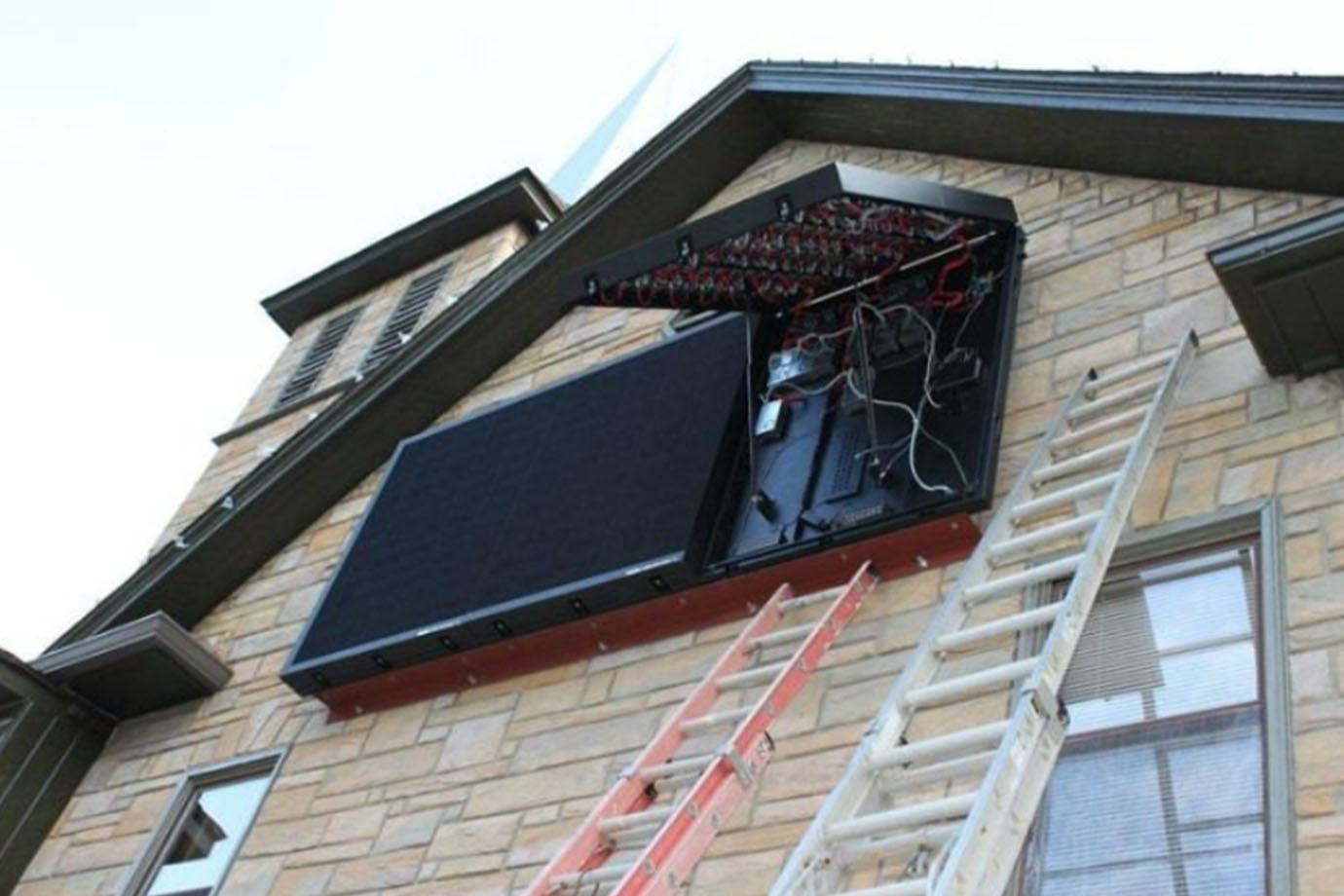

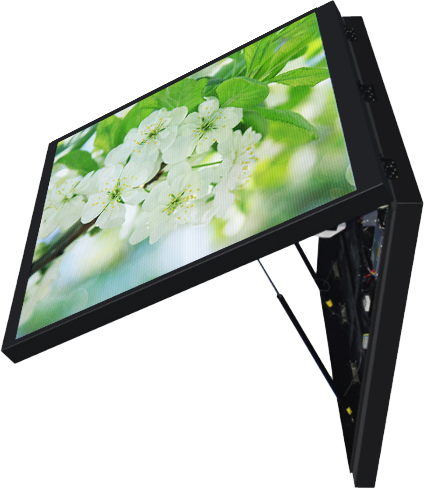

All the accessories including module, power and cables can be removed from front easily, reducing operating cost.

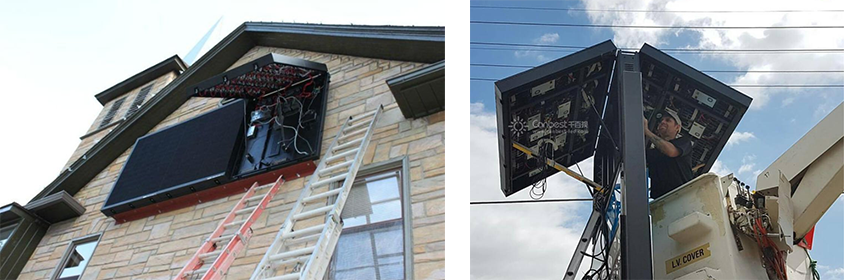

There will be single front open and double-sided for options. Single one mainly for wall mounted, and double sided is best for billboard on poles.

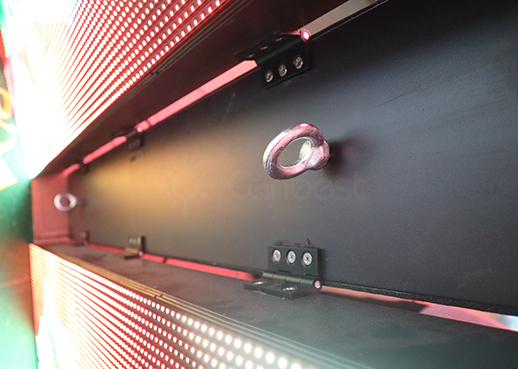

Reinforcing rib additional design to greatly improve the loading capacity .

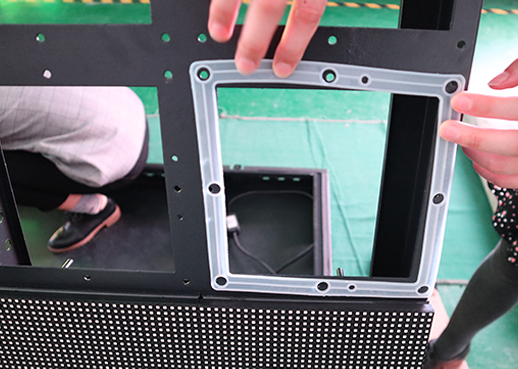

Special treatment of protection rating with IP65/IP54, fully waterproof panel.

R/GB lamps get powered respectively, together with energy-saving ICs ,saving about 30% energy

P4 and p5 are recommended with more pixel density per sqm with outstanding image quality. Stunning full color video screens with high resolution.

Model	F4 (P4)	F5(P5)
Pixel Pitch (mm)	4	5
Brightness（nits）	5500	5500
Refresh Rate（hz）	≥1920	≥1920
Cabinet Size(mm)	1280*960
Cabinet weight(kg)	60
Cabinet Material	Iron
Power Consumption(Max/Aver.)w/㎡	620/220	620/220
Cabinet Resolution Pixels	320*240	256*192
Pixel Density Pixels(㎡)	62500	40000
Maintenance Type	Front
Note: For more product materials, please contact us directly.
